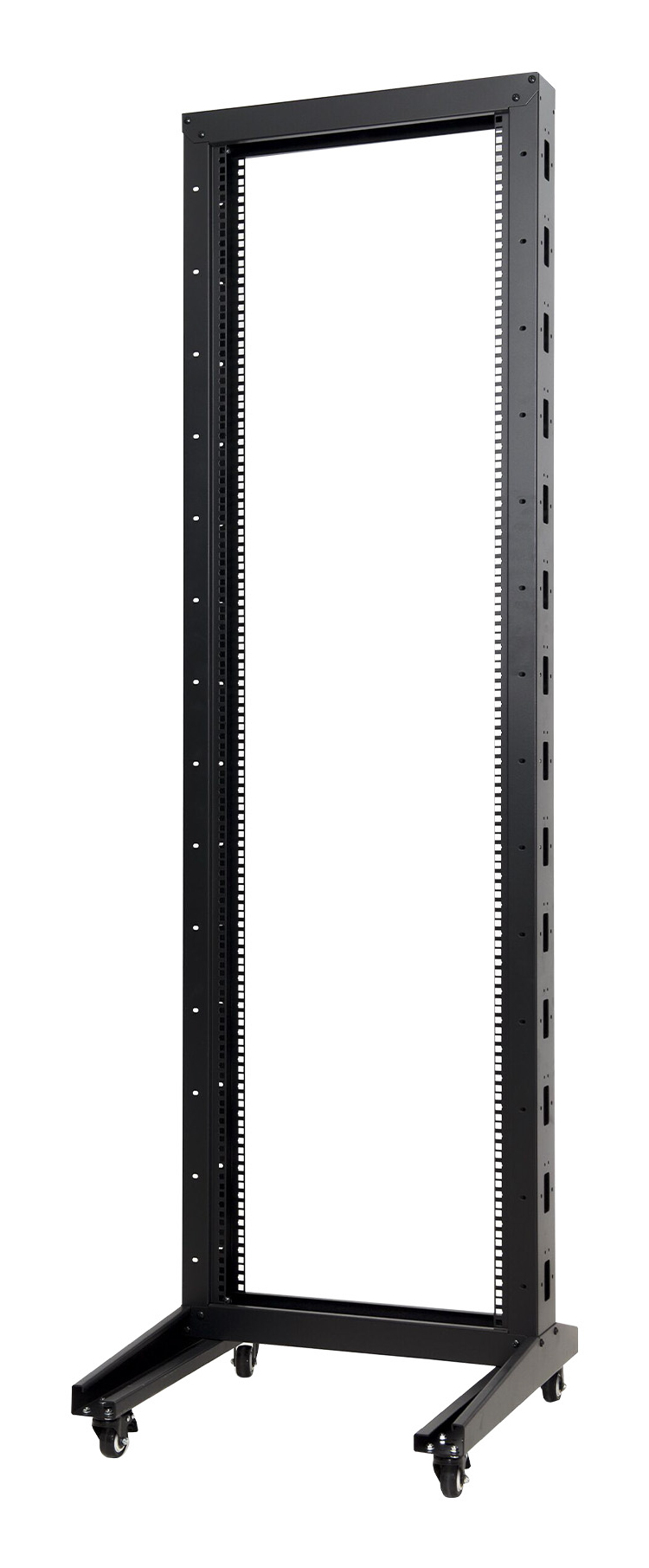

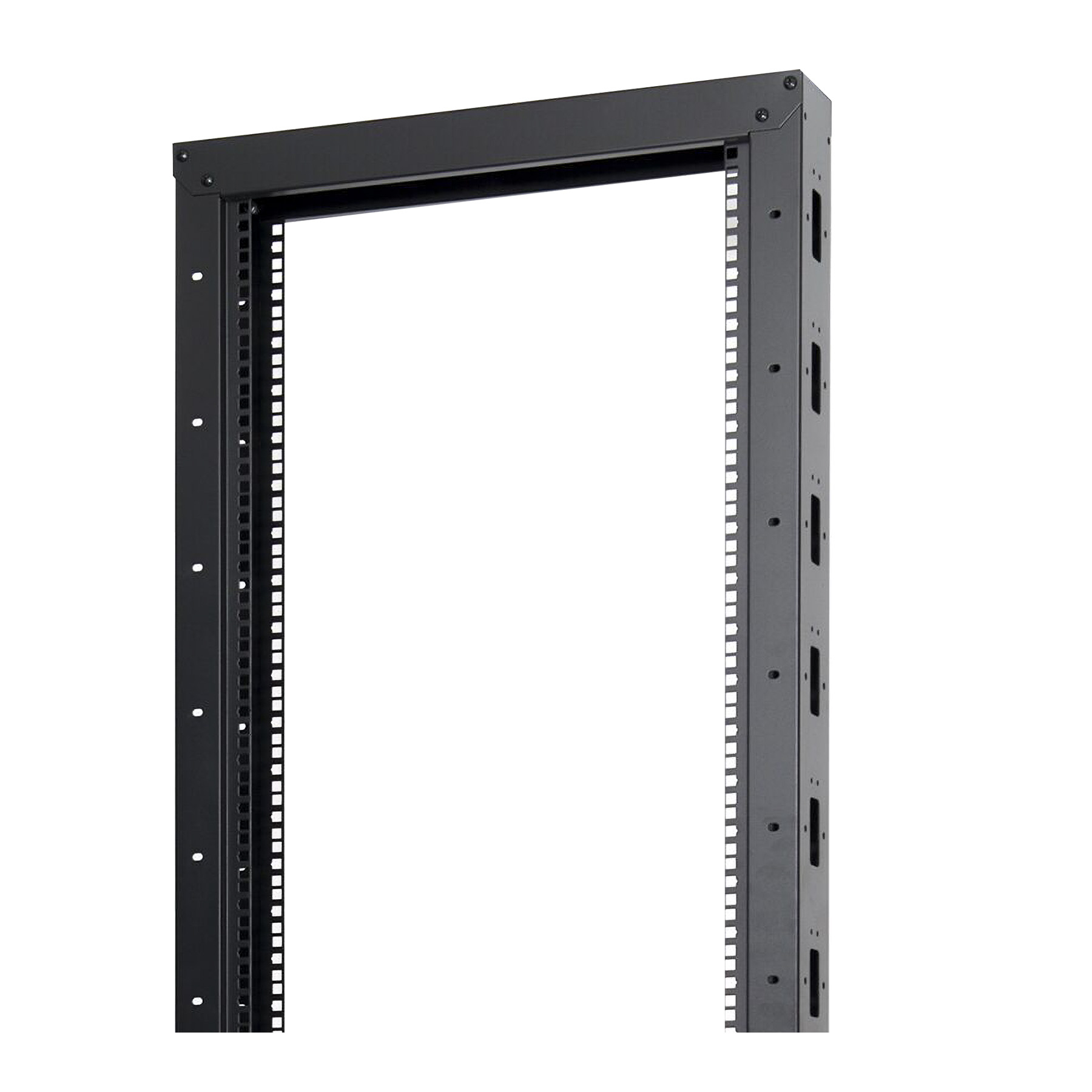

F80.66.22OF rack cabinet 22U Floor mounted rack Black
Model F80.66.22OFEAN 8436617921742
18 specifications
- TypeFloor mounted rack
- Weight15 kg
- ColourBlack
- Rack capacity22U
- Width600 mm
Overview
- Type
- Floor mounted rack
- Weight
- 15 kg
- Colour
- Black
- Rack capacity
- 22U
- Width
- 600 mm
- Brand
- aiten data
- Category
- Rack Cabinet
- Model
- F80.66.22OF
- Part number
- F80.66.22OF
- EAN / UPC
- 8436617921742
- Also known as
- aiten data F80.66.22OF rack cabinet 22U Floor mounted rack Black
Specifications
18 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 22U |
| Type | Floor mounted rack |

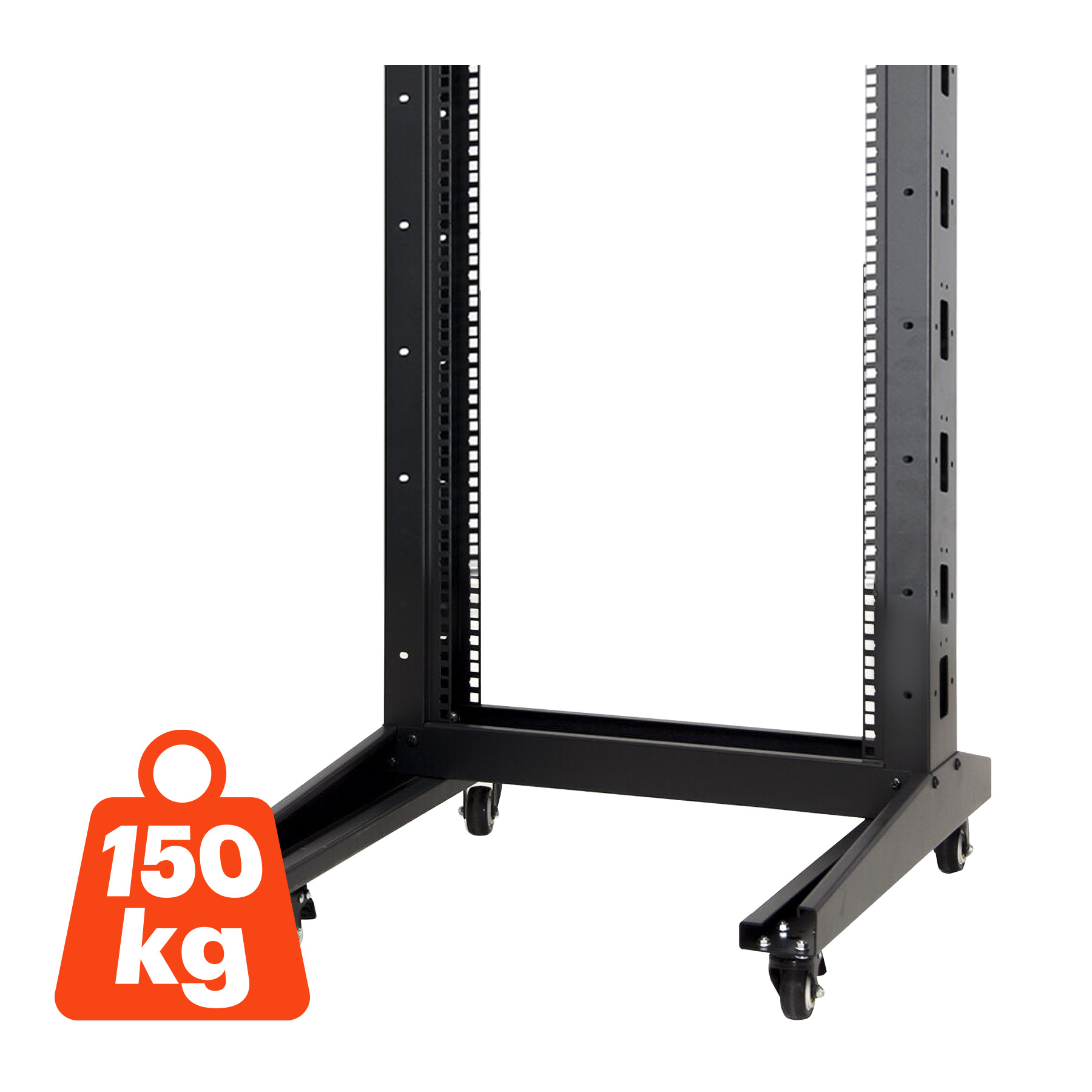

| Maximum weight capacity | 150 kg |
| Product colour | Black |
| Material | Steel, SPCC |
| Frame type | Open |
| Product design | 2-post |

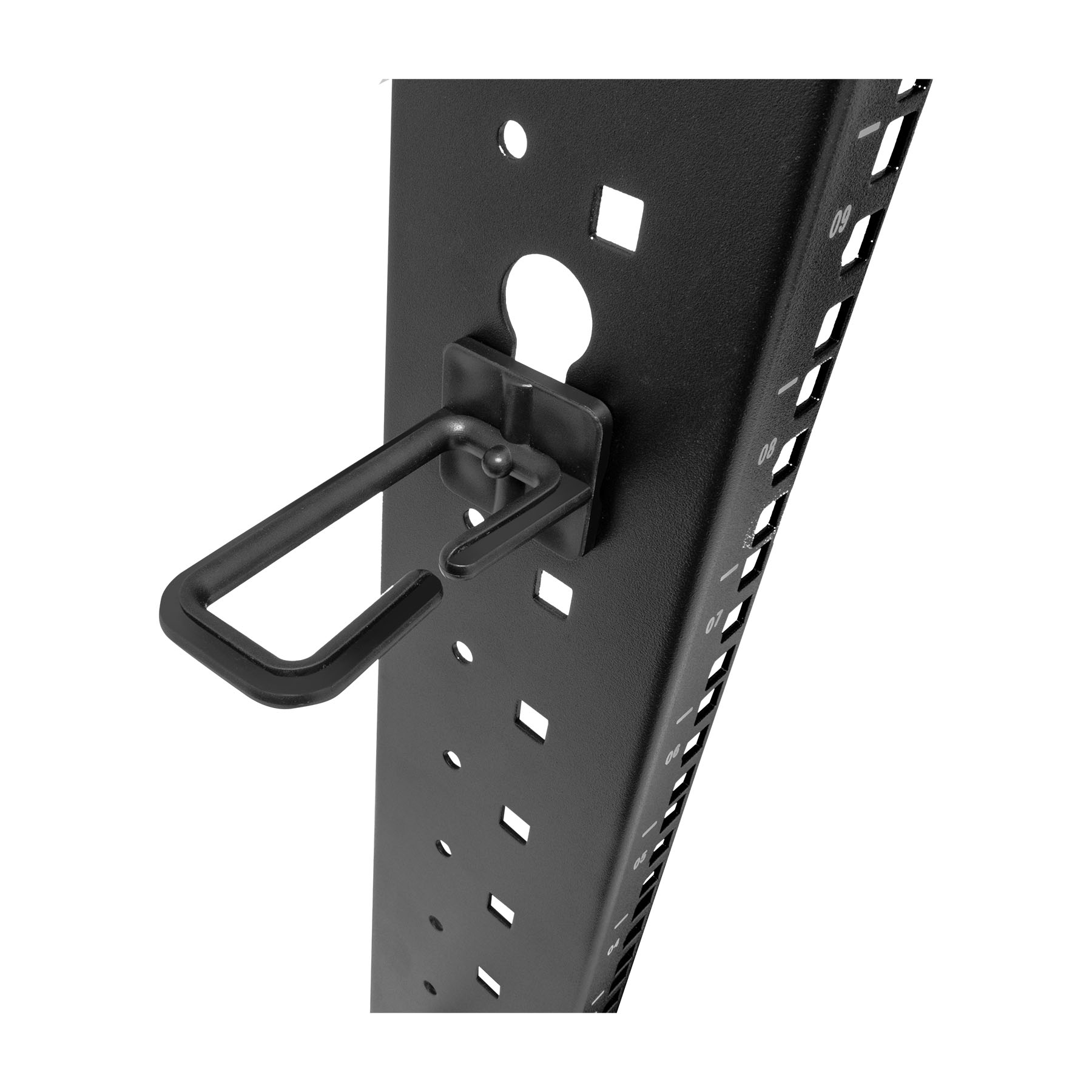

| Cable management | Yes |
| Castor wheels | Yes |
Weight & dimensions
| Specification | Value |
|---|---|

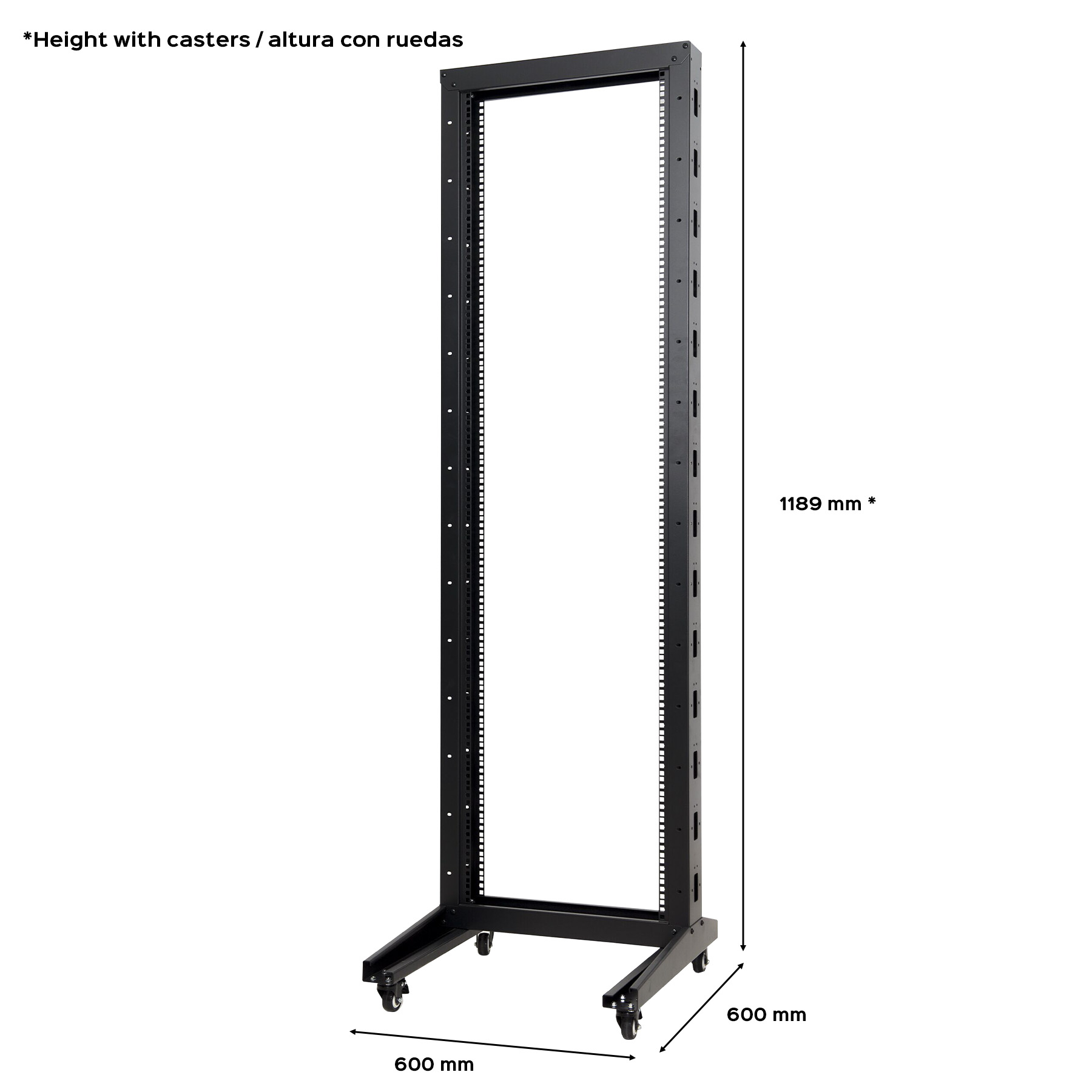

| Width | 600 mm |
| Depth | 600 mm |
| Height | 1189 mm |
| Weight | 15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1520 mm |
| Package depth | 160 mm |
| Package height | 145 mm |
| Package weight | 17 kg |
Technical details
| Specification | Value |
|---|---|

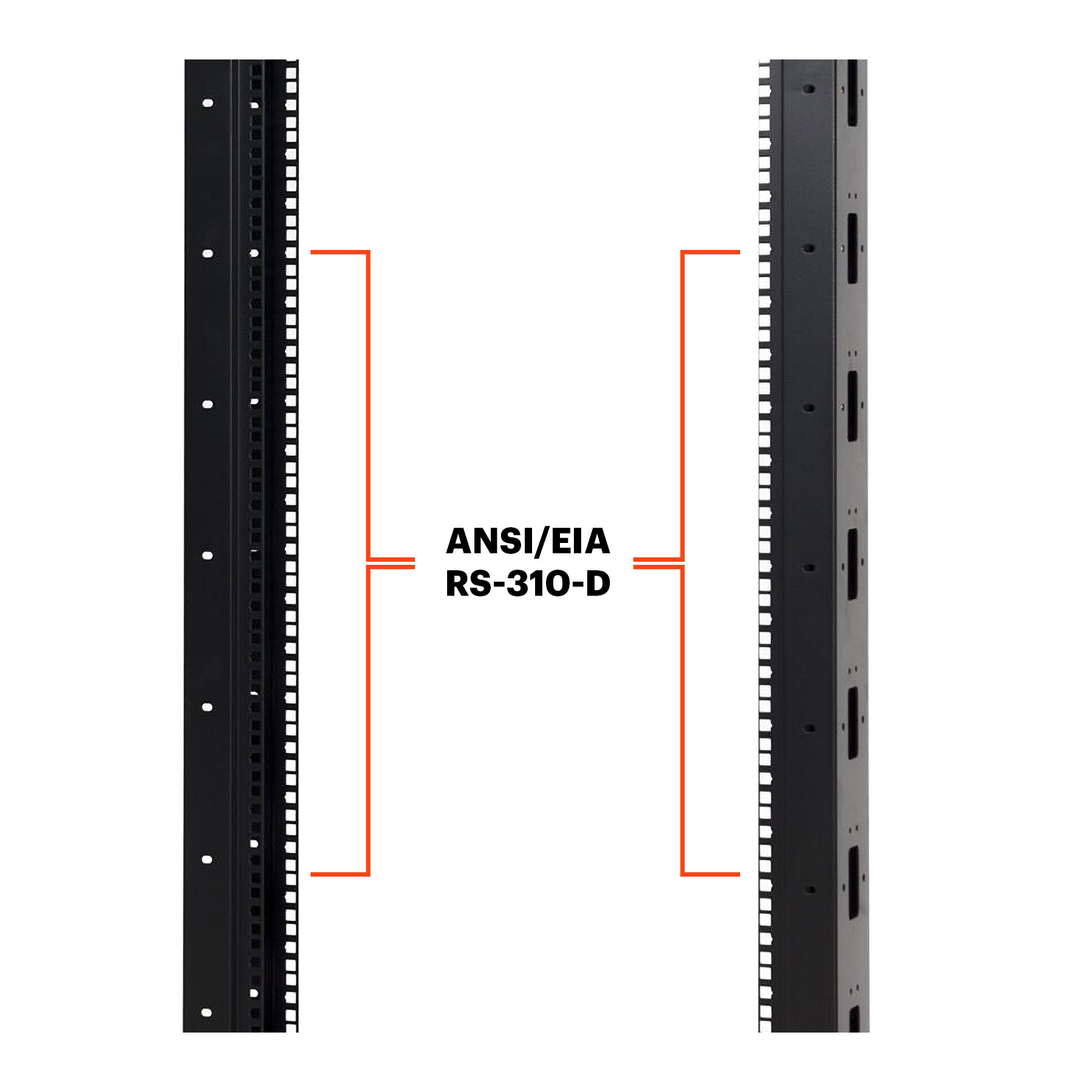

| Compliance certificates | ANSI, Electronic Industries Alliance (EIA), CE, RoHS |
