Floor Rack Cabinet 47u Width 600 Depth 800
Model AI6847Part no. F80.68.47EAN 6940533543923
29 specifications
- TypeFreestanding rack
- Weight108 kg
- ColourBlack
- Rack capacity47U
- Width600 mm
- Compliance certificatesRoHS
Overview
- Type
- Freestanding rack
- Weight
- 108 kg
- Colour
- Black
- Rack capacity
- 47U
- Width
- 600 mm
- Compliance certificates
- RoHS
- Brand
- aiten data
- Category
- Rack Cabinet
- Model
- AI6847
- Part number
- F80.68.47
- EAN / UPC
- 6940533543923
- Also known as
- aiten data Floor Rack Cabinet 47u Width 600 Depth 800
Specifications
29 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 47U |
| Type | Freestanding rack |
| Maximum weight capacity | 600 kg |
| Maximum weight capacity (rolling) | 400 kg |
| Product colour | Black |
| Material | SPCC |
| Frame type | Closed |

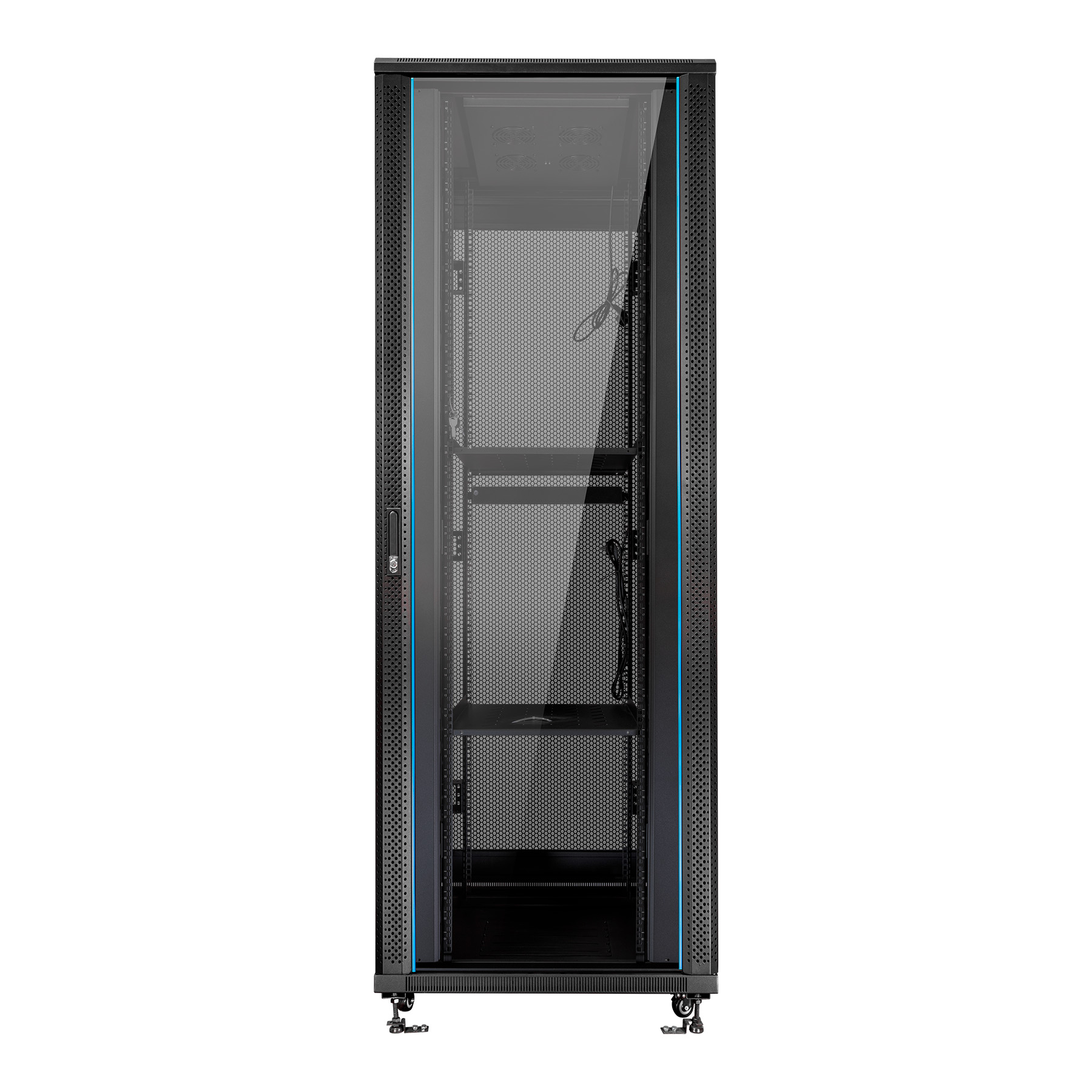

| Front door construction | Tempered glass |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |

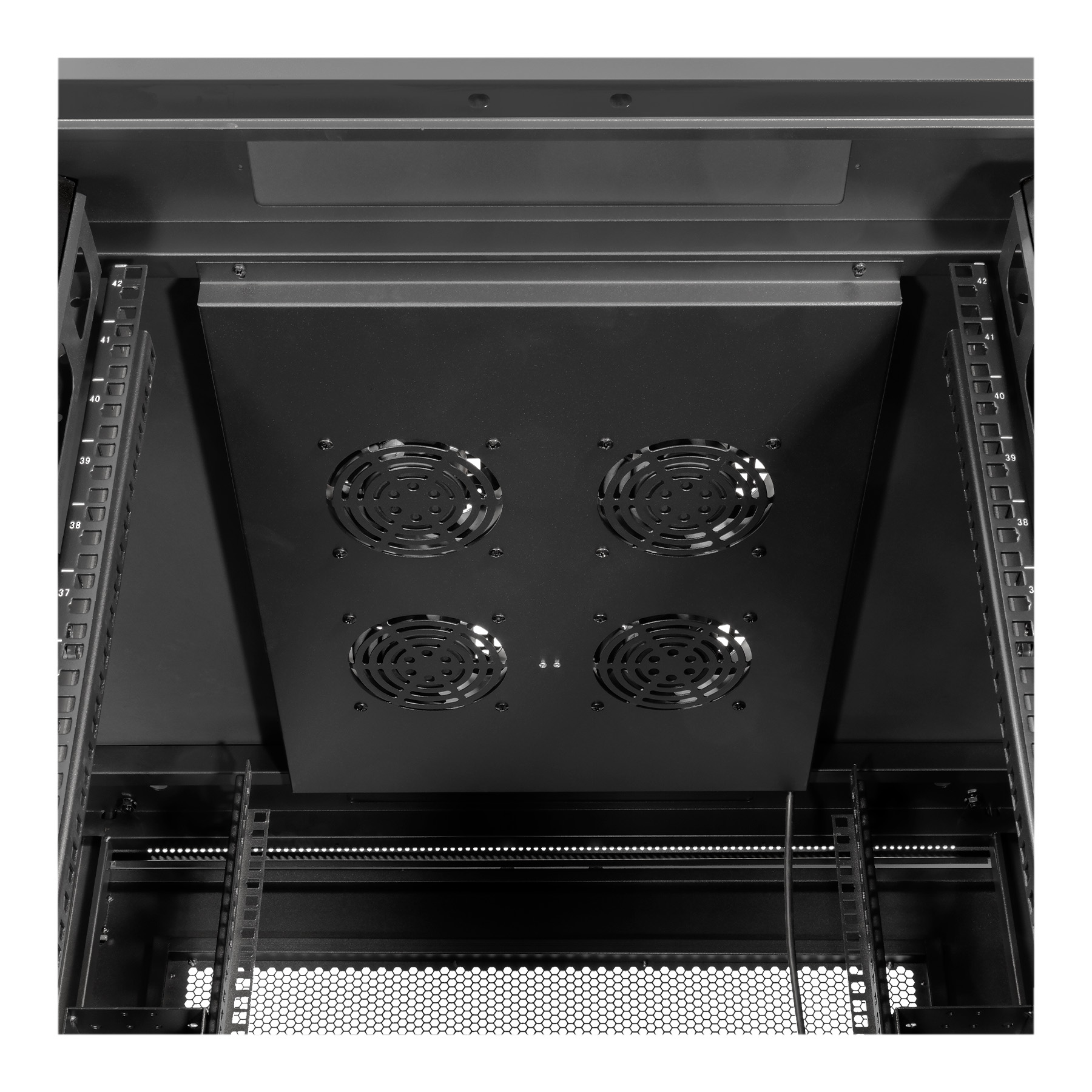

| Cooling type | Active |
| Number of fans | 4 fan(s) |
| Fan diameter | 12 cm |
| Cable management | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, ISO9001 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 800 mm |
| Height | 2290 mm |
| Weight | 108 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 625 mm |
| Package depth | 825 mm |
| Package height | 2325 mm |
| Package volume | 1199000 cm³ |
| Package weight | 122 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
