Wall Rack Cabinet 18u Depth 450
Model AI6418Part no. 80.64.18EAN 6940533544043
25 specifications
- TypeWall mounted rack
- Weight32 kg
- ColourBlack
- Rack capacity18U
- Width600 mm
Overview
- Type
- Wall mounted rack
- Weight
- 32 kg
- Colour
- Black
- Rack capacity
- 18U
- Width
- 600 mm
- Brand
- aiten data
- Category
- Rack Cabinet
- Model
- AI6418
- Part number
- 80.64.18
- EAN / UPC
- 6940533544043
- Also known as
- aiten data Wall Rack Cabinet 18u Depth 450
Specifications
25 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| Rack capacity | 18U |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Product colour | Black |
| Material | SPCC |
| Frame type | Closed |

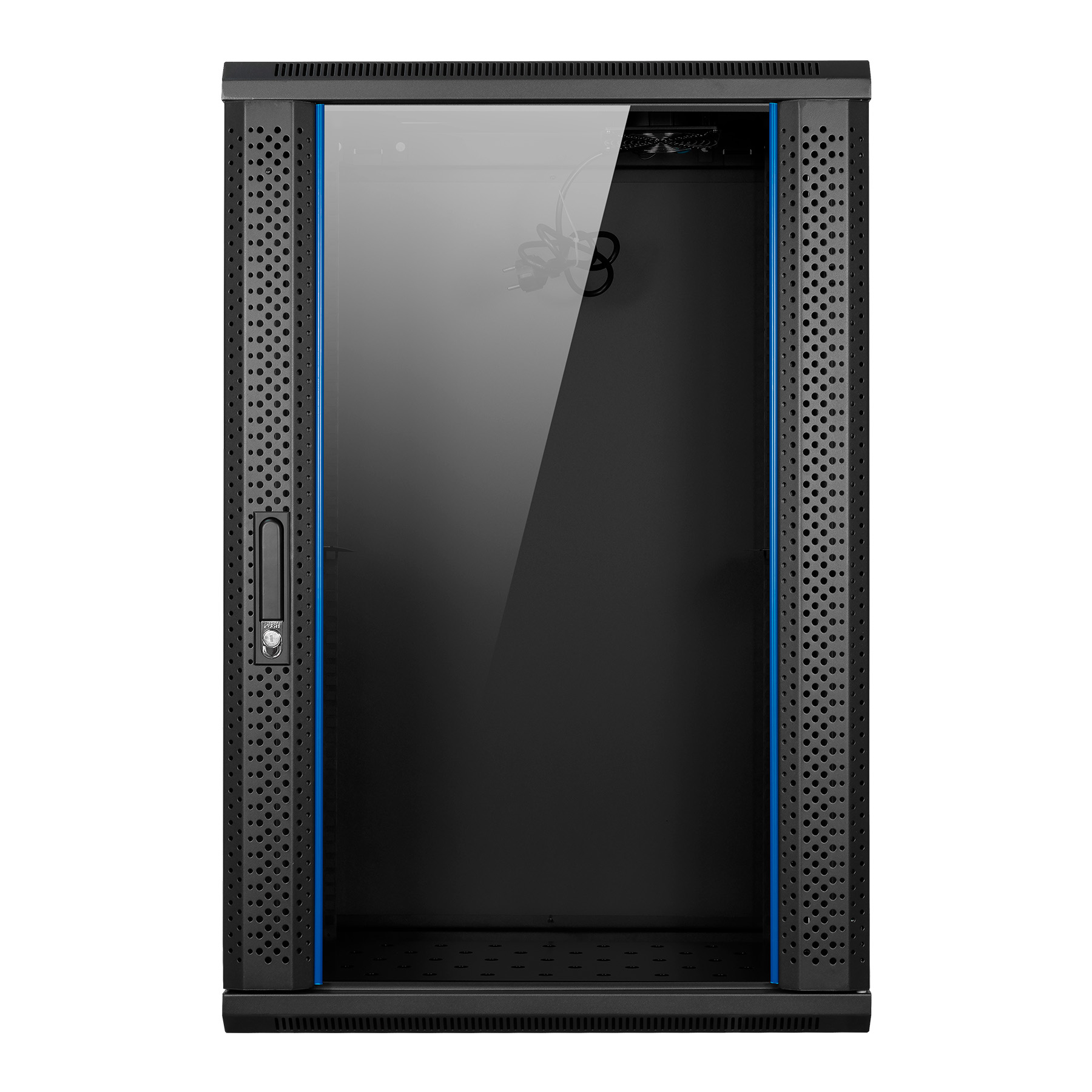

| Front door construction | Tempered glass |

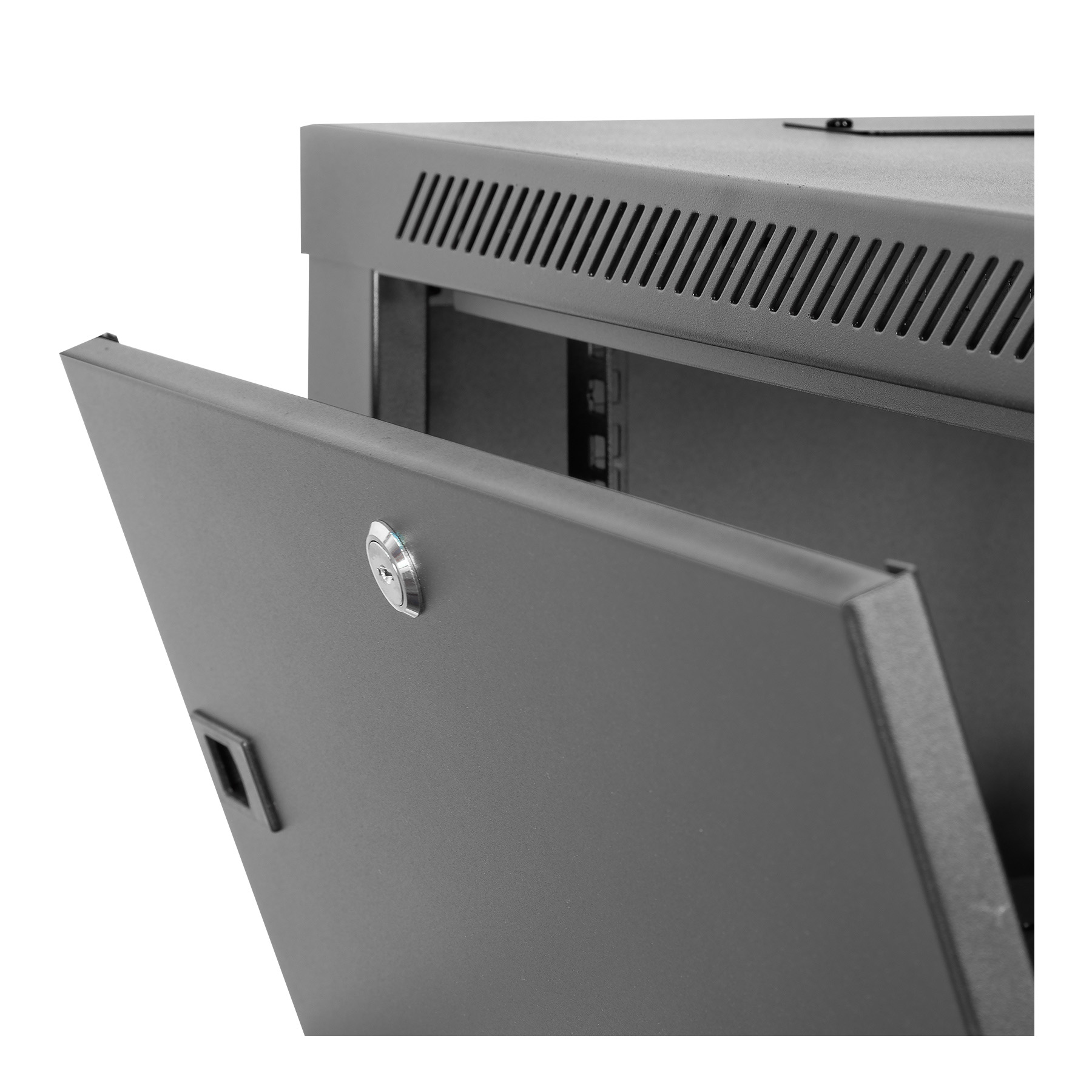

| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |

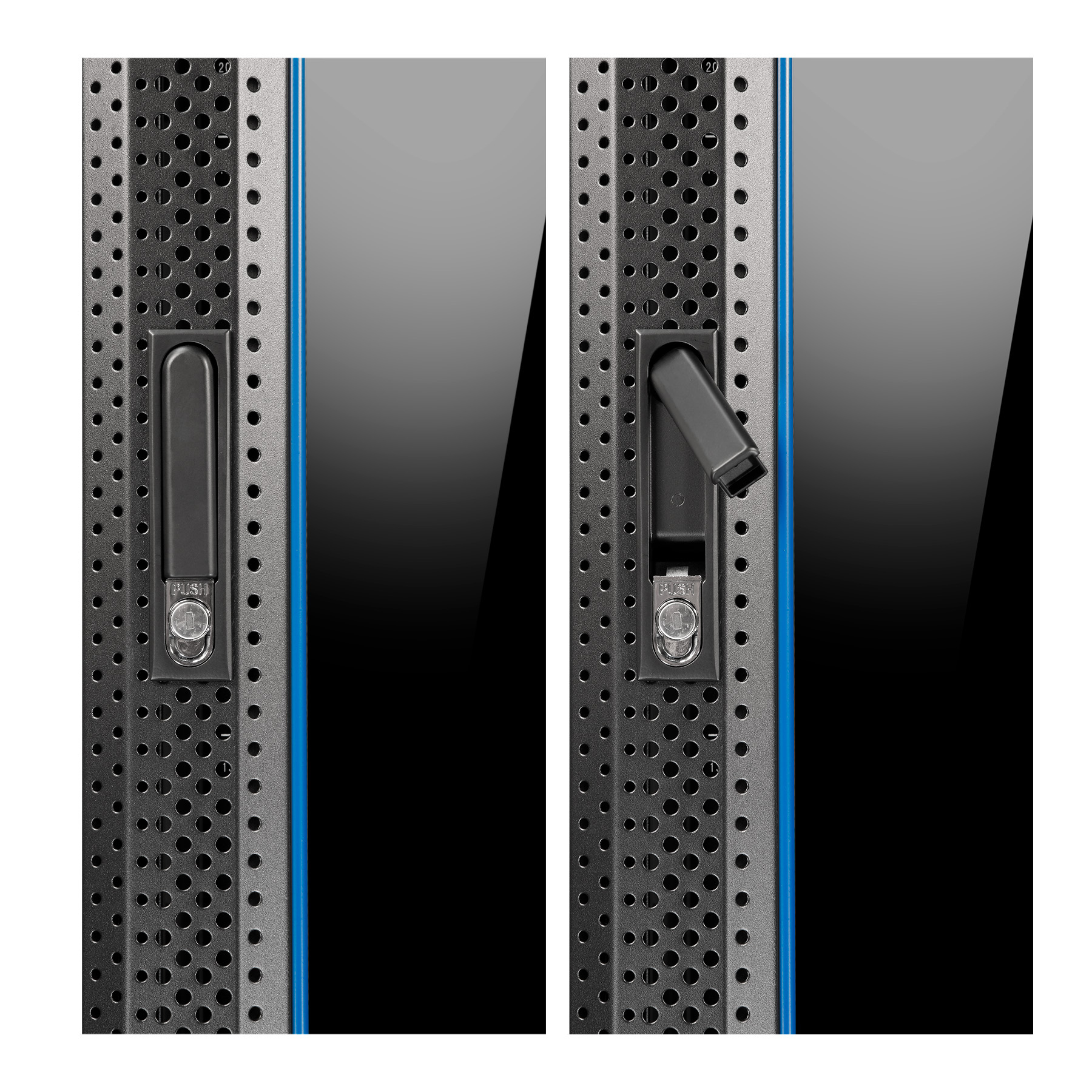

| Front door key lock | Yes |

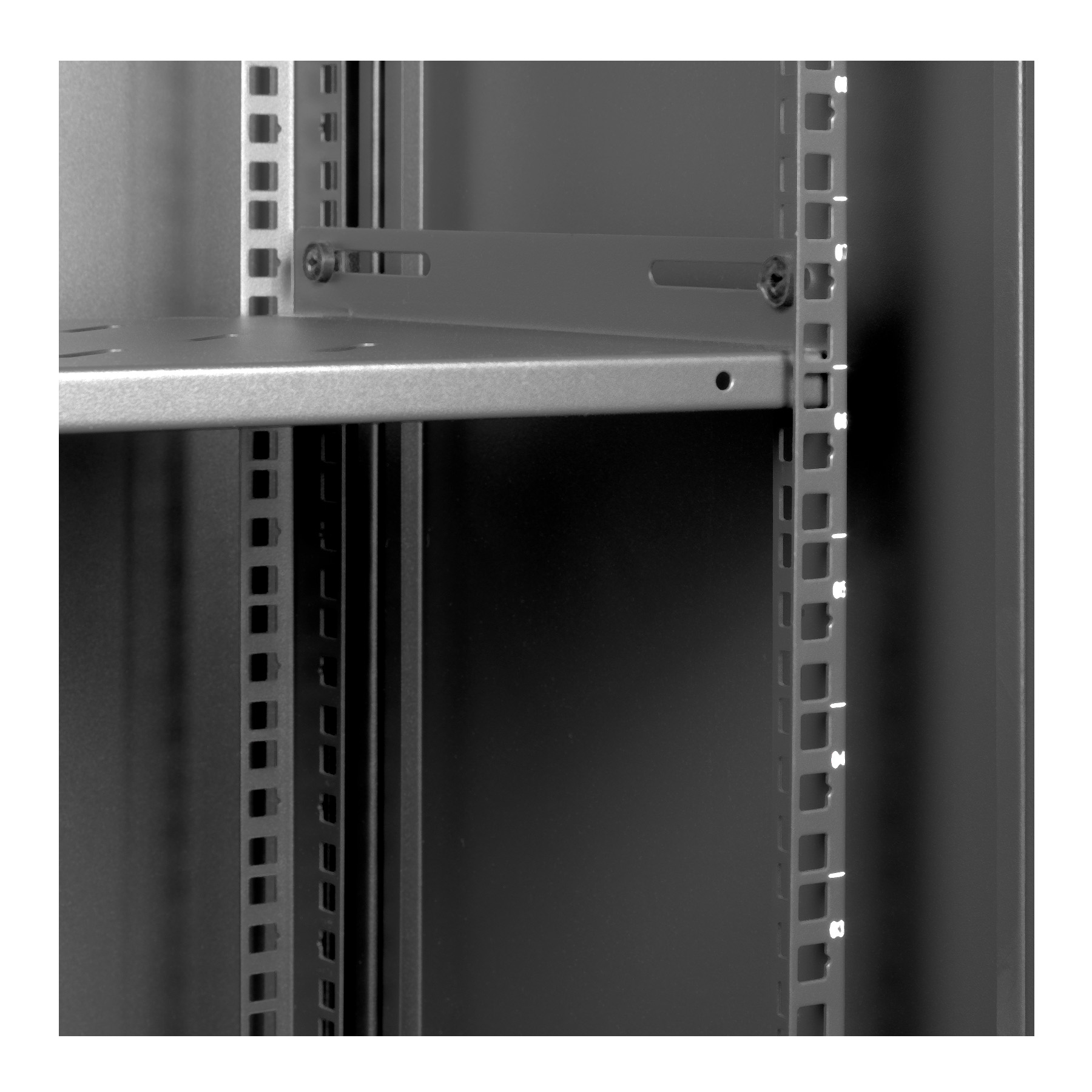

| Adjustable mounting rails | Yes |
| International Protection (IP) code | IP20 |
| Certification | ANSI/EIA RS-310-D; IEC297-2; DIN 41494; PART1; DIN 41494; PART7; ETSI; CE; ISO9001. |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 450 mm |
| Height | 910 mm |
| Weight | 32 kg |
Packaging data
| Specification | Value |
|---|---|
| Screws included | Yes |
| Mounting kit | Yes |
| Package width | 680 mm |
| Package depth | 530 mm |
| Package height | 990 mm |
| Package volume | 357000 cm³ |
| Package weight | 36.4 kg |
