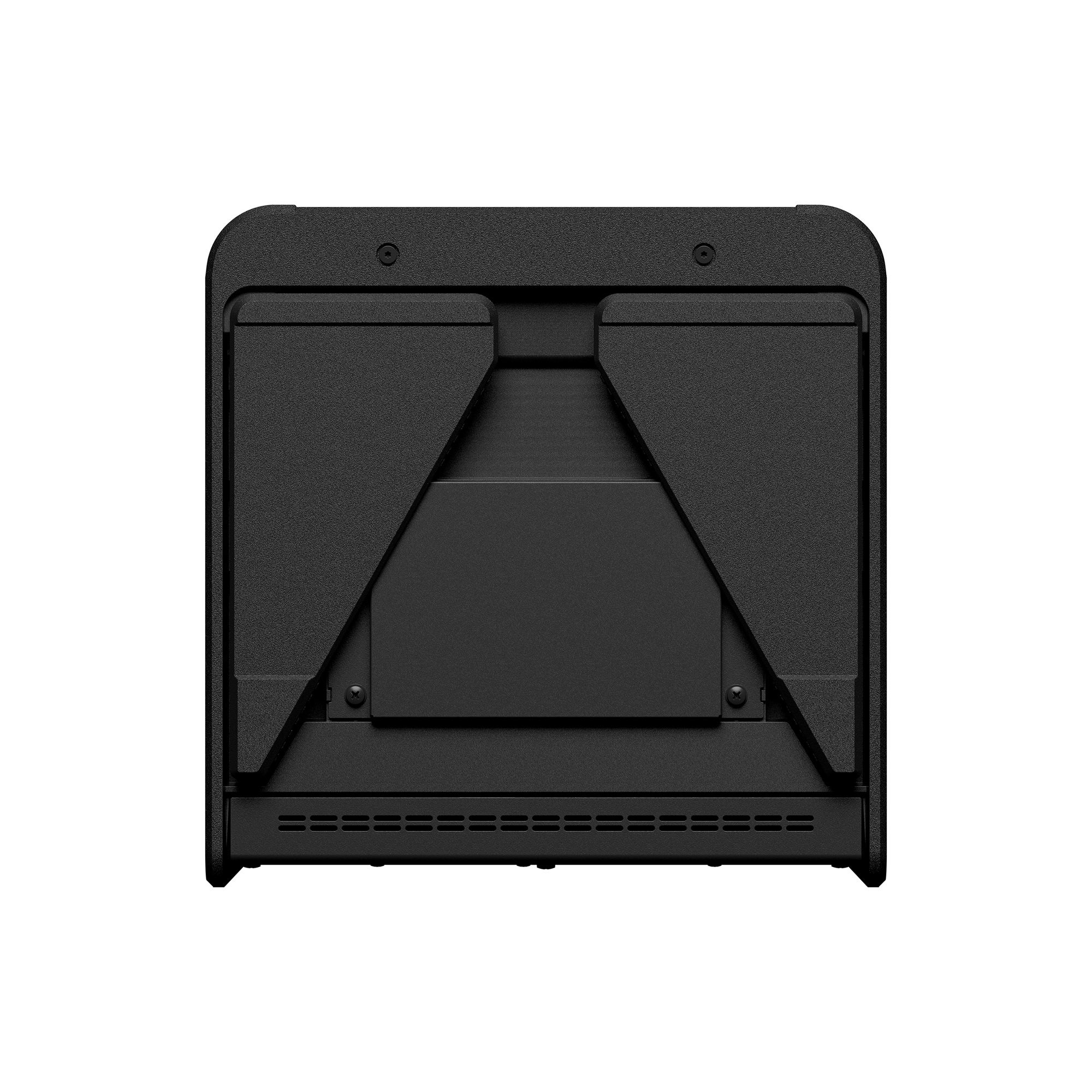

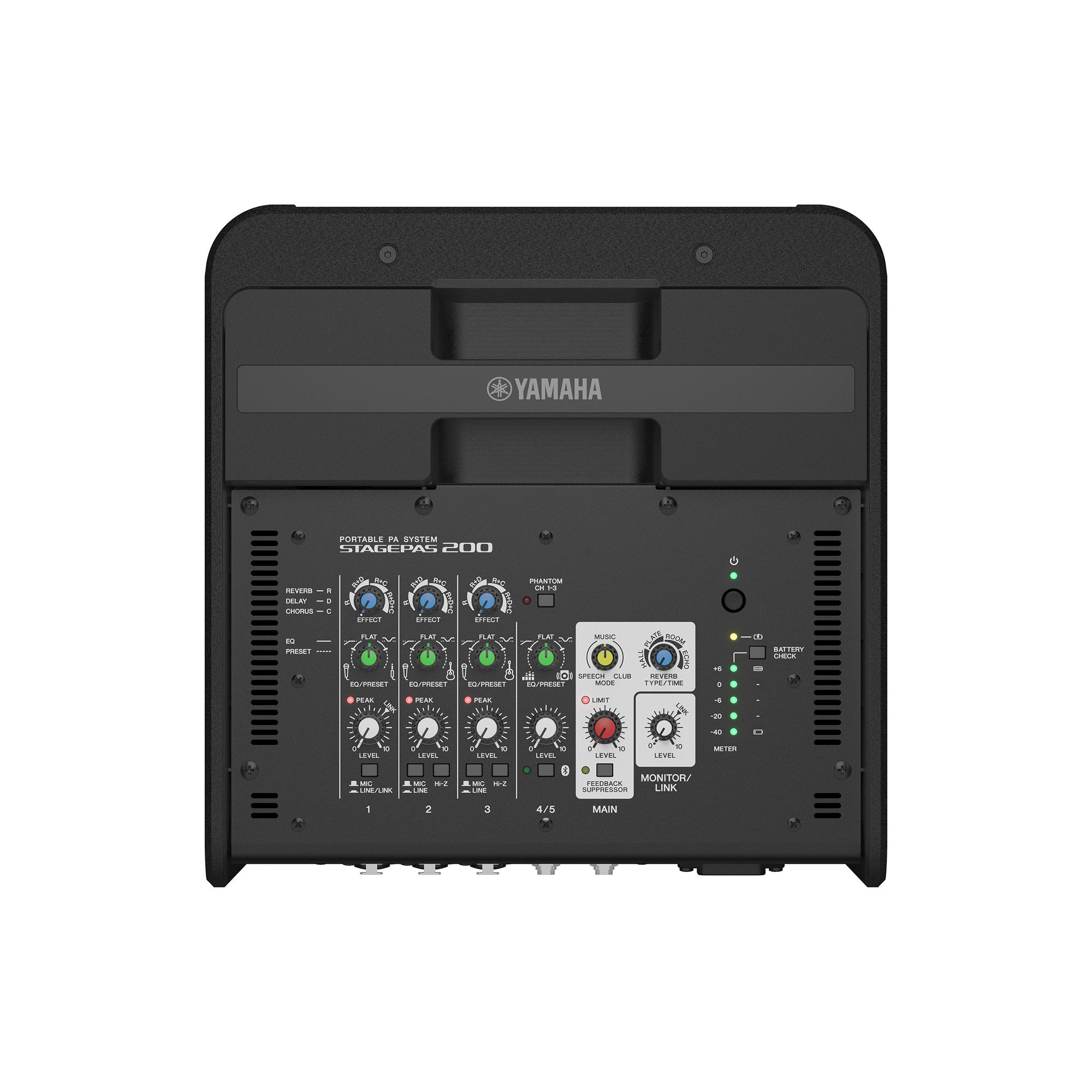

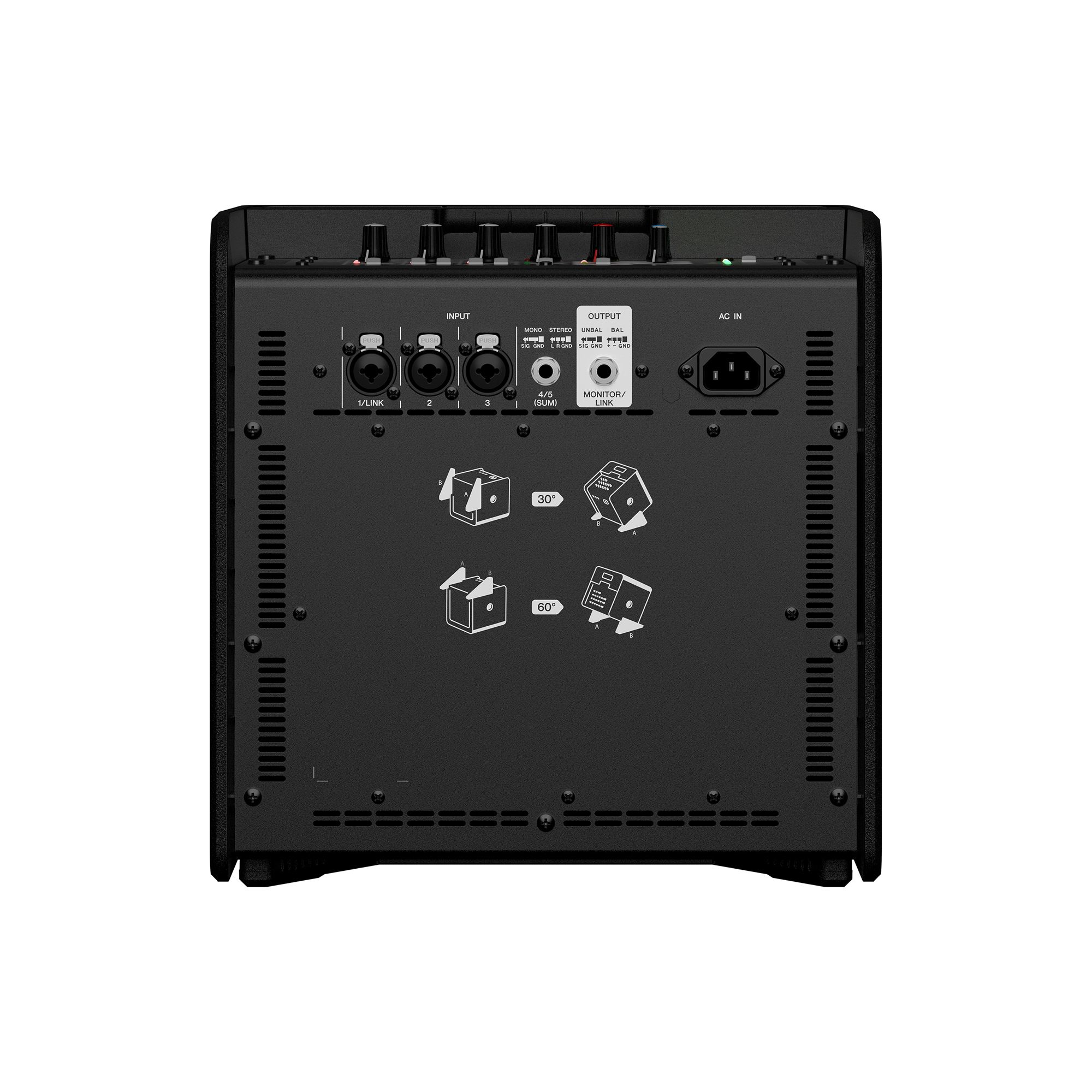

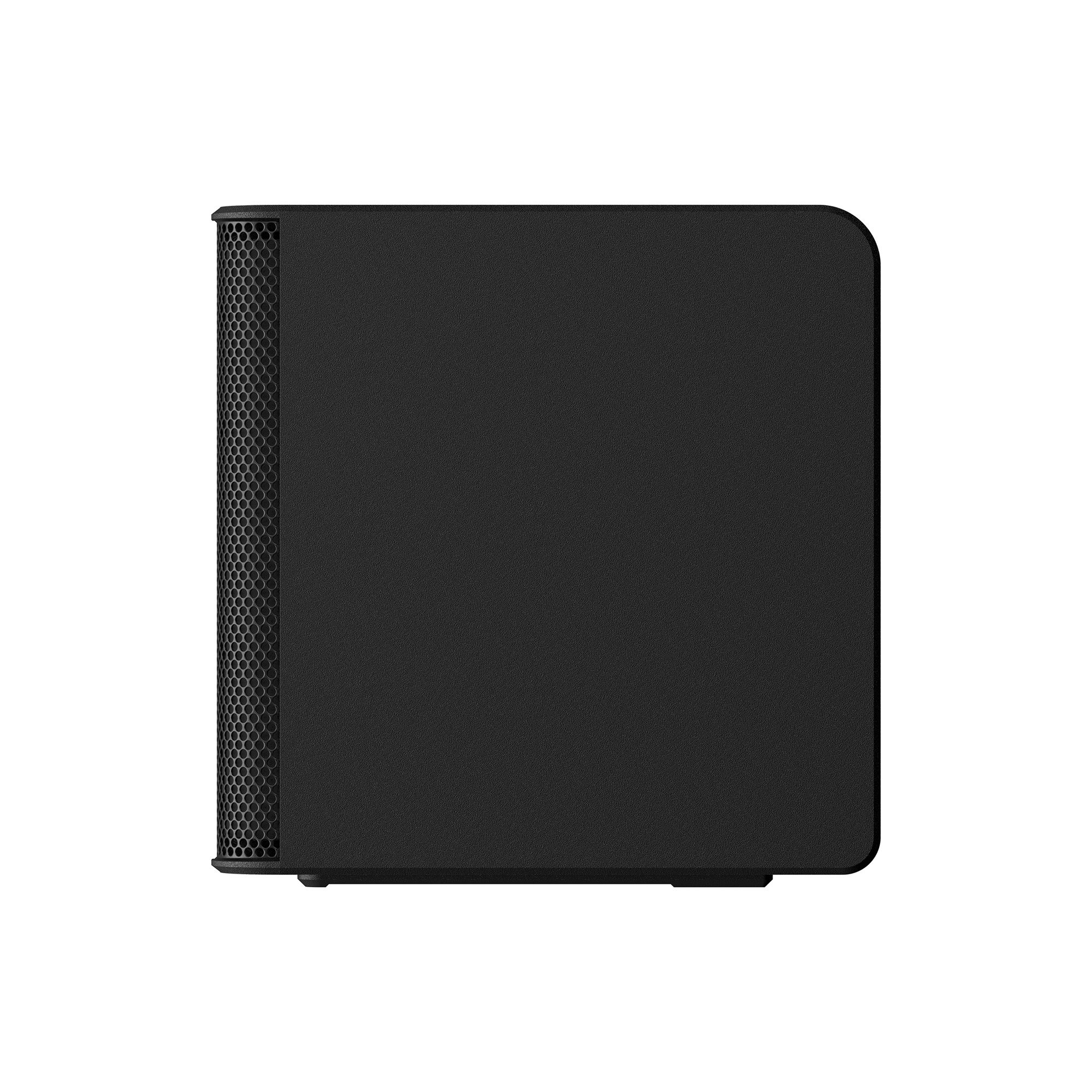

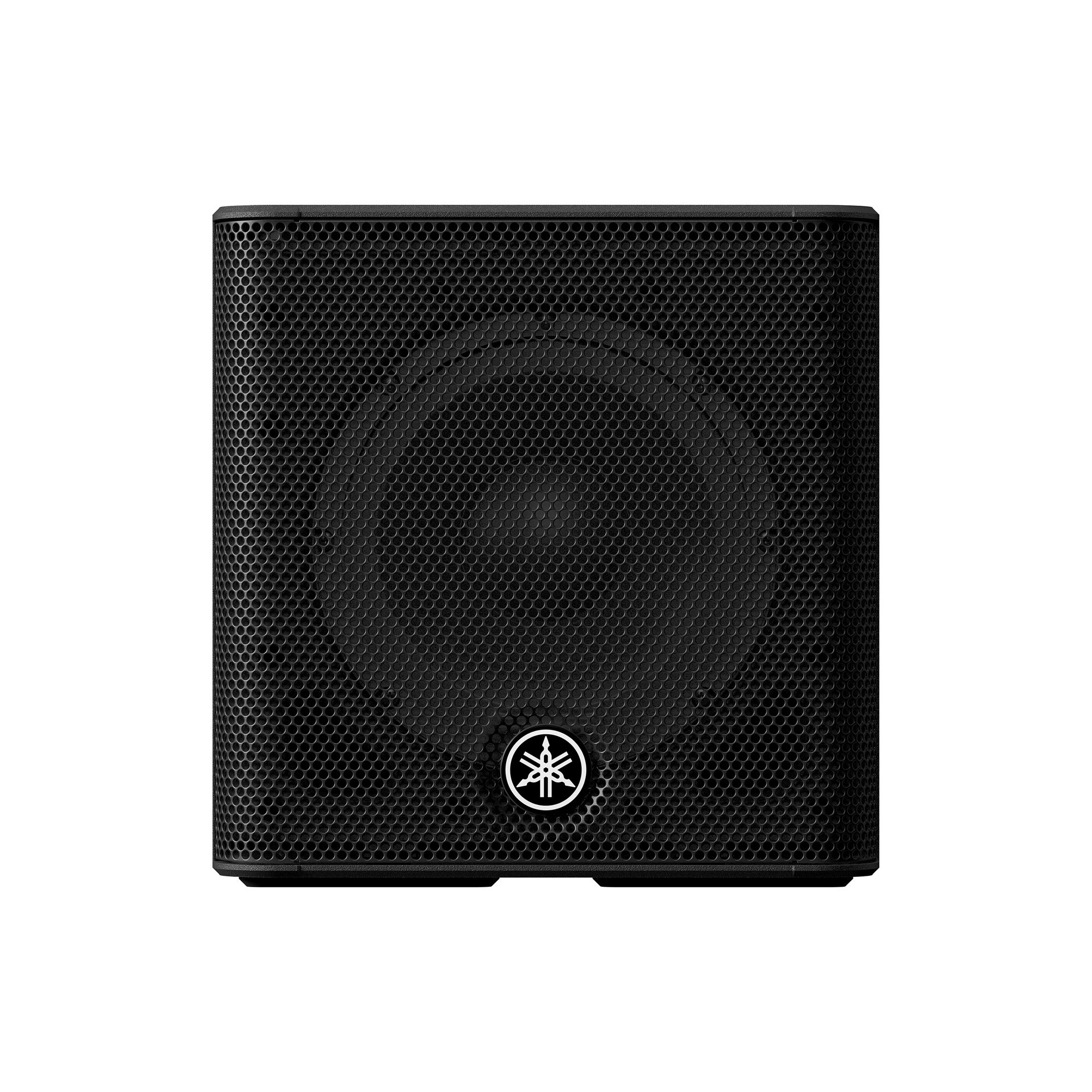

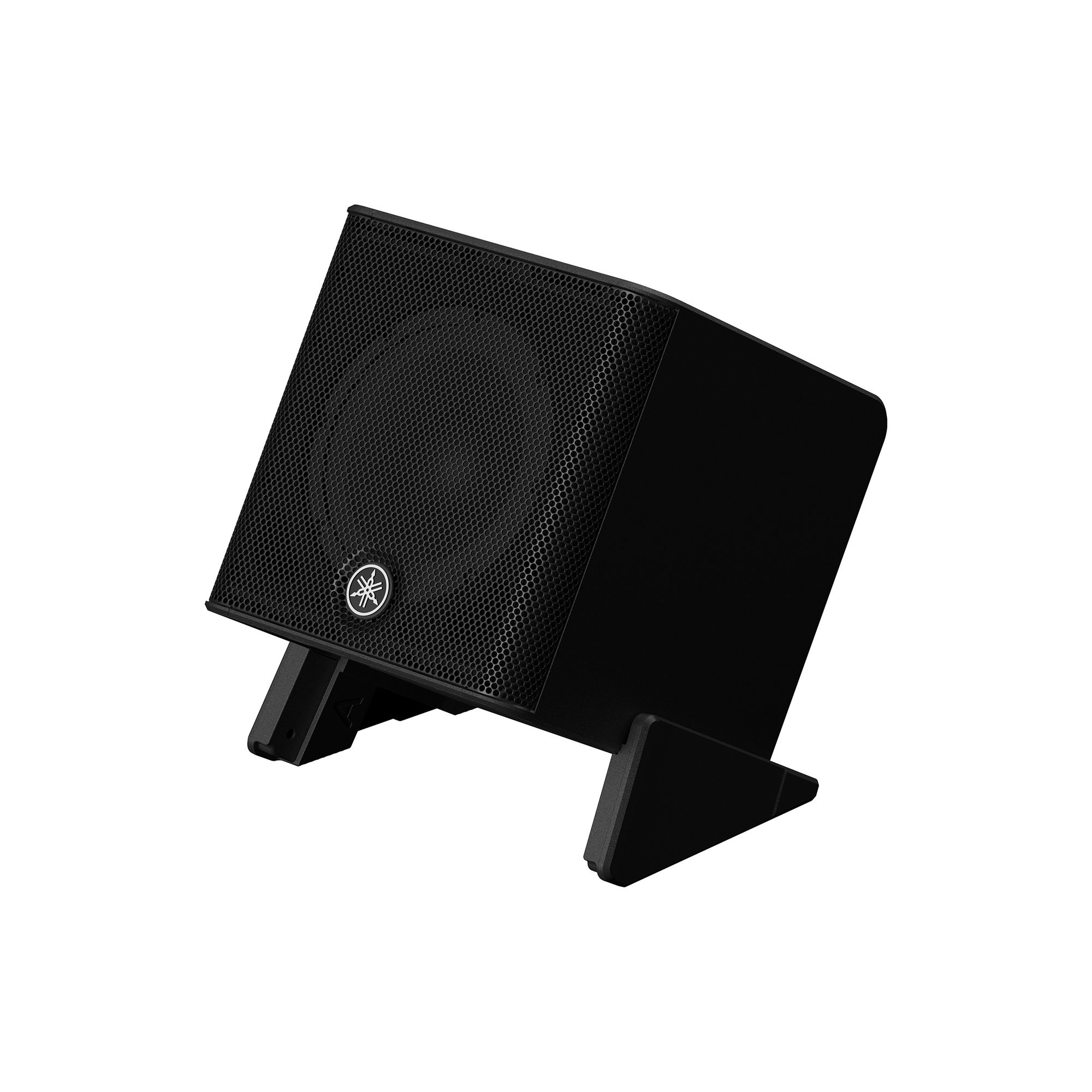

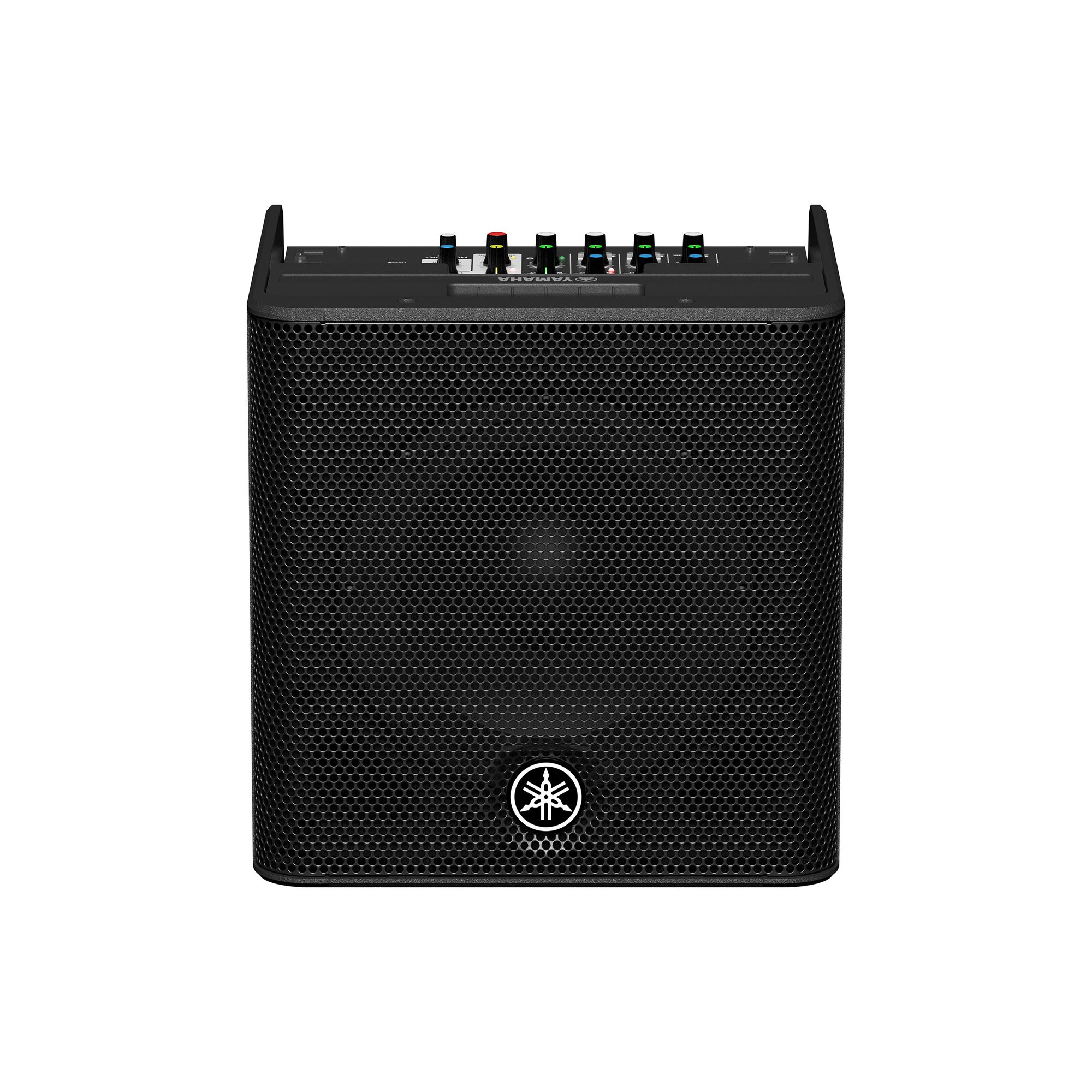

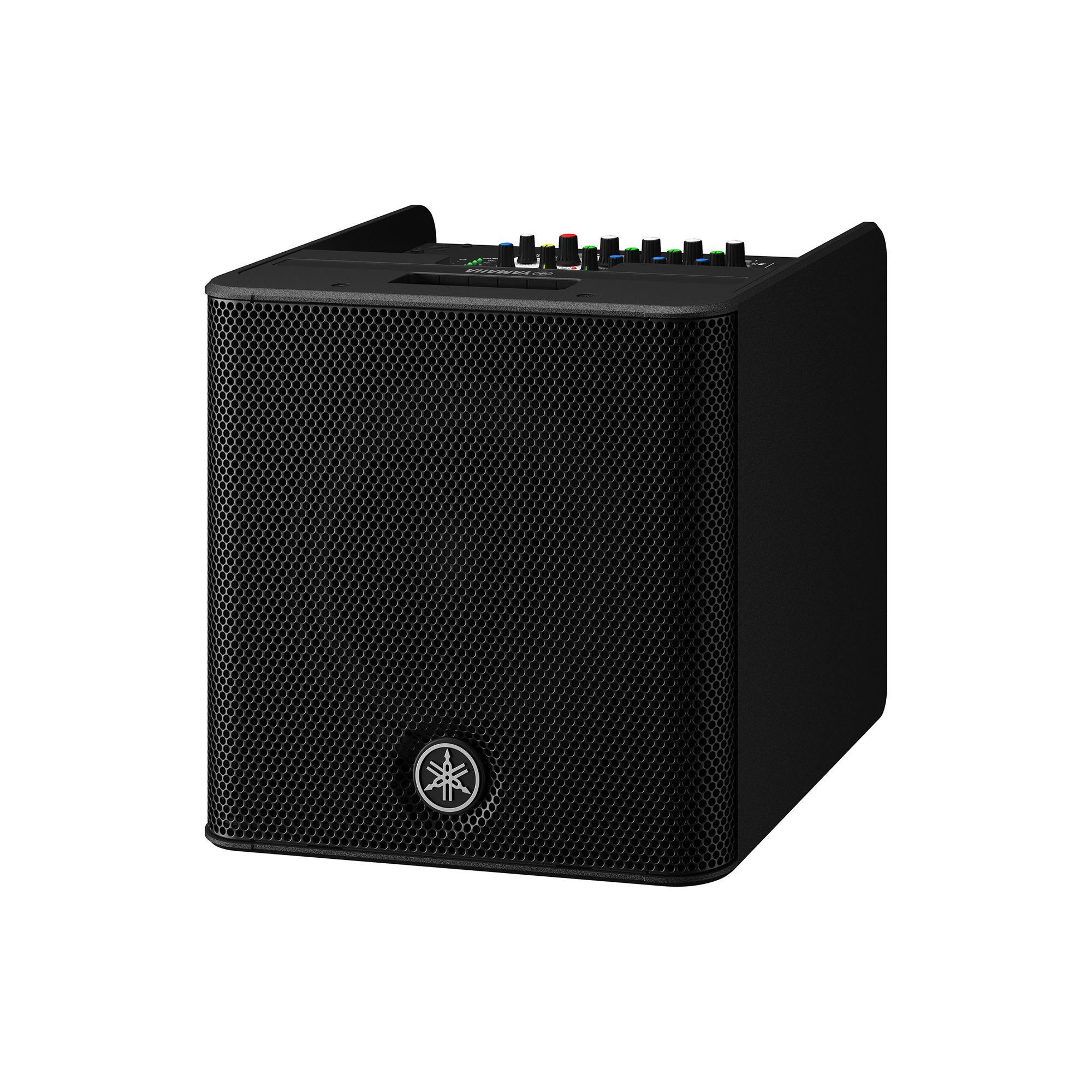

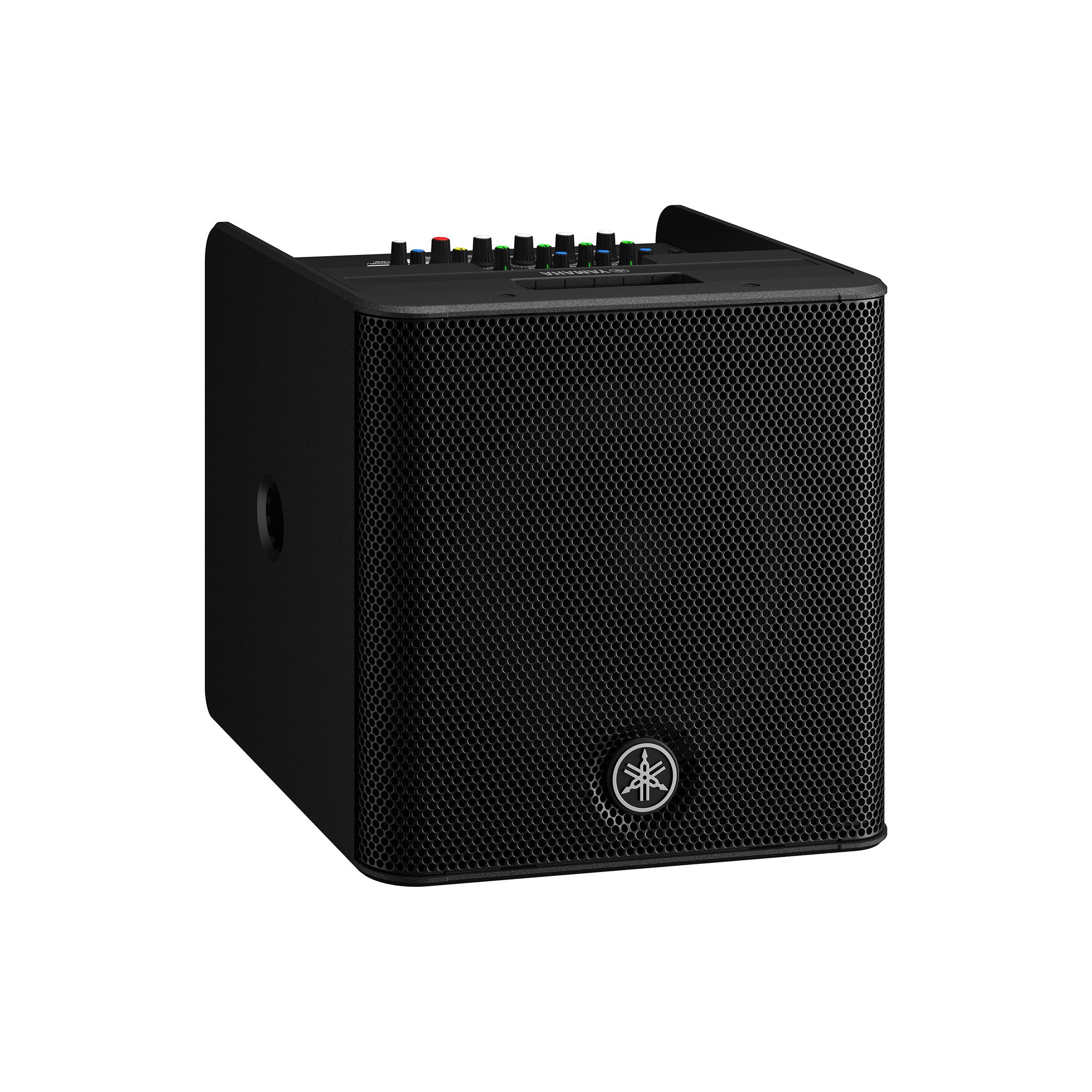

STAGEPAS 200BTR
Model STAGEPAS 200BTRPart no. CSTGPAS200BTREAN 4957812678674
45 specifications
- Battery2700 mAh
- ConnectivityWired & Wireless
- Weight12.5 kg
- ColourBlack
- RMS rated power180 W
- Speaker type2-way
Overview
- Battery
- 2700 mAh
- Connectivity
- Wired & Wireless
- Weight
- 12.5 kg
- Colour
- Black
- RMS rated power
- 180 W
- Speaker type
- 2-way
- Brand
- Yamaha
- Category
- Public Address (PA) Systems
- Model
- STAGEPAS 200BTR
- Part numbers
- CSTGPAS200BTR, CSTGPAS200BTRUK
- EAN / UPC
- 4957812678674, 4957812678681
- Also known as
- Yamaha STAGEPAS 200BTR Freestanding Public Address (PA) system 180 W Black
Specifications
45 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| RMS rated power | 180 W |
| Frequency range | 60 - 20000 Hz |
| Sound pressure level (max) | 125 dB |
Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Number of speakers | 1 |
| Number of drivers | 1 |
| Amplifier | Built-in |
| Amplifier class | D |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer diameter (imperial) | 20.3 cm (8") |
Design
| Specification | Value |
|---|---|
| Type | Freestanding Public Address (PA) system |
| Product colour | Black |
| Mounting type | Floor/Pole |
| Handle(s) | Yes |
| Handles quantity | 1 |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Karaoke | No |
| Equalizer | Yes |
| Mixer section | Yes |
| Volume control | Rotary |
| Echo effect | Yes |
| Remote control function | Yes |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Microphone in | Yes |
| 6.35 mm (1⁄4-inch) input | 1 |
| 6.35 mm (1⁄4-inch) output | 1 |
| AC (power) in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, Battery |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Battery voltage | 29.6 V |
| Number of batteries supported | 1 |
| Battery life (max) | 10 h |
| Charging time | 4 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 301 mm |
| Height | 308 mm |
| Weight | 12.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2700 mAh |
