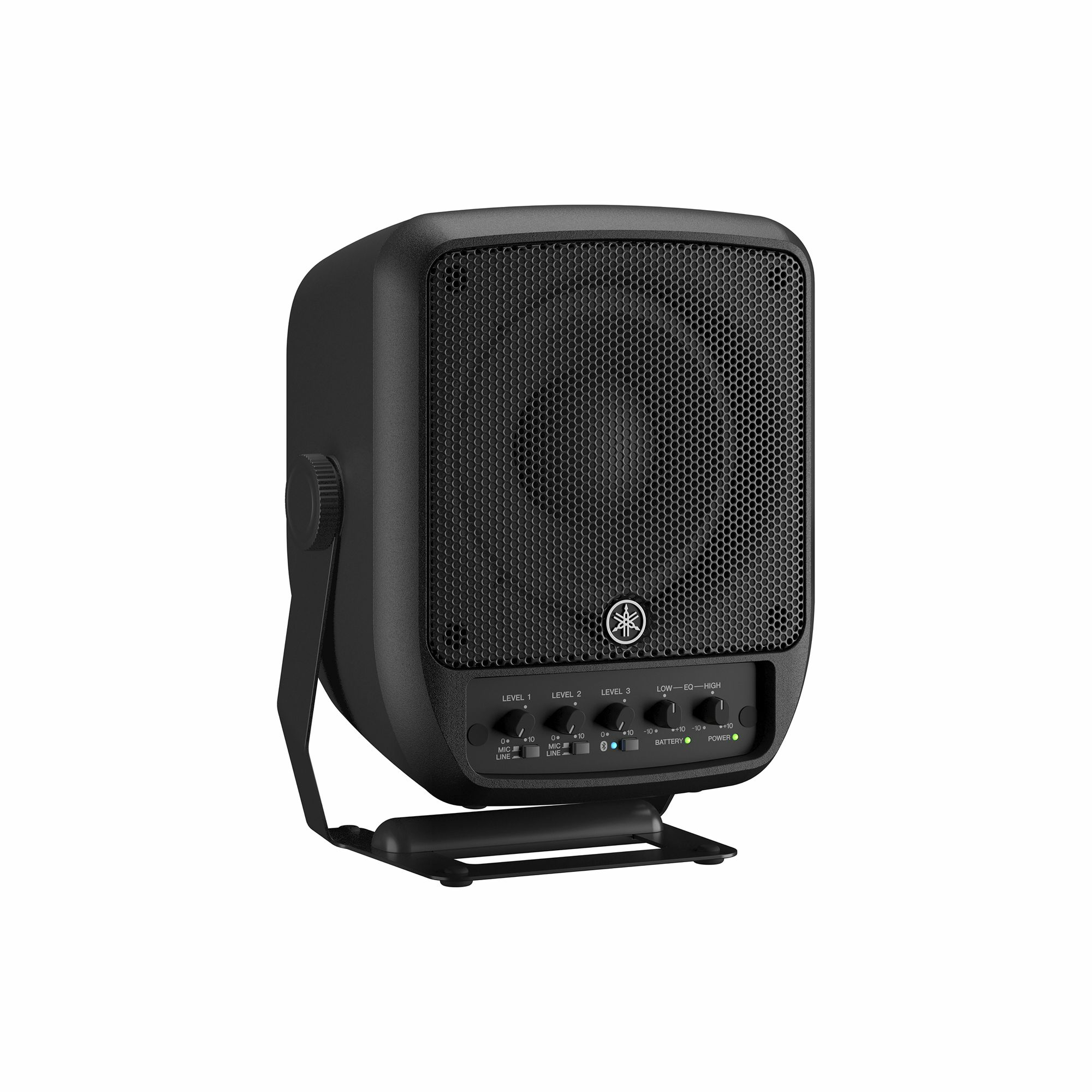

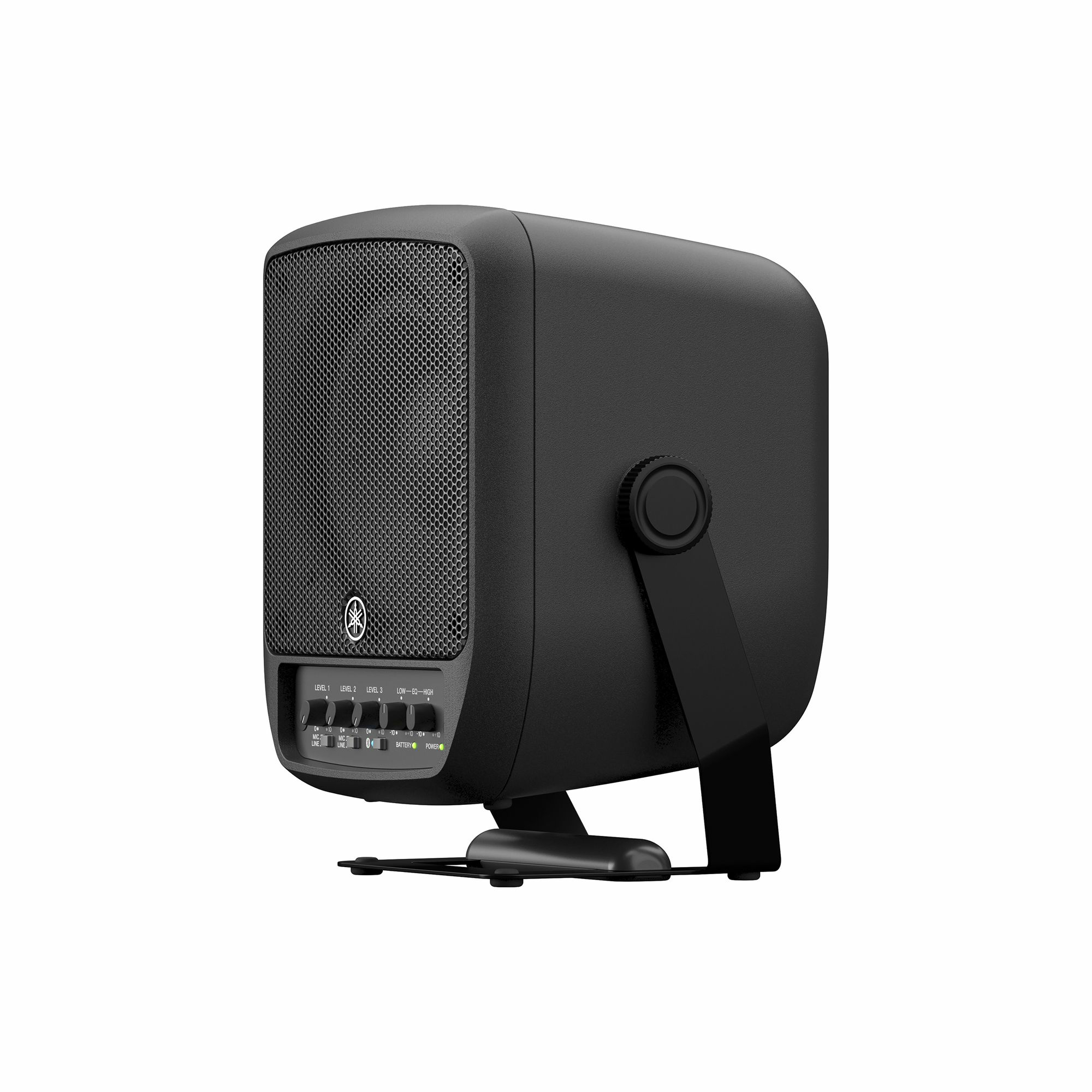

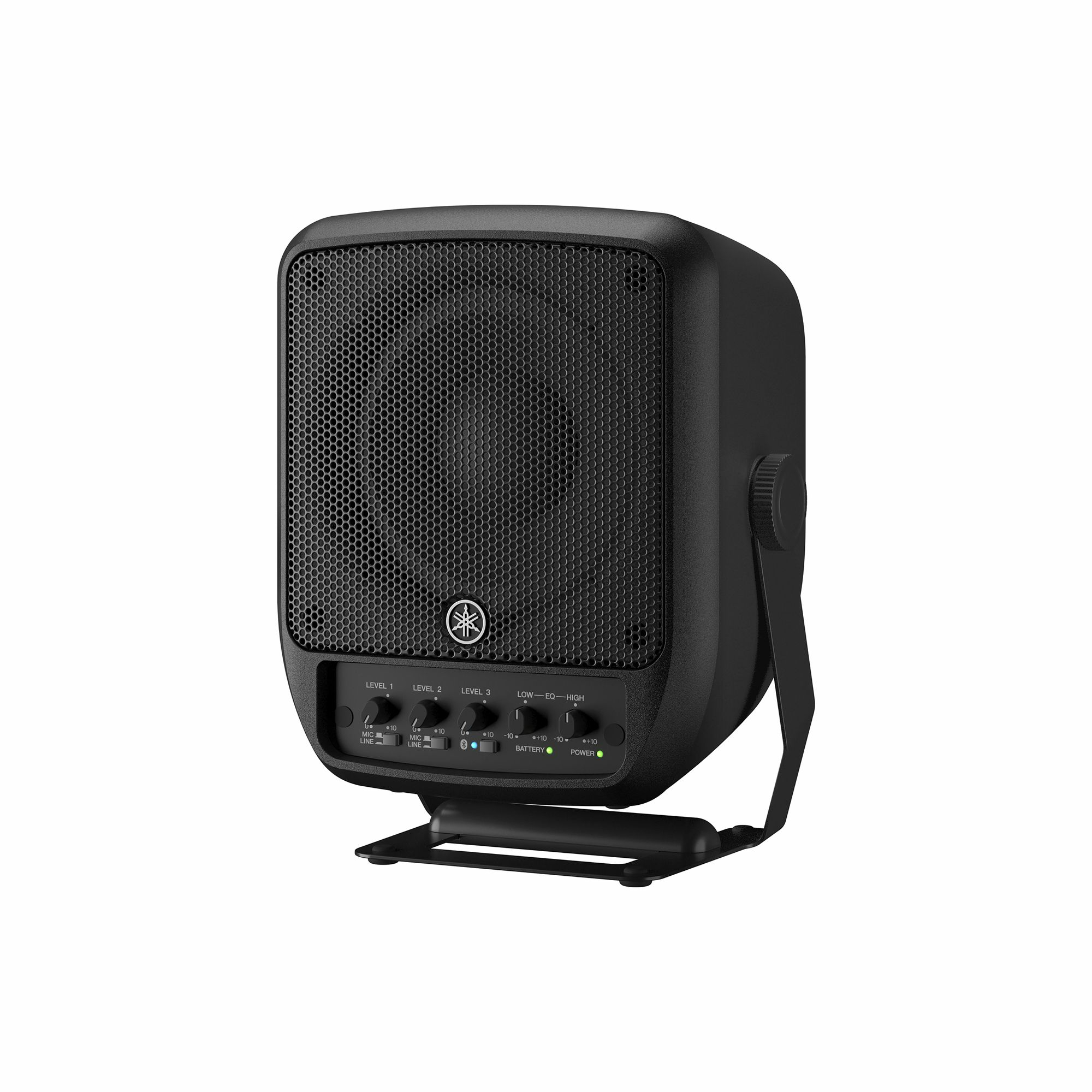

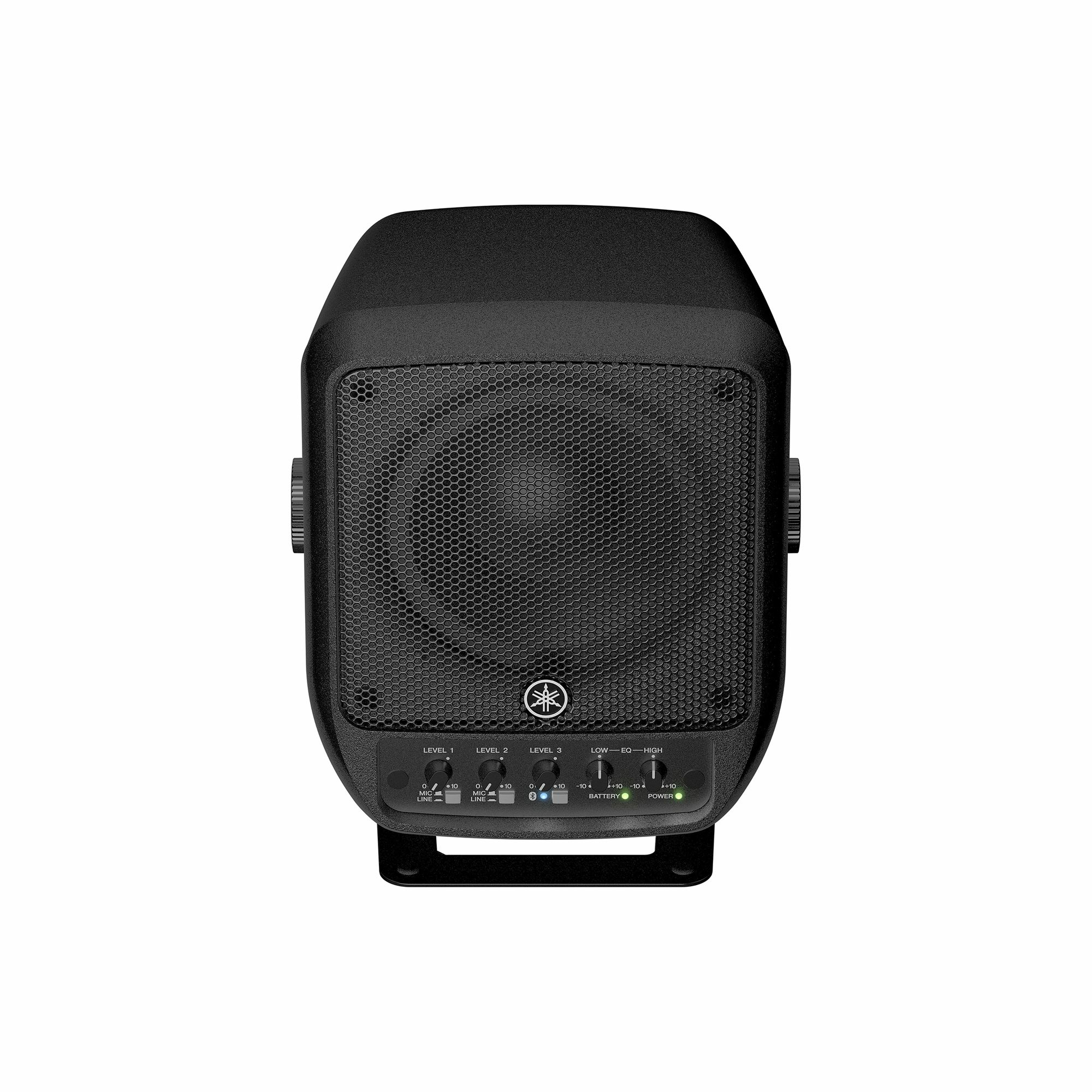

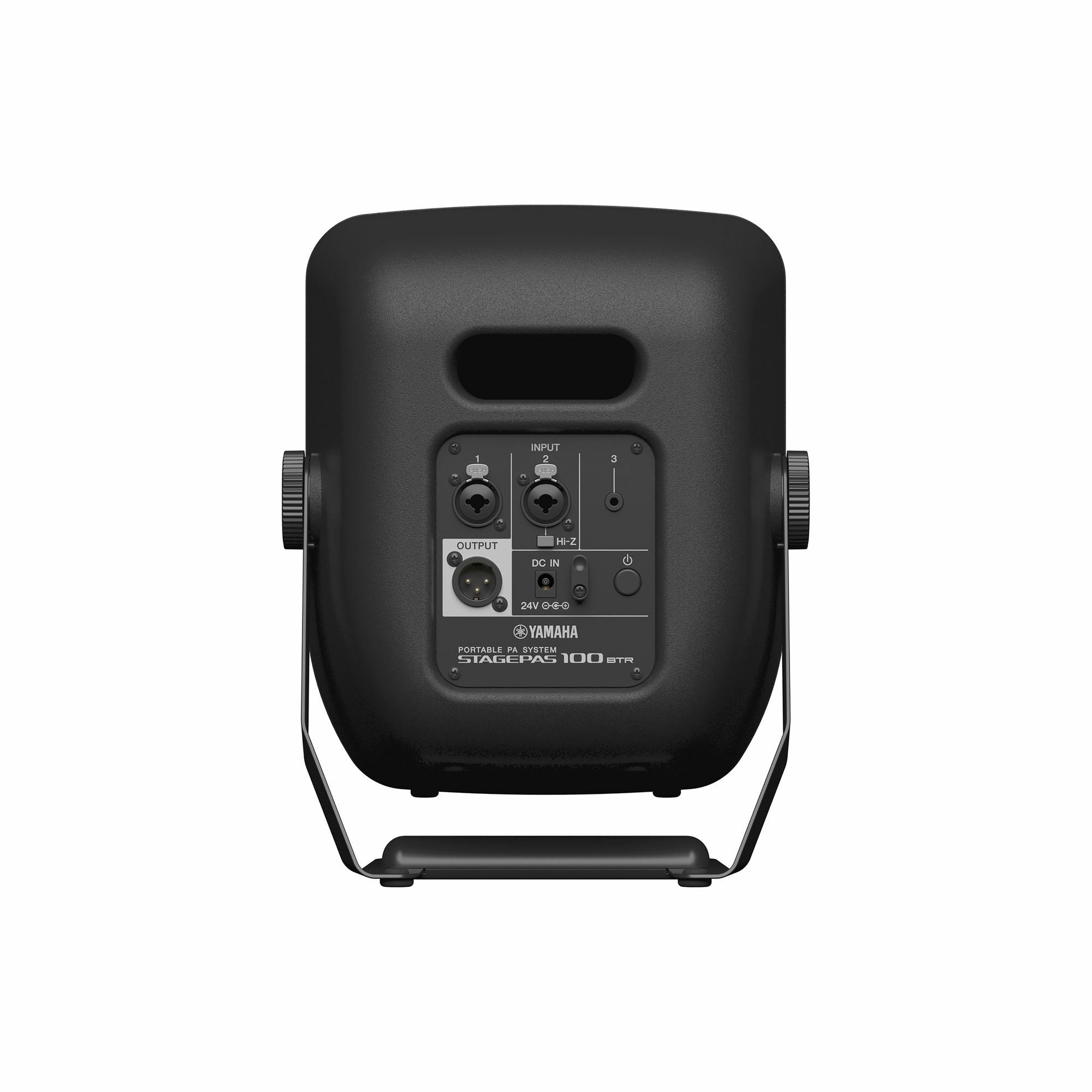

STAGEPAS 100BTR
Model STAGEPAS 100BTRPart no. CSTGPAS100BTREAN 4957812687362
37 specifications
- ConnectivityWired & Wireless
- Weight5.5 kg
- ColourBlack
- RMS rated power100 W
- Speaker type2-way
- EqualizerYes
Overview
- Connectivity
- Wired & Wireless
- Weight
- 5.5 kg
- Colour
- Black
- RMS rated power
- 100 W
- Speaker type
- 2-way
- Equalizer
- Yes
- Brand
- Yamaha
- Category
- Public Address (PA) Systems
- Model
- STAGEPAS 100BTR
- Part numbers
- CSTGPAS100BTR, CSTGPAS100BTRUK
- EAN / UPC
- 4957812687362, 4957812687669, 4957812687379
- Also known as
- Yamaha STAGEPAS 100BTR Freestanding Public Address (PA) system 100 W Black
Specifications
37 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| RMS rated power | 100 W |
| Frequency range | 70 - 20000 Hz |
| Sound pressure level (max) | 120 dB |
Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Amplifier | Built-in |
| Amplifier class | D |
| Tweeter diameter (imperial) | 3.56 cm (1.4") |
| Woofer diameter (imperial) | 16.5 cm (6.5") |
Design
| Specification | Value |
|---|---|
| Type | Freestanding Public Address (PA) system |
| Product colour | Black |
| Housing material | Plastic |

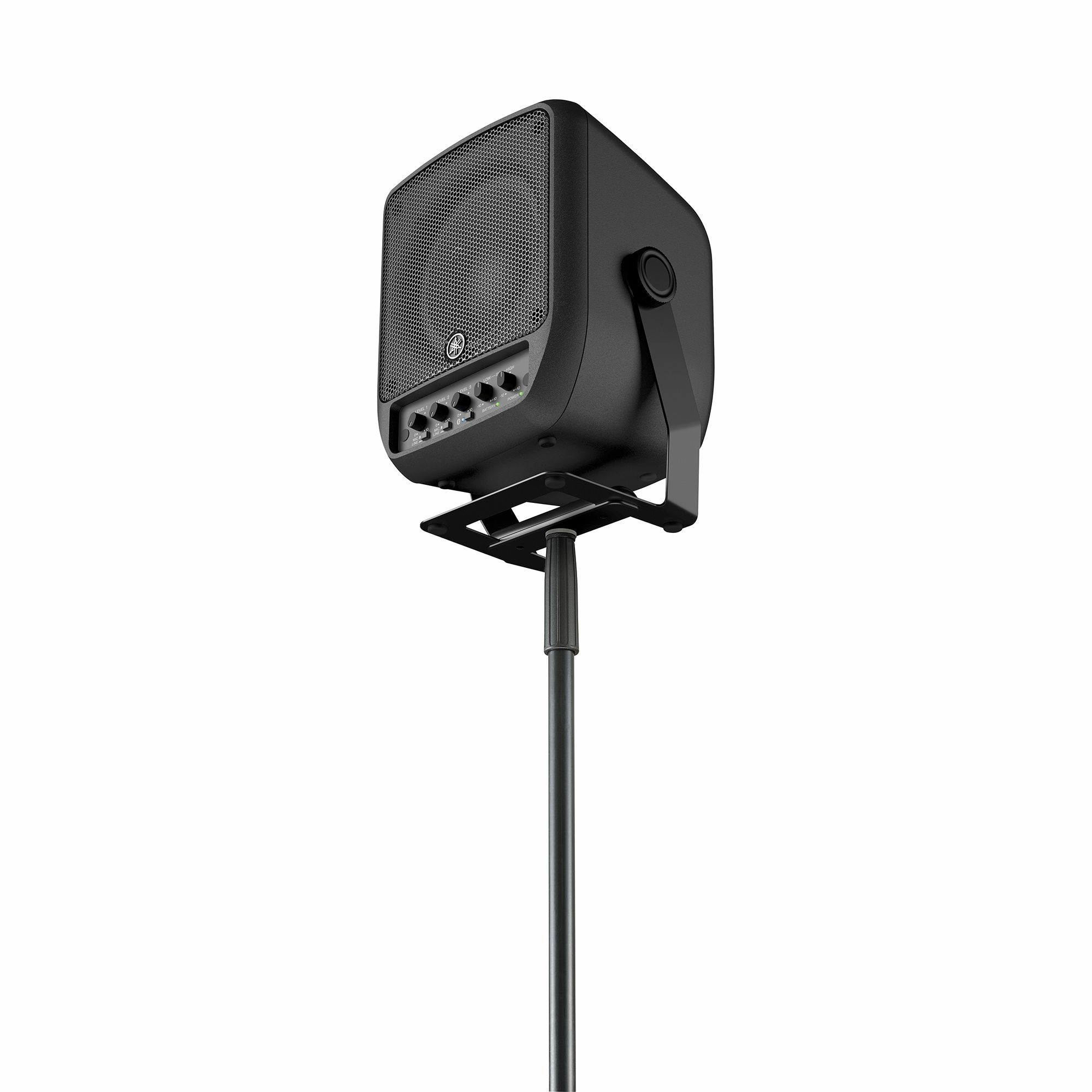

| Mounting type | Floor/Pole |
| Handle(s) | Yes |
| Handles quantity | 1 |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Equalizer | Yes |
| Equalizer bands quantity | 2 |
| Number of mixer channels | 3 channels |
| On/off switch | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Microphone in | Yes |
| XLR in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 30 W |
| Power consumption (standby) | 10 W |
| Battery life (max) | 6 h |
| Charging time | 2.5 h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 239 mm |
| Depth | 215 mm |
| Height | 310 mm |
| Weight | 5.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
