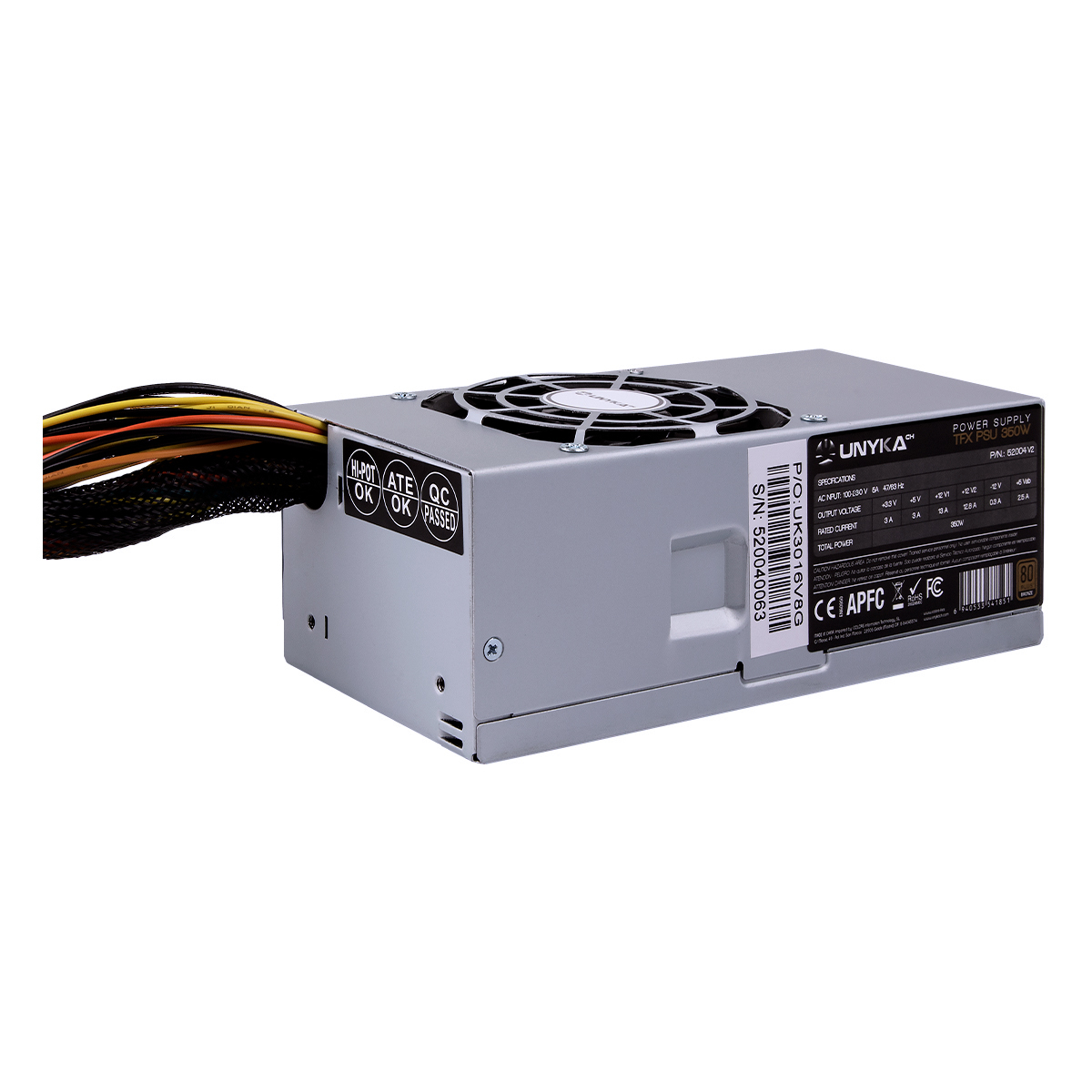

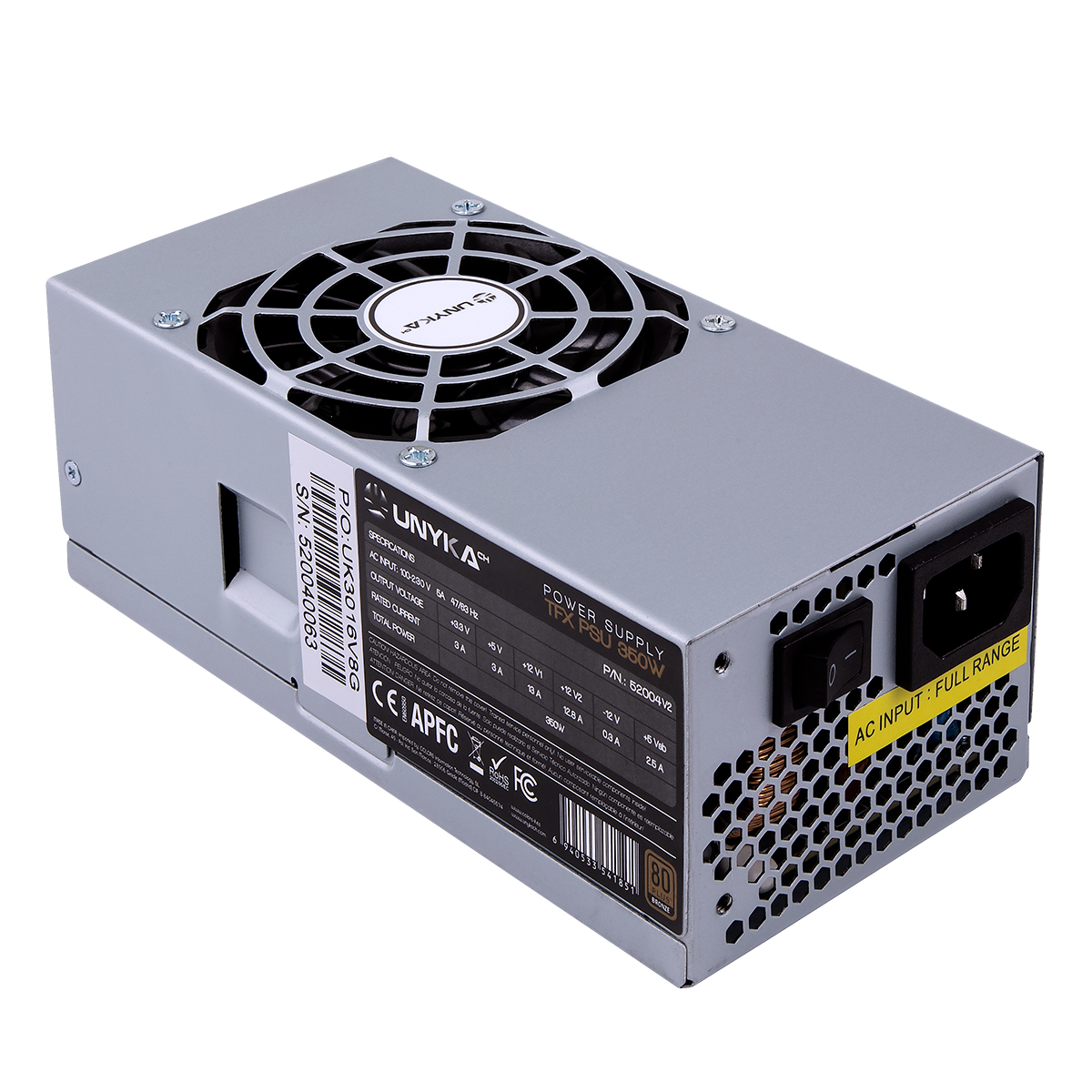

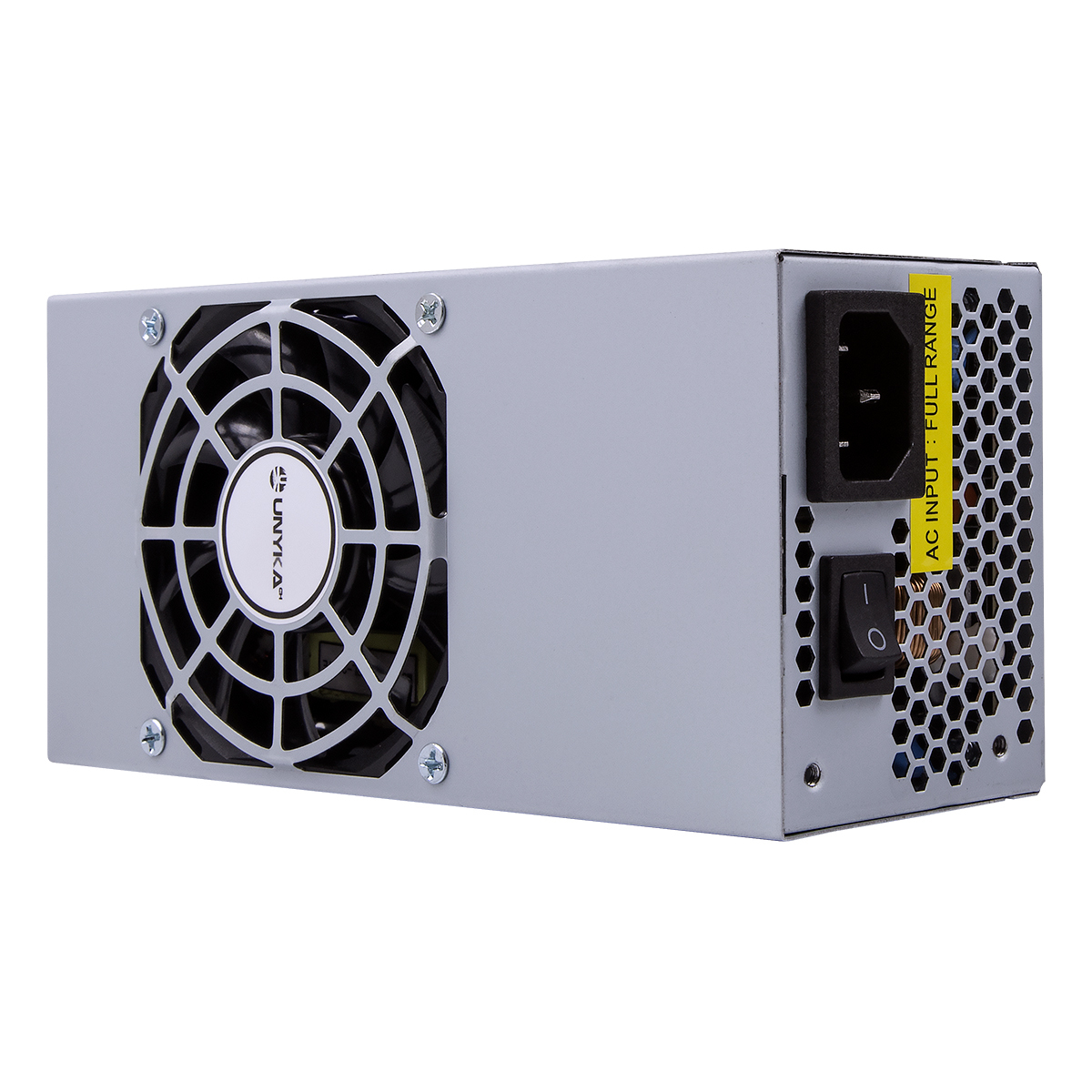

TFX 350W 80 Plus Bronze
Model TFX 350W 80 Plus BronzePart no. 52004V2EAN 6974560221684
44 specifications
- Weight1 kg
- ColourSilver
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width85 mm
Overview
- Weight
- 1 kg
- Colour
- Silver
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 85 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- TFX 350W 80 Plus Bronze
- Part number
- 52004V2
- EAN / UPC
- 6974560221684
- Also known as
- UNYKAch TFX 350W 80 Plus Bronze power supply unit 20+4 pin ATX Silver
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Combined power (+3.3V) | 9.9 W |
| Combined power (+5V) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 3 A |
| Max output current (+12V1) | 13 A |
| Max output current (+12V2) | 12.8 A |
| Max output current (+5V) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 38 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 380,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 380,660 mm |
| PCI Express power connectors (6-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 38 cm |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, ROHS, EN60950, TÚV, 80+BRONCE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 85 mm |
| Package depth | 175 mm |
| Package height | 65 mm |
| Package weight | 1 kg |
