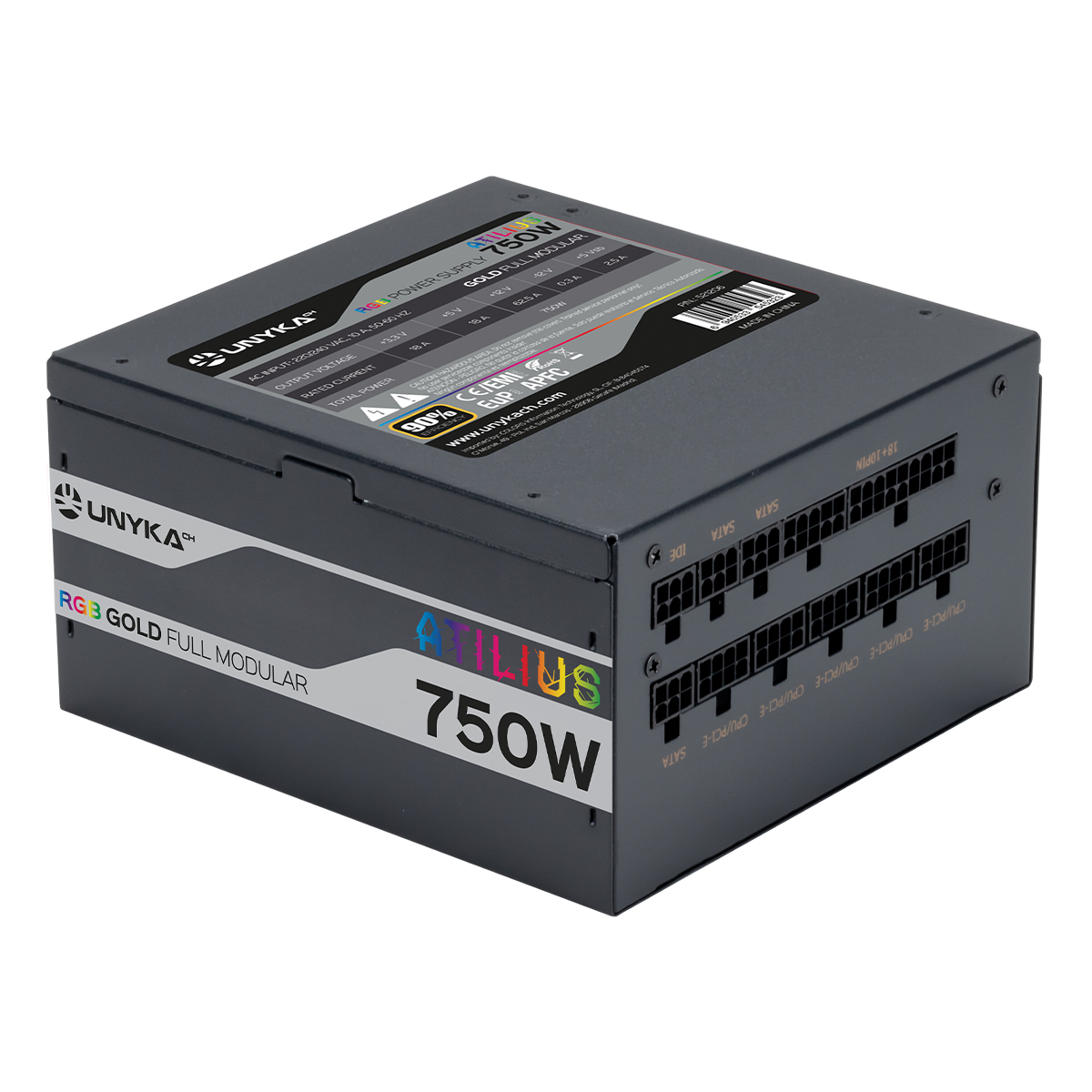

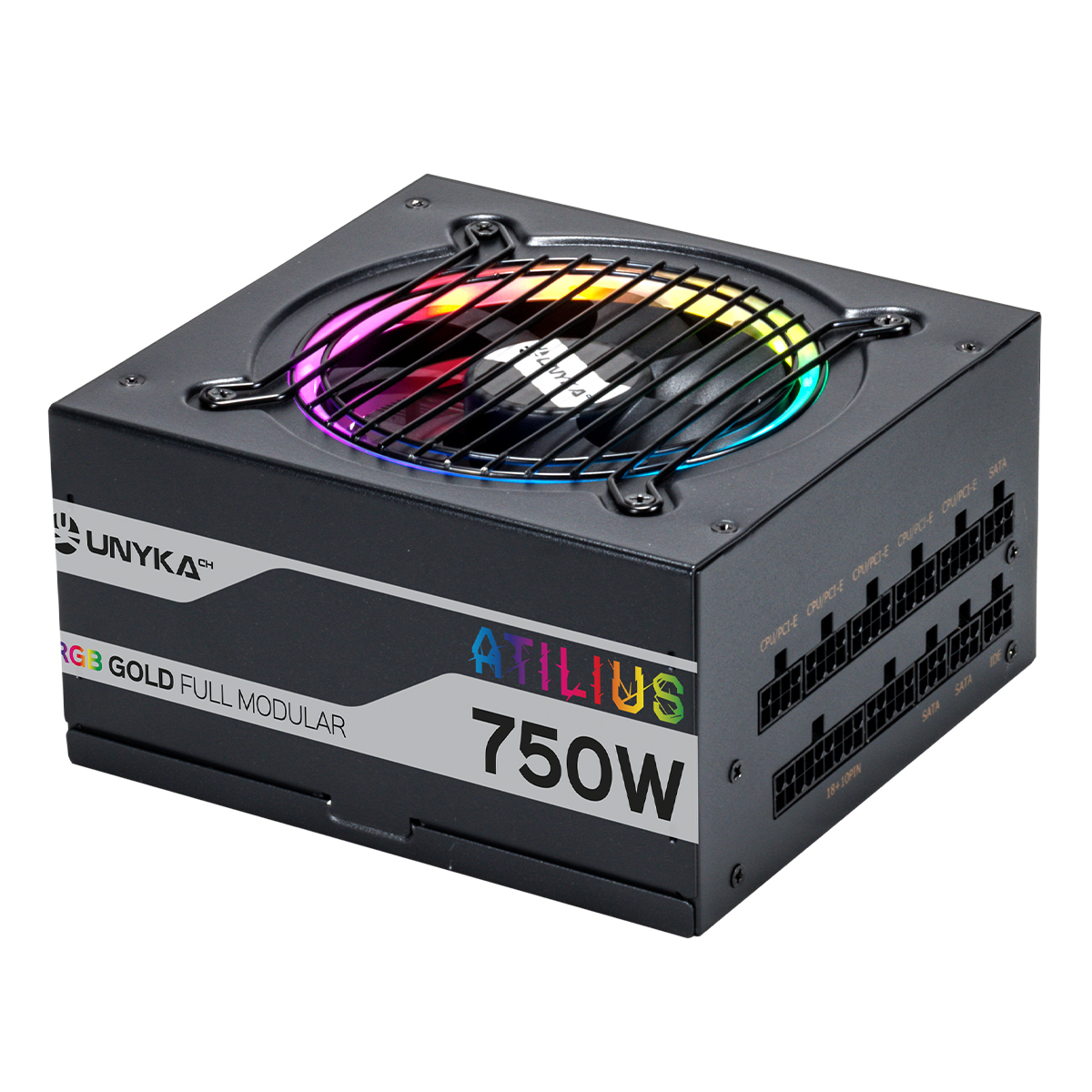

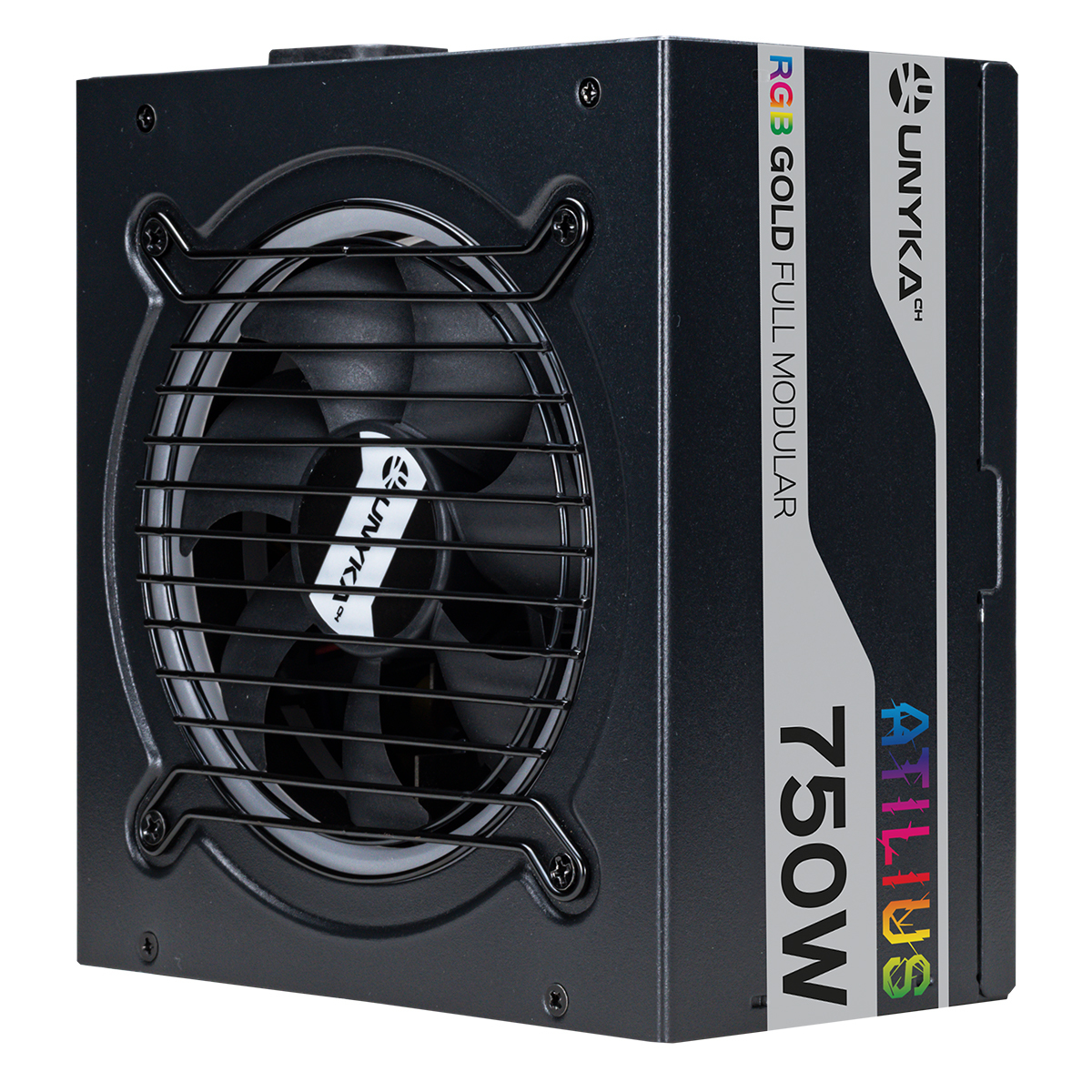

UNYKAch ATX Atilus RGB Black 750W
Model ATX Atilus RGB Black 750WPart no. UK521205EAN 6940533545316
46 specifications
- Weight2.05 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.05 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- UNYKAch
- Category
- Power Supply Unit
- Model
- ATX Atilus RGB Black 750W
- Part number
- UK521205
- EAN / UPC
- 6940533545316, 6974560220274
- Also known as
- UNYKAch ATX Atilus RGB Black 750W power supply unit 20+4 pin ATX
Specifications
46 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5V) | 18 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 62.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over power, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 2 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 150,500 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 1000 - 2200 RPM |
| Fan location | Top |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Certificates
| Specification | Value |
|---|---|
| Certification | CE / ROHS / EN60950 / TÜV / 90% Effinciency |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 2.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 225 mm |
| Package depth | 350 mm |
| Package height | 115 mm |
| Package weight | 2.3 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Compare UNYKAch ATX Atilus RGB Black 750W
Compare any products- UNYKAch ATX Atilus RGB Black 750W vsUNYKAch ATX Atilus RGB White 650WCompare specs

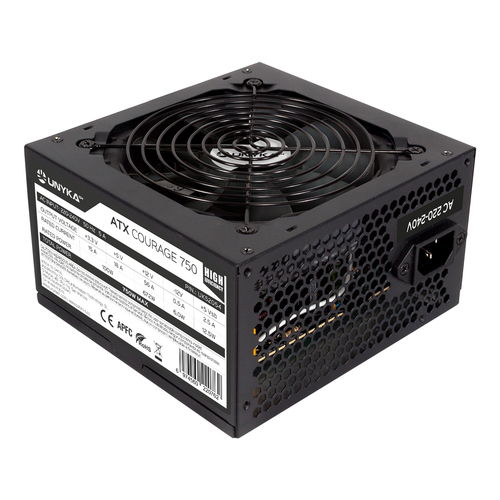

- UNYKAch ATX Atilus RGB Black 750W vsUNYKAch ATX Courage II 750WCompare specs

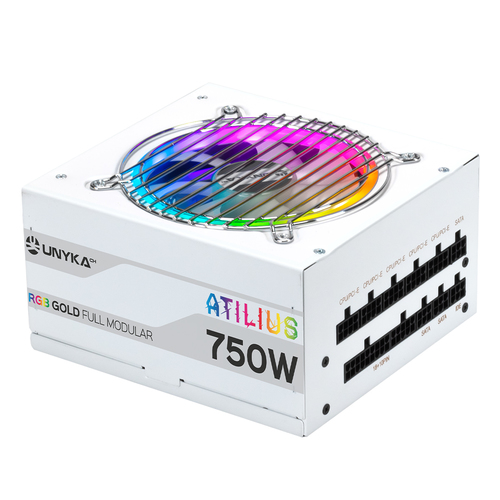

- UNYKAch ATX Atilus RGB Black 750W vsUNYKAch ATX Atilus RGB White 750WCompare specs

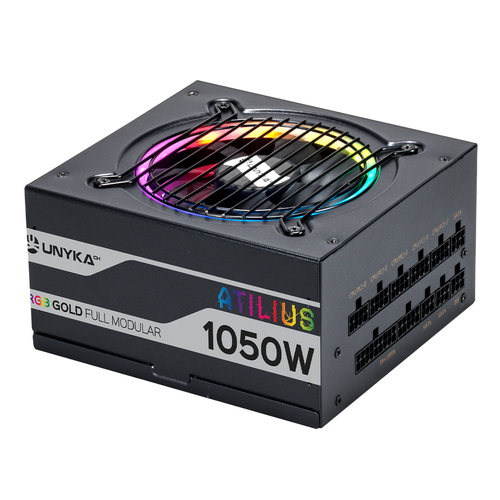

- UNYKAch ATX Atilus RGB Black 750W vsUNYKAch ATX Atilus RGB Black 1050WCompare specs

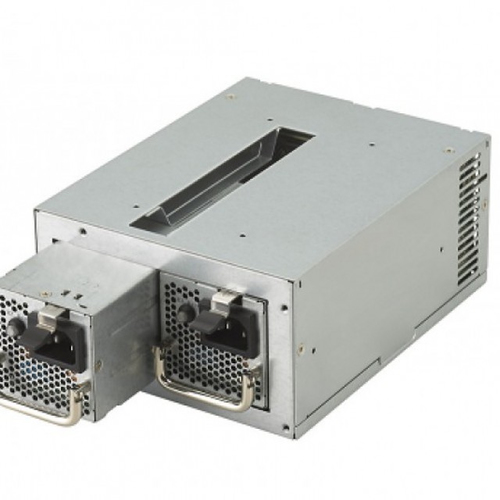

- UNYKAch ATX Atilus RGB Black 750W vsFSP700-50RAB power supply unitCompare specs

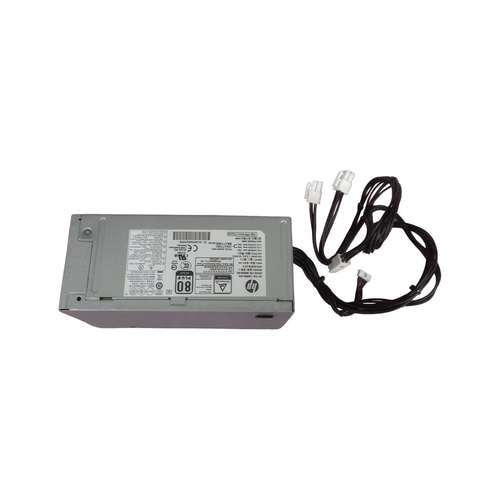

- UNYKAch ATX Atilus RGB Black 750W vsHP M09029-001 power supply unitCompare specs
