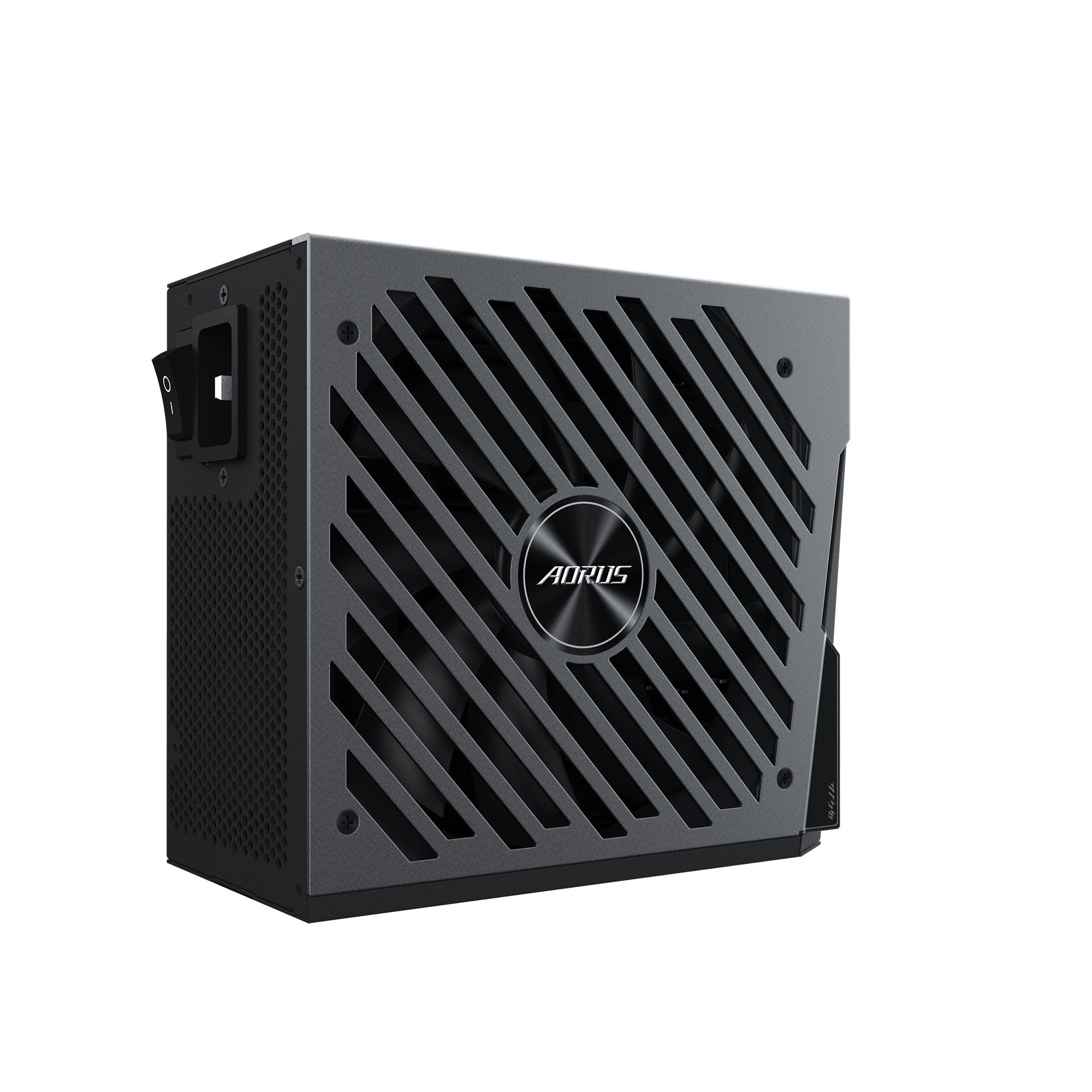

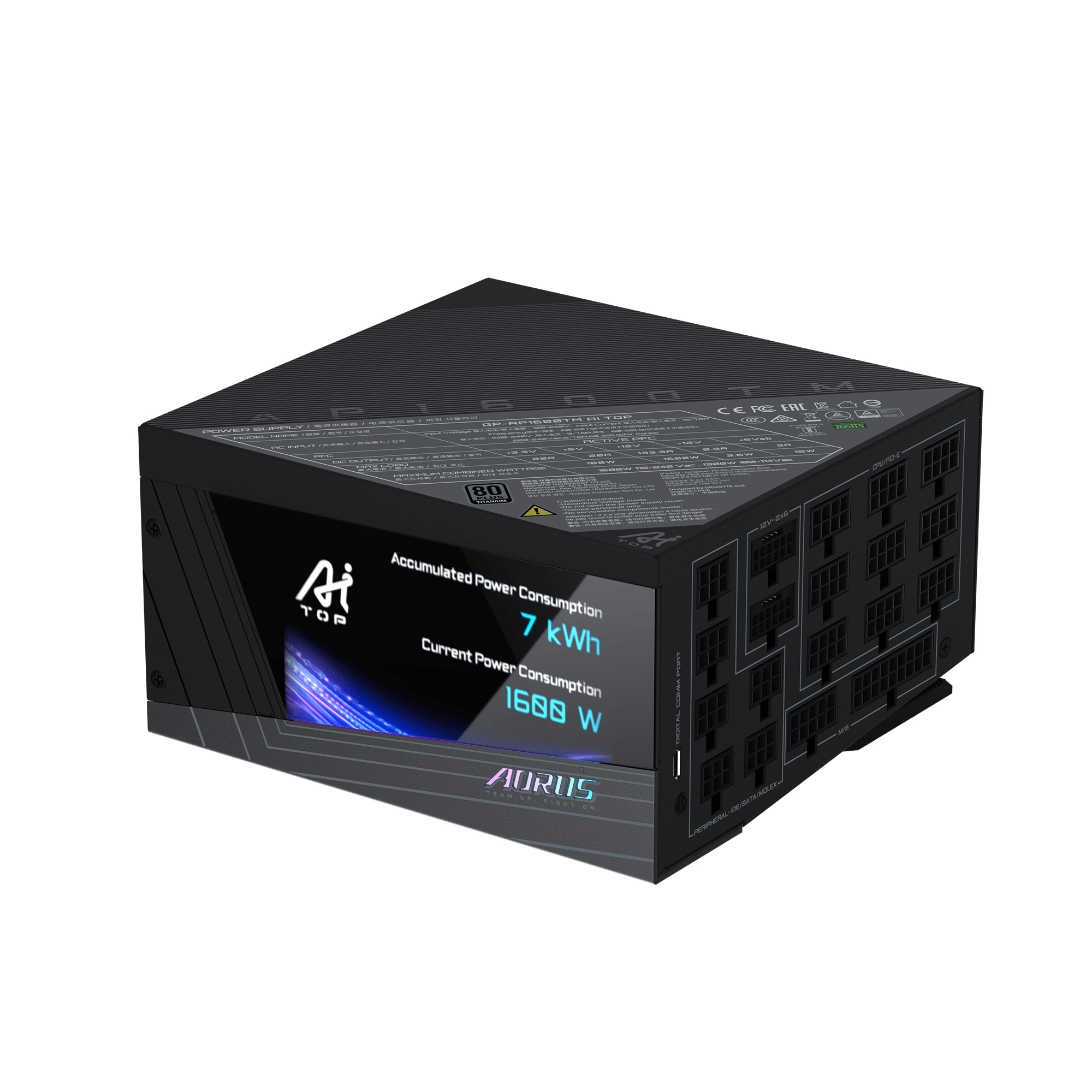

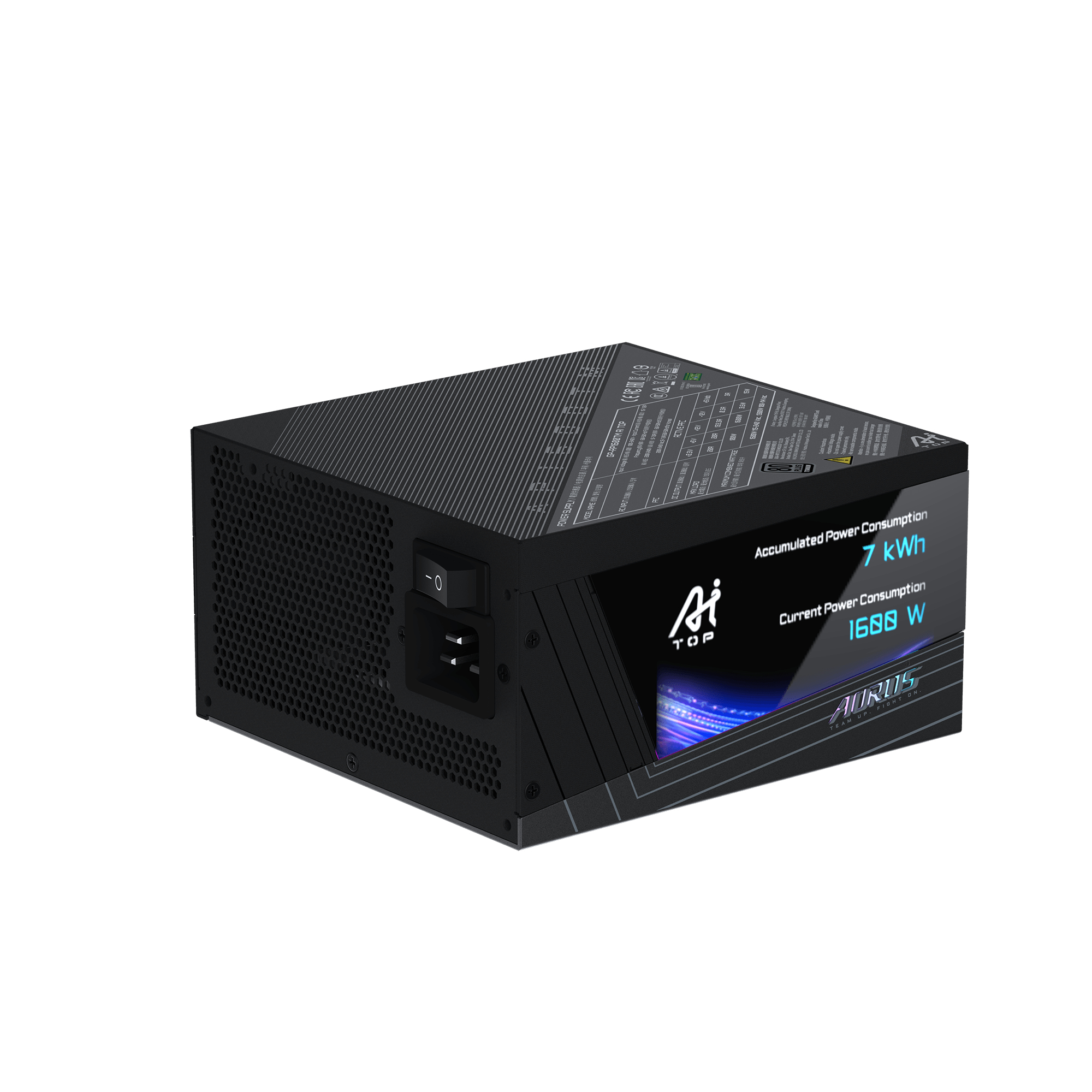

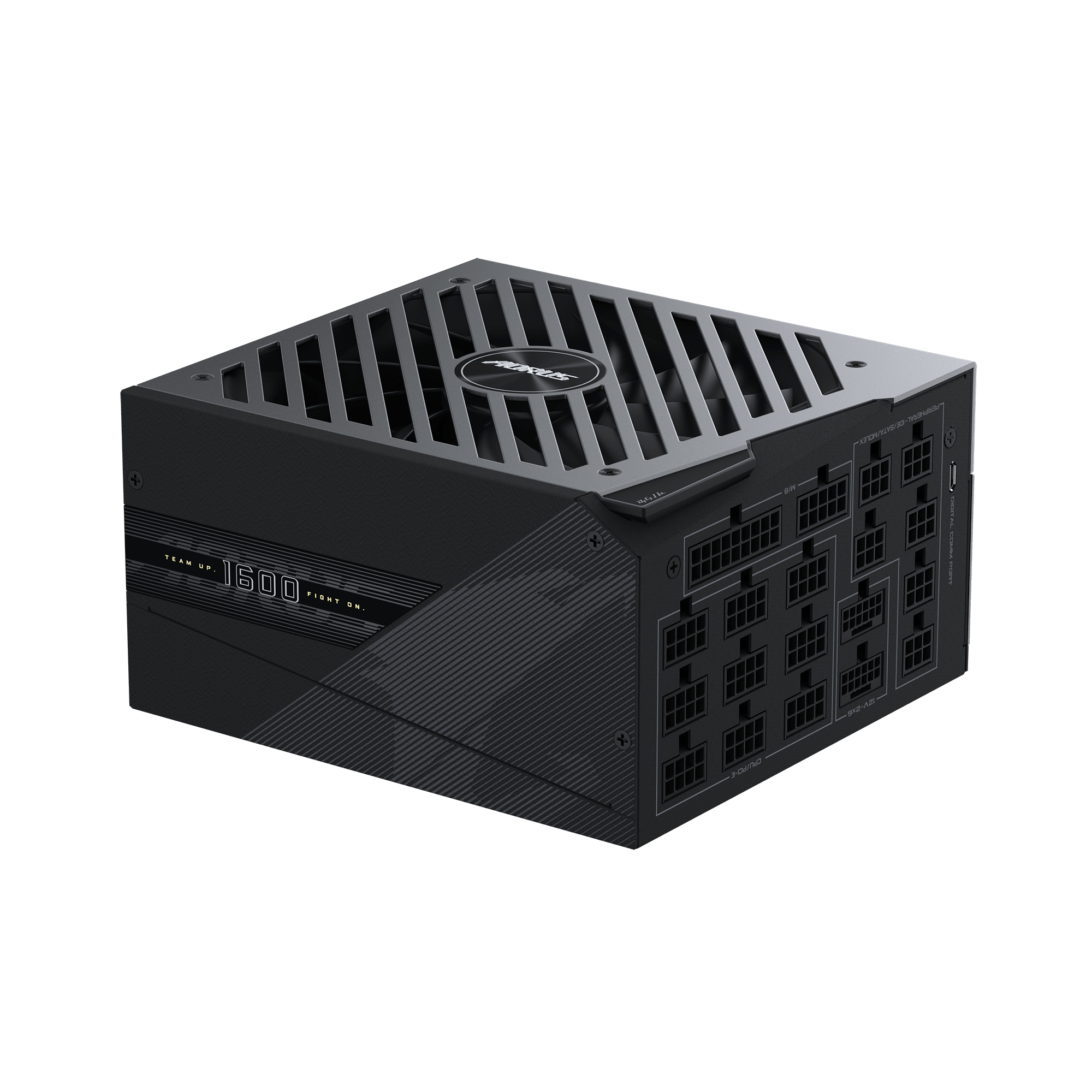

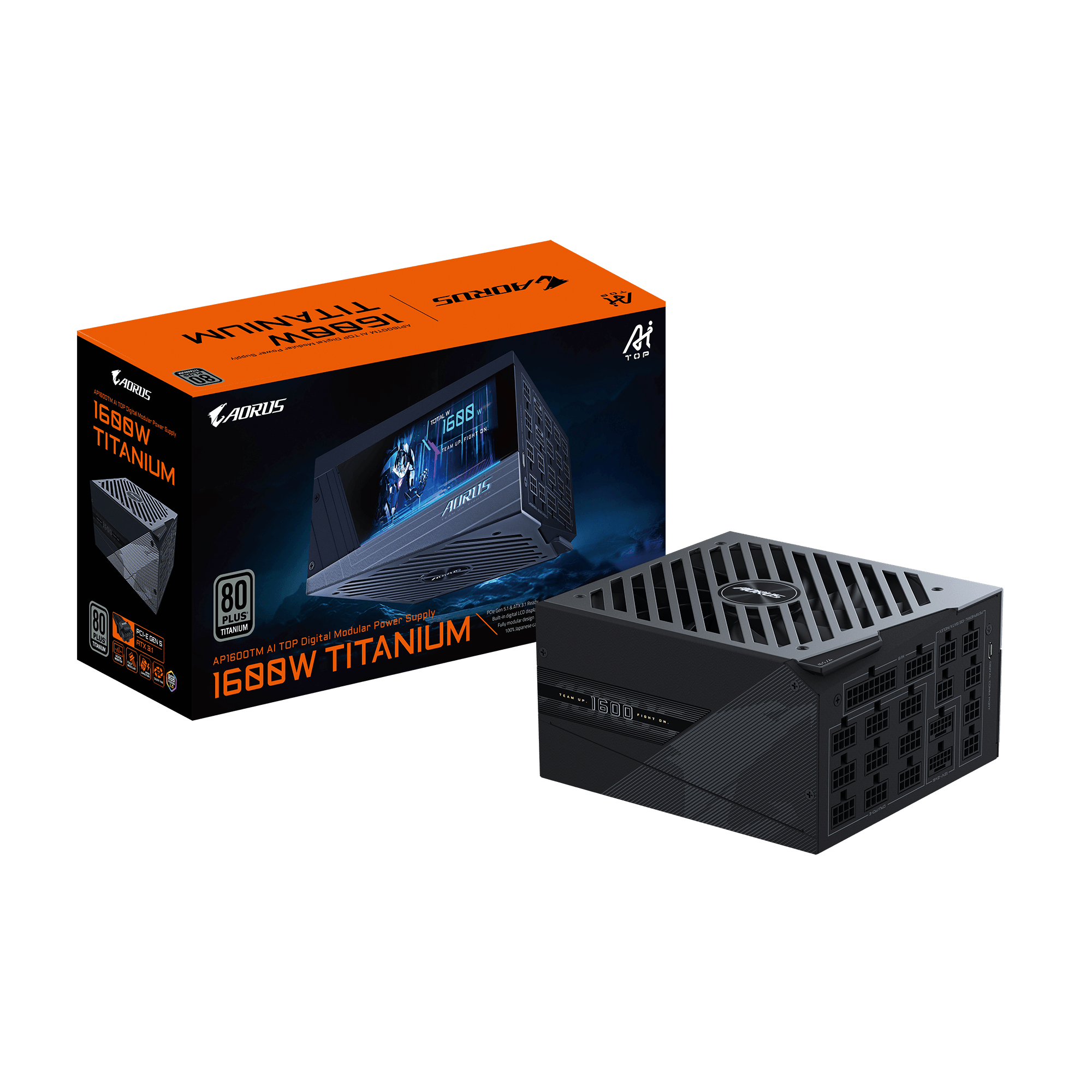

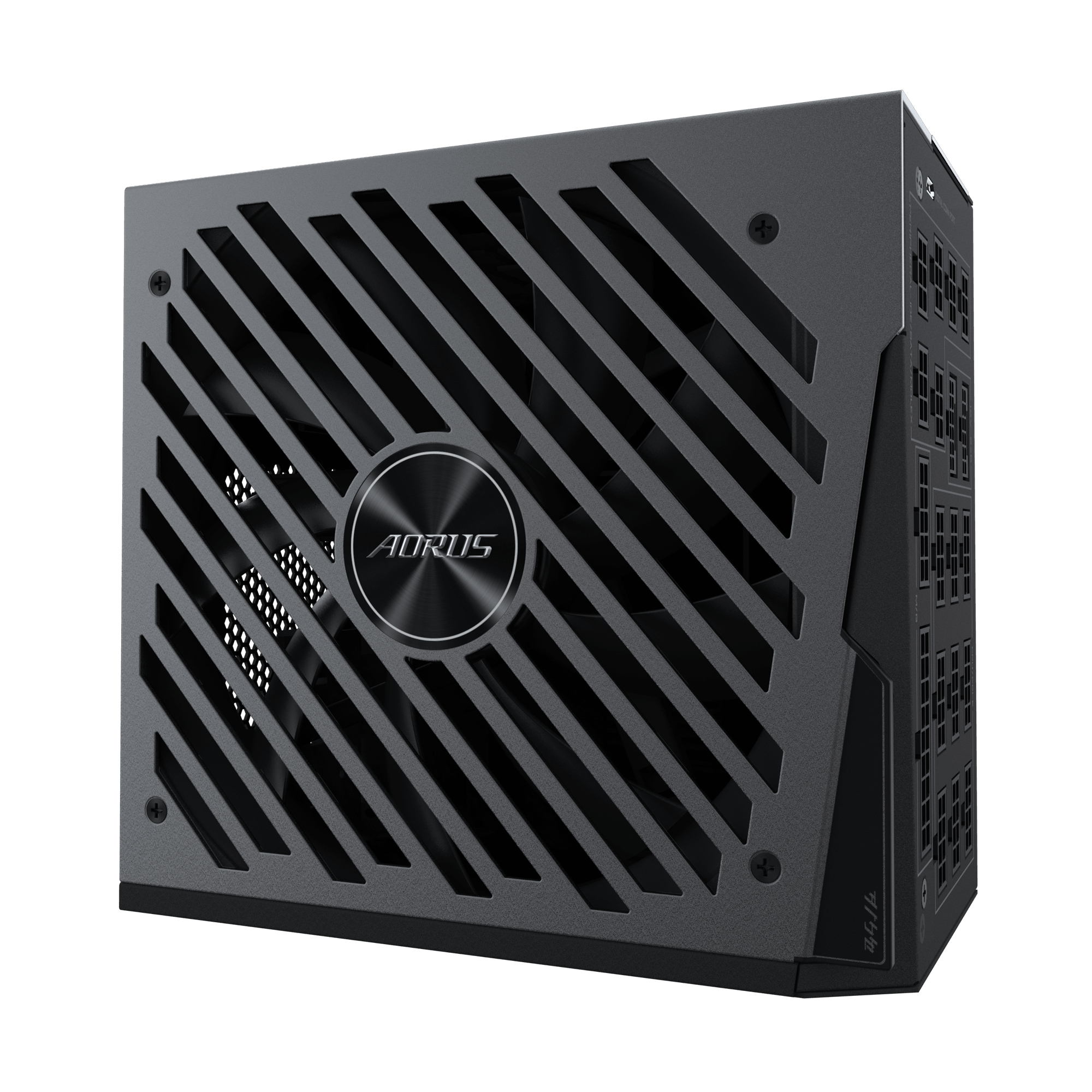

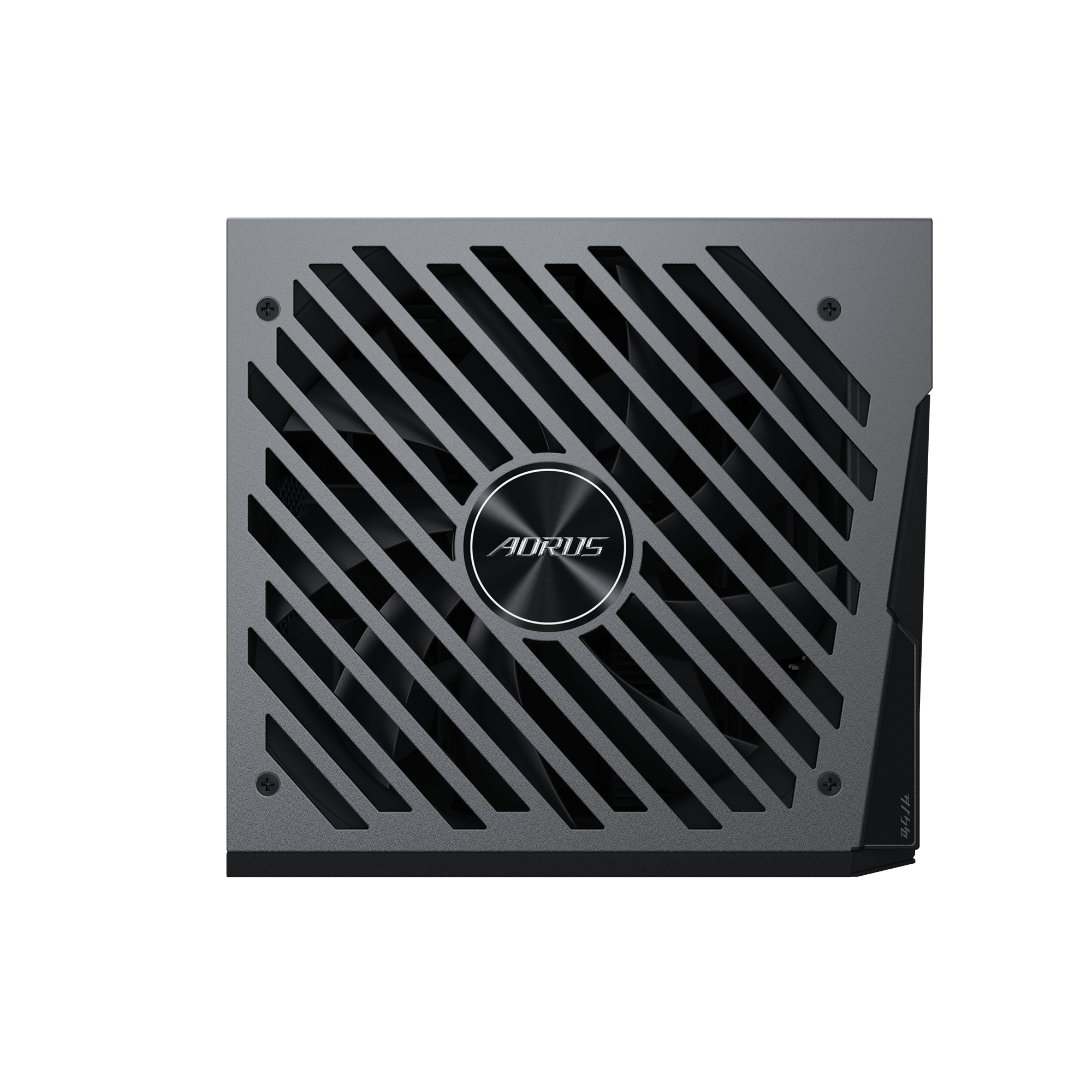

AORUS P1600W 80+ Titanium Modular PCIe 5.1 AI TOP
Model AORUS P1600W 80+ Titanium Modular PCIe 5.1 AI TOPPart no. GP-AP1600TM PG5 AI TOP EUEAN 4719331555740
49 specifications
- Weight4.83 kg
- ColourBlack
- Total power1600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 4.83 kg
- Colour
- Black
- Total power
- 1600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- GIGABYTE
- Category
- Power Supply Unit
- Model
- AORUS P1600W 80+ Titanium Modular PCIe 5.1 AI TOP
- Part numbers
- GP-AP1600TM PG5 AI TOP EU, GP-AP1600TM PG5 AI TOP UK
- EAN / UPC
- 4719331555740, 4719331555764
- Also known as
- GIGABYTE AORUS P1600W 80+ Titanium Modular PCIe 5.1 AI TOP Power Supply Unit
Specifications
49 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15-7.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Efficiency | 94% |
| Hold time | 100 ms |
| Power protection features | Over voltage, Over power, Short circuit, Under voltage, Over current, No load operation, Surge and inrush |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 16 |
| SATA power cable length | 600,150 mm |
| Number of SATA power cables | 4 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 500,150 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 10 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Number of EPS connectors | 2 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 4.83 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 219 mm |
| Package depth | 395 mm |
| Package height | 117 mm |
| Package weight | 5.17 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
