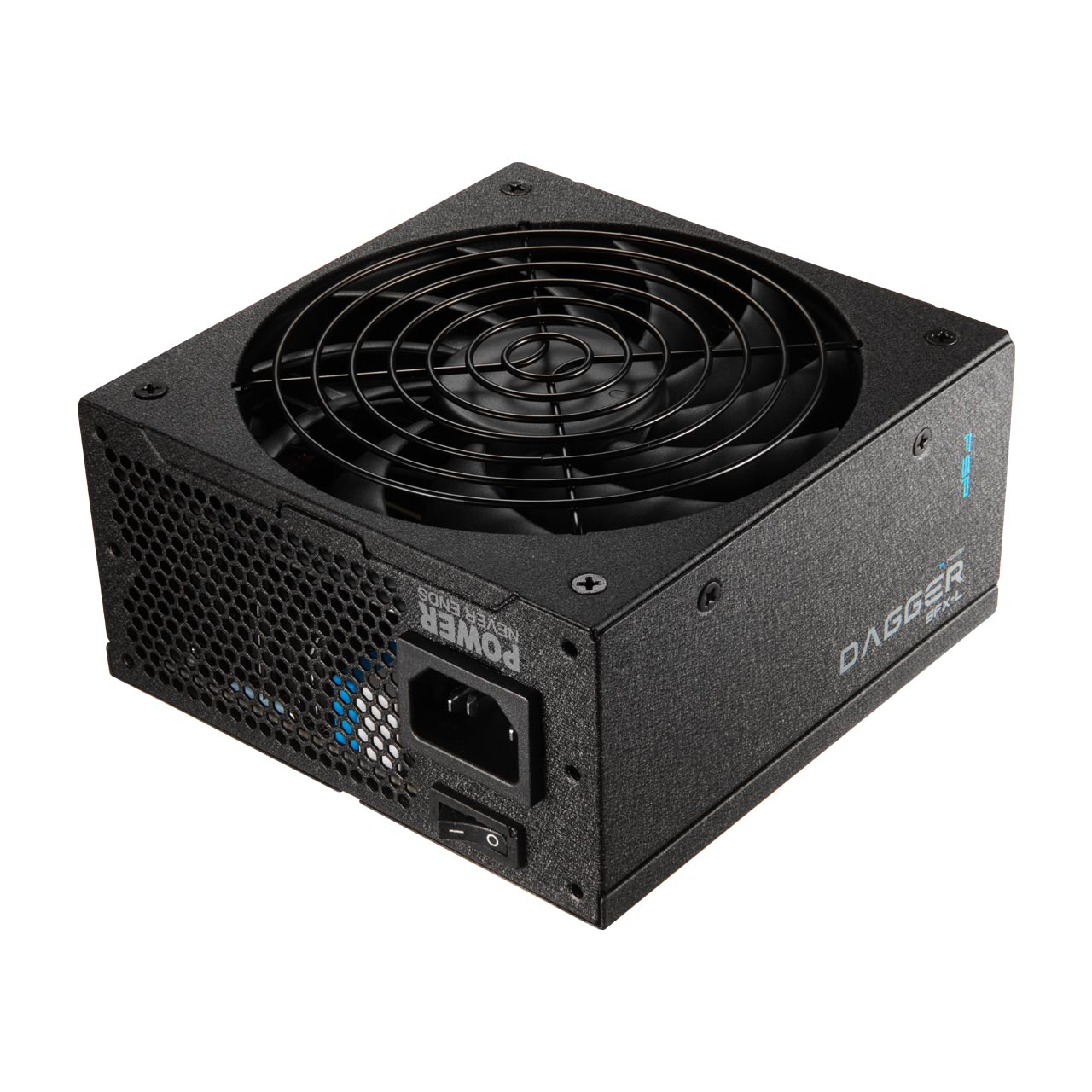

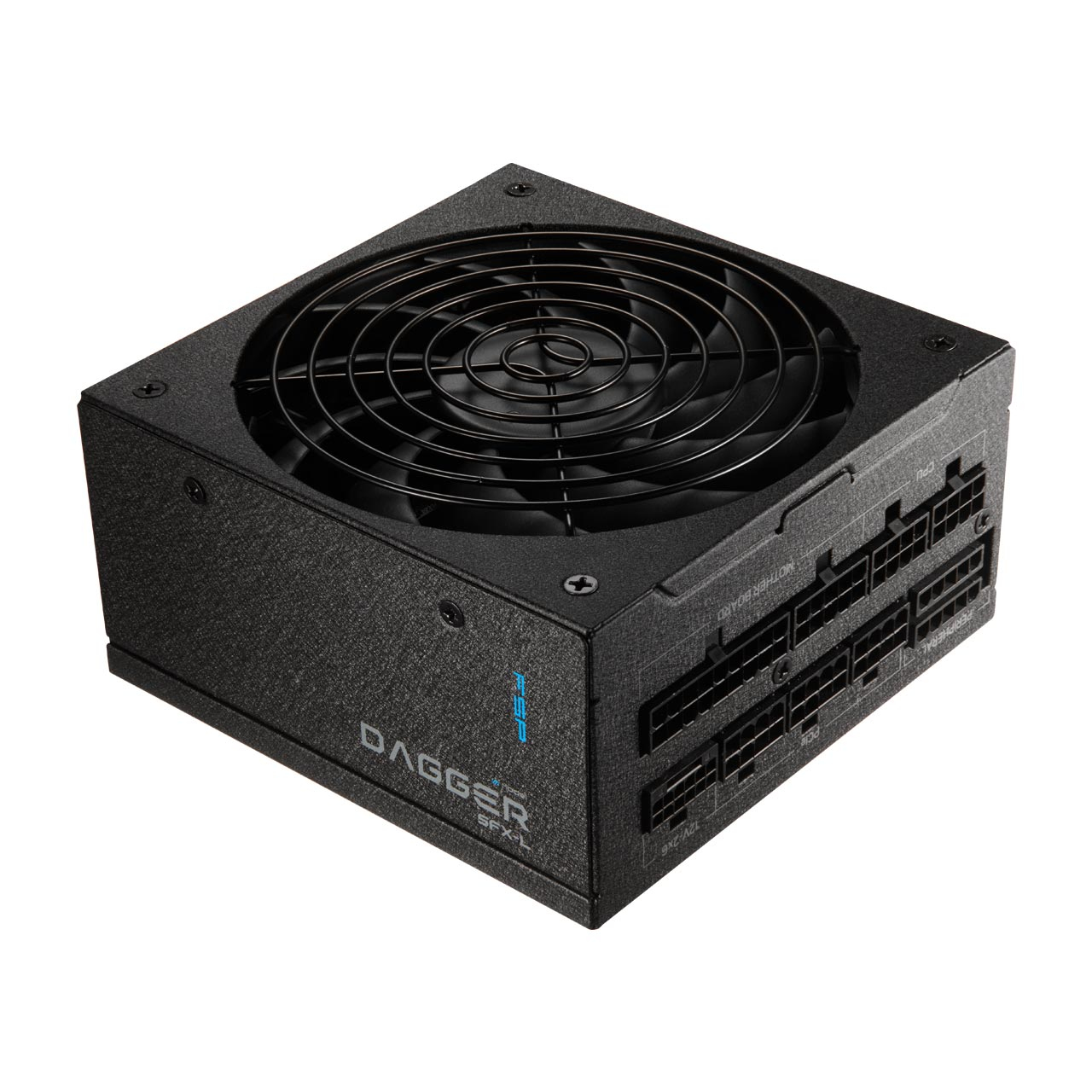

DAGGER PM 1200W Power supply unit ATX ATX3.1 Black
Model DAGGER PM 1200W Power supply unit ATX ATX3.1 BlackPart no. PPA12A1701EAN 4711498482761
47 specifications
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- DAGGER PM 1200W Power supply unit ATX ATX3.1 Black
- Part number
- PPA12A1701
- EAN / UPC
- 4711498482761
- Also known as
- FSP DAGGER PM 1200W Power supply unit ATX ATX3.1 Black
Specifications
47 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 14 - 7 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over voltage, Over current, Short circuit, Over power, Under voltage, Overheating, Surge & inrush protection (SIP), Surge and inrush, Surge & inrush, No load operation |

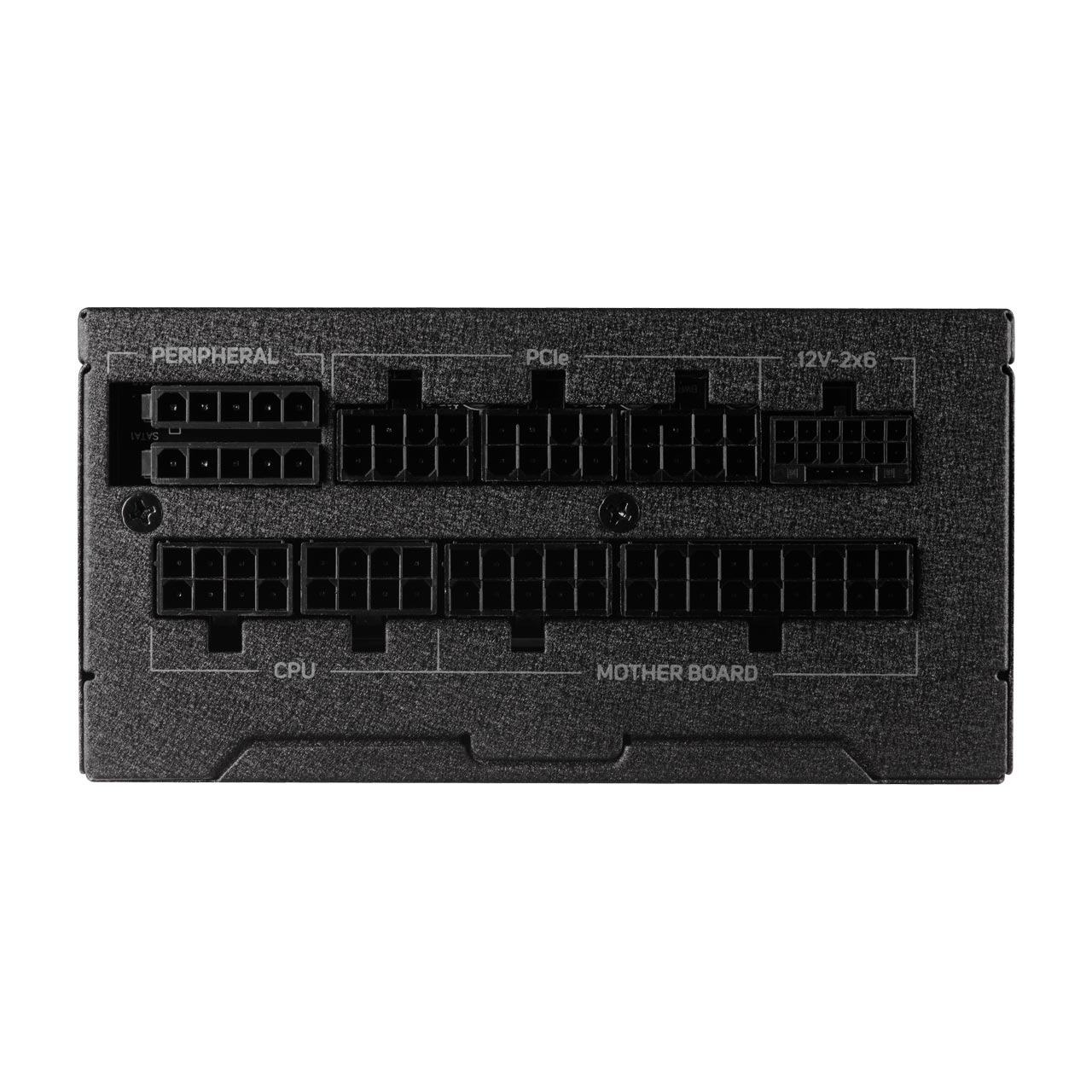

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 500,655,810,965 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Cybenetics certification | Platinum |
| Cybenetics noise rating | A- |
| ATX version | 3.1 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

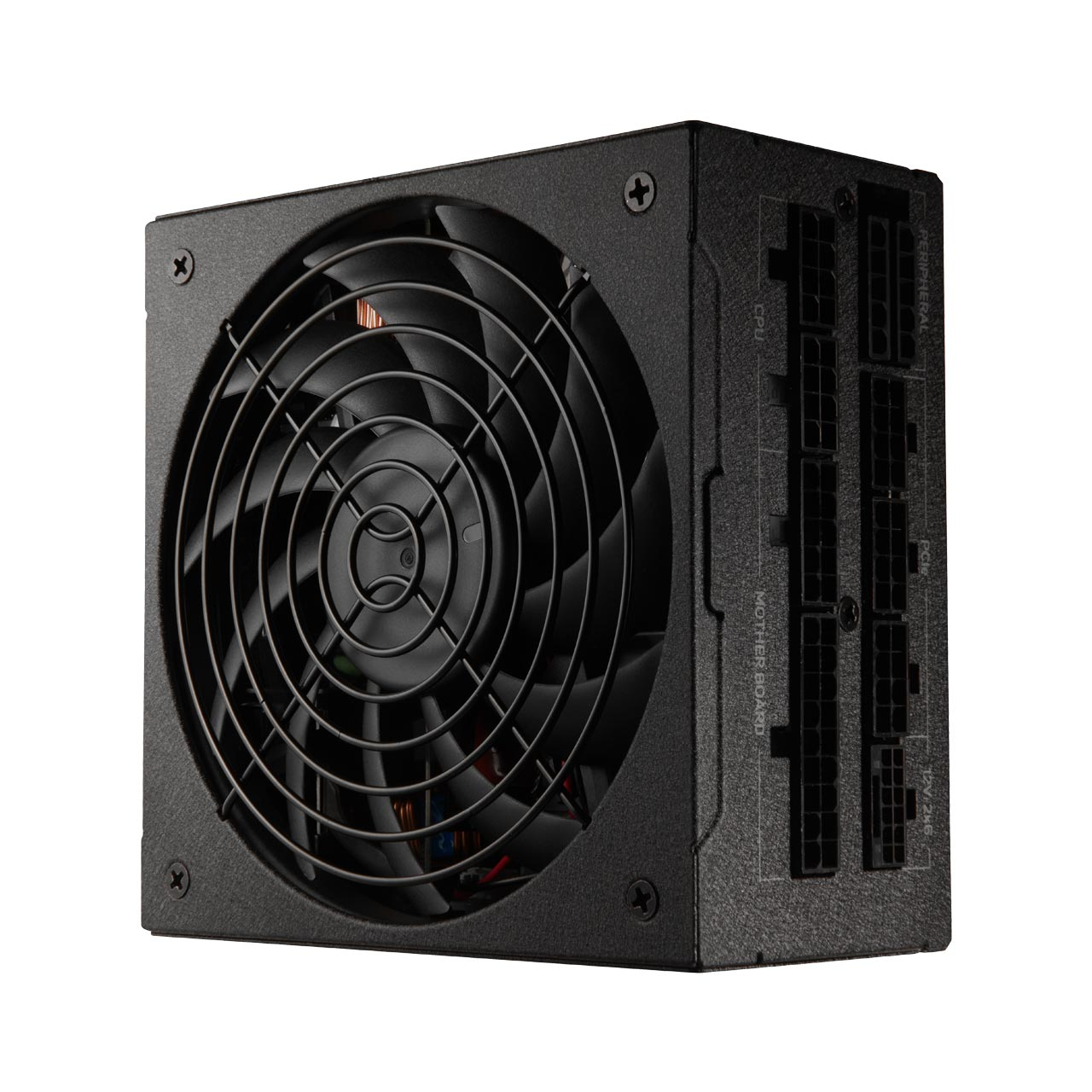

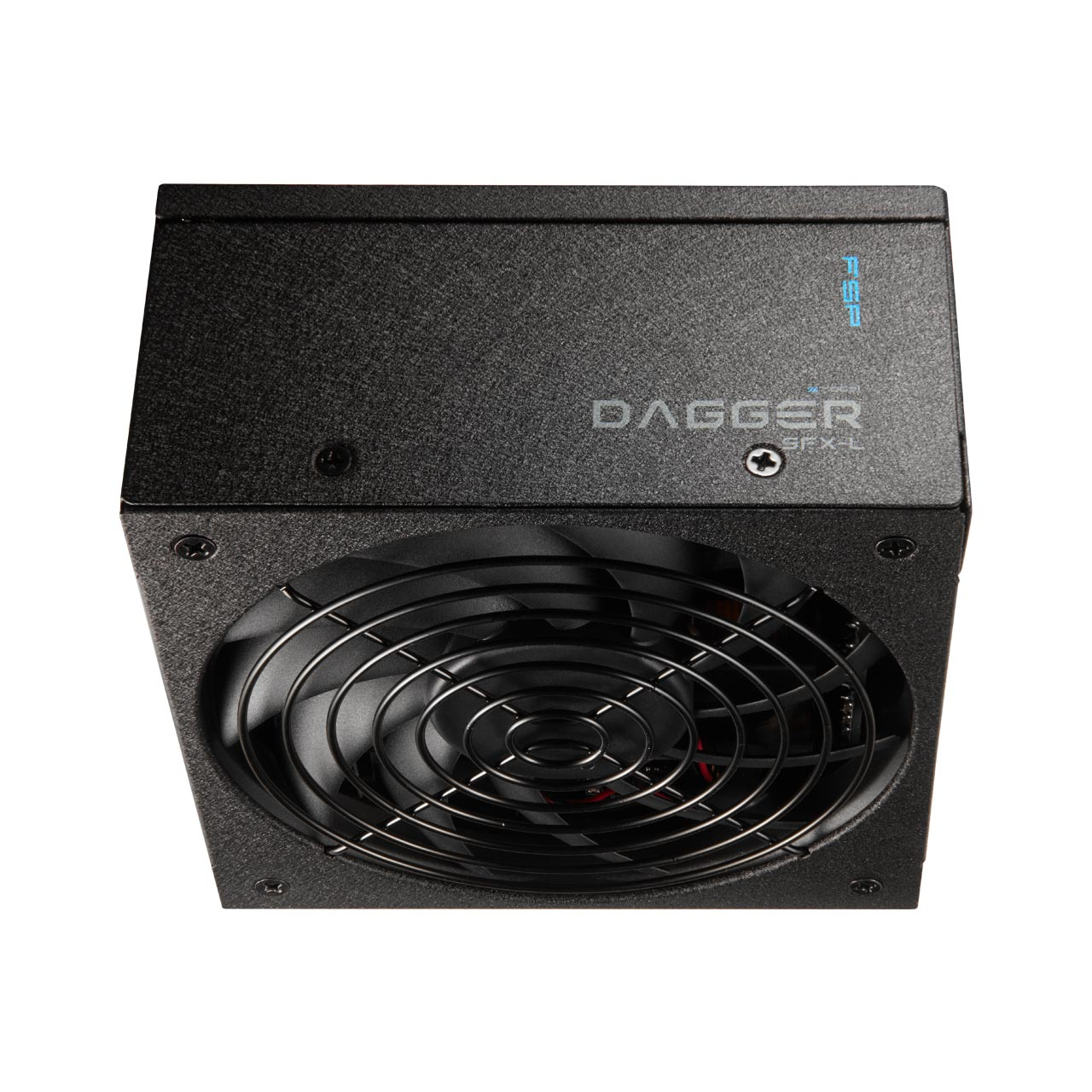

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |

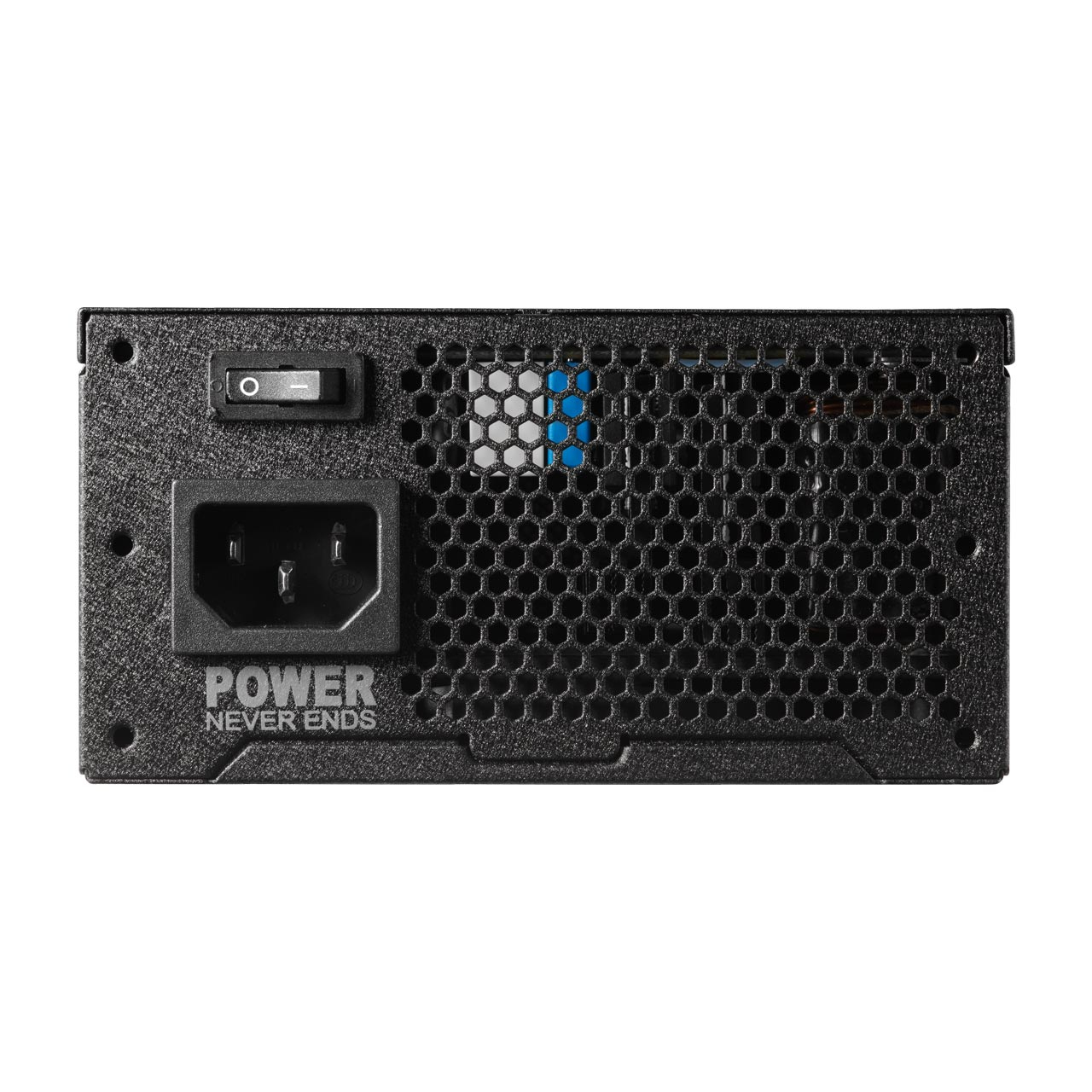

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
