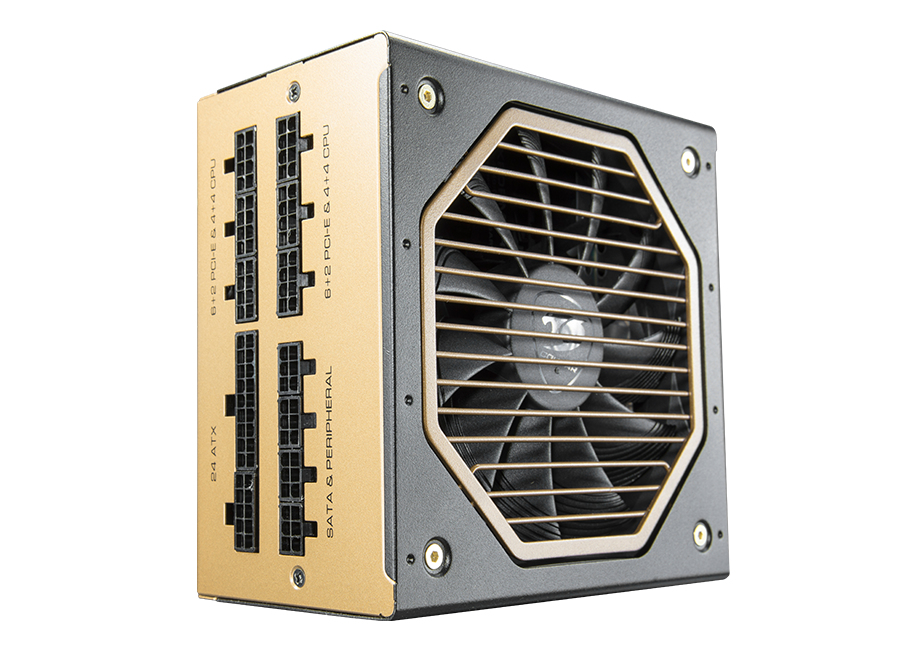

GX-F AURUM 550
Model GX-F AURUM 550Part no. 31TP055026-01EAN 192554000862
54 specifications
- Weight1.5 kg
- ColourBlack, Gold
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Operating temperature (T-T)10 - 50 °C
Overview
- Weight
- 1.5 kg
- Colour
- Black, Gold
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- GX-F AURUM 550
- Part number
- 31TP055026-01
- EAN / UPC
- 192554000862, 4541995033605, 4715302442262
- Also known as
- COUGAR GX-F AURUM 550 power supply unit 550 W 20+4 pin ATX ATX Black, Gold
Specifications
54 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | 9 A |
| Maximum input current (@220V) | 4 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 546 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 45.5 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 570,690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 640 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Gold |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1600 RPM |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | TÜV, CE, FCC, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 229 mm |
| Package depth | 331 mm |
| Package height | 107 mm |
| Package weight | 2.71 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
