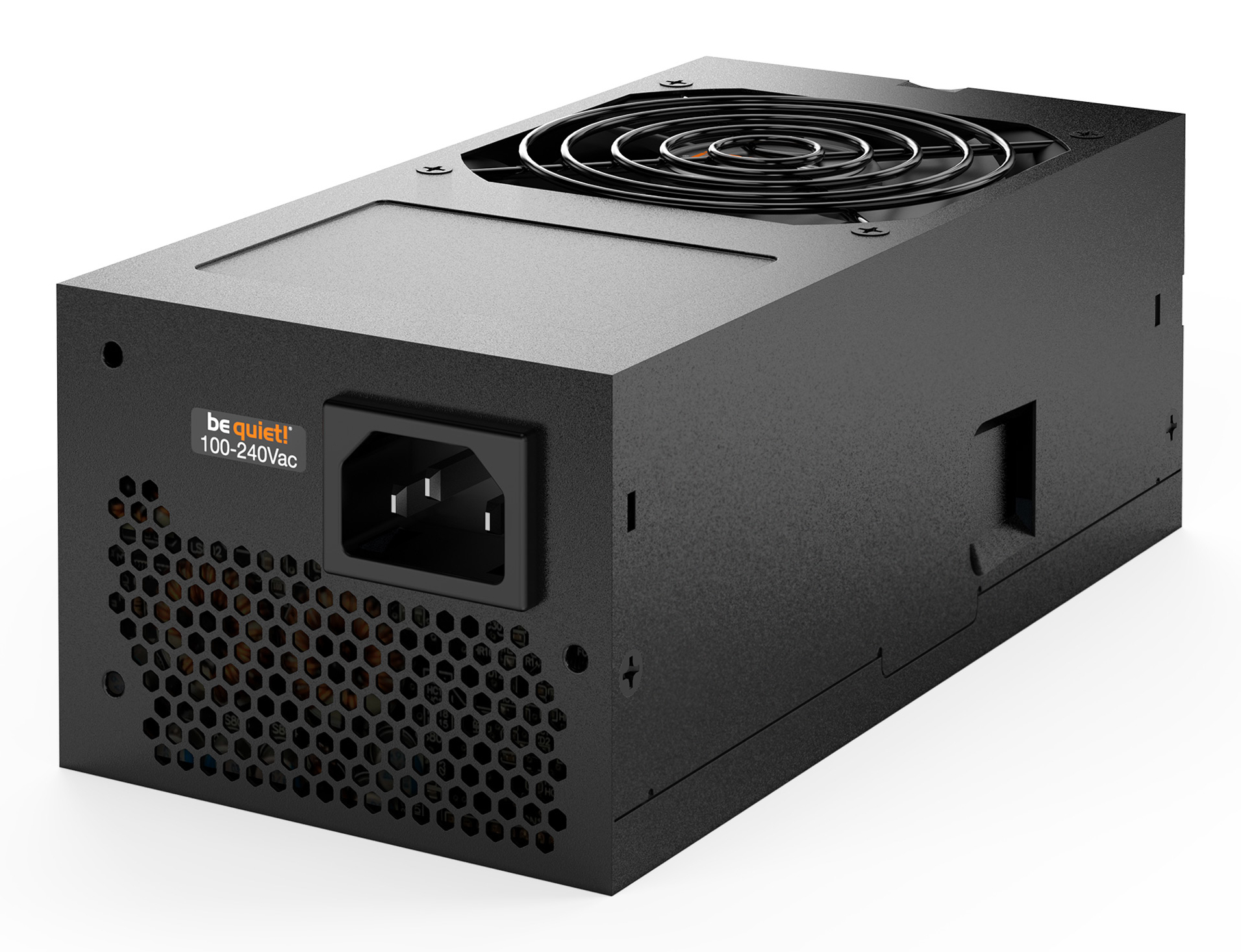

TFX Power 3 300W Gold
Model TFX Power 3 300W GoldPart no. BP910UKEAN 4260052194089
71 specifications

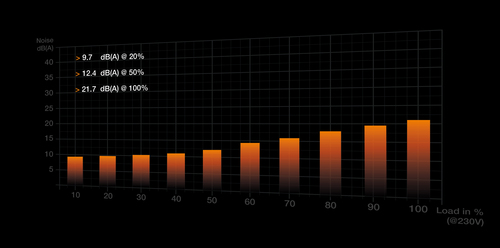

- Noise21.7 dB
- Weight1.1 kg
- ColourBlack
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 21.7 dB
- Weight
- 1.1 kg
- Colour
- Black
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- TFX Power 3 300W Gold
- Part numbers
- BP910UK, BP910, BN323
- EAN / UPC
- 4260052194089, 4260052188293
- Also known as
- be quiet! TFX Power 3 300W Gold power supply unit 20+4 pin ATX Black
Specifications
71 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| Peak power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 4 A |
| Maximum input current (@220V) | 2 A |
| Power factor | 0.98 |
| Number of +12V rail(s) | 2 |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 288 W |
| Combined power (+5V) | 103 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 13 A |
| Max output current (+12V2) | 13 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90.6% |
| Hold time | 29 ms |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 3 |
| SATA power cable length | 300,450,600 mm |
| Number of SATA power cables | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 300,450 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 40 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 35 cm |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Gold |
| EPS version | 2.92 |
| Noise level | 21.7 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1323 RPM |
| Illumination | No |
| On/off switch | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, RoHS, TÜV mark, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Manual languages | German, English, Spanish, French, Polish, Russian |
| Package width | 159 mm |
| Package depth | 82 mm |
| Package height | 215 mm |
| Package weight | 1.4 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP, Triman |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case height | 19.5 cm |
| Shipping (inner) case length | 47.4 cm |
| Shipping (inner) case net weight | 9.4 kg |
| Shipping (inner) case width | 27.5 cm |
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Cable ties included | Yes |
