Pure Power 11 FM 1000W
Model Pure Power 11 FM 1000WPart no. BN325EAN 4260052188620
71 specifications
- Noise32.1 dB
- Weight1.89 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 32.1 dB
- Weight
- 1.89 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Pure Power 11 FM 1000W
- Part number
- BN325
- EAN / UPC
- 4260052188620
- Also known as
- be quiet! Pure Power 11 FM 1000W power supply unit 20+4 pin ATX ATX Black
Specifications
71 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| Peak power | 1050 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12/6 A |
| Power factor | 0.97 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 46 A |
| Max output current (+12V2) | 42 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90.8% |
| Hold time | 20.9 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 500,650,800,950 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 800,950 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 110 cm |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.52 |
| EPS version | 2.92 |

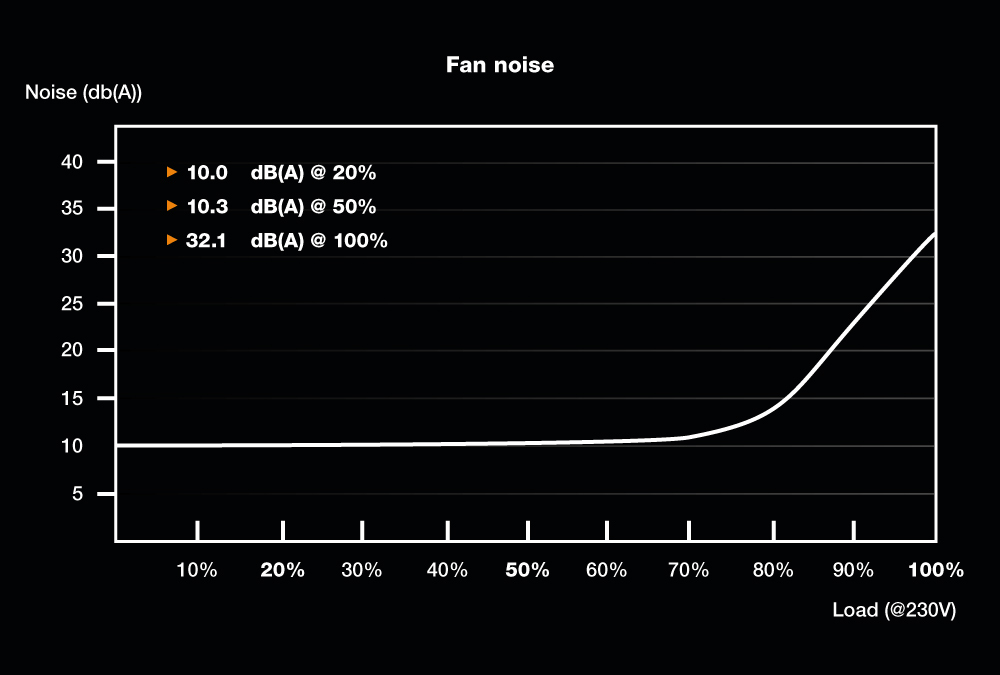

| Noise level | 32.1 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, WEEE |
| Certification | CE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.89 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 300 mm |
| Package height | 100 mm |
| Package weight | 3.22 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 4 pc(s) |
| Shipping (inner) case height | 22.5 cm |
| Shipping (inner) case length | 42.1 cm |
| Shipping (inner) case net weight | 13.5 kg |
| Shipping (inner) case width | 31.4 cm |
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Cable ties included | Yes |
