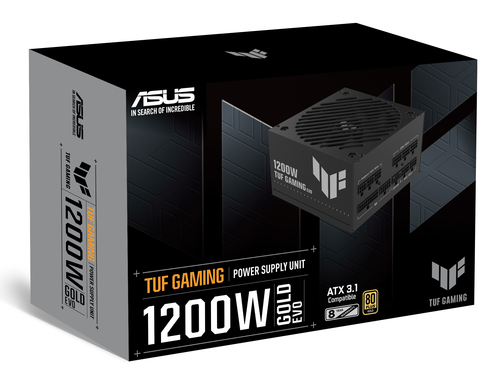

TUF-GAMING-1200G-EVO power supply unit
1200 W 20+4 pin ATX ATX Black
Model TUF-GAMING-1200G-EVOPart no. 90YE00SD-B0NA00EAN 199291490208
45 specifications
- Weight1.87 kg
- ColourBlack
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 1.87 kg
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- TUF-GAMING-1200G-EVO
- Part number
- 90YE00SD-B0NA00
- EAN / UPC
- 199291490208, 4711636490207
- Also known as
- ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black
Specifications
45 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Under voltage, Short circuit, Over current |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120,400 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 75 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.87 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 282 mm |
| Package depth | 182 mm |
| Package height | 127 mm |
| Package weight | 3.32 kg |
| Package type | Box |
