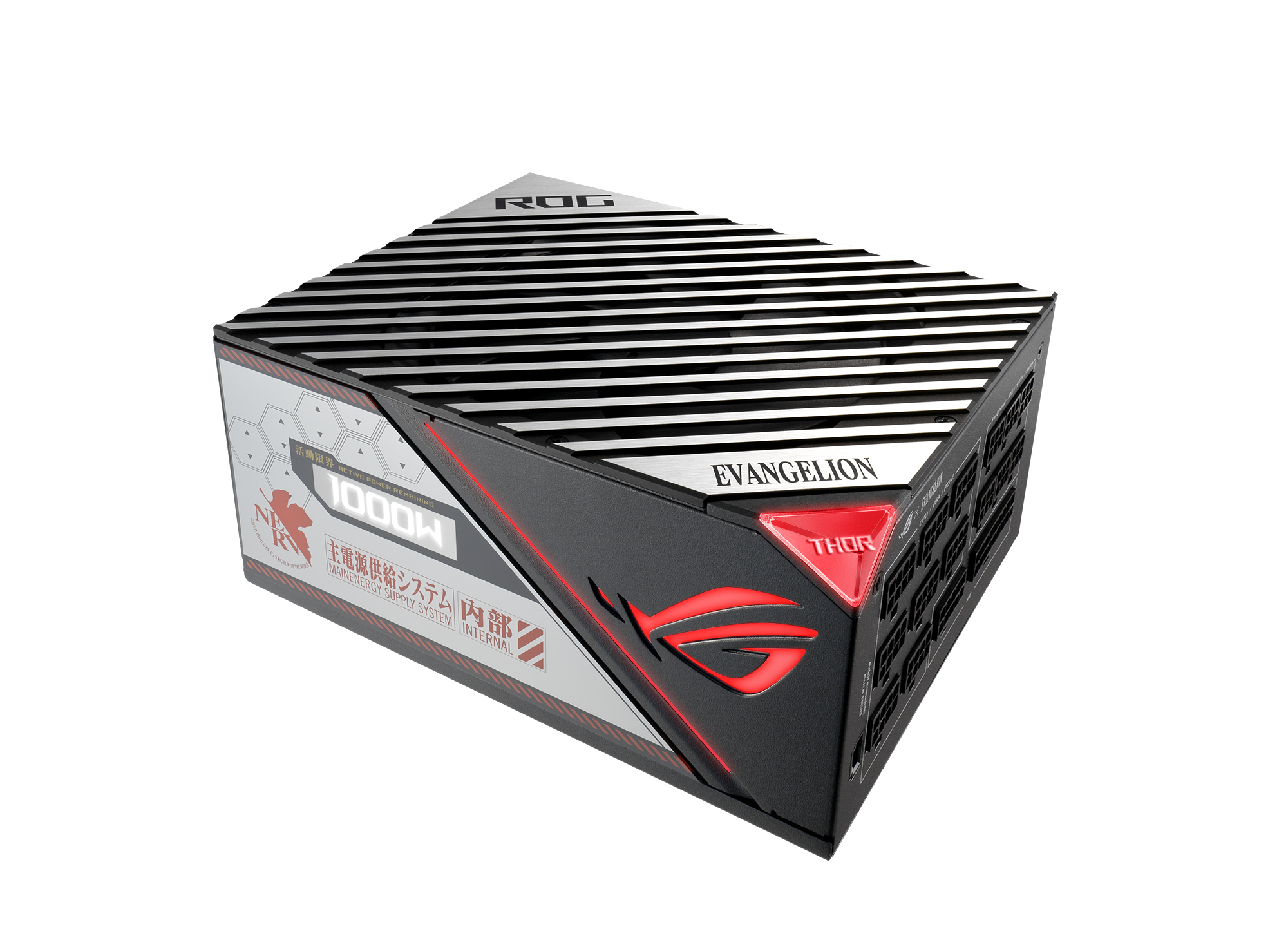

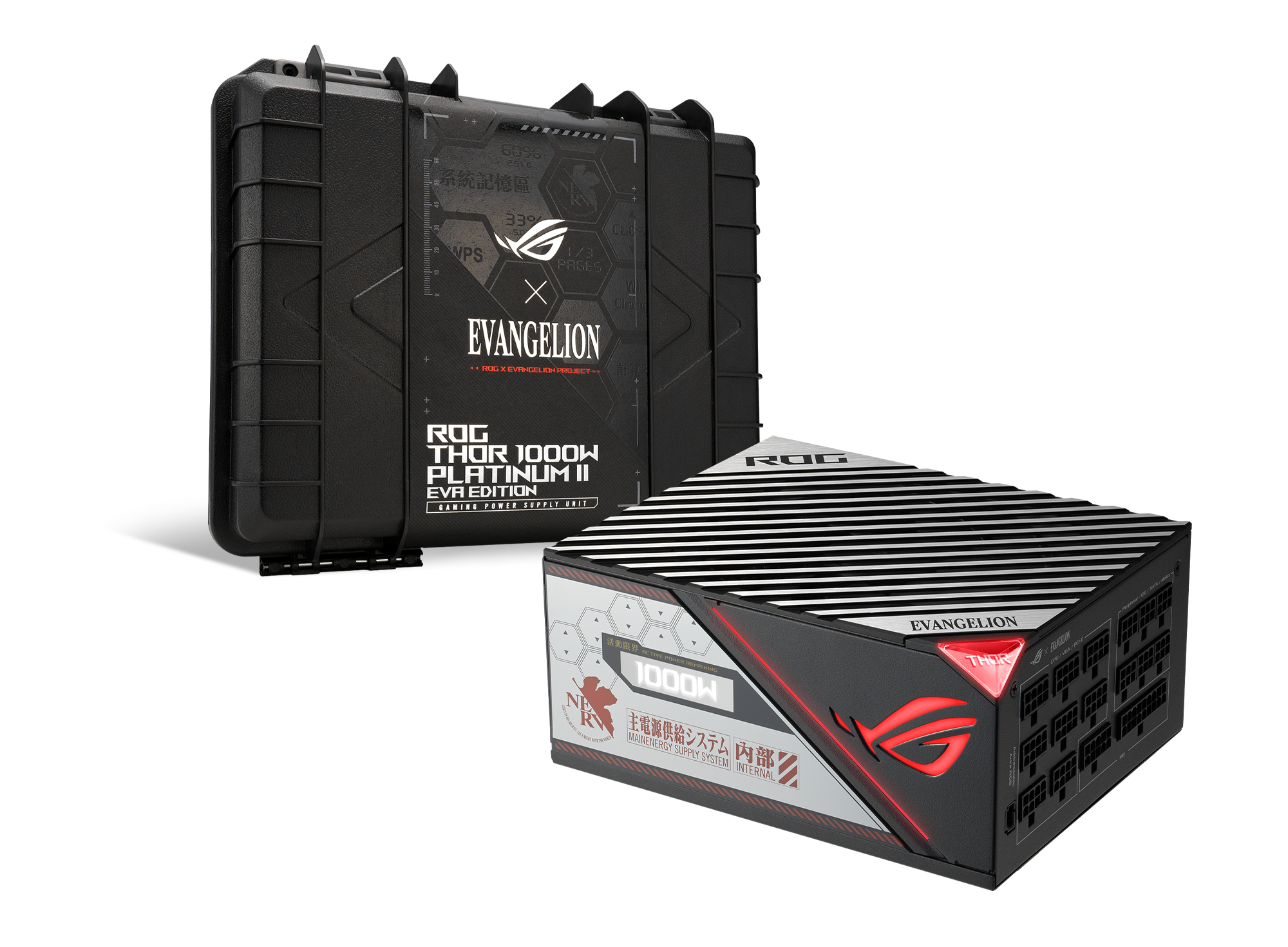

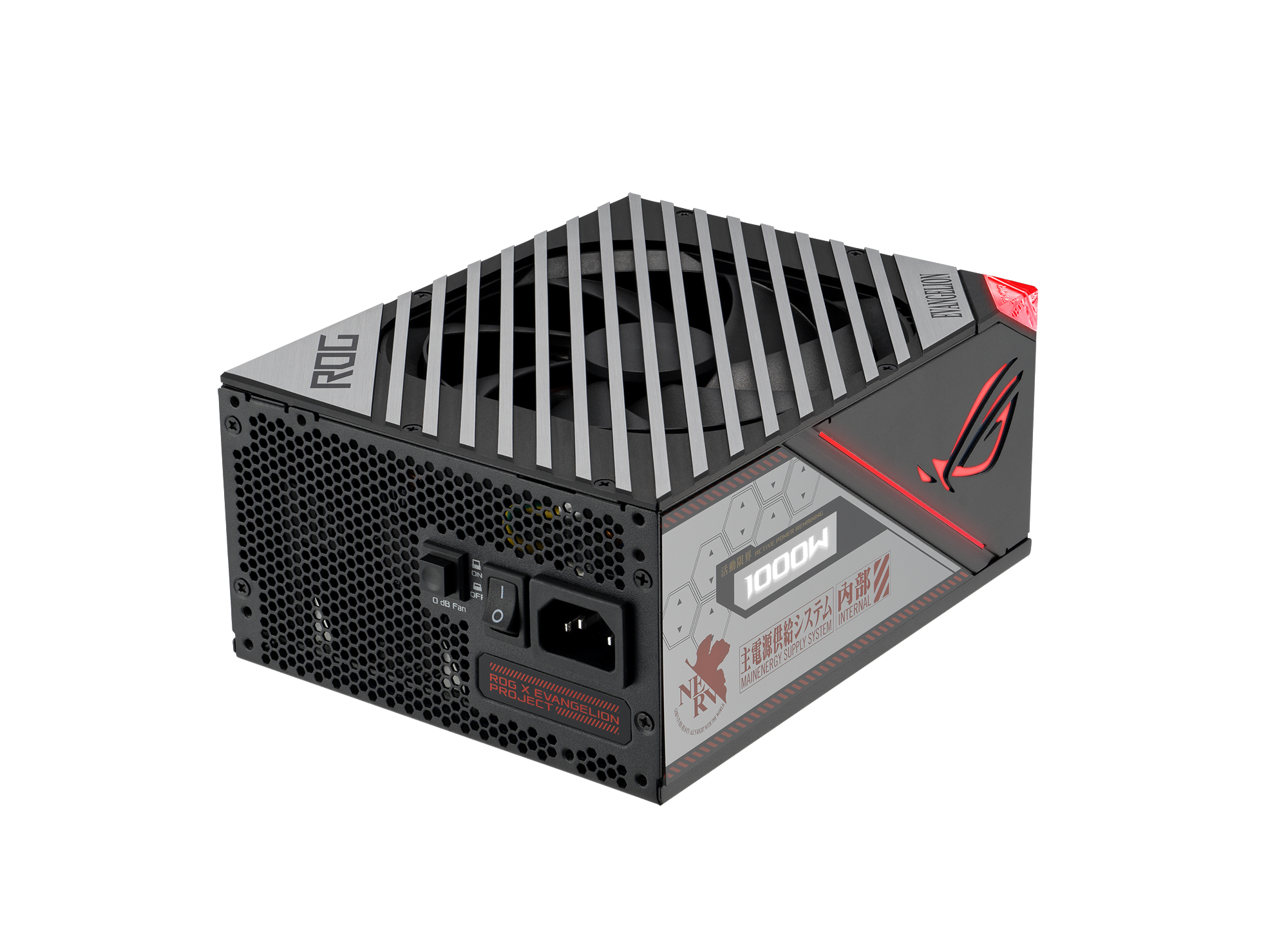

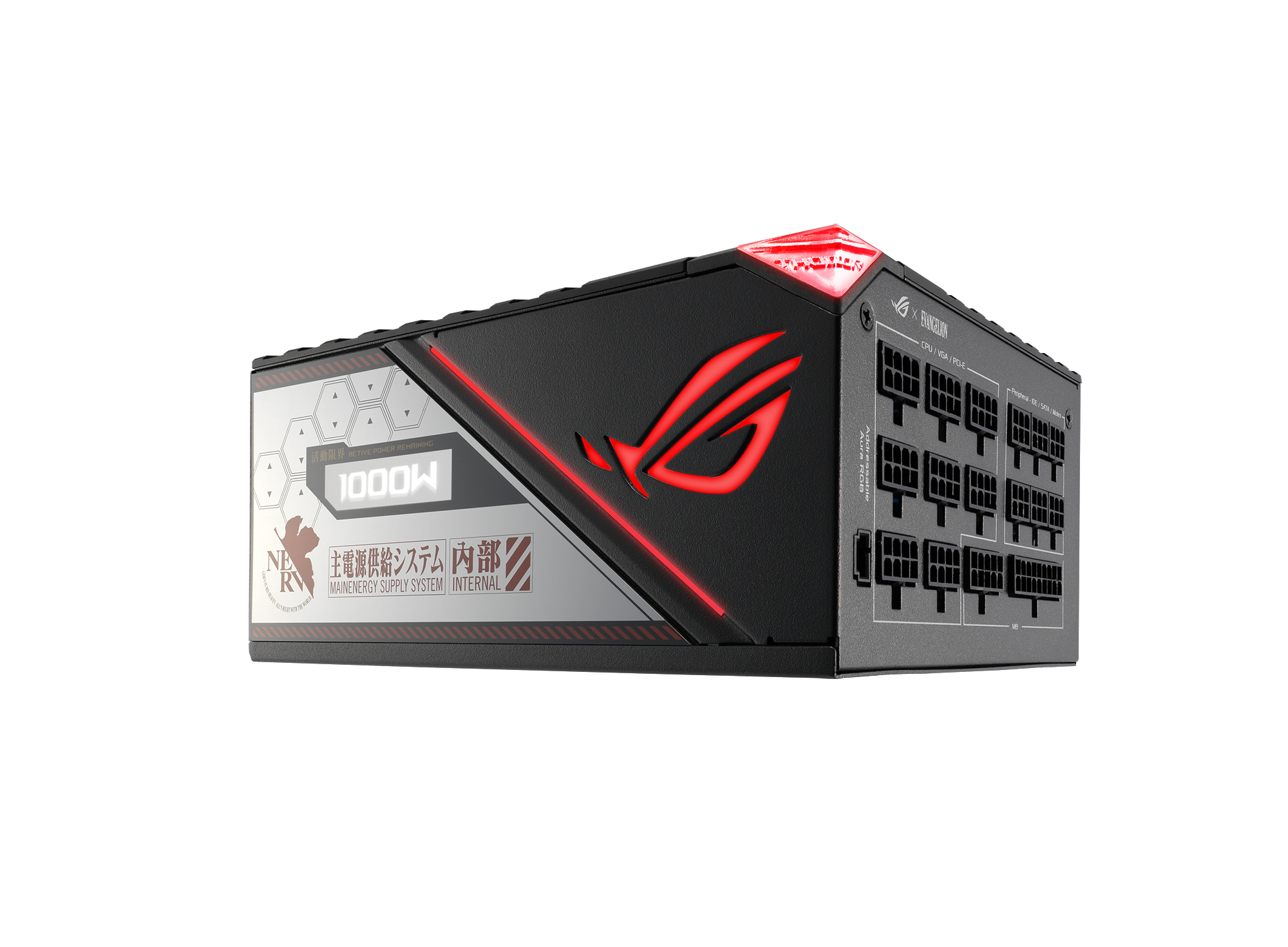

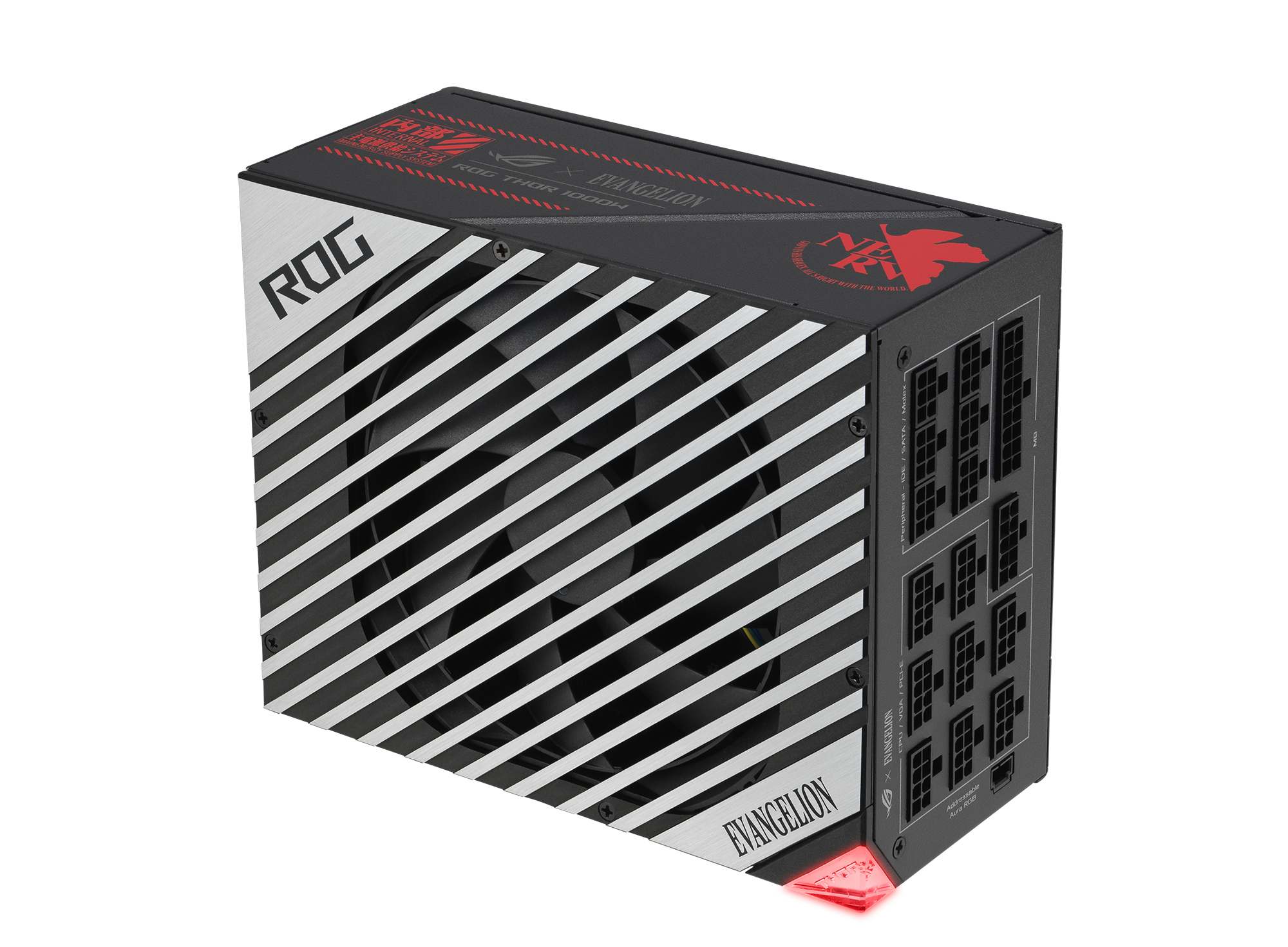

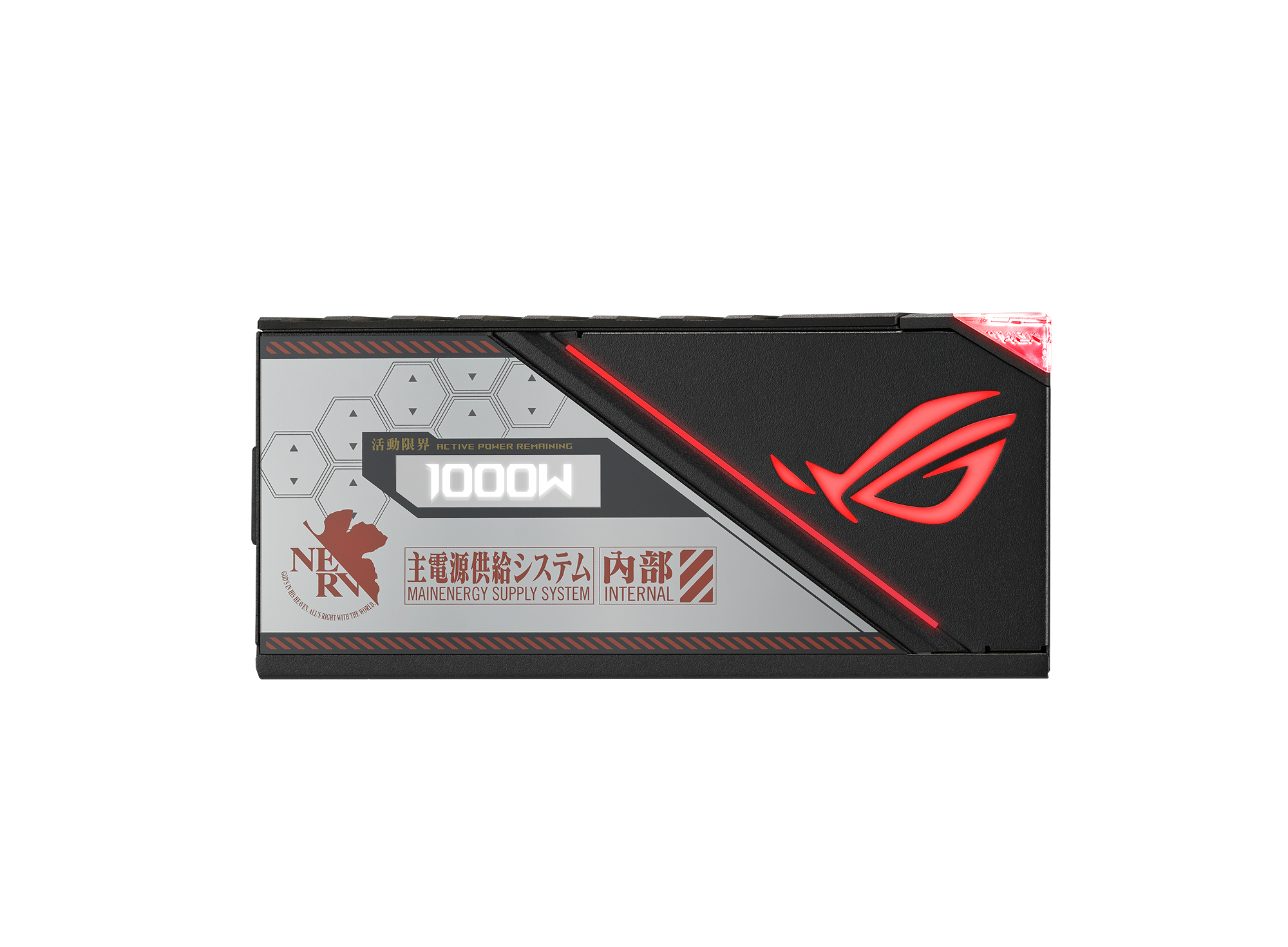

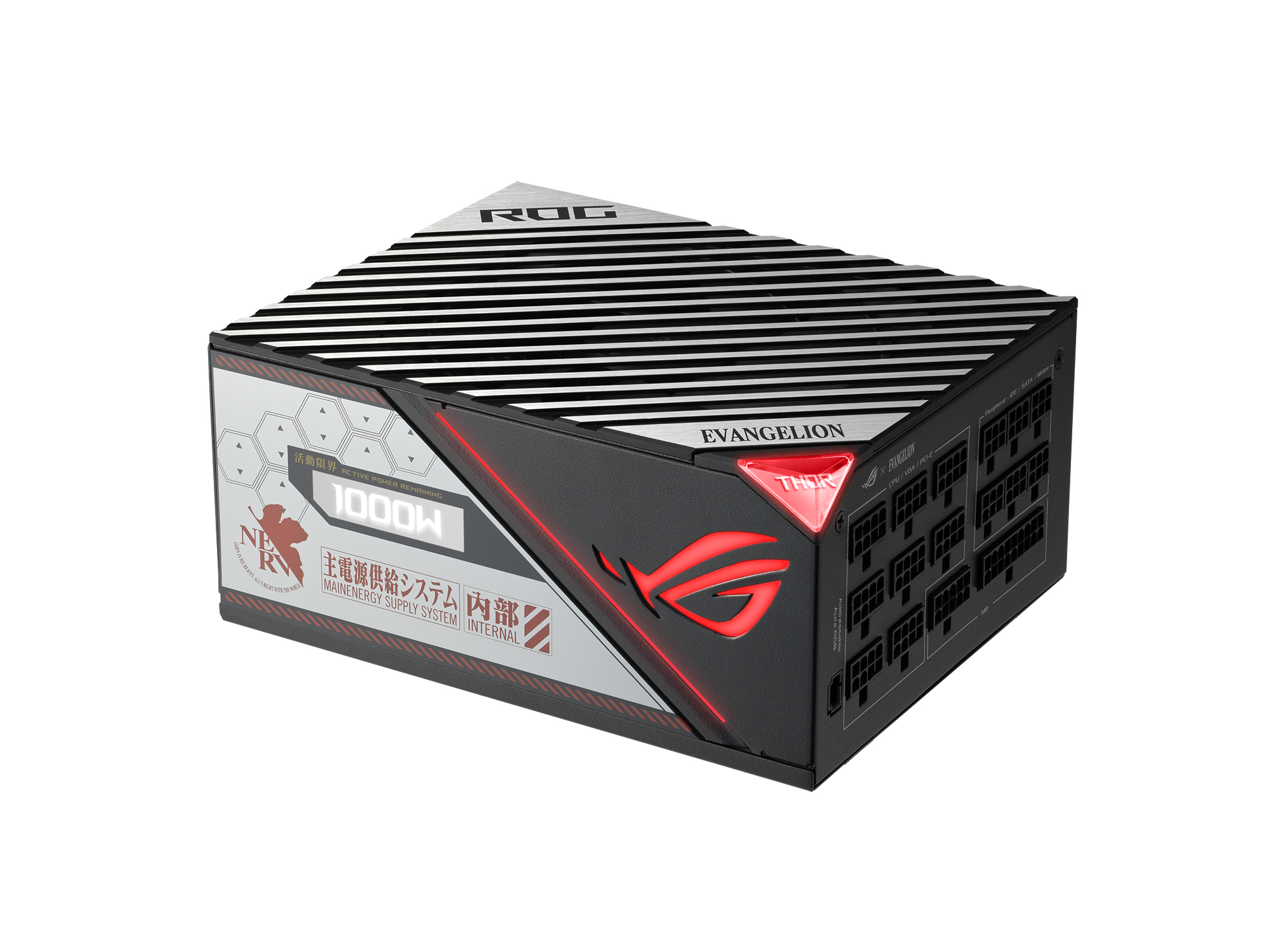

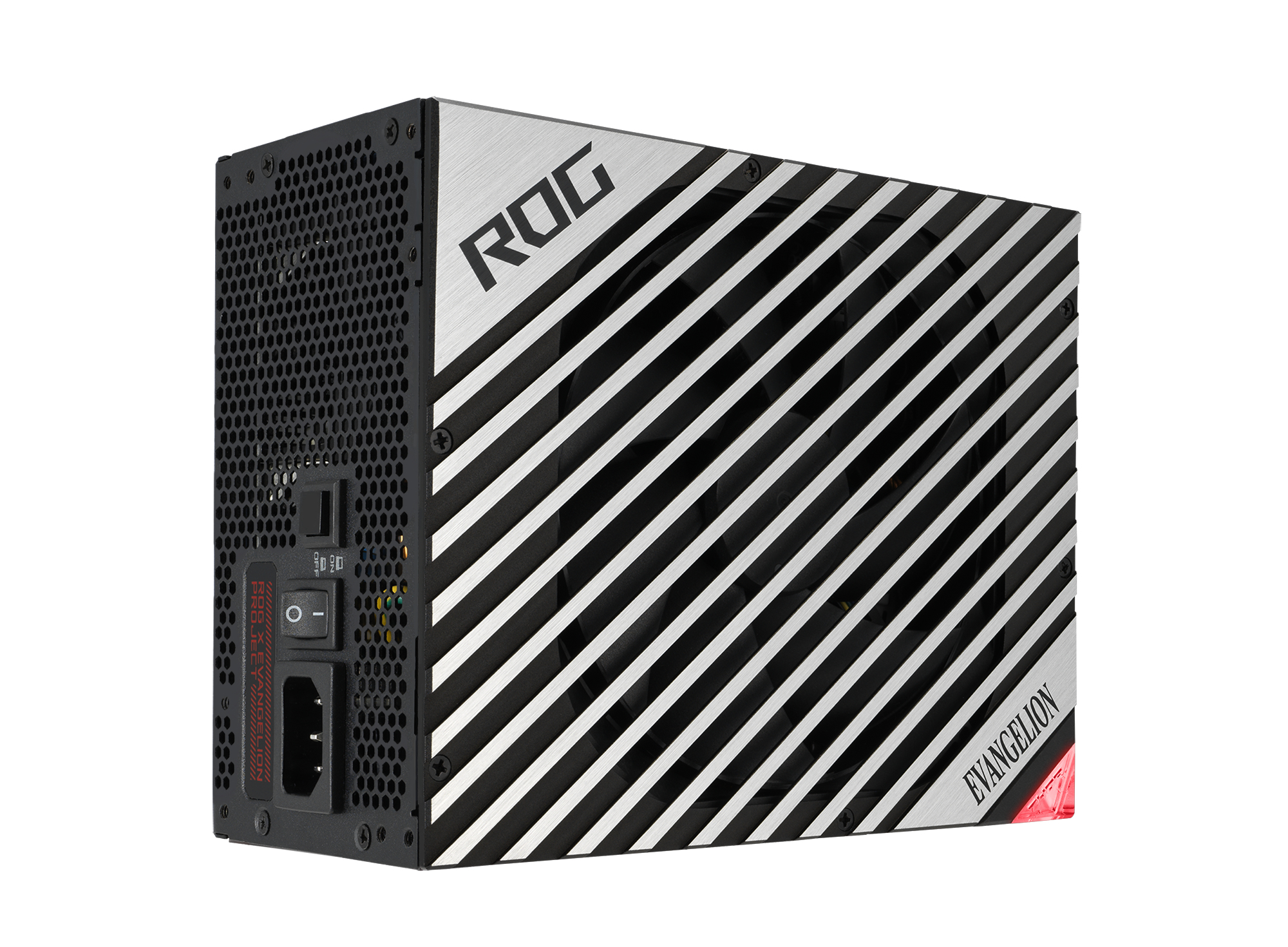

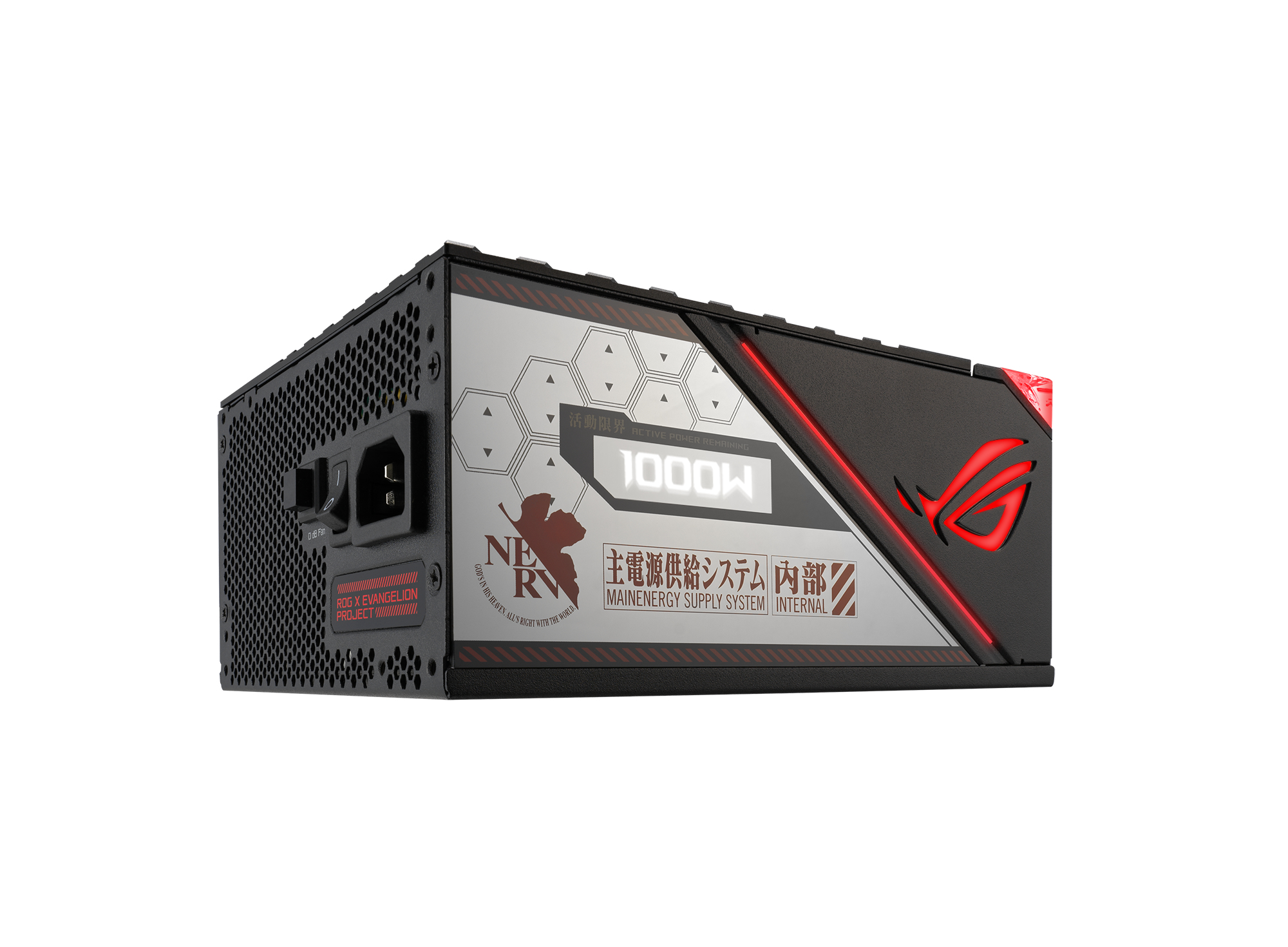

ROG THOR 1000W Platinum II EVA Edition
Model ROG THOR 1000W Platinum II EVA EditionPart no. 90YE00L6-B0NA00EAN 4711387172834
47 specifications
- Weight2.35 kg
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width190 mm
Overview
- Weight
- 2.35 kg
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 190 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG THOR 1000W Platinum II EVA Edition
- Part number
- 90YE00L6-B0NA00
- EAN / UPC
- 4711387172834
- Also known as
- ASUS ROG THOR 1000W Platinum II EVA Edition power supply unit 20+4 pin ATX ATX Black
Specifications
47 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 996 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| Peripheral (Molex) power cable length | 120,450 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | Cybenetics Noise Level Certification A++ |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.35 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 339 mm |
| Package depth | 287 mm |
| Package height | 135 mm |
| Package weight | 4.9 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
