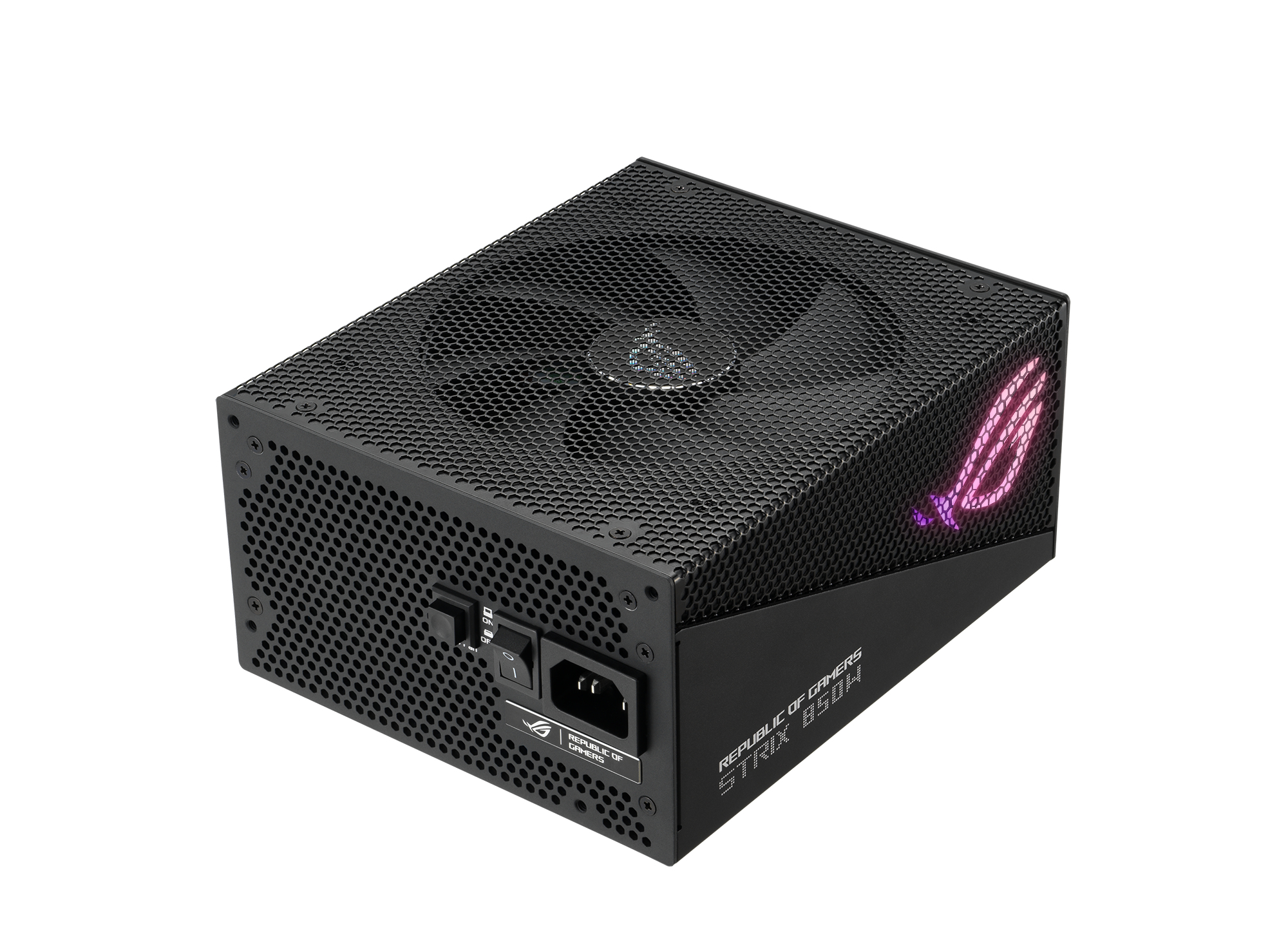

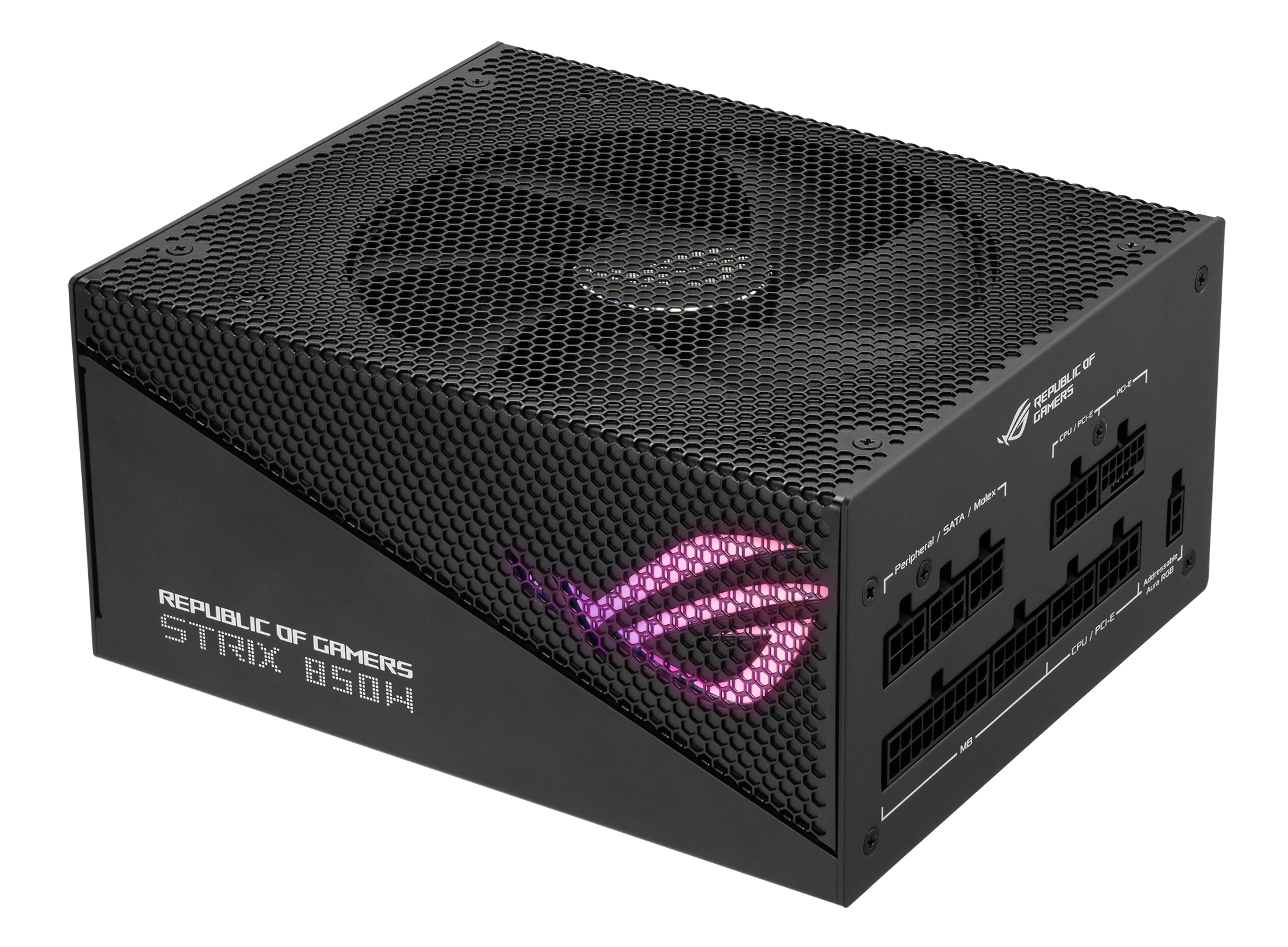

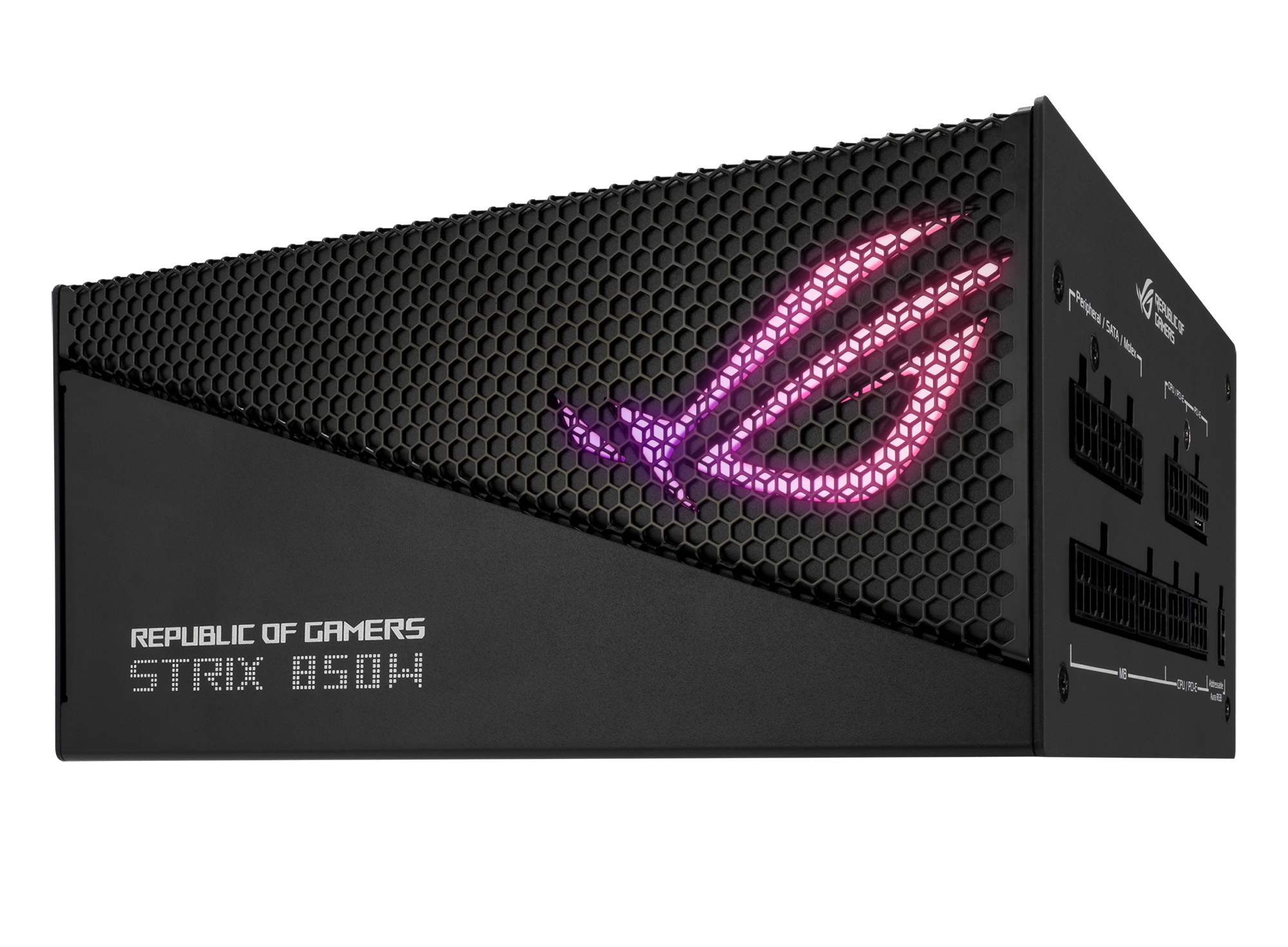

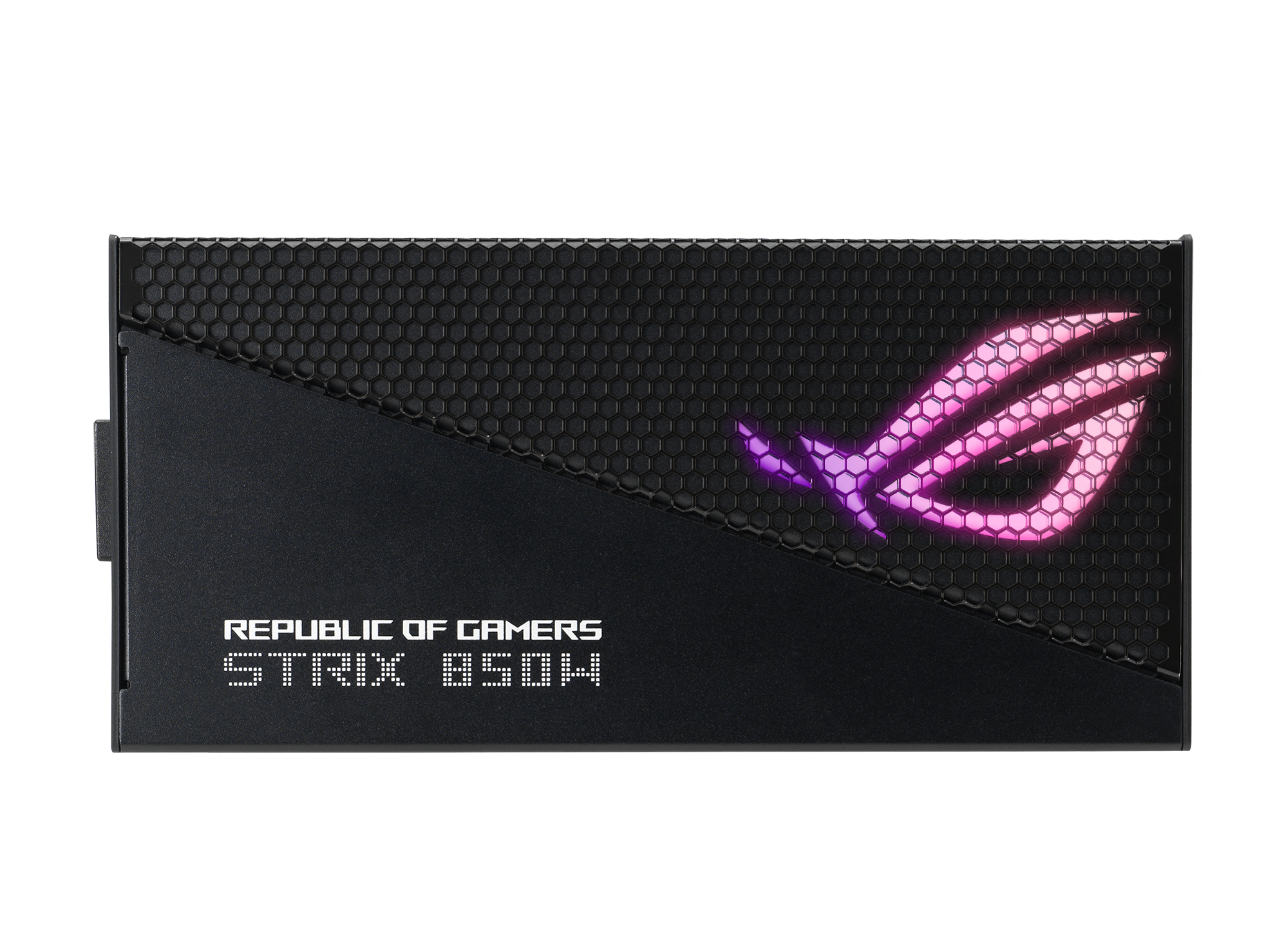

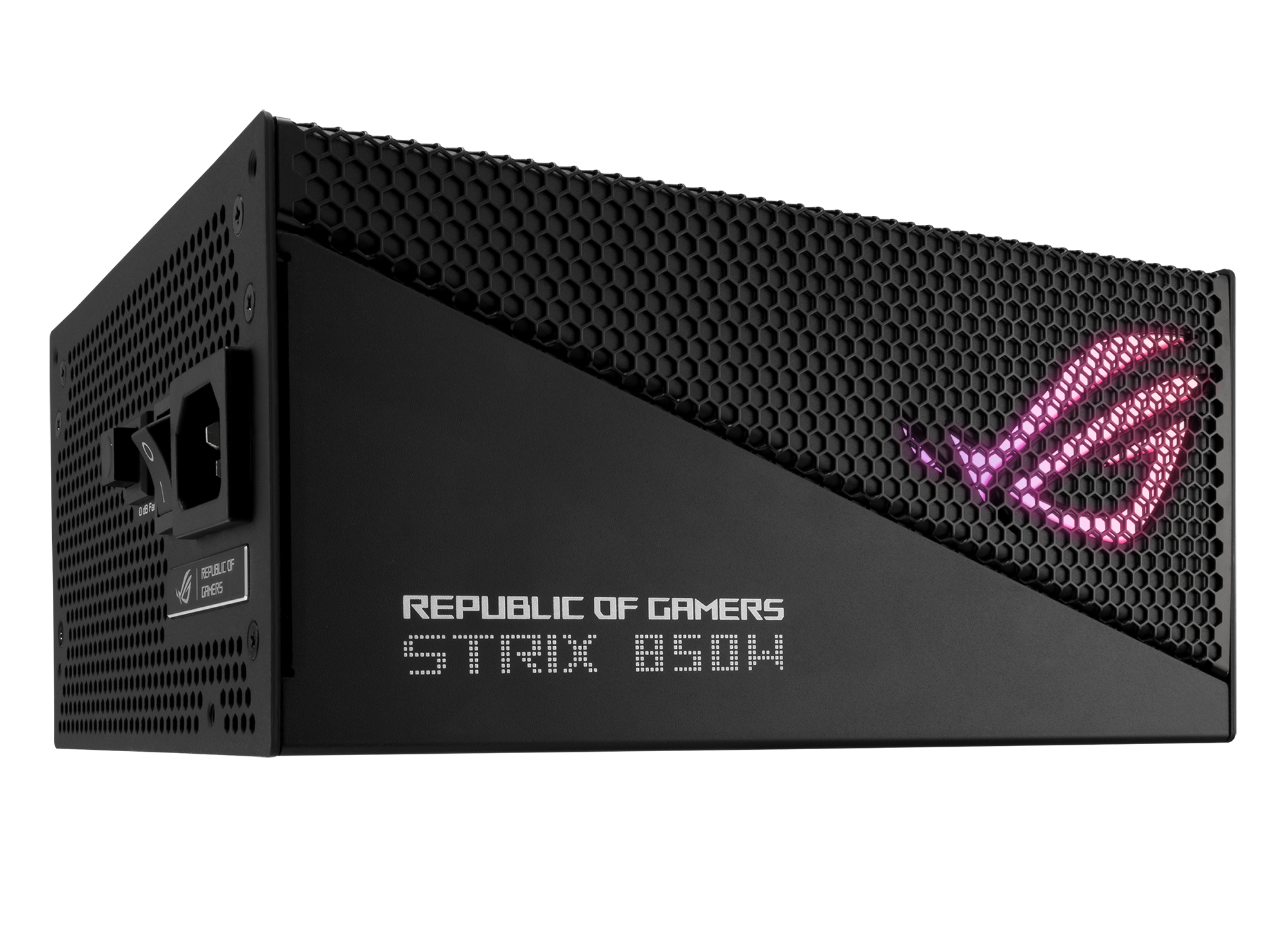

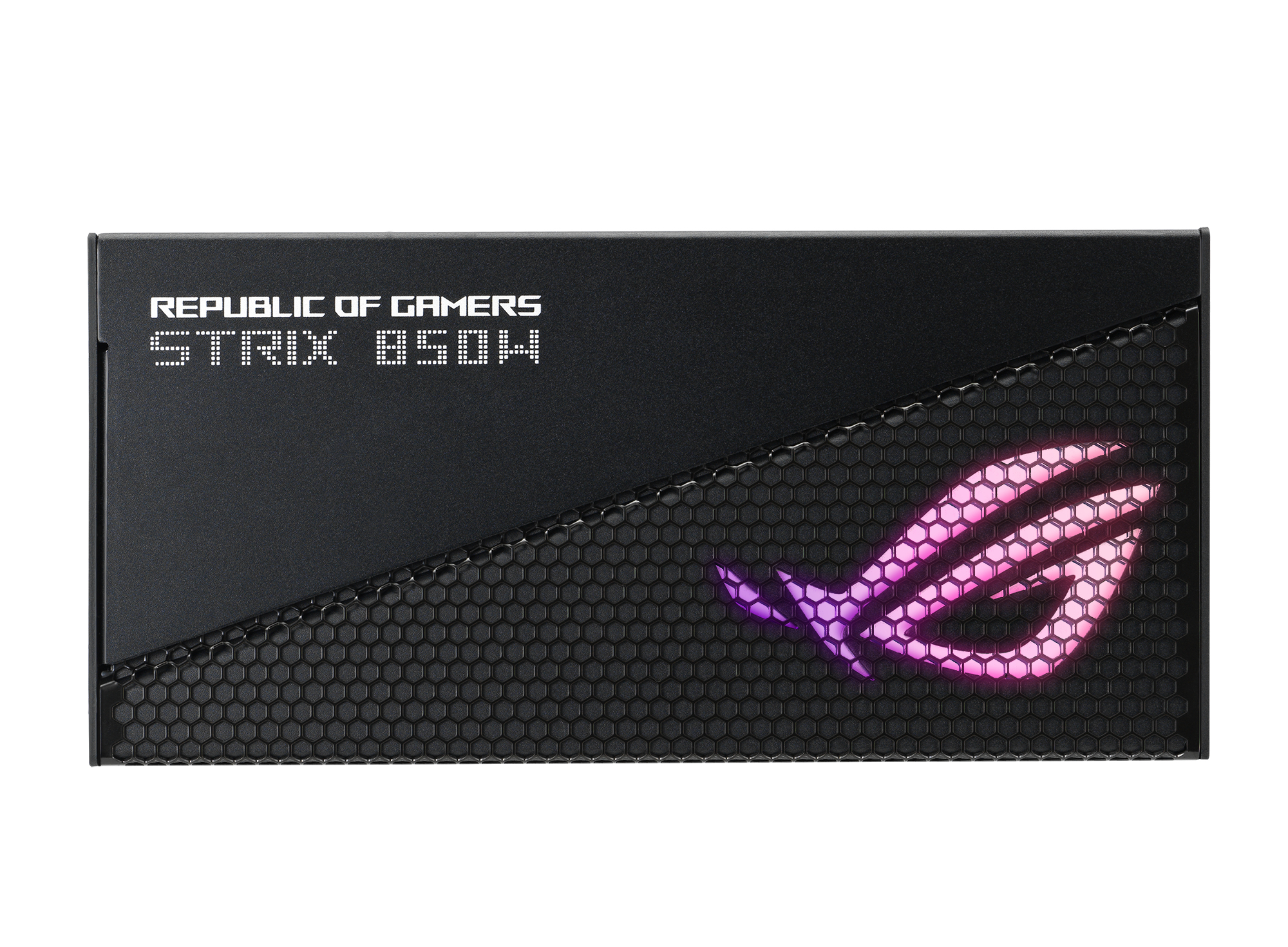

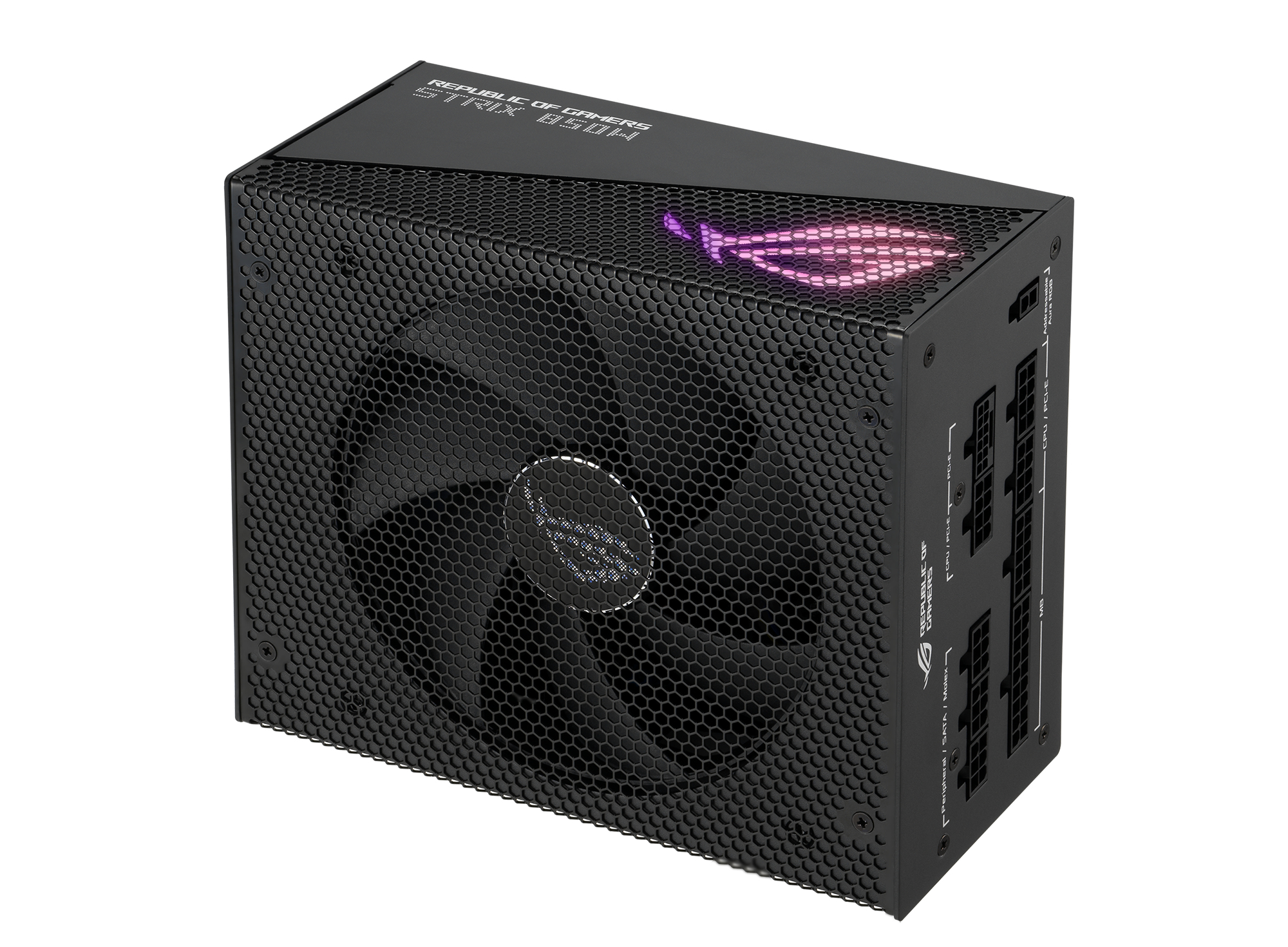

ROG Strix 850W Gold Aura Edition
Model ROG Strix 850W Gold Aura EditionPart no. 90YE00P2-B0NA00EAN 4711081722014
45 specifications
- Weight2.73 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width180 mm
Overview
- Weight
- 2.73 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 180 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG Strix 850W Gold Aura Edition
- Part numbers
- 90YE00P2-B0NA00, ROG-STRIX-850G-AURA-GAMING
- EAN / UPC
- 4711081722014, 195553722155, 4711081722267
- Also known as
- ASUS ROG Strix 850W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
Specifications
45 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|

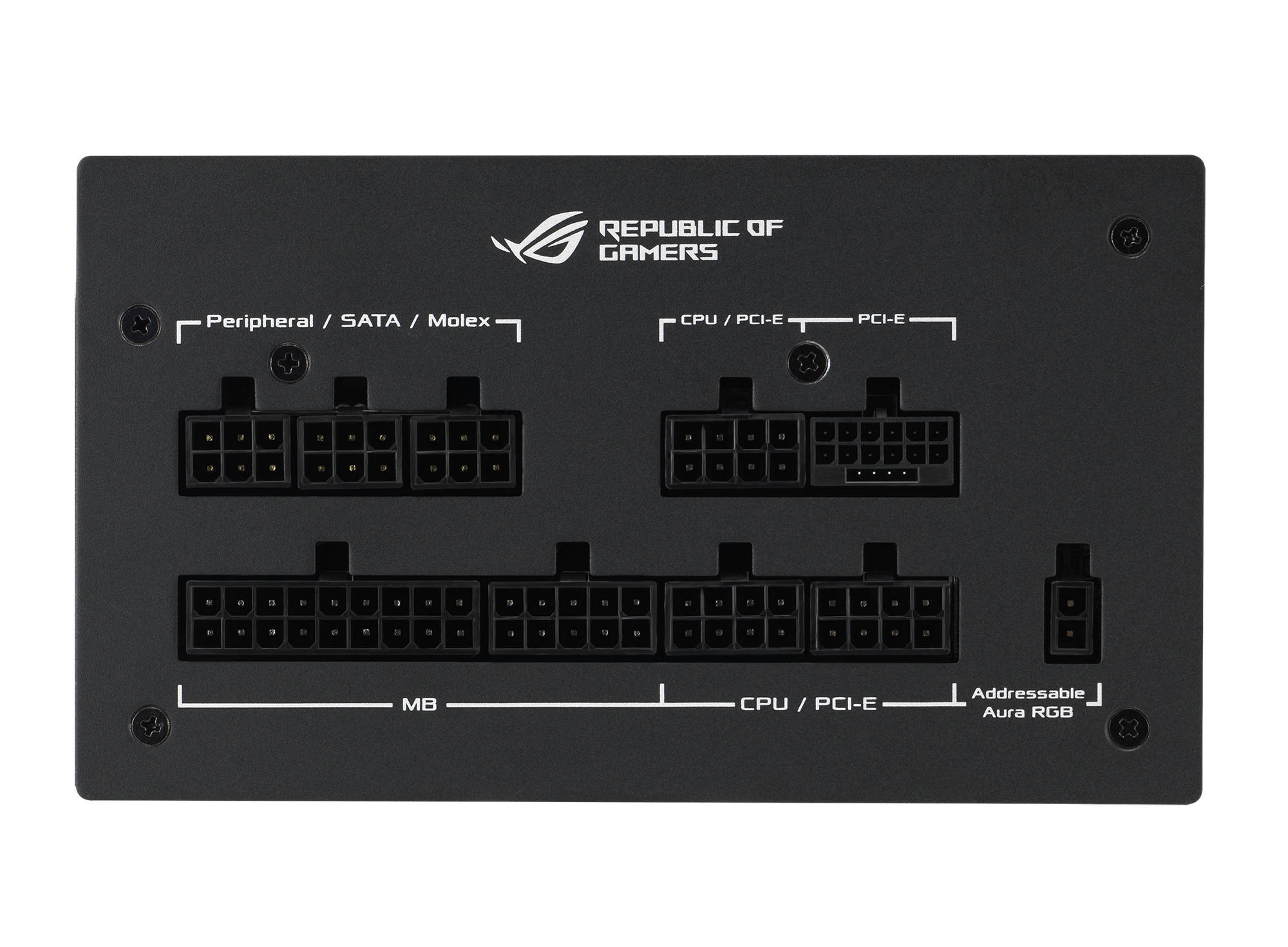

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Silent mode | Yes |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |

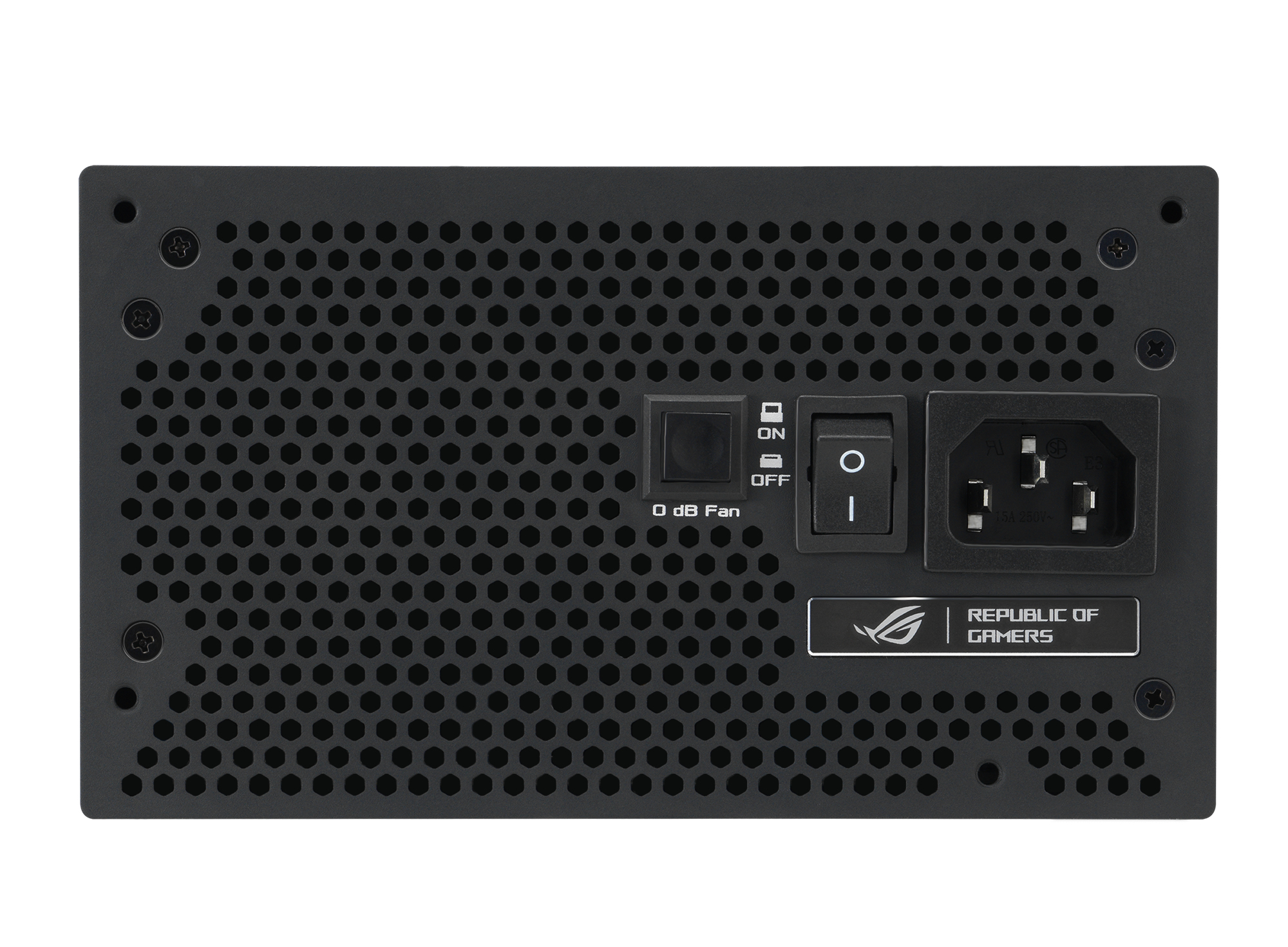

| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.73 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.22 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
