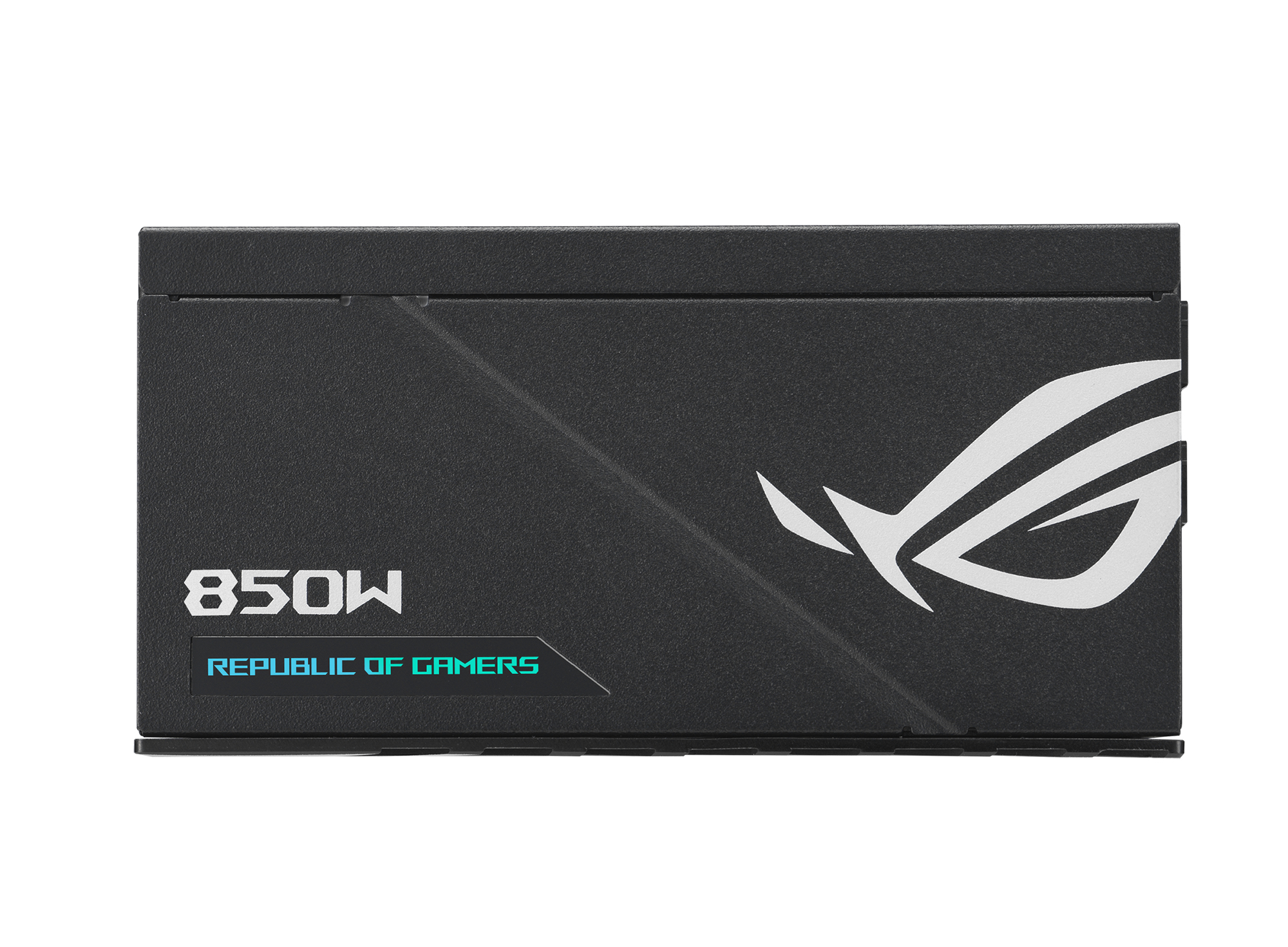

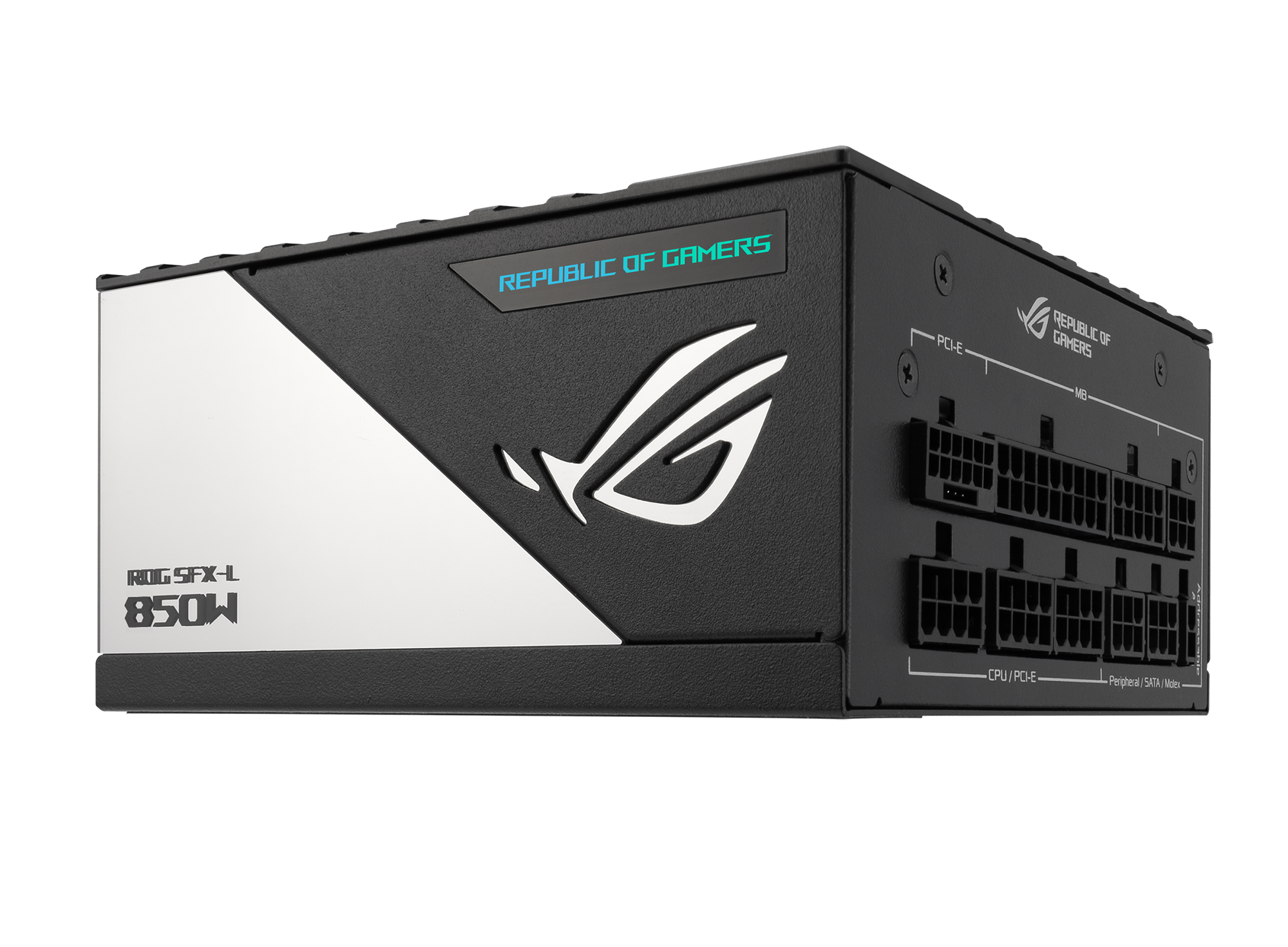

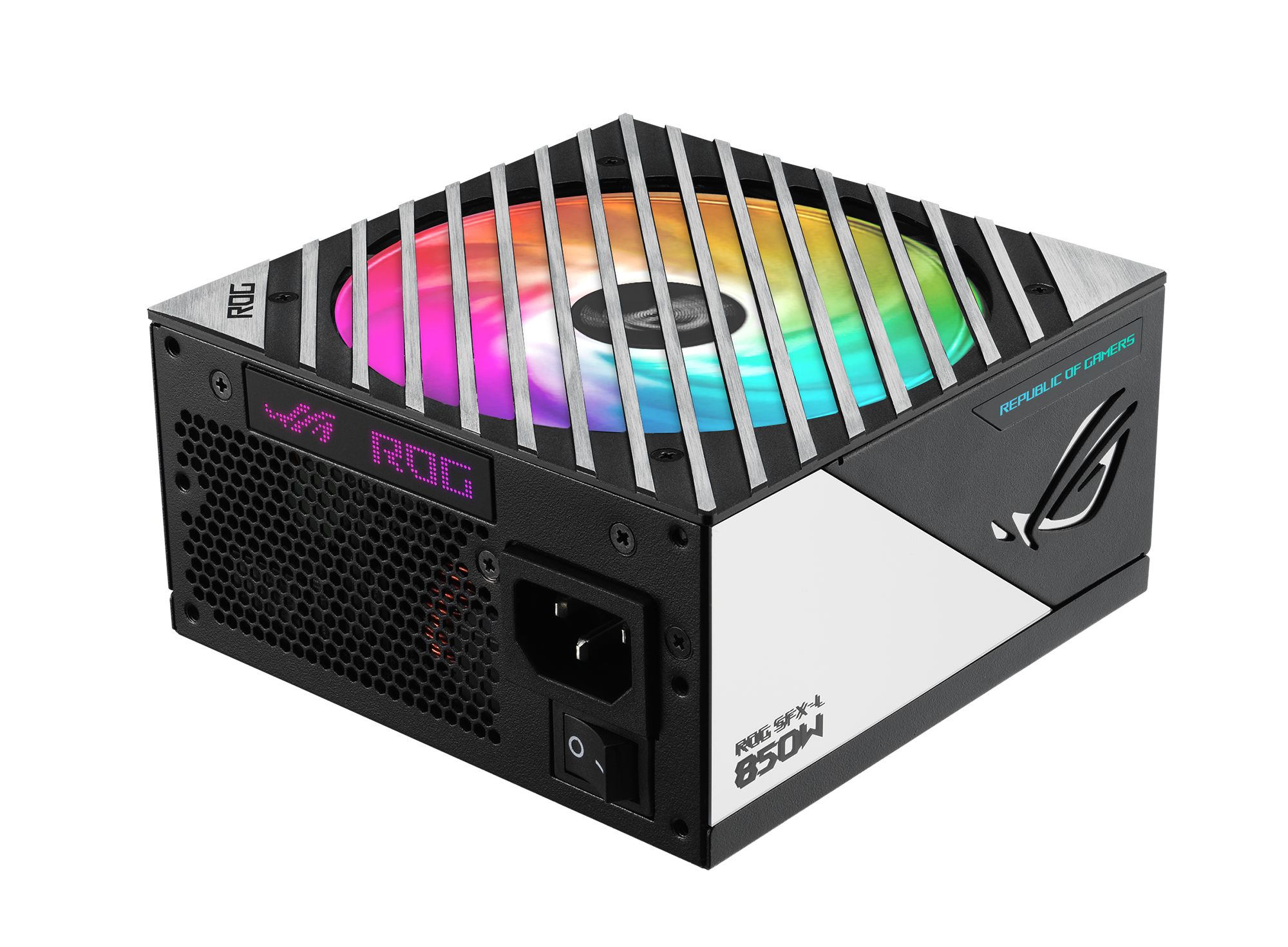

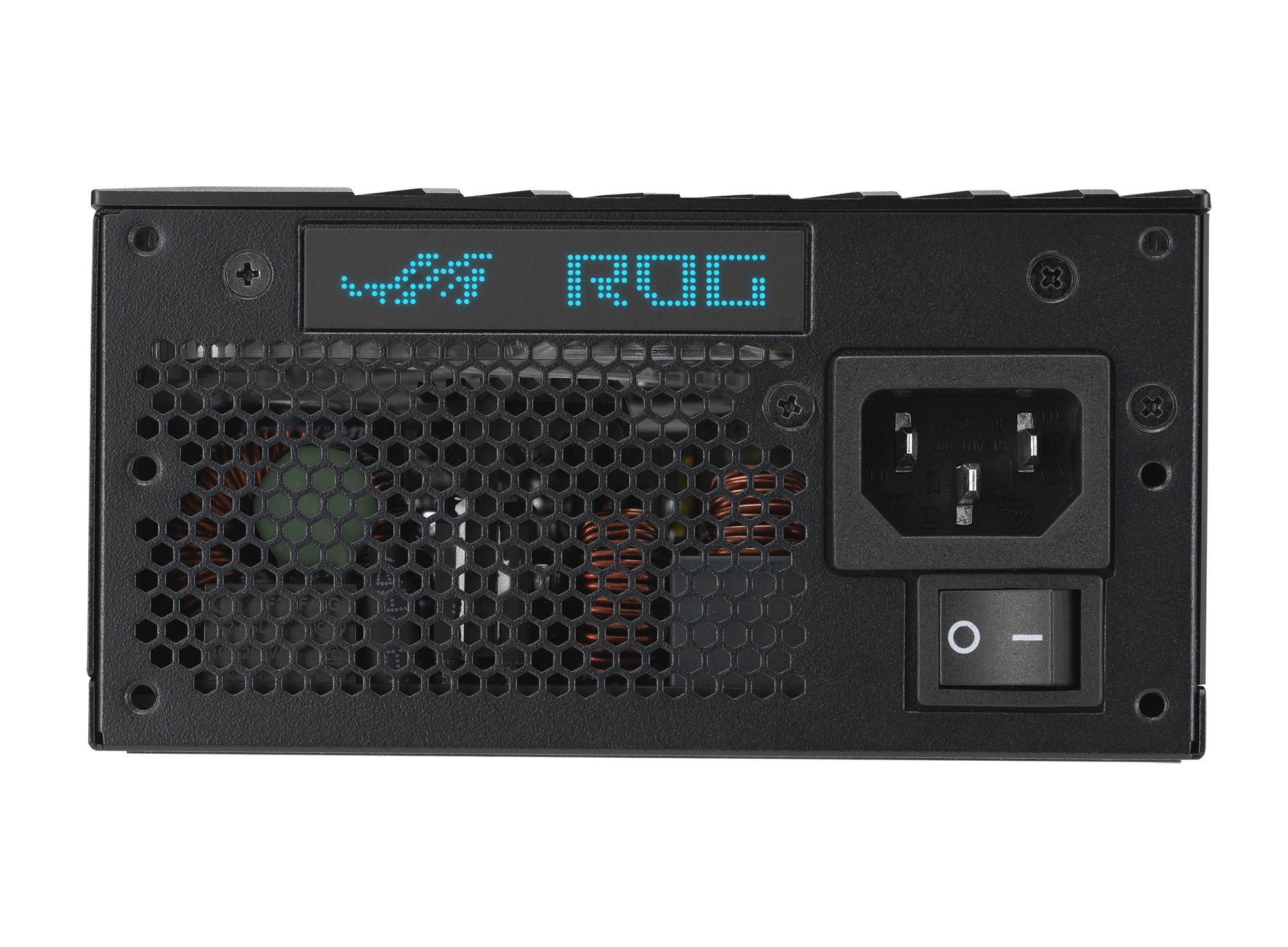

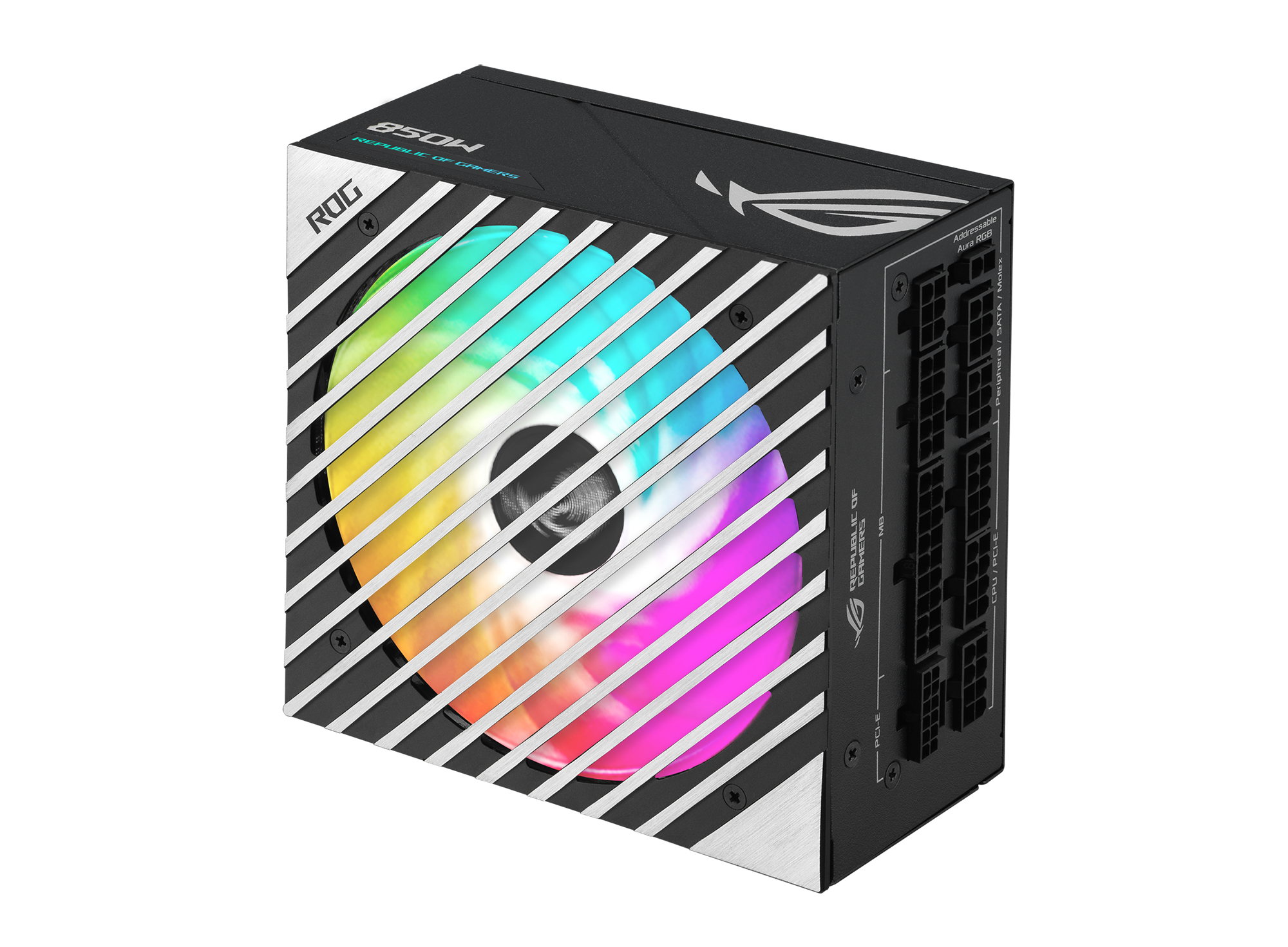

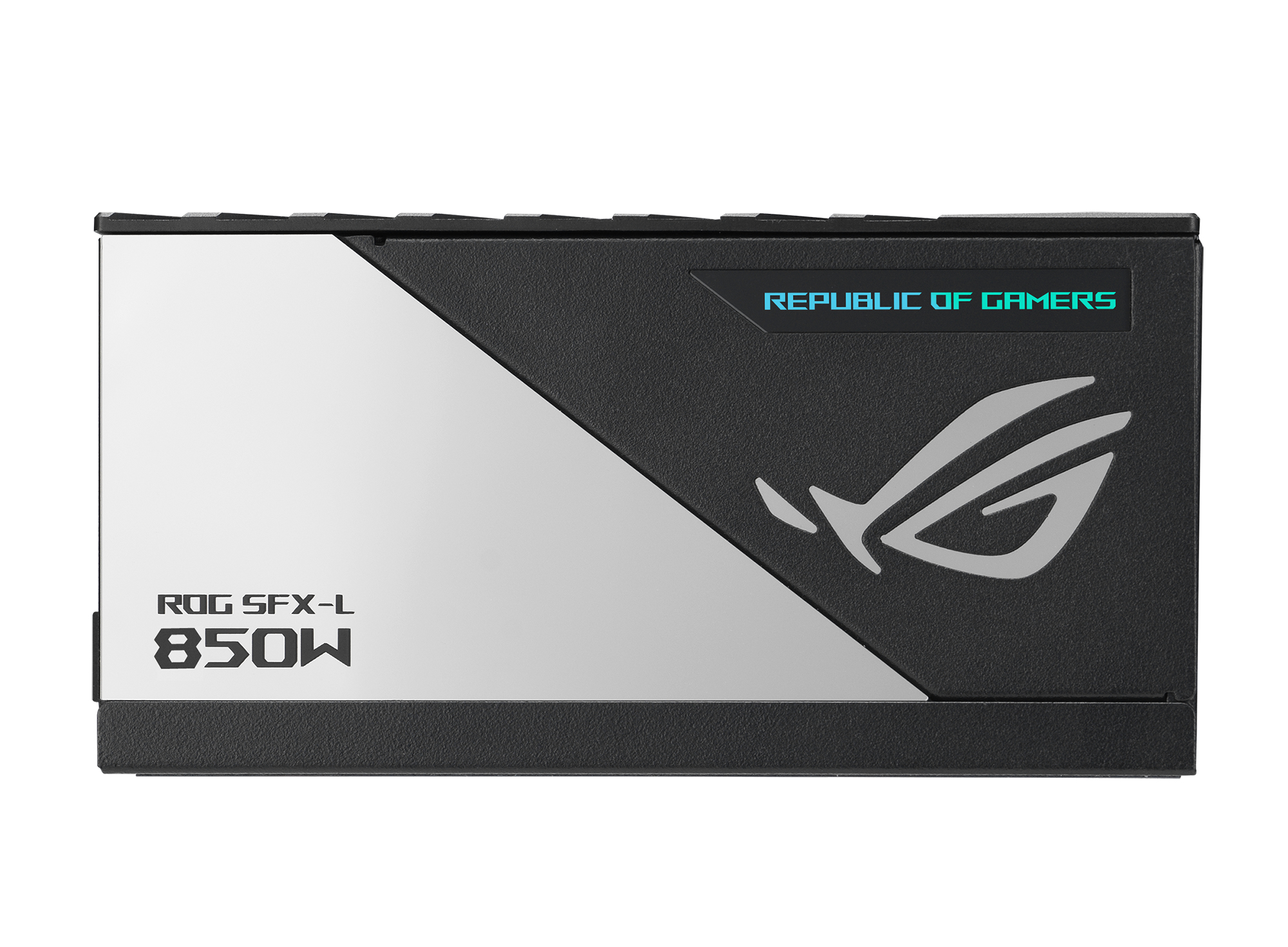

ROG -LOKI-850P-SFX-L-GAMING power supply unit
850 W 20+4 pin ATX Black, Grey
Model ROG-LOKI-850P-SFX-L-GAMINGPart no. 90YE00N3-BTAA00EAN 195553722698
44 specifications
- Weight1.81 kg
- ColourBlack, Grey
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Weight
- 1.81 kg
- Colour
- Black, Grey
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-LOKI-850P-SFX-L-GAMING
- Part number
- 90YE00N3-BTAA00
- EAN / UPC
- 195553722698, 4711081722809
- Also known as
- ASUS ROG -LOKI-850P-SFX-L-GAMING power supply unit 850 W 20+4 pin ATX Black, Grey
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 100,300 mm |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power cable length | 45 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX-L |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Silent mode | Yes |
| Mean time between failures (MTBF) | 120000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Cooling type | Semi-passive |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Weight | 1.81 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
