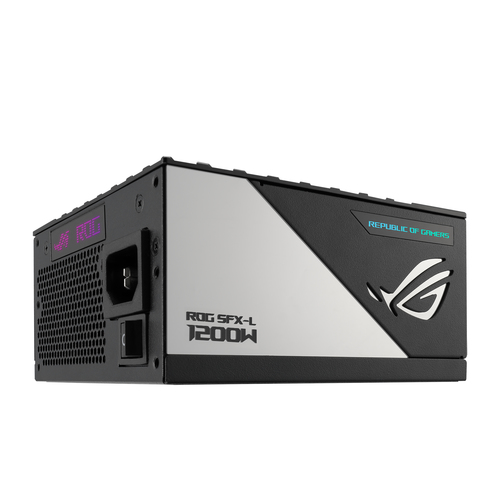

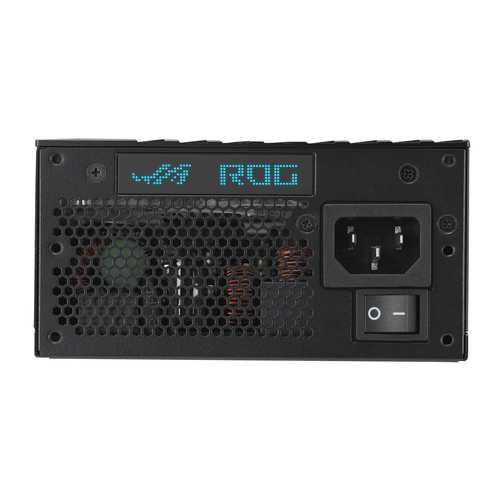

ROG -LOKI-1200T-SFX-L-GAMING power supply unit
1200 W 20+4 pin ATX Black, Silver
Model ROG-LOKI-1200T-SFX-L-GAMINGPart no. 90YE00N0-B0NA00EAN 195553721578
53 specifications
- Weight2.15 kg
- ColourBlack, Silver
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Weight
- 2.15 kg
- Colour
- Black, Silver
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- ASUS
- Category
- Power Supply Unit
- Model
- ROG-LOKI-1200T-SFX-L-GAMING
- Part number
- 90YE00N0-B0NA00
- EAN / UPC
- 195553721578, 195553721714, 4711081721574
- Also known as
- ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
Specifications
53 specifications in 10 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| Peak power | 1200 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |

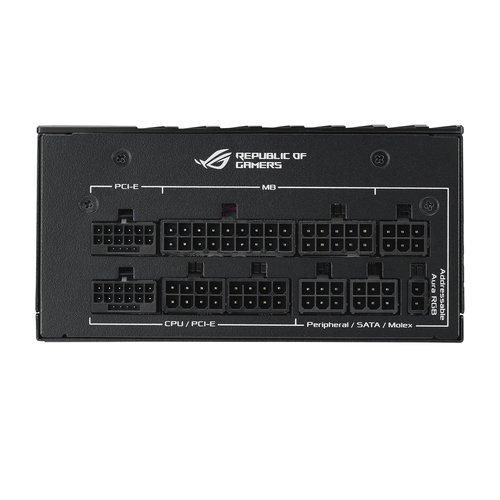

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 100,200,300 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 100,300 mm |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power connectors (8-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 55 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX-L |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
| Weight | 2.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 285 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
| Package weight | 2.84 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 10 year(s) |
