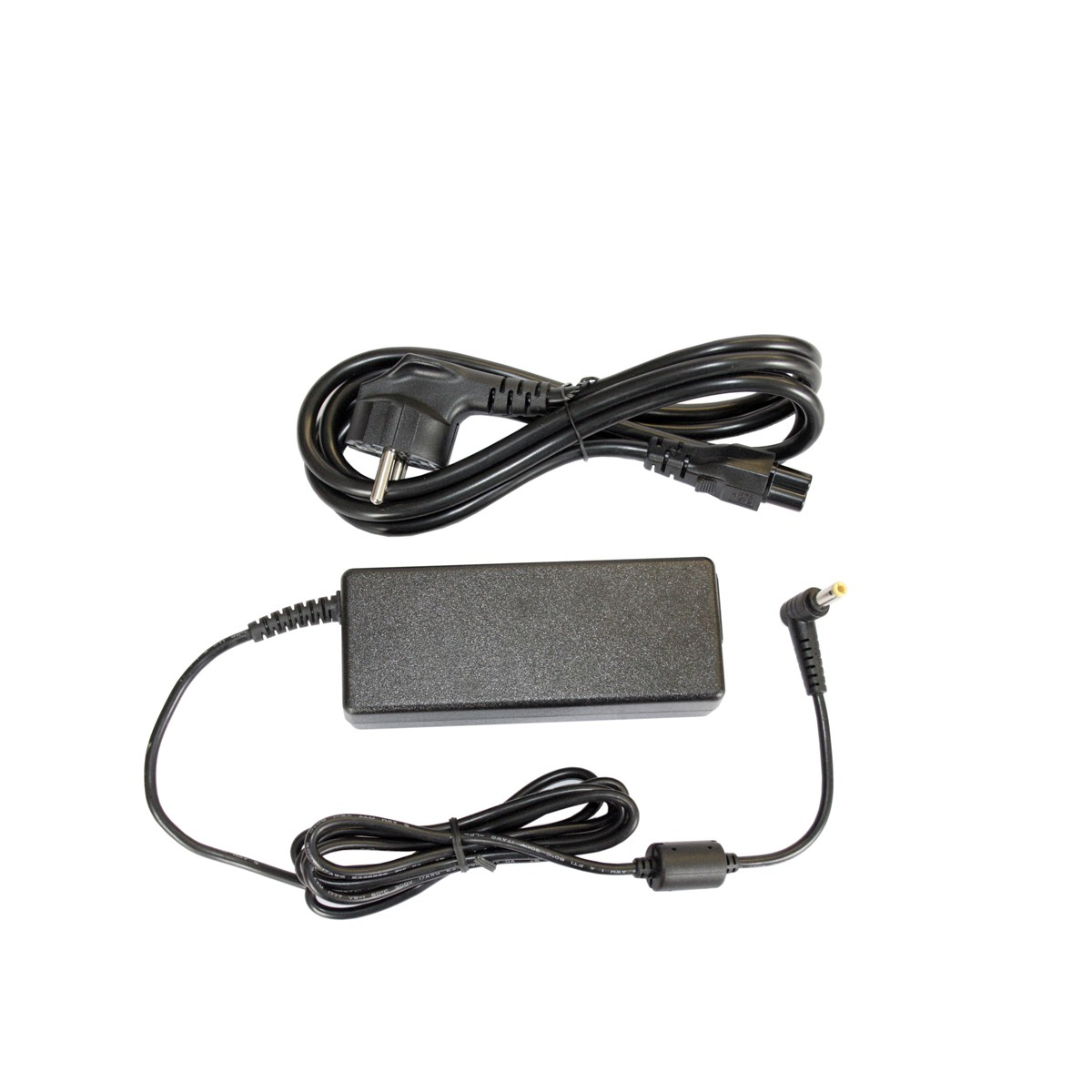

Shuttle PE90 - power adapter, 90 Watt, output:
19V DC, max. 4.74 A Cooling: passive, fanless
Model PE90Part no. POZ-PE90E01EAN 811686005728
24 specifications
- Weight310 g
- ColourBlack
- PurposeUniversal
- Operating temperature (T-T)5 - 35 °C
- Width127 mm
Overview
- Weight
- 310 g
- Colour
- Black
- Purpose
- Universal
- Operating temperature (T-T)
- 5 - 35 °C
- Width
- 127 mm
- Brand
- Shuttle
- Category
- Power Adapters & Inverters
- Model
- PE90
- Part number
- POZ-PE90E01
- EAN / UPC
- 811686005728, 5704174852483
- Also known as
- Shuttle PE90 - power adapter, 90 Watt, output: 19V DC, max. 4.74 A Cooling: passive, fanless
Specifications
24 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Purpose | Universal |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100-240 V |
| Maximum input voltage | 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Output power | 90 W |
| Output voltage | 19 V |
| Output current | 4.74 A |
| Compatibility | Compatible to the 90W power adapter of the following Shuttle products: - Slim PCs: DS61, DS81, DS87, DH110(SE), DH170, DQ170, DH270, DH310(V2), DH310S, DH370, DH410(S), DH470, XH61(V), XH81(V), XH97V, XH110(V), XH170, XH310(R)(V) Backward compatible to the 65W power adapter of the following Shuttle |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 51 mm |
| Height | 3.05 mm |
| Weight | 310 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85044083 |
| Country of origin | China |
