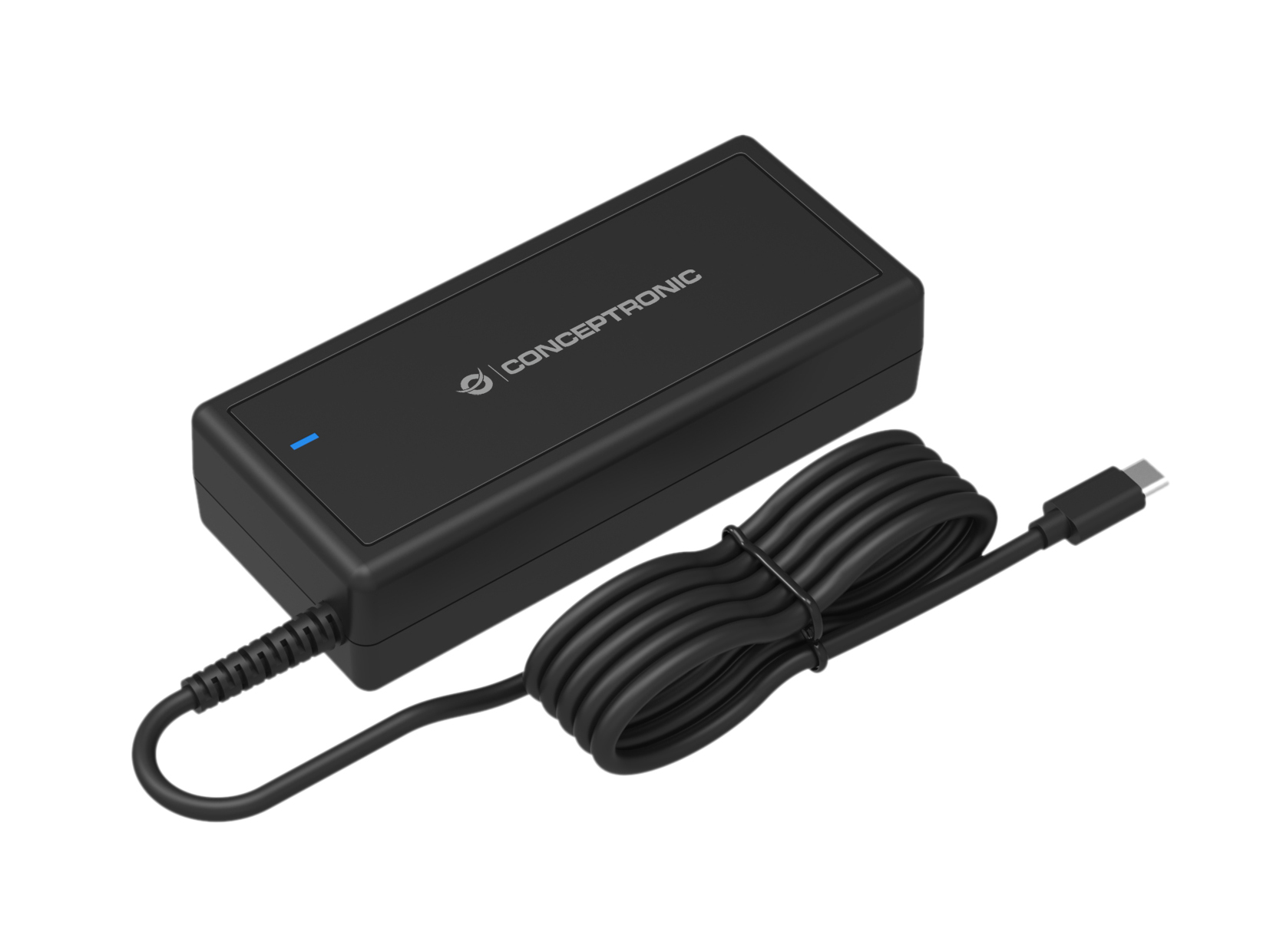

OZUL10BE 90W USB PD Charger
Model OZUL10BEEAN 4015867245095
45 specifications
- Weight410 g
- ColourBlack
- PurposeUniversal
- Operating temperature (T-T)-20 - 35 °C
- Cable length1.2 m
Overview
- Weight
- 410 g
- Colour
- Black
- Purpose
- Universal
- Operating temperature (T-T)
- -20 - 35 °C
- Cable length
- 1.2 m
- Brand
- Conceptronic
- Category
- Power Adapters & Inverters
- Model
- OZUL10BE
- Part number
- OZUL10BE
- EAN / UPC
- 4015867245095
- Also known as
- Conceptronic OZUL10BE 90W USB PD Charger
Specifications
45 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Purpose | Universal |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100 - 240 V |
| Maximum input voltage | 240 V |
| Input frequency | 50 / 60 Hz |
| Input current | 1.2 A |
| Output power | 90 W |
| Output voltage | 5 - 21 V |
| Output current | 4.5 A |
| Adjustable output voltage | Yes |
| Power plug type | Type F |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| Power protection features | Overload, Short circuit, Overheating |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 35 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Cable length | 1.2 m |
| Width | 131.5 mm |
| Depth | 57.2 mm |
| Height | 31 mm |
| Weight | 410 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 225 mm |
| Package depth | 138 mm |
| Package height | 55 mm |
| Package weight | 515 g |
Packaging content
| Specification | Value |
|---|---|

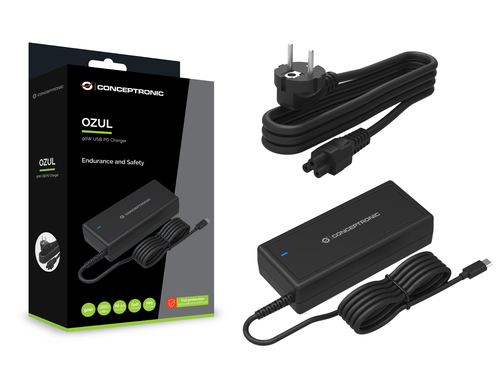

| Cables included | USB Type-C, AC |
| Quick installation guide | Yes |
| Power adapter included | Yes |
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8504408390 |
| Country of origin | China |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 162.7 cm |
| Master (outer) cases per pallet | 25 pc(s) |
| Master (outer) case width | 470 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 295 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 20 pc(s) |
