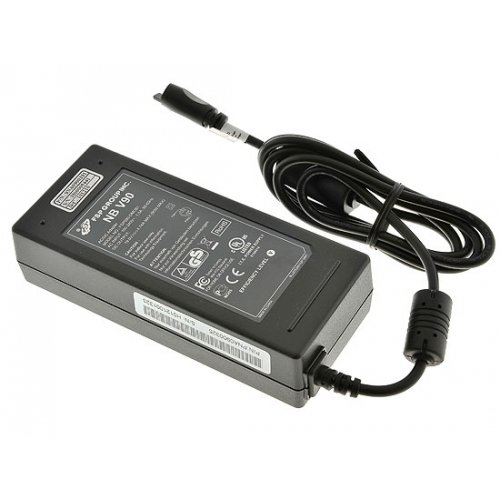

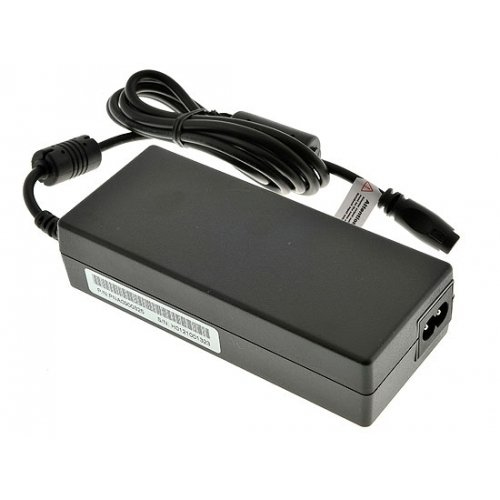

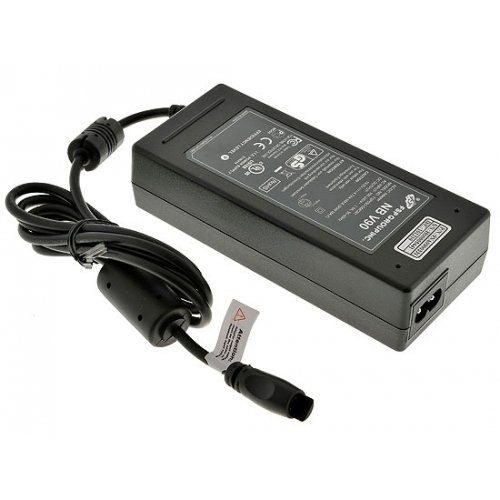

FSP NB V90
Model NB V90Part no. PNA0901310
24 specifications
- Weight907 g
- ColourBlack
- PurposeLaptop
- Mean time between failures (MTBF)60000 h
- Operating temperature (T-T)0 - 40 °C
- Width30.2 mm
Overview
- Weight
- 907 g
- Colour
- Black
- Purpose
- Laptop
- Mean time between failures (MTBF)
- 60000 h
- Operating temperature (T-T)
- 0 - 40 °C
- Width
- 30.2 mm
- Brand
- FSP
- Category
- Power Adapters & Inverters
- Model
- NB V90
- Part number
- PNA0901310
- Also known as
- FSP NB V90 power adapter/inverter Indoor 90 W Black
Specifications
24 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Purpose | Laptop |
| Power supply type | Indoor |
| Power current type | AC-to-DC |
| Input voltage | 100-240 V |
| Input frequency | 47/63 Hz |
| Output power | 90 W |
| Output voltage | 19 V |
| Output current | 1.5 A |
| Efficiency | 87% |

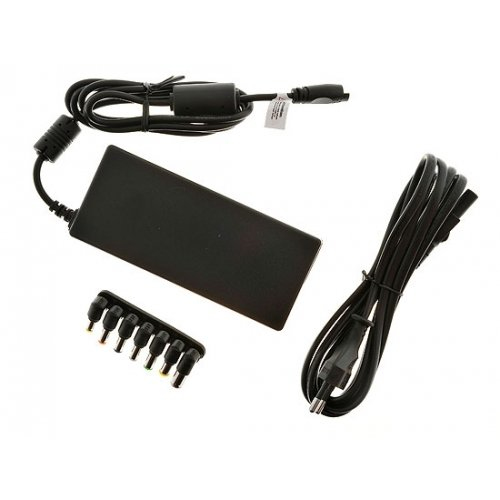

| Supplementary power connectors | 7 |
| Detachable power connectors | Yes |
| Power protection features | Over current, Over power, Short circuit |
| Compatibility | ACER, ASUS, COMPAQ, HP, COMPAQ, LENOVO, CLEVO, CTX, DELL, GATEWAY, GIGABYTE, HITACHI, HP, LG, MITAC, MSI, NEC, PANASONIC, TOSHIBA, FUJITSU, SAMSUNG, SONY, DELL, Samsung |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/CUL, FCC, TUV, CE, CB, GOST |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30.2 mm |
| Depth | 50.8 mm |
| Height | 130.4 mm |
| Weight | 907 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
