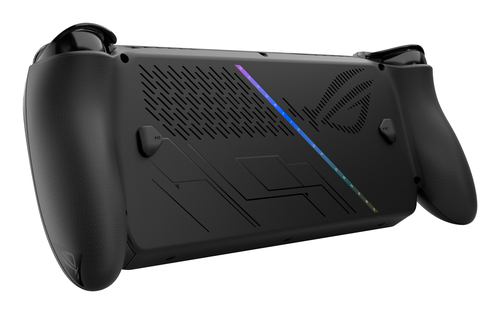

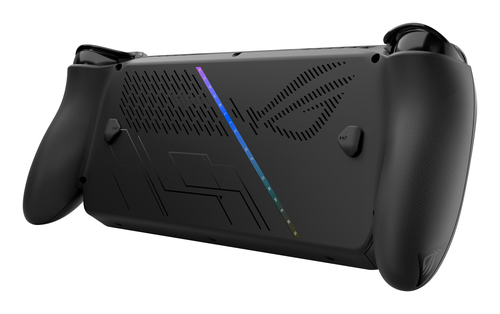

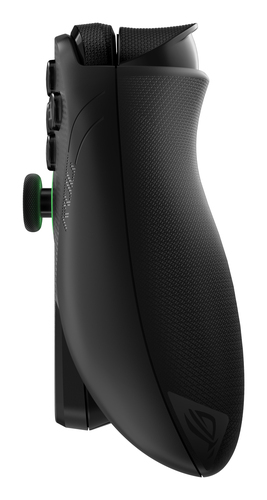

ROG Xbox Ally X RC73XA-Z2E24G1T
Model ROG Xbox Ally X RC73XA-Z2E24G1TPart no. 90NV00H2-M002N0
68 specifications
- Display17.8 cm (7")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen AI Z2 Extreme
- Memory24000 MB
- Battery80 Wh
- OSWindows
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen AI Z2 Extreme
- Memory
- 24000 MB
- Battery
- 80 Wh
- OS
- Windows
- Brand
- ASUS
- Category
- Portable Game Console
- Model
- ROG Xbox Ally X RC73XA-Z2E24G1T
- Part number
- 90NV00H2-M002N0
- Also known as
- ASUS ROG Xbox Ally X RC73XA-Z2E24G1T portable game console 17.8 cm (7") 1 TB Touchscreen Wi-Fi Black
Specifications
68 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Platform | ASUS ROG Ally |
| SSD form factor | M.2 |
| Processor architecture | AMD 3x Zen 5, 5x Zen 5c |
| Processor model | AMD Ryzen AI Z2 Extreme |
| Processor frequency | 3300 MHz |
| Processor boost frequency | 5 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Graphics processor | AMD Radeon Graphics |
| Internal memory | 24000 MB |
| Internal memory type | LPDDR5x |
| Fingerprint reader | Yes |
| Gyroscope | Yes |
| Operating system installed | Windows |
| Operating system version | 11 Home |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Gaming control technology | Analogue |
| Gaming control function buttons | D-pad, Menu button, View button |
| Analog thumbsticks | Yes |
| Shoulder buttons | Yes |
| Volume control | Buttons |
| Buttons quantity | 17 |
| Colour name | Black |
Display
| Specification | Value |
|---|---|
| Display | LED |
| Display diagonal | 17.8 cm (7") |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| Aspect ratio | 16:9 |
| Touch technology | Multi-touch |
| Maximum refresh rate | 120 Hz |
| Panel type | IPS-Level |
Storage
| Specification | Value |
|---|---|
| Storage media type | SSD |
| Built-in memory capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB ports quantity | 2 |
| Combo headphone/mic port | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery type | Built-in |
| Number of battery cells | 4 |
| Battery capacity | 80 Wh |
| AC adapter power | 65 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 65 W |
| USB Type-C required charging power (min) | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 289 mm |
| Depth | 113 mm |
| Height | 50 mm |
| Weight | 689 g |
Packaging content
| Specification | Value |
|---|---|
| Video game included | No |
| AC adapter included | No |
| Bundled software | Xbox Game Pass Premium (3-month subscription) (*Terms and conditions apply. Offer is only available in regions where Xbox Game Pass Premium is supported. Game titles, number, features, and service availability vary by region, your Xbox Game Pass plan, and platform.) |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Technical details
| Specification | Value |
|---|---|
| Introduction year | 2025 |
