ROG XBOX Ally X20 RC74XA-TW009W
Model ROG XBOX Ally X20 RC74XA-TW009WPart no. 90NV00K1-M00240EAN 199291723399
73 specifications
- Display18.8 cm (7.4")
- Resolution1920 x 1080 pixels

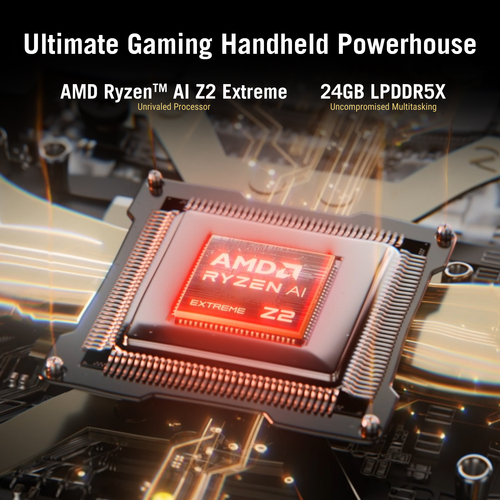

- ProcessorAMD Ryzen AI Z2 Extreme
- Memory24000 MB
- Battery80 Wh
- OSWindows
Overview
- Display
- 18.8 cm (7.4")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen AI Z2 Extreme
- Memory
- 24000 MB
- Battery
- 80 Wh
- OS
- Windows
- Brand
- ASUS
- Category
- Portable Game Console
- Model
- ROG XBOX Ally X20 RC74XA-TW009W
- Part numbers
- 90NV00K1-M00240, 90NV00K1-M00390
- EAN / UPC
- 199291723399, 199291713246, 4711636713245, 4711636723398
- Also known as
- ASUS ROG XBOX Ally X20 RC74XA-TW009W portable game console 18.8 cm (7.4") 1 TB Touchscreen Wi-Fi Black
Specifications
73 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Platform | ASUS ROG Ally |
| SSD form factor | M.2 |
| Processor architecture | AMD 3x Zen 5, 5x Zen 5c |
| Processor model | AMD Ryzen AI Z2 Extreme |
| Processor frequency | 3300 MHz |
| Processor boost frequency | 5 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Graphics processor | AMD Radeon Graphics |
| Internal memory | 24000 MB |
| Internal memory type | LPDDR5x |
| Fingerprint reader | Yes |
| Gyroscope | Yes |
| Operating system installed | Windows |
| Operating system version | 11 Home |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Gaming control technology | Analogue |
| Gaming control function buttons | D-pad, Menu button, View button |
| Analog thumbsticks | Yes |
| Shoulder buttons | Yes |
| Volume control | Buttons |
| Buttons quantity | 17 |
| Colour name | Black |
Display
| Specification | Value |
|---|---|
| Display | LED |
| Display diagonal | 18.8 cm (7.4") |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1400 cd/m² |
| Aspect ratio | 16:9 |
| Touch technology | Multi-touch |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Anti-glare screen | Yes |
| Maximum refresh rate | 120 Hz |
| Panel type | OLED |
Storage
| Specification | Value |
|---|---|
| Storage media type | SSD |
| Built-in memory capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB ports quantity | 2 |
| Combo headphone/mic port | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery type | Built-in |
| Number of battery cells | 4 |
| Battery capacity | 80 Wh |
| AC adapter power | 68 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 68 W |
| USB Type-C required charging power (min) | 15 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 121 mm |
| Height | 51.3 mm |
| Weight | 756 g |
Packaging content
| Specification | Value |
|---|---|
| Video game included | No |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 363 mm |
| Package height | 192 mm |
| Package width | 580 mm |
Technical details
| Specification | Value |
|---|---|
| Introduction year | 2026 |
