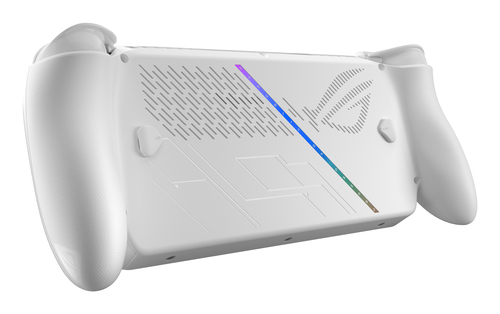

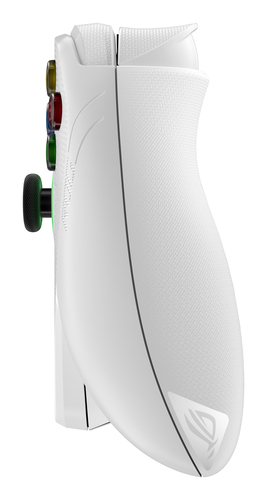

ROG Xbox Ally RC73YA-NH002W
Model ROG Xbox Ally RC73YA-NH002WPart no. 90NV00G1-M000H0EAN 199291144460
72 specifications
- Display17.8 cm (7")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen Z2 A
- Memory16000 MB
- Battery60 Wh
- OSWindows
Overview
- Display
- 17.8 cm (7")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen Z2 A
- Memory
- 16000 MB
- Battery
- 60 Wh
- OS
- Windows
- Brand
- ASUS
- Category
- Portable Game Console
- Model
- ROG Xbox Ally RC73YA-NH002W
- Part numbers
- 90NV00G1-M000H0, 90NV00G1-M001D0, 90NV00G1-M000X0, 90NV00G1-M00120, 90NV00G1-M00130, 90NV00G1-M002H0 +3 more
- EAN / UPC
- 199291144460, 199291117174, 4711636117173, 199291145399 +13 more
- Also known as
- ASUS ROG Xbox Ally RC73YA-NH002W portable game console 17.8 cm (7") 512 GB Touchscreen Wi-Fi White
Specifications
72 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Platform | ASUS ROG Ally |
| SSD form factor | M.2 |
| Processor architecture | AMD Zen 2 |
| Processor model | AMD Ryzen Z2 A |
| Processor frequency | 2800 MHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Graphics processor | AMD Radeon Graphics |
| Internal memory | 16000 MB |
| Internal memory type | LPDDR5x |
| Memory clock speed | 6400 MHz |
| Fingerprint reader | Yes |
| Gyroscope | Yes |
| Operating system installed | Windows |
| Operating system version | Windows 11 Home |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Gaming control technology | Analogue |
| Gaming control function buttons | D-pad, Menu button, View button |
| Analog thumbsticks | Yes |
| Shoulder buttons | Yes |
| Volume control | Buttons |
| Colour name | White |
Display
| Specification | Value |
|---|---|
| Display | LED |
| Display diagonal | 17.8 cm (7") |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| Aspect ratio | 16:9 |
| Touch technology | Multi-touch |
| Maximum refresh rate | 120 Hz |
| Panel type | IPS-Level |
Storage
| Specification | Value |
|---|---|
| Storage media type | SSD |
| Built-in memory capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type | USB Type-C |
| USB ports quantity | 2 |
| Combo headphone/mic port | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Battery type | Built-in |
| Number of battery cells | 4 |
| Battery capacity | 60 Wh |
| AC adapter power | 65 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 65 W |
| USB Type-C required charging power (min) | 45 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290.8 mm |
| Depth | 50.7 mm |
| Height | 121.5 mm |
| Weight | 670 g |
Packaging content
| Specification | Value |
|---|---|
| Video game included | No |
| AC adapter included | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 319 mm |
| Package height | 152.8 mm |
| Package weight | 1.62 kg |
| Package width | 153 mm |
Technical details
| Specification | Value |
|---|---|
| Introduction year | 2025 |
