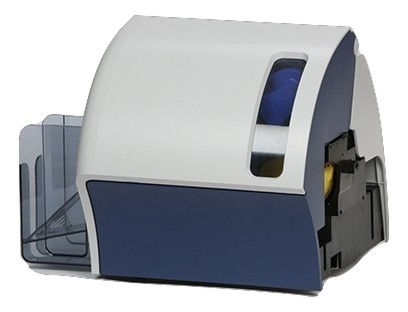

Zebra ZXP Series 8 Dual-Sided
Model Zebra ZXP Series 8 Dual-SidedPart no. ZBR-84000C0000US00
32 specifications
- Memory64 MB
- Weight44 kg
- ColourYes
- Print technologyDye-sublimation
- Product colourBlue, White
- AC input frequency50 - 60 Hz
Overview
- Memory
- 64 MB
- Weight
- 44 kg
- Colour
- Yes
- Print technology
- Dye-sublimation
- Product colour
- Blue, White
- AC input frequency
- 50 - 60 Hz
- Brand
- Zebra
- Category
- Plastic Card Printer
- Model
- Zebra ZXP Series 8 Dual-Sided
- Part number
- ZBR-84000C0000US00
- Also known as
- Zebra ZXP Series 8 Dual-Sided plastic card printer Dye-sublimation Colour 304 x 304 DPI
Specifications
32 specifications in 6 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation |
| Colour | Yes |
| Maximum resolution | 304 x 304 DPI |
| Duplex printing | Yes |
| Print speed (colour) | 180 card/h |
| Duplex print speed (colour) | 190 card/h |
| Card feeder | Yes |
| Card types | ABS1, ID-1 (ISO 7810), PVC Composite |
| Printing media thickness | 40 µm |
Features
| Specification | Value |
|---|---|
| Product colour | Blue, White |
| Built-in display | Yes |
| Display | LCD |
| Display number of characters | 21 |
| Lamination | Yes |
| Total input capacity | 150 sheets |
| Internal memory | 64 MB |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | ISO 7816, AAMVA, ISO 7811 , JIS II , ISO 14443 A & B ISO 7816 EMV, PC/SC, |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Storage temperature (T-T) | -5 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 781 mm |
| Depth | 518.2 mm |
| Height | 335.3 mm |
| Weight | 44 kg |
