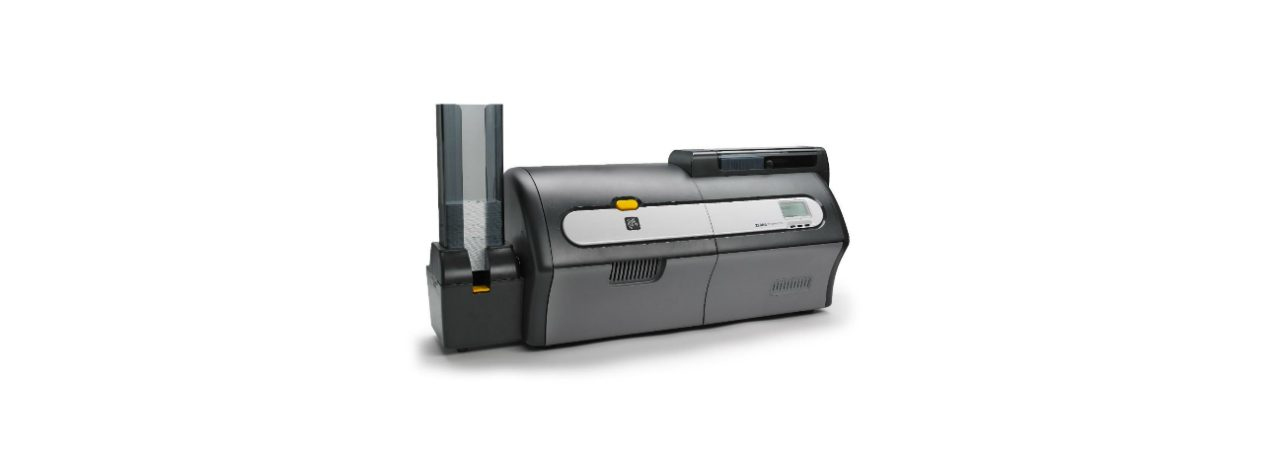

ZXP Series 7 PRO
Model ZXP Series 7 PROPart no. Z72-0M0CZ0H0EM00EAN 793720494920
38 specifications
- Weight14.4 kg
- ColourYes
- Print technologyDye-sublimation/Thermal transfer
- Product colourGrey
- AC input frequency47/63 Hz
- Operating temperature (T-T)15 - 35 °C
Overview
- Weight
- 14.4 kg
- Colour
- Yes
- Print technology
- Dye-sublimation/Thermal transfer
- Product colour
- Grey
- AC input frequency
- 47/63 Hz
- Operating temperature (T-T)
- 15 - 35 °C
- Brand
- Zebra
- Category
- Plastic Card Printer
- Model
- ZXP Series 7 PRO
- Part numbers
- Z72-0M0CZ0H0EM00, Z72-0M0C00H0EM00
- EAN / UPC
- 793720494920, 5715063503898
- Also known as
- Zebra ZXP Series 7 PRO plastic card printer Dye-sublimation/Thermal transfer Colour 300 x 300 DPI Wi-Fi
Specifications
38 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation/Thermal transfer |
| Colour | Yes |
| Maximum resolution | 300 x 300 DPI |
| Duplex printing | Yes |
| Print speed (monochrome) | 1375 card/h |
| Print speed (colour) | 300 card/h |
| Duplex print speed (colour) | 225 card/h |
| Card feeder | Yes |
| Card types | ABS, PVC Composite |
| Card size | 86 x 54 mm |
| Printing media thickness | 10 - 50 µm |
| Card thickness (max) | 1.27 mm |
| Card thickness (min) | 0.25 mm |
Features
| Specification | Value |
|---|---|
| Product colour | Grey |
| Built-in display | Yes |
| Display | LCD |
| Display number of characters | 126 |
| Total input capacity | 250 sheets |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
Power
| Specification | Value |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 90 - 264 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 718 mm |
| Depth | 277 mm |
| Height | 349 mm |
| Weight | 14.4 kg |
