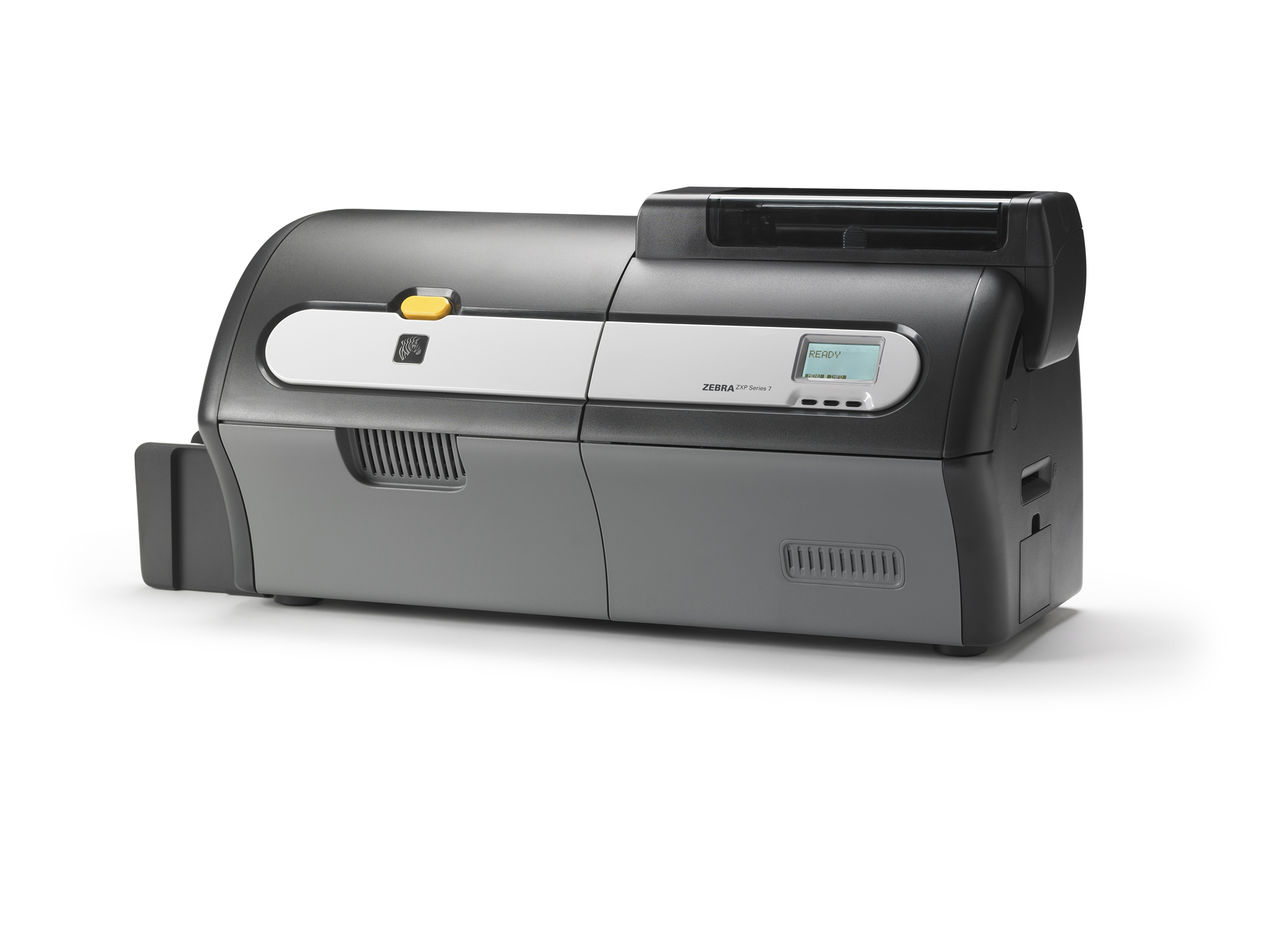

ZXP 7
Model ZXP 7Part no. Z74-0M0W0B00EM00EAN 8596375174481
31 specifications
- Weight12.2 kg
- ColourYes
- Print technologyDye-sublimation/Thermal transfer
- Product colourBlack
- AC input frequency50 - 60 Hz
- Operating temperature (T-T)15 - 35 °C
Overview
- Weight
- 12.2 kg
- Colour
- Yes
- Print technology
- Dye-sublimation/Thermal transfer
- Product colour
- Black
- AC input frequency
- 50 - 60 Hz
- Operating temperature (T-T)
- 15 - 35 °C
- Brand
- Zebra
- Category
- Plastic Card Printer
- Model
- ZXP 7
- Part numbers
- Z74-0M0W0B00EM00, Z74-AMAC0000EM00, Z74-000W0000US00, Z74-A00C0000US00, Z73-000C0000EM00, Z74-000C0000US00
- EAN / UPC
- 8596375174481, 663056026884, 5706998401199
- Also known as
- Zebra ZXP 7 plastic card printer Dye-sublimation/Thermal transfer Colour 300 x 300 DPI
Specifications
31 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation/Thermal transfer |
| Colour | Yes |
| Maximum resolution | 300 x 300 DPI |
| Duplex printing | Yes |
| Print speed (monochrome) | 1375 card/h |
| Print speed (colour) | 300 card/h |
| Duplex print speed (colour) | 225 card/h |
| Card types | PVC, PVC Composite |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display number of characters | 21 |
| Lamination | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB version | 2.0 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 35 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.2 kg |
| Dimensions (WxDxH) | 699 x 277 x 306 mm |
