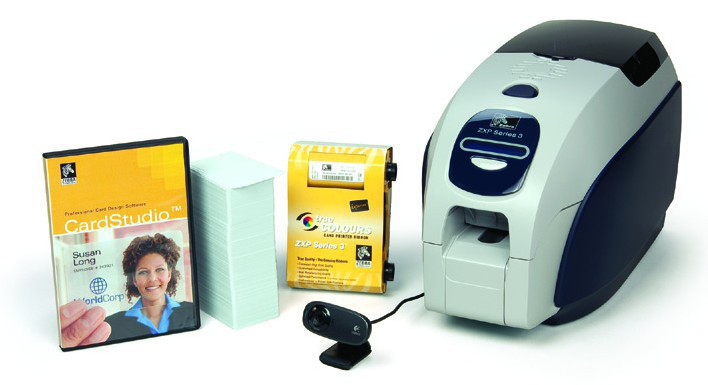

QuikCard ID Solution
Model QuikCard ID SolutionPart no. Z31-0000B000US00
32 specifications
- Memory32 MB
- ConnectivityUSB
- Weight5.53 kg
- ColourYes
- Print technologyDye-sublimation
- Product colourGrey, White
Overview
- Memory
- 32 MB
- Connectivity
- USB
- Weight
- 5.53 kg
- Colour
- Yes
- Print technology
- Dye-sublimation
- Product colour
- Grey, White
- Brand
- Zebra
- Category
- Plastic Card Printer
- Model
- QuikCard ID Solution
- Part numbers
- Z31-0000B000US00, Z32-0000D000US00, Z31-0M00C000US00, Z32-0M00E000US00
- Also known as
- Zebra QuikCard ID Solution plastic card printer Dye-sublimation Colour 300
Specifications
32 specifications in 8 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation |
| Colour | Yes |
| Maximum resolution | 300 |
| Duplex printing | No |
| Print speed (monochrome) | 750 card/h |
| Print speed (colour) | 180 card/h |
| Card feeder | Yes |
| Card types | Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card |
| Card size | 54 x 86 mm |
| Printing media thickness | 762 µm |
Features
| Specification | Value |
|---|---|
| Product colour | Grey, White |
| Built-in display | Yes |
| Display | LCD |
| Display number of characters | 16 |
| Lamination | No |
| Built-in barcodes | EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A |
| Total input capacity | 100 sheets |
| Internal memory | 32 MB |
| Certification | FCC, CE, UL, CUL |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB |
| Optional connectivity | Ethernet, USB 2.0 |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Operating relative humidity (H-H) | 20 - 65% |
| Storage relative humidity (H-H) | 20 - 70% |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.53 kg |
| Dimensions (WxDxH) | 201 x 368 x 309 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | CardStudio Standard |
