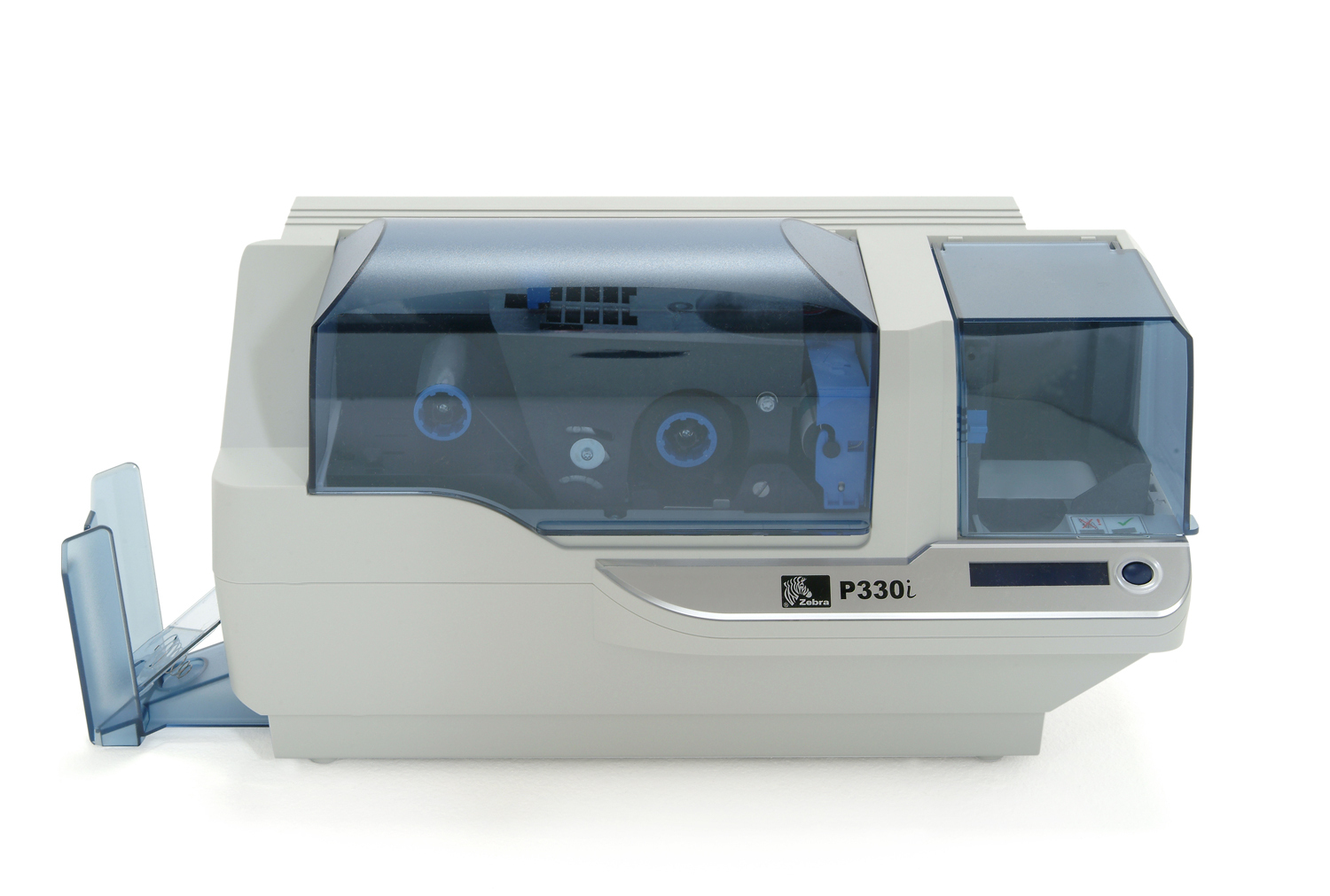

P330i plastic card printer Dye-sublimation Colour 300
Model P330iPart no. P330I-UM1BA-ID0
29 specifications
- Memory20 MB
- ConnectivityUSB & Ethernet
- Weight7 kg
- ColourYes
- Print technologyDye-sublimation
- AC input frequency50 - 60 Hz
Overview
- Memory
- 20 MB
- Connectivity
- USB & Ethernet
- Weight
- 7 kg
- Colour
- Yes
- Print technology
- Dye-sublimation
- AC input frequency
- 50 - 60 Hz
- Brand
- Zebra
- Category
- Plastic Card Printer
- Model
- P330i
- Part numbers
- P330I-UM1BA-ID0, P330I-U000C-ID0, P330I-BM10C-UD0, P330I-B000C-UD0, P330I-B000A-UD0, P330I-0M30A-ID0 +5 more
- Also known as
- Zebra P330i plastic card printer Dye-sublimation Colour 300
Specifications
29 specifications in 7 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation |
| Colour | Yes |
| Maximum resolution | 300 |
| Duplex printing | No |
| Print speed (monochrome) | 692 card/h |
| Print speed (colour) | 144 card/h |
| Card feeder | Yes |
| Card types | Magnetic stripe (ISO 7811), PVC, PVC Composite, Smart card |
| Card size | 54 x 86 mm |
| Printing media thickness | 250 - 1520 µm |
Features
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Display number of characters | 16 |
| Lamination | No |
| Built-in barcodes | 2D, EAN13, EAN8, Interleaved 2/5, PDF417, UPC-A |
| Total input capacity | 100 sheets |
| Internal memory | 20 MB |
| Certification | FCC, CE, UL, CUL |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB & Ethernet |
| Optional connectivity | Ethernet, USB 2.0 |
Power
| Specification | Value |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Storage temperature (T-T) | -5 - 70 °C |
| Operating relative humidity (H-H) | 20 - 65% |
| Storage relative humidity (H-H) | 20 - 70% |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000, XP, Server 2003, Server 8, Vista, 7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7 kg |
| Dimensions (WxDxH) | 462 x 239 x 256 mm |
