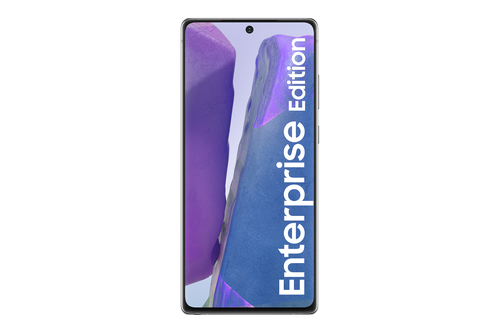

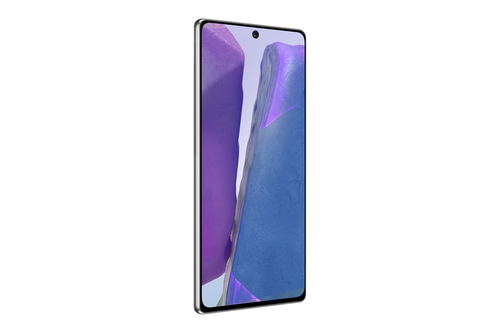

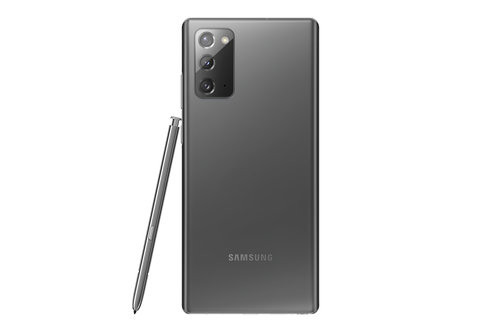

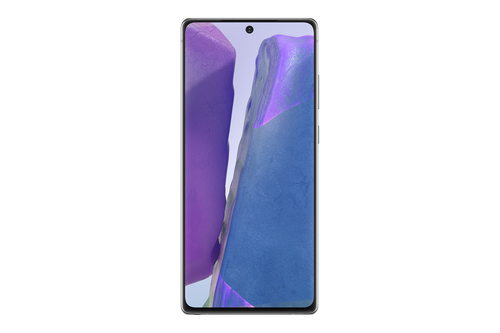

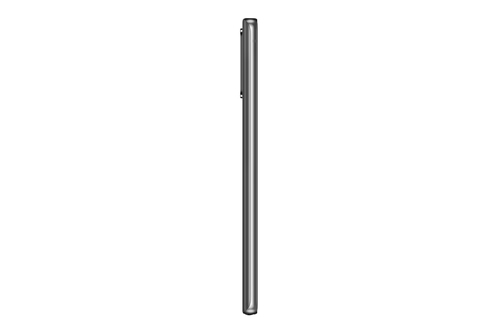

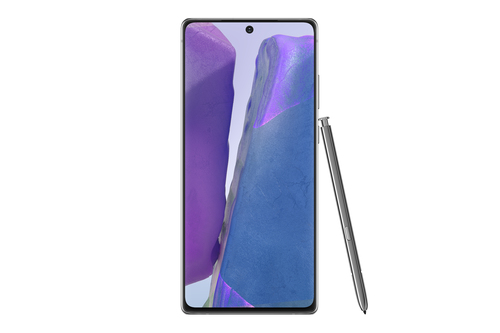

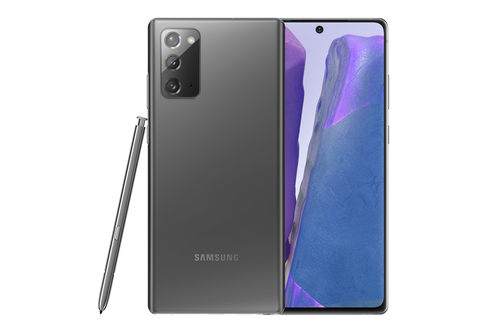

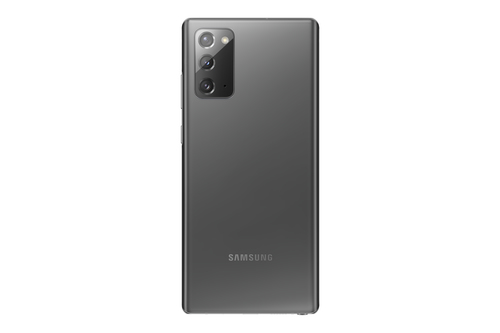

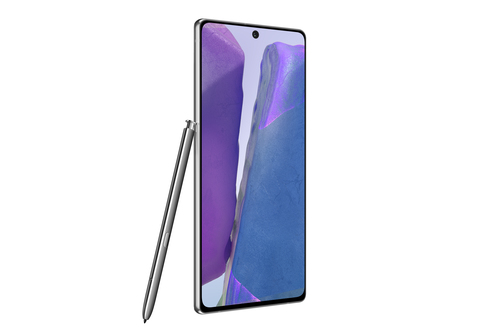

Galaxy Note20
5G SM-N981B/DS 17 cm (6.7") Android 10 USB Type-C 8 GB 256 GB 4300 mAh Grey
Model SM-N981B/DSPart no. SM-N981BZAGEEEEAN 8806090701061
138 specifications Checked today
- Display17 cm (6.7")
- Resolution2400 x 1080 pixels
- ProcessorSamsung Exynos
- Memory8 GB
- Storage256 GB
- Camera12 MP
Overview
- Display
- 17 cm (6.7")
- Resolution
- 2400 x 1080 pixels
- Processor
- Samsung Exynos
- Memory
- 8 GB
- Storage
- 256 GB
- Camera
- 12 MP
- Brand
- Samsung
- Category
- Phone
- Model
- SM-N981B/DS
- Part numbers
- SM-N981BZAGEEE, SM5N981BZNGEUB
- EAN / UPC
- 8806090701061, 8806094613537
- Also known as
- Samsung Galaxy Note20 5G SM-N981B/DS 17 cm (6.7") Android 10 USB Type-C 8 GB 256 GB 4300 mAh Grey
Specifications
138 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 17 cm (6.7") |
| Display resolution | 2400 x 1080 pixels |
| Screen shape | Flat |
| Display technology marketing name | Super AMOLED Plus |
| Panel type | OLED |
| Display glass type | Corning Glass |
| Gorilla Glass version | Gorilla Glass 5 |
| Display number of colours | 16 million colours |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 420 cd/m² |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10+ (HDR10 Plus) |
| Pixel density | 394 ppi |
| Touchscreen type | Capacitive |
| Rounded display corners | Yes |
Processor
| Specification | Value |
|---|---|
| Processor family | Samsung Exynos |
| Processor cores | 8 |
| Processor frequency | 2.7 GHz |
Storage
| Specification | Value |
|---|---|
| RAM capacity | 8 GB |
| Internal storage capacity | 256 GB |
| RAM type | LPDDR5 |
| USB mass storage | Yes |
Camera
| Specification | Value |
|---|---|
| Rear camera type | Triple camera |
| Rear camera resolution (numeric) | 12 MP |
| Second rear camera resolution (numeric) | 64 MP |
| Third rear camera resolution (numeric) | 12 MP |
| Rear camera aperture number | 1.8 |
| Second rear camera aperture number | 2 |
| Third rear camera aperture number | 2.2 |
| Rear camera pixel size | 1.8 µm |
| Second rear camera pixel size | 0.8 µm |
| Third rear camera pixel size | 1.4 µm |
| Rear camera field of view (FOV) angle | 79° |
| Second rear camera field of view (FOV) angle | 76° |
| Third rear camera field of view (FOV) angle | 120° |
| Optical zoom | 3x |
| Digital zoom | 30x |
| Front camera type | Single camera |
| Front camera resolution (numeric) | 10 MP |
| Front camera aperture number | 2.2 |
| Front camera pixel size | 1.22 µm |
| Front camera field of view (FOV) angle | 80° |
| Rear camera flash | Yes |
| Flash type | LED |
| Optical sensor size | 25.4 / 1.76 mm (1 / 1.76") |
| Video capture resolution (max) | 7680 x 4320 pixels |
| Maximum frame rate | 960 fps |
| Resolution at capture speed | 1280x720@960fps, 1920x1080@240fps |
| Video recording modes | 720p, 1080p, 2160p |
| Auto focus | Yes |
| Face detection | Yes |
| Video stabilizer | Yes |
| Image stabilizer | Yes |
| Geotagging | Yes |
| Multi-shot | Yes |
| Night mode | Yes |
| Self-timer | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network generation | 5G |
| SIM card type | NanoSIM |
| 3G standards | WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth profiles | A2DP, AVRCP, HFP, HOGP, HSP, MAP, OPP, PAN, PBAP, SAP |
| aptX technology | Yes |
| 3G bands supported | 850,900,1900,2100 MHz |
| 4G bands supported | 700,800,850,1800,1900,2100,2300,2500,2600 MHz |
| MIMO | Yes |
| Miracast | Yes |
| Tethering (modem-mode) | Yes |
| Wi-Fi Direct | Yes |
| Near Field Communication (NFC) | Yes |
| Security algorithms | HTTPS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Messaging
| Specification | Value |
|---|---|
| Short Message Service (SMS) | Yes |
| Multimedia Messaging Service (MMS) | Yes |
| Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bar |
| Product colour | Grey |
| Colour name | Mystic Gray |
| Protection features | Dust resistant, Water resistant |
Performance
| Specification | Value |
|---|---|
| Fast charging | Yes |
| Wireless charging | Yes |
| Fingerprint reader | Yes |
| Face recognition | Yes |
| Speakerphone | Yes |
| Voice commands | Yes |
| Voice dialling | Yes |
| Vibrating alert | Yes |
Multimedia
| Specification | Value |
|---|---|
| Audio system | Dolby Atmos |
| Speakers | stereo |
| Audio formats supported | 3GA, AAC, APE, AWB, DFF, DSF, FLAC, IMY, M4A, Mid, MIDI, MP3, MXMF, OGA, OGG, OTA, RTTTL, RTX, WAV, WMA, XMF |
| Video formats supported | 3G2, 3GP, ASF, AVI, FLV, M4V, MKV, MP4, WEBM, WMV |
| Voice codecs | AMR-NB, AMR-WB, EFR, FR |
Software
| Specification | Value |
|---|---|
| Platform | Android |
| Operating system installed | Android 10 |
| App distribution platform | Google Play |
| Google applications | Google Maps, Google Play |
| Virtual assistant | Samsung Bixby |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4300 mAh |
| Battery voltage | 3.88 V |
| Battery recharge time | 1.16 h |
| Wireless Power Share | Yes |
| Removable battery | No |
| Talk time (4G) (max) | 23 h |
Endurance
| Specification | Value |
|---|---|
| Repairability index | 8.0 |
| International Protection (IP) code | IP68 |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
| Barometer | Yes |
| Geomagnetic sensor | Yes |
| Hall sensor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 192 g |
| Width | 75.2 mm |
| Depth | 8.3 mm |
| Height | 161.6 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | USB Type-C |
| Headset included | Yes |
| SIM card ejector pin | Yes |
| Stylus included | Yes |
Specific absorption rate (SAR)
| Specification | Value |
|---|---|
| Head SAR (EU) | 0.684 W/kg |
| Body SAR (EU) | 1.368 W/kg |
| Extremities SAR (EU) | 2.27 W/kg |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
