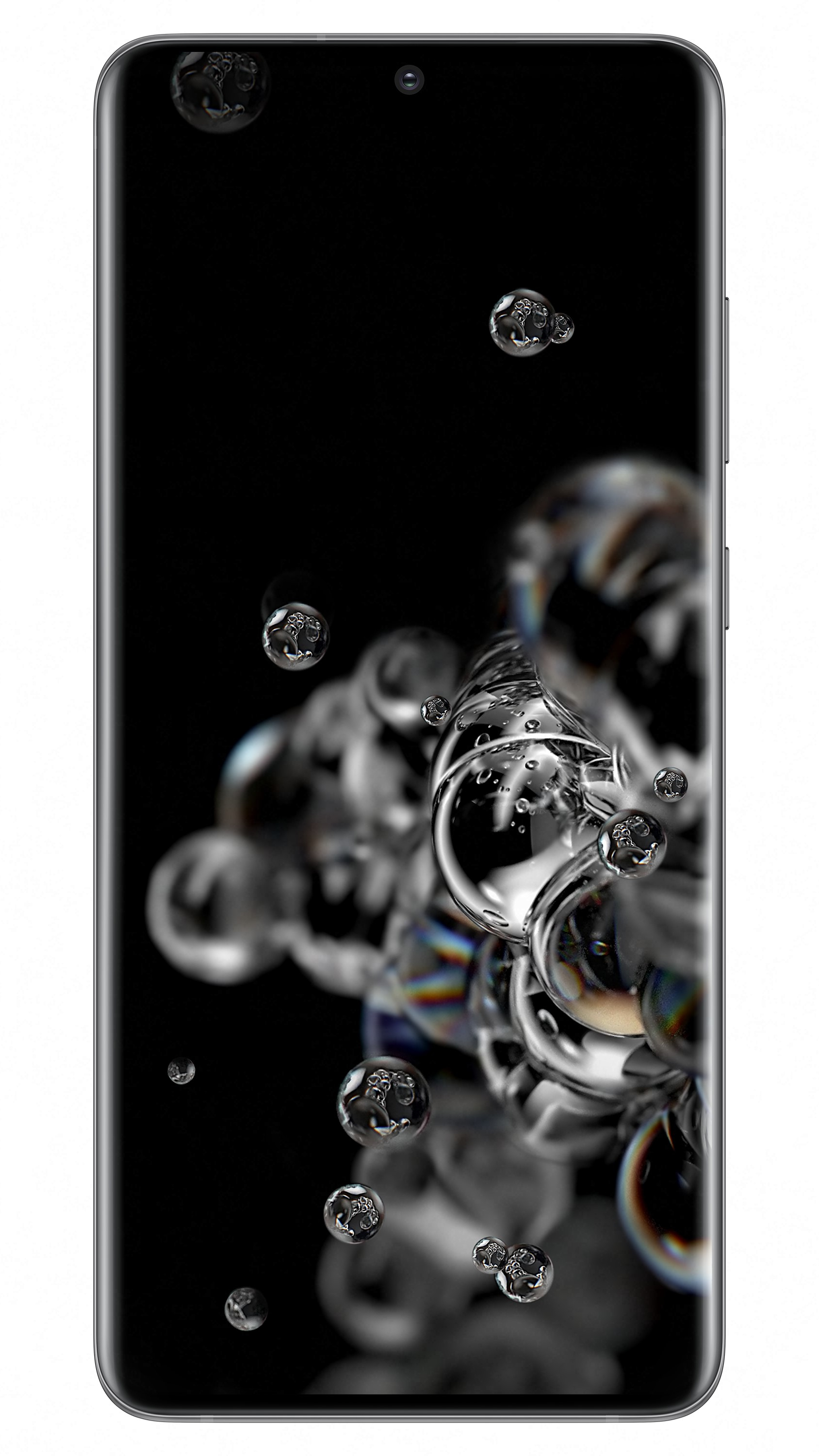

Galaxy S20 Ultra

5G SM-G988B 17.5 cm (6.9") Hybrid Dual SIM Android 10 USB Type-C 16 GB 512 GB 5000 mAh Grey

Model SM-G988BPart no. SM-G988BZWDEUCEAN 8806090311116

166 specifications Checked today

Display17.5 cm (6.9")
Resolution3200 x 1440 pixels
ProcessorSamsung Exynos
Memory16 GB
Storage512 GB
Camera108 MP

See all specifications

Overview

Display: 17.5 cm (6.9")
Resolution: 3200 x 1440 pixels
Processor: Samsung Exynos
Memory: 16 GB
Storage: 512 GB
Camera: 108 MP

Brand: Samsung
Category: Phone
Model: SM-G988B
Part numbers: SM-G988BZWDEUC, SM-G988BZWDEUD, 5413729235618, SM-G988BZAGEUC, SM-G988BZKDEUC, SM-G988BZKGEUC +14 more
EAN / UPC: 8806090311116, 8806090310881, 8806090311352, 8806090311345 +14 more
Also known as: Samsung Galaxy S20 Ultra 5G SM-G988B 17.5 cm (6.9") Hybrid Dual SIM Android 10 USB Type-C 16 GB 512 GB 5000 mAh Grey

Specifications

166 specifications in 21 groups

Display

Specification	Value
Display diagonal	17.5 cm (6.9")
Display resolution	3200 x 1440 pixels
Screen shape	Curved edge screen
Display technology marketing name	Dynamic AMOLED 2X
Panel type	OLED
Display glass type	Gorilla Glass
Gorilla Glass version	Gorilla Glass 6
Display number of colours	16 million colours
Native aspect ratio	20:9
Maximum refresh rate	120 Hz
Touch technology	Multi-touch
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus)
Pixel density	511 ppi
Touchscreen type	Capacitive
Rounded display corners	Yes

Processor

Specification	Value
Processor family	Samsung Exynos
Processor model	990
Processor cores	8
Processor frequency	2.73 GHz
Cores frequencies	2x 2.73GHz + 2x 2.5GHz + 4x 2.0GHz
Integrated 4G WiMAX	Yes
Processor lithography	7 nm

Storage

Specification	Value
RAM capacity	16 GB
Internal storage capacity	512 GB
RAM type	LPDDR5
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	1 TB
USB mass storage	Yes

Camera

Specification	Value
Rear camera type	Quad camera
Rear camera sensor size	1/1.33"
Rear camera resolution (numeric)	108 MP
Second rear camera resolution (numeric)	12 MP
Third rear camera resolution (numeric)	48 MP
Rear camera resolution	12000 x 9000 pixels
Rear camera aperture number	1.8
Second rear camera aperture number	2.2
Third rear camera aperture number	3.5
Fourth rear camera aperture number	1
Rear camera pixel size	0.8 µm
Second rear camera pixel size	1.4 µm
Third rear camera pixel size	0.8 µm
Rear camera field of view (FOV) angle	79°
Second rear camera field of view (FOV) angle	120°
Third rear camera field of view (FOV) angle	24°
Optical zoom	10x
Digital zoom	100x
Front camera type	Single camera
Front camera resolution (numeric)	40 MP
Front camera aperture number	2.2
Front camera pixel size	0.7 µm
Front camera field of view (FOV) angle	80°
Rear camera flash	Yes
Flash type	LED
Video capture resolution (max)	7680 x 4320 pixels
Maximum frame rate	960 fps
Resolution at capture speed	1280x720@30fps, 1280x720@960fps, 1920x1080@240fps, 1920x1080@30fps, 1920x1080@60fps, 3840x2160@30fps, 3840x2160@60fps
Video recording modes	720p, 1080p, 2160p
Auto focus	Yes
3D depth rear camera	Yes
Zoom capability	Yes
Video recording	Yes
Video stabilizer	Yes
Image stabilizer	Yes
Geotagging	Yes
Multi-shot	Yes
Night mode	Yes
Self-timer	Yes

Network

Specification	Value
SIM card capability	Hybrid Dual SIM
Mobile network generation	5G
SIM card type	NanoSIM + eSIM
2G standards	Edge, GPRS, GSM
3G standards	HSDPA, HSPA+, HSUPA, UMTS
4G standard	LTE
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.0
3G bands supported	850,900,1900,2100 MHz
MIMO	Yes
Tethering (modem-mode)	Yes
Wi-Fi Direct	Yes
Near Field Communication (NFC)	Yes

Subscription

Specification	Value
Subscription type	No subscription

Ports & interfaces

Specification	Value
USB port	Yes
USB connector type	USB Type-C
USB version	3.2 Gen 1 (3.1 Gen 1)
ANT+ enabled	Yes

Messaging

Specification	Value
Short Message Service (SMS)	Yes
Multimedia Messaging Service (MMS)	Yes
Instant messaging (IM)	Yes
Chat	Yes
E-mail	Yes
Text prediction system	Yes

Specification	Value
Position location	Yes
Assisted GPS (A-GPS)	Yes
GPS (satellite)	Yes
BeiDou	Yes
GLONASS	Yes
Galileo	Yes
Wi-Fi positioning	Yes

Design

Specification	Value
Form factor	Bar
Product colour	Grey
Colour name	Cosmic Grey
Protection features	Dust resistant, Water resistant

Performance

Specification	Value
Video call	Yes
Fast charging	Yes
Wireless charging	Yes
Fingerprint reader	Yes
Face recognition	Yes
Flight mode	Yes
Microphone mute	Yes
Personal info management (PIM)	Alarm clock, Calculator, Calendar, Notes
Personalization	Icons, Menu, Shortcuts
Speakerphone	Yes
Support for contact groups	Yes
Themes	Wallpapers
USB On-The-Go support	Yes
Vibrating alert	Yes

Multimedia

Specification	Value
Audio system	Dolby Atmos
Speakers	stereo
Supported video modes	720p, 1080p, 2160p, 4320p
Audio formats supported	3GA, AAC, AMR, APE, AWB, DFF, DSF, FLAC, IMY, M4A, Mid, MIDI, MP3, MXMF, OGA, OGG, OTA, RTTTL, RTX, WAV, WMA, XMF
Video formats supported	3G2, 3GP, ASF, AVI, FLV, M4V, MKV, MP4, WEBM, WMV
Image formats supported	BMP, GIF, HEIF, JPEG, PNG, WBMP, WEBP

Call management

Specification	Value
Call divert	Yes
Call hold	Yes
Call timer	Yes
Call waiting	Yes
Caller ID	Yes
Conference call	Yes
Speed dialling	Yes

Software

Specification	Value
Platform	Android
Operating system installed	Android 10
App distribution platform	Google Play
Google applications	Google Maps, Google Play
Virtual assistant	Samsung Bixby

Battery

Specification	Value
Battery capacity	5000 mAh
Wireless Power Share	Yes
Removable battery	No
Talk time (4G) (max)	25 h
Browsing time (Wi-Fi) (max)	18 h
Browsing time (4G) (max)	17 h

Endurance

Specification	Value
Repairability index	5.7
International Protection (IP) code	IP68

Sensors

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Proximity sensor	Yes
Gyroscope	Yes
Barometer	Yes
Geomagnetic sensor	Yes
Hall sensor	Yes
Orientation sensor	Yes

Weight & dimensions

Specification	Value
Weight	220 g
Width	76 mm
Depth	8.8 mm
Height	166.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Quick start guide	Yes
Warranty card	Yes
Cables included	USB Type-C
Manual	Yes
SIM card ejector pin	Yes

Specific absorption rate (SAR)

Specification	Value
Head SAR (EU)	0.66 W/kg
Body SAR (EU)	1.557 W/kg

Other features

Specification	Value
Touchscreen	Yes
