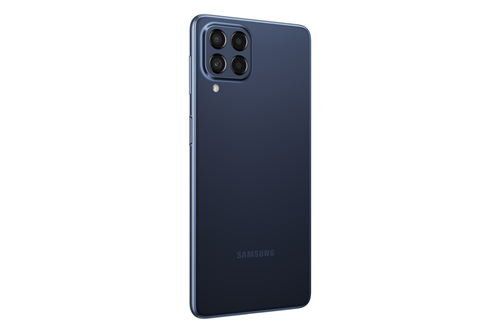

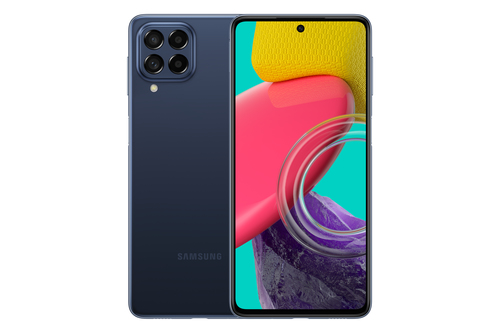

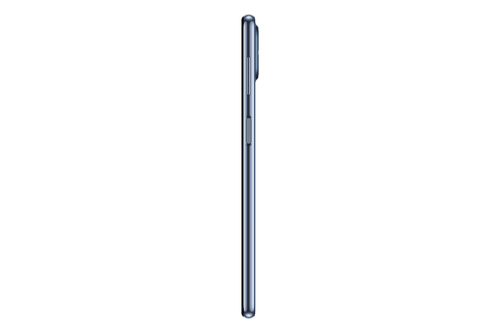

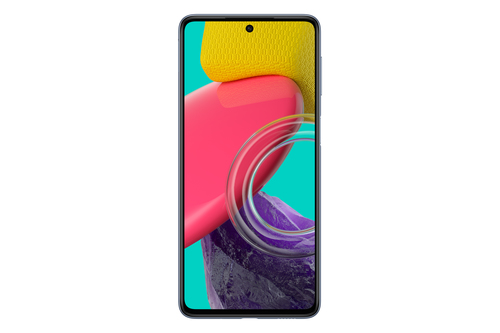

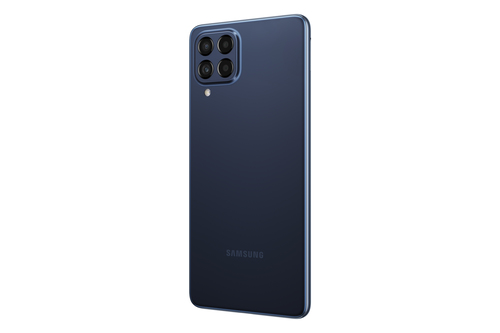

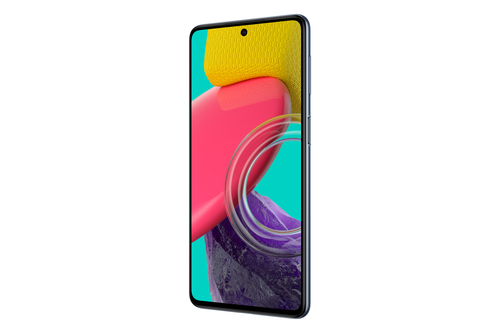

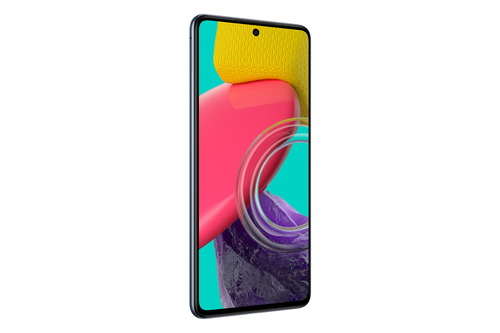

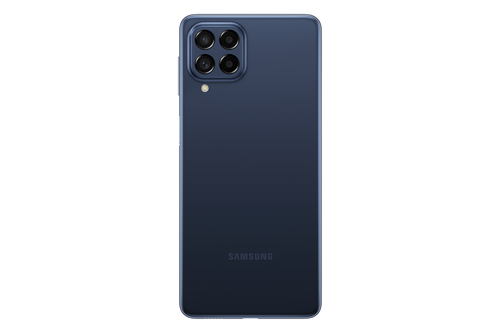

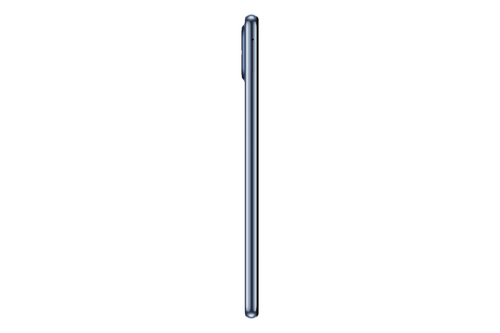

SM-M536B/DSN
17 cm (6.7") Dual SIM 5G USB Type-C 6 GB 128 GB 5000 mAh Blue
Model SM-M536B/DSNPart no. SM-M536BZNDEUBEAN 8806094419276
86 specifications Checked today
- Display17 cm (6.7")
- Resolution1080 x 2400 pixels
- Memory6 GB
- Storage128 GB
- Camera108 MP
- Battery5000 mAh
Overview
- Display
- 17 cm (6.7")
- Resolution
- 1080 x 2400 pixels
- Memory
- 6 GB
- Storage
- 128 GB
- Camera
- 108 MP
- Battery
- 5000 mAh
- Brand
- Samsung
- Category
- Phone
- Model
- SM-M536B/DSN
- Part numbers
- SM-M536BZNDEUB, SM-M536BZBDEUE, SM-M536BZNDEUE, SM-M536BZGDEUE, SM-M536BZGDEUB
- EAN / UPC
- 8806094419276, 8806094419245, 8806094419160, 8806094419214 +1 more
- Also known as
- Samsung SM-M536B/DSN 17 cm (6.7") Dual SIM 5G USB Type-C 6 GB 128 GB 5000 mAh Blue
Specifications
86 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 17 cm (6.7") |
| Display resolution | 1080 x 2400 pixels |
| Screen shape | Flat |
| Display technology marketing name | Super AMOLED Plus |
| Panel type | OLED |
| Display number of colours | 16 million colours |
| Touchscreen type | Capacitive |
| Second display refresh rate | 120 Hz |
Processor
| Specification | Value |
|---|---|
| Processor cores | 8 |
| Processor frequency | 2.4 GHz |
Storage
| Specification | Value |
|---|---|
| RAM capacity | 6 GB |
| Internal storage capacity | 128 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1 TB |
Camera
| Specification | Value |
|---|---|
| Rear camera type | Quad camera |
| Rear camera resolution (numeric) | 108 MP |
| Second rear camera resolution (numeric) | 8 MP |
| Third rear camera resolution (numeric) | 2 MP |
| Fourth rear camera resolution (numeric) | 2 MP |
| Rear camera aperture number | 1.8 |
| Second rear camera aperture number | 2.2 |
| Third rear camera aperture number | 2.4 |
| Fourth rear camera aperture number | 2.4 |
| Digital zoom | 10x |
| Front camera type | Single camera |
| Front camera resolution (numeric) | 32 MP |
| Front camera aperture number | 2.2 |
| Rear camera flash | Yes |
| Flash type | LED |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Resolution at capture speed | 1280x720@240fps, 3840x2160@30fps |
| Video recording modes | 2160p |
| Auto focus | Yes |
Network
| Specification | Value |
|---|---|
| SIM card capability | Dual SIM |
| Mobile network generation | 5G |
| SIM card type | NanoSIM |
| 3G standards | UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| 3G bands supported | 900,850,1900,2100 MHz |
| 4G bands supported | 700,2300,800,1800,850,1900,2500,900,2600 MHz |
| 5G bands supported | 700,900,2300,3500,800,1800,2500,850,2100,2600 MHz |
| Wi-Fi Direct | Yes |
| Near Field Communication (NFC) | Yes |
Subscription
| Specification | Value |
|---|---|
| Subscription type | No subscription |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | USB Type-C |
| USB version | 2.0 |
Design
| Specification | Value |
|---|---|
| Form factor | Bar |
| Product colour | Blue |
| Colour name | Blue |
Performance
| Specification | Value |
|---|---|
| Fingerprint reader | Yes |
Multimedia
| Specification | Value |
|---|---|
| Audio system | Dolby Atmos |
| Audio formats supported | 3GA, AAC, AMR, AWB, FLAC, IMY, M4A, Mid, MIDI, MP3, MXMF, OGA, OGG, OTA, RTTTL, RTX, WAV, XMF |
| Video formats supported | 3GP, 3G2, WEBM, AVI, M4V, FLV, MKV, MP4 |
Software
| Specification | Value |
|---|---|
| Platform | Android |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 5000 mAh |
| Removable battery | No |
| Talk time (4G) (max) | 39 h |
| Browsing time (Wi-Fi) (max) | 17 h |
| Browsing time (4G) (max) | 17 h |
| Wireless audio playback time | 87 h |
| Wireless video playback time | 19 h |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
| Magnetic sensor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 176 g |
| Width | 77 mm |
| Depth | 7.4 mm |
| Height | 164.7 mm |
Specific absorption rate (SAR)
| Specification | Value |
|---|---|
| Head SAR (EU) | 0.603 W/kg |
| Body SAR (EU) | 1.53 W/kg |
| Extremities SAR (EU) | 2.86 W/kg |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
