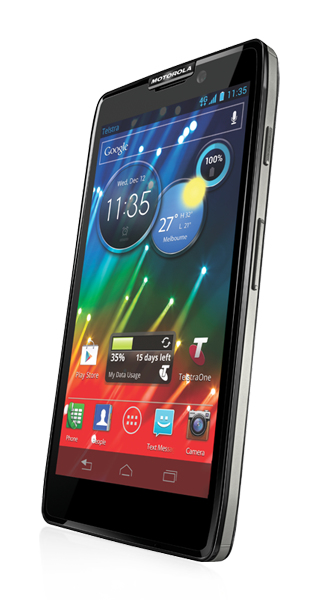

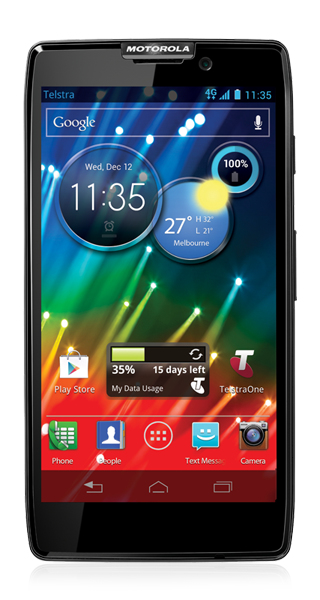

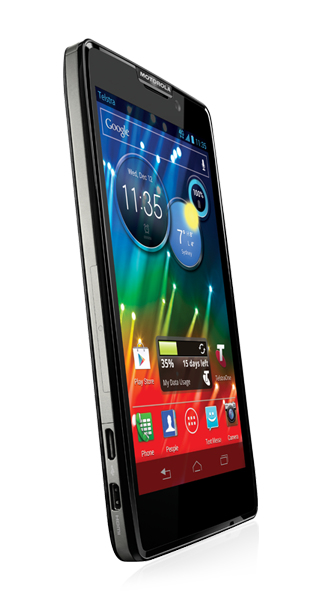

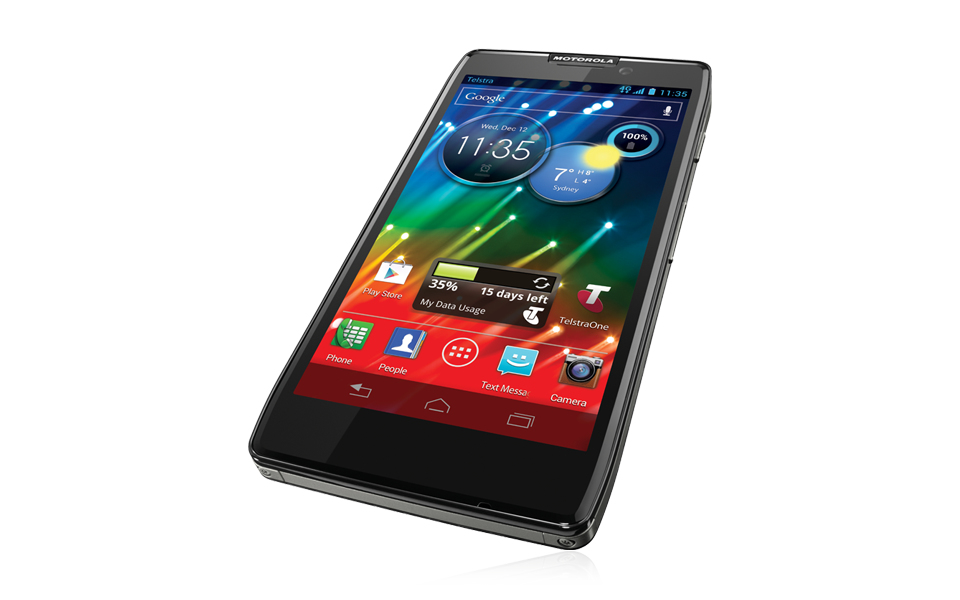

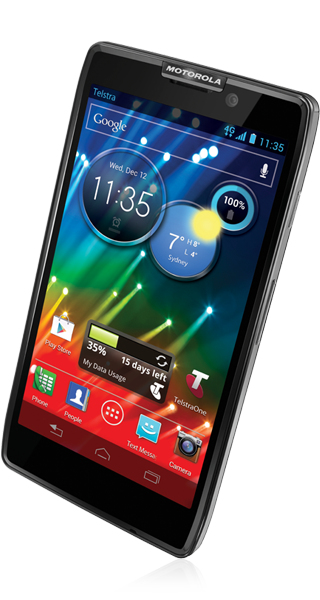

RAZR HD SM3698AE7F1 smartphone
11.9 cm (4.7") Single SIM Android 4.1 4G Micro-USB B 1 GB 16 GB 2500 mAh Black
Model SM3698AE7F1EAN 4022265156960
94 specifications Checked today
- Display11.9 cm (4.7")
- Resolution720 x 1280 pixels
- Memory1 GB
- Storage16 GB
- Camera8 MP
- Battery2500 mAh
Overview
- Display
- 11.9 cm (4.7")
- Resolution
- 720 x 1280 pixels
- Memory
- 1 GB
- Storage
- 16 GB
- Camera
- 8 MP
- Battery
- 2500 mAh
- Brand
- Motorola
- Category
- Phone
- Model
- SM3698AE7F1
- Part number
- SM3698AE7F1
- EAN / UPC
- 4022265156960, 6947681516335
- Also known as
- Motorola RAZR HD SM3698AE7F1 smartphone 11.9 cm (4.7") Single SIM Android 4.1 4G Micro-USB B 1 GB 16 GB 2500 mAh Black
Specifications
94 specifications in 20 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 11.9 cm (4.7") |
| Display resolution | 720 x 1280 pixels |
| Display technology marketing name | Super AMOLED |
| Panel type | OLED |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
Processor
| Specification | Value |
|---|---|
| Processor cores | 2 |
| Processor frequency | 1.5 GHz |
Storage
| Specification | Value |
|---|---|
| RAM capacity | 1 GB |
| Internal storage capacity | 16 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
| USB mass storage | Yes |
Camera
| Specification | Value |
|---|---|
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 8 MP |
| Front camera type | Single camera |
| Front camera resolution (numeric) | 1.3 MP |
| Rear camera flash | Yes |
| Maximum frame rate | 30 fps |
| Video recording modes | 1080p |
| Auto focus | Yes |
| Video recording | Yes |
Network
| Specification | Value |
|---|---|
| SIM card capability | Single SIM |
| Mobile network generation | 4G |
| SIM card type | MicroSIM |
| 2G standards | GSM |
| 3G standards | HSDPA, UMTS |
| 4G standard | LTE |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 4.0 |
| Bluetooth profiles | A2DP, AVRCP, BPP, HFP, HID, HSP, OPP, PAN |
| 2G bands (primary SIM) | 850,900,1800,1900 MHz |
| 3G bands supported | 850,900,1900,2100 MHz |
| 4G bands supported | 800,1800,2600 MHz |
| Tethering (modem-mode) | Yes |
Subscription
| Specification | Value |
|---|---|
| Subscription type | No subscription |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | Micro-USB B |
| USB version | 2.0 |
| Headphone connectivity | 3.5 mm |
Messaging
| Specification | Value |
|---|---|
| Short Message Service (SMS) | Yes |
| Multimedia Messaging Service (MMS) | Yes |
| Instant messaging (IM) | Yes |
| Chat | Yes |
| Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bar |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Video call | Yes |
| Flight mode | Yes |
| Microphone mute | Yes |
| Personal info management (PIM) | Alarm clock, Calculator, Calendar, Events reminder, Notes, To-do list |
| Personalization | Icons, Menu, Shortcuts, Widgets |
| Speakerphone | Yes |
| Themes | Wallpapers |
| Voice dialling | Yes |
| Vibrating alert | Yes |
Multimedia
| Specification | Value |
|---|---|
| Audio formats supported | MP3 |
| Video formats supported | H.263, H.264, MPEG4, WMV9 |
Call management
| Specification | Value |
|---|---|
| Call divert | Yes |
| Call hold | Yes |
| Call timer | Yes |
| Call waiting | Yes |
| Caller ID | Yes |
| Conference call | Yes |
| Speed dialling | Yes |
Software
| Specification | Value |
|---|---|
| Platform | Android |
| Operating system installed | Android 4.1 |
| App distribution platform | Google Play |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2500 mAh |
| Battery technology | Lithium Polymer (LiPo) |
| Talk time (2G) (max) | 22 h |
| Talk time (3G) (max) | 16 h |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Proximity sensor | Yes |
| Orientation sensor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 146 g |
| Width | 67.9 mm |
| Depth | 8.4 mm |
| Height | 131.9 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
| Java technology | Yes |
| Ringer type | MP3 |
| Voice recording | Yes |
