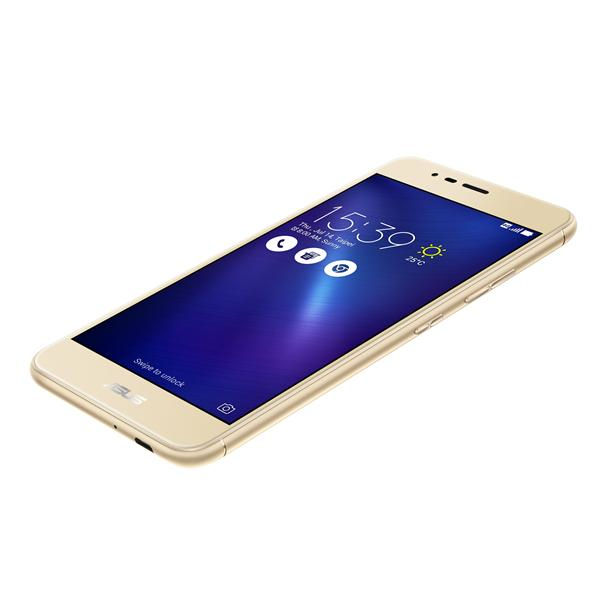

ZenFone Max ZC520TL-4G014WW
13.2 cm (5.2") Dual SIM Android 6.0 4G Micro-USB 3 GB 32 GB 4130 mAh Gold
Model ZC520TL-4G014WWPart no. 90AX0085-M00230EAN 4712900473834
78 specifications Checked today
- Display13.2 cm (5.2")
- Resolution1280 x 720 pixels
- ProcessorMediaTek
- Memory3 GB
- Storage32 GB
- Camera13 MP
Overview
- Display
- 13.2 cm (5.2")
- Resolution
- 1280 x 720 pixels
- Processor
- MediaTek
- Memory
- 3 GB
- Storage
- 32 GB
- Camera
- 13 MP
- Brand
- ASUS
- Category
- Phone
- Model
- ZC520TL-4G014WW
- Part number
- 90AX0085-M00230
- EAN / UPC
- 4712900473834, 4712900589092
- Also known as
- ASUS ZenFone Max ZC520TL-4G014WW 13.2 cm (5.2") Dual SIM Android 6.0 4G Micro-USB 3 GB 32 GB 4130 mAh Gold
Specifications
78 specifications in 18 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 13.2 cm (5.2") |
| Display resolution | 1280 x 720 pixels |
| Screen shape | Flat |
| Panel type | IPS |
| Display brightness | 400 cd/m² |
| Second display | No |
Processor
| Specification | Value |
|---|---|
| Processor family | MediaTek |
| Processor model | MT6737 |
| Processor architecture | ARM Cortex-A53 |
| Processor cores | 4 |
| Processor frequency | 1.25 GHz |
| Processor boost frequency | 1.5 GHz |
Storage
| Specification | Value |
|---|---|
| RAM capacity | 3 GB |
| Internal storage capacity | 32 GB |
| RAM type | LPDDR3 |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 32 GB |
Camera
| Specification | Value |
|---|---|
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 13 MP |
| Front camera type | Single camera |
| Front camera resolution (numeric) | 5 MP |
| Rear camera flash | Yes |
| Maximum frame rate | 30 fps |
| Video recording modes | 1080p |
| Auto focus | Yes |
| Video recording | Yes |
| Video stabilizer | Yes |
| Night mode | Yes |
Network
| Specification | Value |
|---|---|
| SIM card capability | Dual SIM |
| Mobile network generation | 4G |
| SIM card type | MicroSIM + NanoSIM |
| 3G standards | WCDMA |
| 4G standard | LTE |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| 2G bands (primary SIM) | 850,900,1800,1900 MHz |
| Wi-Fi Direct | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | Yes |
| USB connector type | Micro-USB |
| HDMI ports quantity | 0 |
| Headphone connectivity | 3.5 mm |
Messaging
| Specification | Value |
|---|---|
| Short Message Service (SMS) | Yes |
| Multimedia Messaging Service (MMS) | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bar |
| Product colour | Gold |
Performance
| Specification | Value |
|---|---|
| Graphics card | Mali T720 |
| Fingerprint reader | Yes |
Call management
| Specification | Value |
|---|---|
| Call hold | Yes |
| Call timer | Yes |
| Call waiting | Yes |
| Caller ID | Yes |
Software
| Specification | Value |
|---|---|
| Platform | Android |
| Operating system installed | Android 6.0 |
| App distribution platform | Google Play |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 4130 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Talk time (3G) (max) | 20 h |
| Standby time (3G) (max) | 720 h |
| Browsing time (Wi-Fi) (max) | 18 h |
| Continuous video playback time (max) | 15 h |
Sensors
| Specification | Value |
|---|---|
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
| Orientation sensor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 160 g |
| Width | 73.7 mm |
| Depth | 8.55 mm |
| Height | 149.5 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | USB |
Specific absorption rate (SAR)
| Specification | Value |
|---|---|
| Head SAR (EU) | 0.59 W/kg |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
