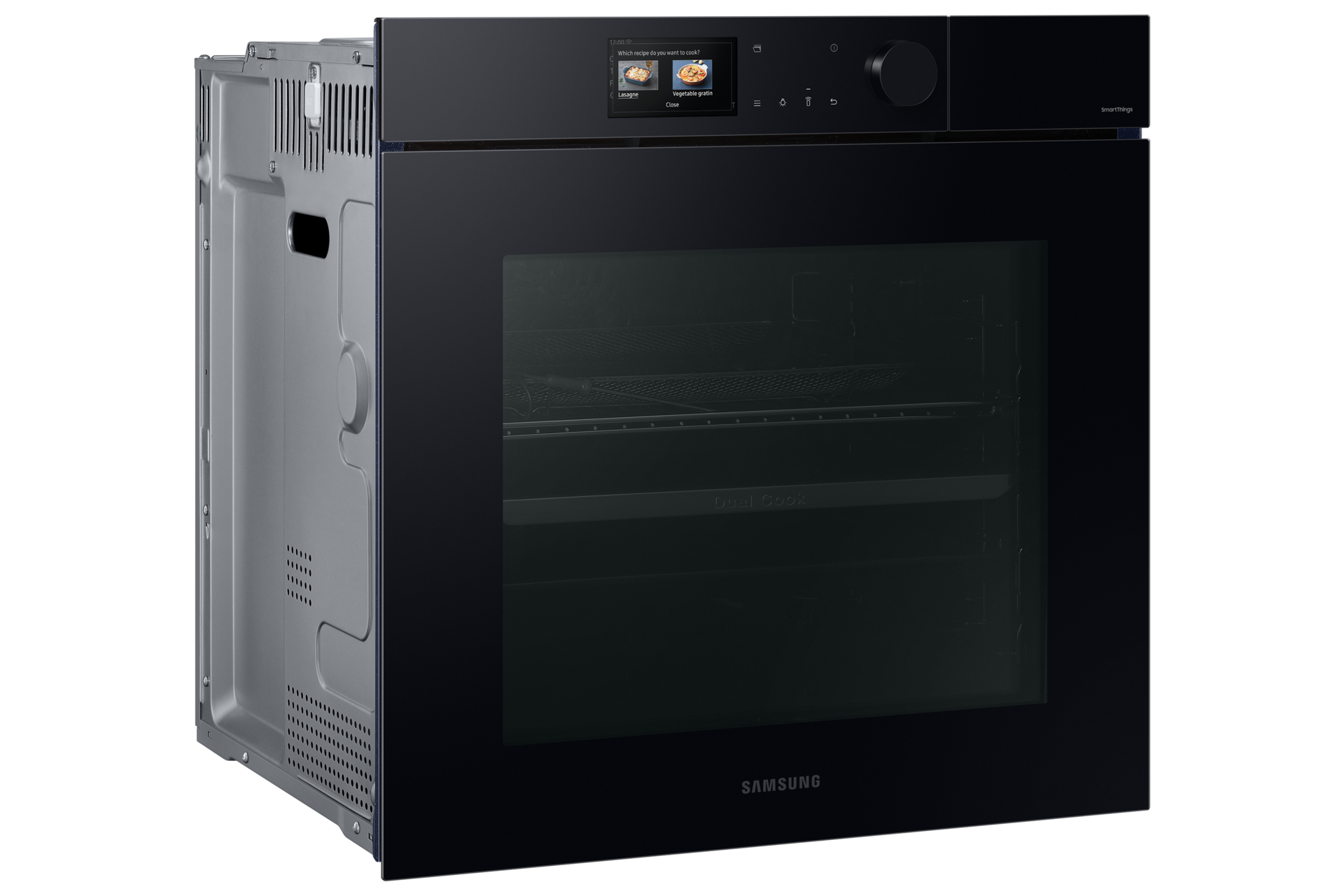

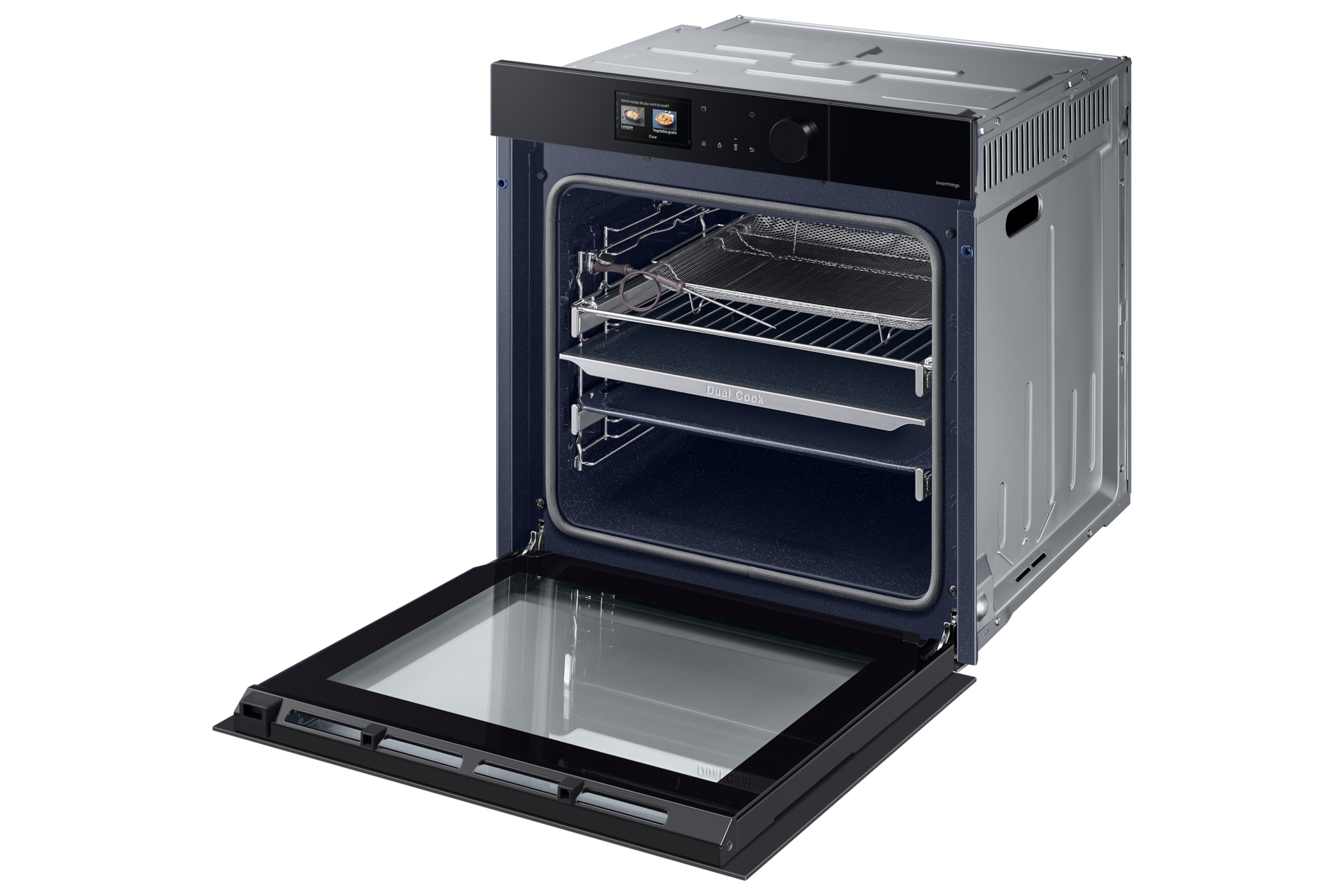

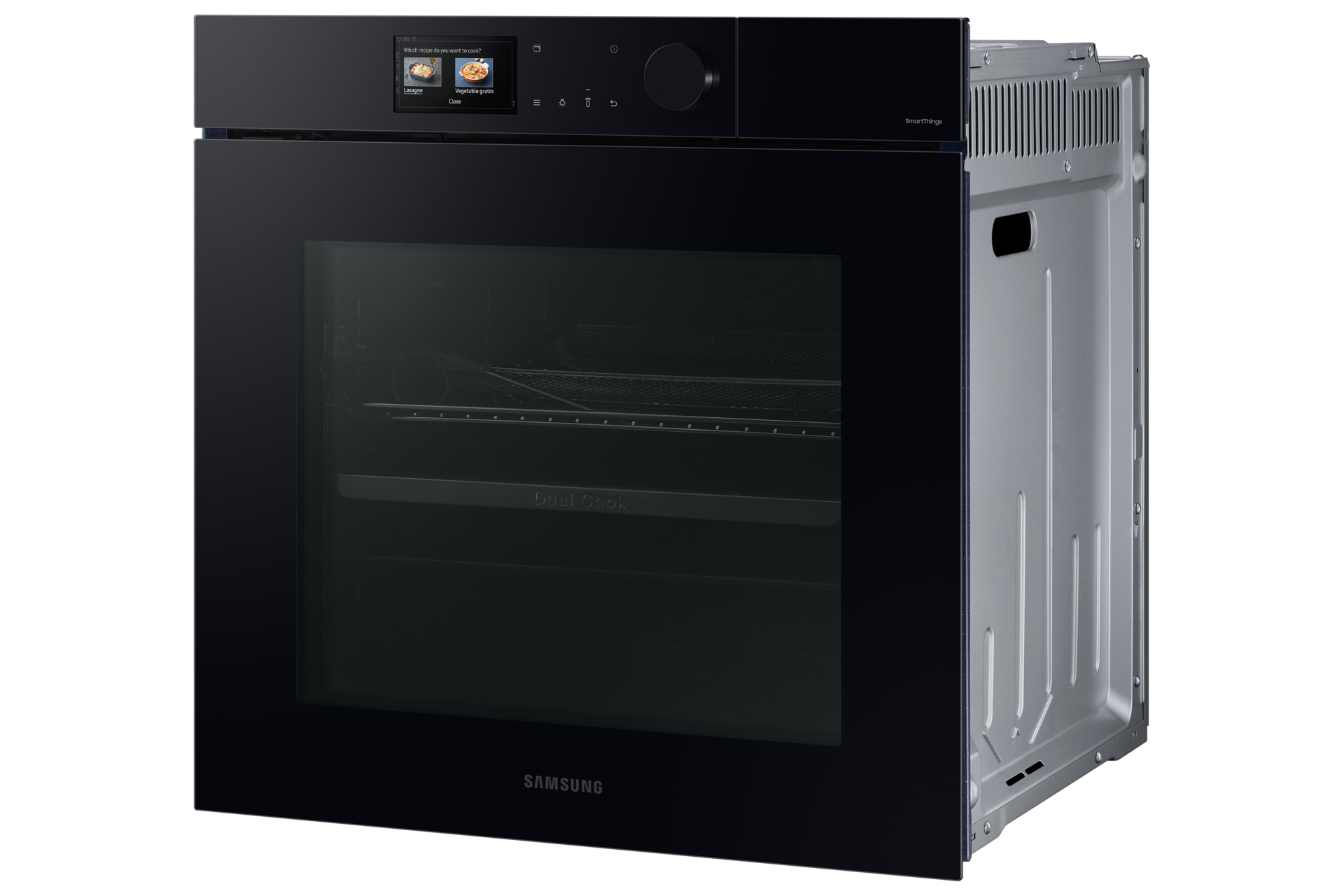

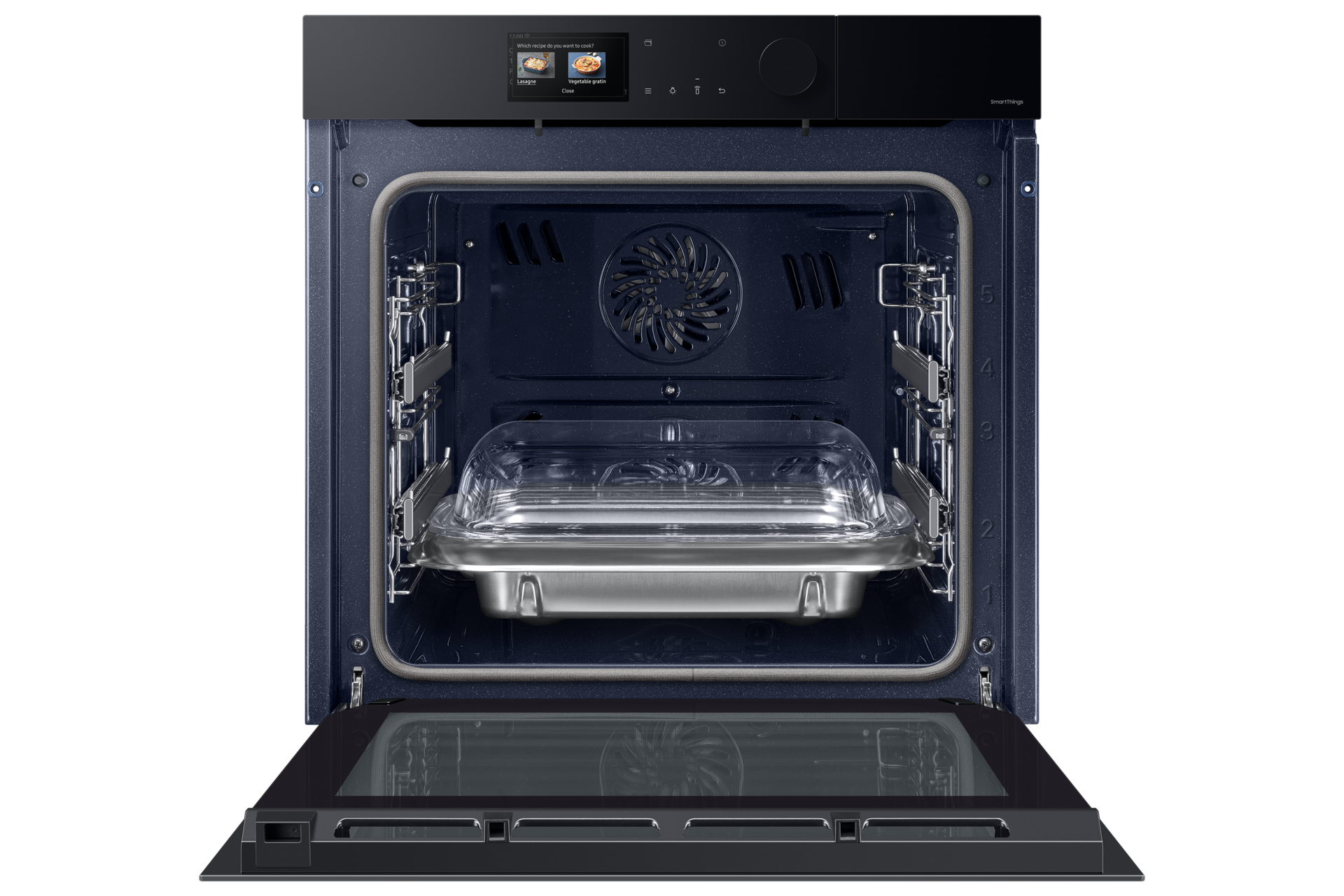

Series 7 25% energy saving NV7B7997AAK/U4
76L Smart Single Oven, Clean Black
Model NV7B7997AAKPart no. NV7B7997AAK/U4EAN 8806094706482
78 specifications
- Display10.9 cm (4.3")
- Energy classA+
- Weight51 kg
- ColourBlack
- Number of ovens1
- Appliance placementBuilt-in
Overview
- Display
- 10.9 cm (4.3")
- Energy class
- A+
- Weight
- 51 kg
- Colour
- Black
- Number of ovens
- 1
- Appliance placement
- Built-in
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B7997AAK
- Part numbers
- NV7B7997AAK/U4, NV7B7997AAK/U1
- EAN / UPC
- 8806094706482, 8806094706451
- Also known as
- Samsung Series 7 25% energy saving NV7B7997AAK/U4 76L Smart Single Oven, Clean Black
Specifications
78 specifications in 10 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 3950 W |
| Oven net capacity | 76 L |
| Top heating | Yes |
| Top heating + Convection (single mode) | Yes |
| Bottom heating | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Oven thermostat range | 30 - 275 °C |
| Grill | Yes |
| Grill power | 1600 W |
| Convection cooking | Yes |
| Convection power | 1200 W |
| Steam cooking | Yes |
| ECO mode | Yes |
| Dual Cook Technology | Yes |
| Number of auto cooking programs | 128 |
| Self-cleaning | Yes |
| Cleaning type | Pyrolytic |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Black |
| Interior material | Enamelled ceramic |
| Control type | Touch, Rotary |
| Control position | Front |
| Built-in display | Yes |
| Display type | TFT |
| Display diagonal | 10.9 cm (4.3") |
| Door hinge | Down |
| Oven door opening | Drop down opening |
| Number of glass door panels | 4 |
| Automatic door opening | Yes |
| Soft closing door | No |
| Number of grids | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | End cooking time, Cooking time |
| Wi-Fi controlled | Yes |
| Apps supported | Samsung SmartThings |
| Child lock | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| Connected load | 3950 W |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy efficiency class (legacy scale) | A+ |
| Power plug type | No plug |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamps quantity | 3 lamp(s) |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 1.4 W |
| Bulb power 2 | 1.4 W |
| Bulb power 3 | 40 W |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (cooking) | Air fry function, Air Sous Vide |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 51 kg |
| Interior dimensions (W x D x H) | 560 x 579 x 549 mm |
| Installation compartment width | 56 cm |
| Installation compartment depth | 54.9 cm |
| Installation compartment height | 57.9 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 55.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 1 |
| Glass tray included | Yes |
| Grill grid included | Yes |
| Meat probe included | Yes |
| Telescopic rail included | Yes |
Other features
| Specification | Value |
|---|---|
| On/off light | Yes |
