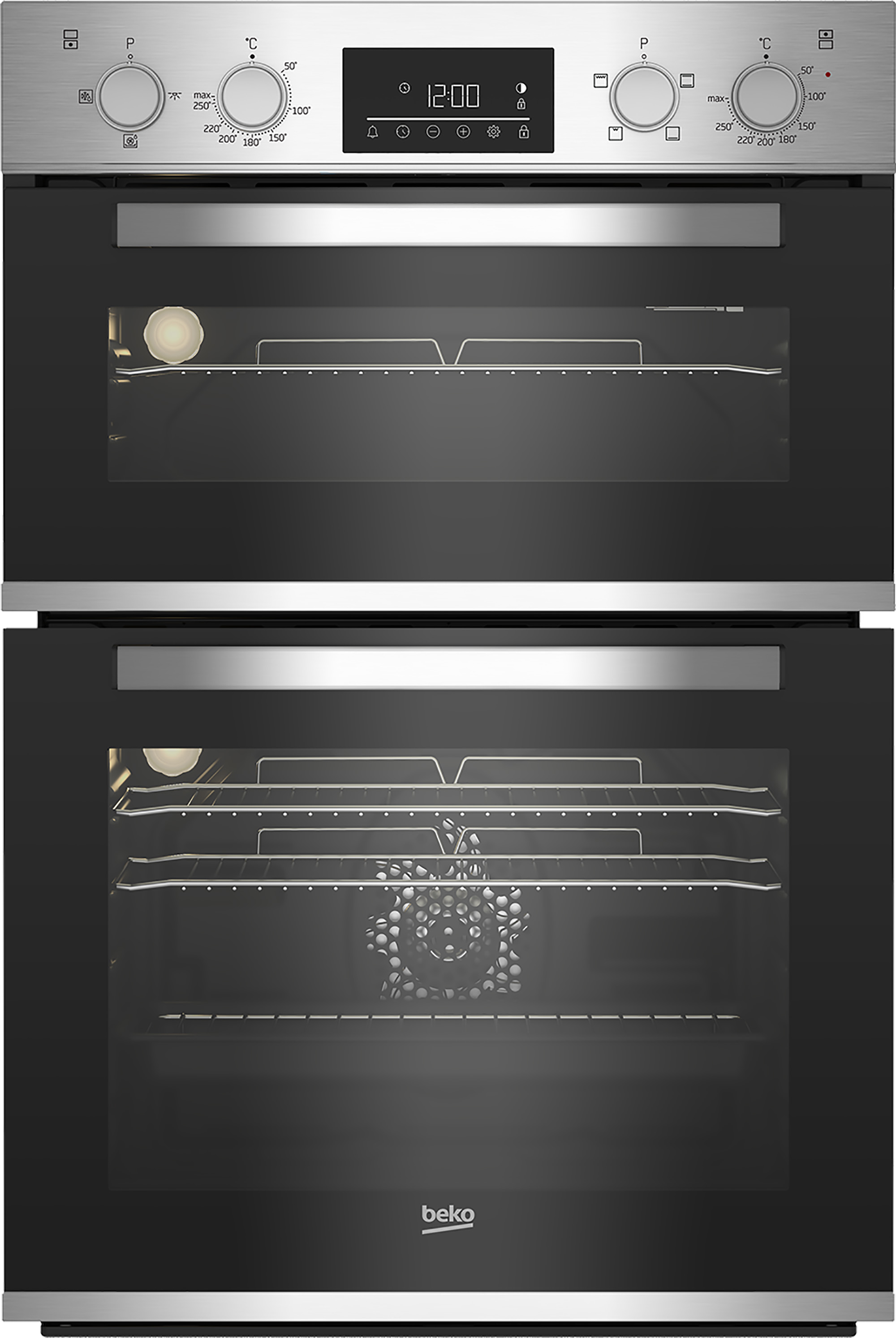

BBADF22300X 90cm Built-In Double Fan Oven with Touch Control LED Timer
Model BBADF22300XEAN 8690842396793
157 specifications
- Energy classA
- Weight43.7 kg
- ColourStainless steel
- Number of ovens2
- Oven 2 cooking methodStatic
- Appliance placementBuilt-in
Overview
- Energy class
- A
- Weight
- 43.7 kg
- Colour
- Stainless steel
- Number of ovens
- 2
- Oven 2 cooking method
- Static
- Appliance placement
- Built-in
- Brand
- Beko
- Category
- Oven
- Model
- BBADF22300X
- Part number
- BBADF22300X
- EAN / UPC
- 8690842396793
- Also known as
- Beko BBADF22300X 90cm Built-In Double Fan Oven with Touch Control LED Timer
Specifications
157 specifications in 12 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 2 |
| Oven size | Medium |
| Oven type | Electric |
| Oven cooking method | Static |
| Total oven(s) interior capacity | 105 L |
| Total oven power | 4200 W |
| Oven net capacity | 69 L |
| Top heating | Yes |
| Top heating power | 2100 W |
| Top heating + Convection (single mode) | No |
| Bottom heating | No |
| Bottom heating power | 1100 W |
| Bottom heating + Convection (single mode) | No |
| Top and bottom heating | Yes |
| Grill | No |
| Full surface grill | Yes |
| 3D hot air | No |
| Half grill | Yes |
| Convection cooking | Yes |
| Convection power | 1800 W |
| Microwave cooking | No |
| Steam cooking | No |
| Rotisserie | No |
| Slow cooking | No |
| Oven defrost function | Yes |
| Keep warm function | No |
| ECO mode | No |
| Number of cooking programs | 3 |
| Catalytic liners on side walls | No |
| Closed door grilling | Yes |
| Cooling fan | Yes |
| Fan heating | Yes |
| Removable catalytic back wall | No |
| Removable catalytic side walls | No |
| Static cooking | No |
| Static cooking+ fan (fan assist) | No |
| Tilting grill | No |
| Self-cleaning | Yes |
| Cleaning type | Steam |
| Cleaning technology | SteamShine |
| Oven shelf stoppers | Yes |
| Number of shelves | 2 shelves |
| Number of shelf positions | 5 |
| Catalytic back wall | No |
| Catalytic side wall | No |
| Grill pan and internal rack | Yes |
| Microwave + grill cooking | No |
| Side racks | No |
Oven 2
| Specification | Value |
|---|---|
| Oven 2 cooking method | Static |
| Oven 2 size | Small |
| Oven 2 net capacity | 36 L |
| Oven 2 power source | Electric |
| Oven 2 top heating | Yes |
| Oven 2 top heating power | 2100 W |
| Oven 2 bottom heating | Yes |
| Oven 2 bottom heating power | 1100 W |
| Oven 2 grill | Yes |
| Oven 2 grill type | Variable rate grill |
| Oven 2 grill power | 2200 W |
| Oven 2 conventional cooking | Yes |
| Oven 2 catalytic liners on side walls | No |
| Oven 2 closed door grilling | Yes |
| Oven 2 door material | Glass |
| Oven 2 door opening | Drop down opening |
| Oven 2 full surface grill | Yes |
| Oven 2 interior light | Yes |
| Oven 2 internal coating | Enamel |
| Oven 2 number of glass door panels | 3 |
| Oven 2 number of shelf positions | 0 |
| Oven 2 number of shelves | 1 shelves |
| Oven 2 removable door glass | Yes |
| Oven 2 tilting grill | No |
| Oven 2 shelf stoppers | Yes |
| Oven 2 catalytic liners on back wall | No |
| Oven 2 grill pan and internal rack | Yes |
| Oven 2 interior light type | Circular |
| Oven 2 side racks | No |
| Oven 2 tray handle | No |
| Oven 2 cavity type | Easy to remove side racks |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Stainless steel |
| Interior material | Enamel |
| Control type | Touch |
| Control panel material | Metal |
| Control position | Front |
| Retractable knobs | No |
| Handle colour | Stainless steel, Black |
| Built-in display | Yes |
| Display type | LED |
| Door hinge | Down |
| Door material | Glass |
| Oven door opening | Drop down opening |
| Removable door glass | Yes |
| Number of glass door panels | 2 |
| Door cooling fan | No |
| Carrying handle(s) | Yes |
| Cavity type | Easy to remove side racks |
| Certification | EN 60335-2-6, CE |
| Internal coating colour | Black |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Timer type | Digital |
| Timer modes | Timer |
| Easy to clean | Yes |
| Wi-Fi controlled | No |
| Food probe | No |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Oven 2 energy efficiency class | A |
| AC input voltage | 220-240 V |
| Oven 2 energy efficiency index (EEI) | 107.1 |
| Power connection type | Hard-wired |
| Energy consumption (conventional) | 0.79 kWh |
| Energy consumption (forced convection) | 0.79 kWh |
| Energy efficiency class (legacy scale) | A |
| Oven 2 energy consumption (conventional) | 0.75 kWh |
| Minimum fuse protection | 25 A |
| Oven 2 energy efficiency class (legacy scale) | A |
Bread machine
| Specification | Value |
|---|---|
| Bread making capability | No |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamp type | Halogen |
| Bulb shape | Circular |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 594 mm |
| Depth | 567 mm |
| Height | 890 mm |
| Weight | 43.7 kg |
| Interior dimensions (W x D x H) | 470 x 430 x 350 mm |
| Oven 2 interior dimensions (W x D x H) | 470 x 430 x 170 mm |
| Installation compartment width | 5.6 cm |
| Installation compartment depth | 5.5 cm |
| Installation compartment height | 8.8 cm |
Packaging data
| Specification | Value |
|---|---|
| Package tare weight | 2.95 kg |
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 950 mm |
| Package weight | 46.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Baking tray handle | No |
| Glass tray included | No |
| Grill grid included | Yes |
| Grill plate | Yes |
| Lava stone included | No |
| Meat probe included | No |
| Pizza pan included | No |
| Telescopic rail included | No |
| Turnspit included | No |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 910.35 g |
| Metal packaging weight | 0 g |
| Paper packaging weight | 0 g |
| Plastic packaging weight | 0 g |
| Wood packaging weight | 0 g |
| Straphor packaging weight | 0 g |
| Total packaging weight | 2.95 kg |
| Pallets per intermodal container (40ft, HC) | 100 pc(s) |
| Maximum stacked pallets per intermodal container (40ft, HC) | 3 pc(s) |
| Products per intermodal container (40ft) | 100 pc(s) |
| Products per intermodal container (40ft, HC) | 100 pc(s) |
| Harmonized System (HS) code | 85166080 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Dialing control | No |
