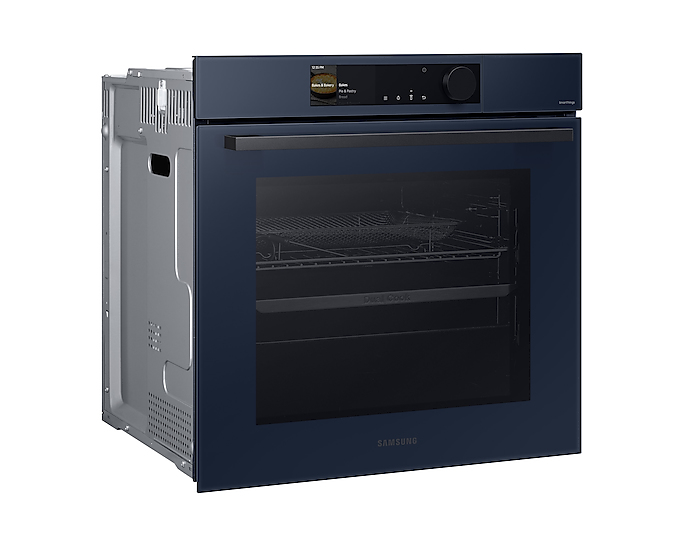

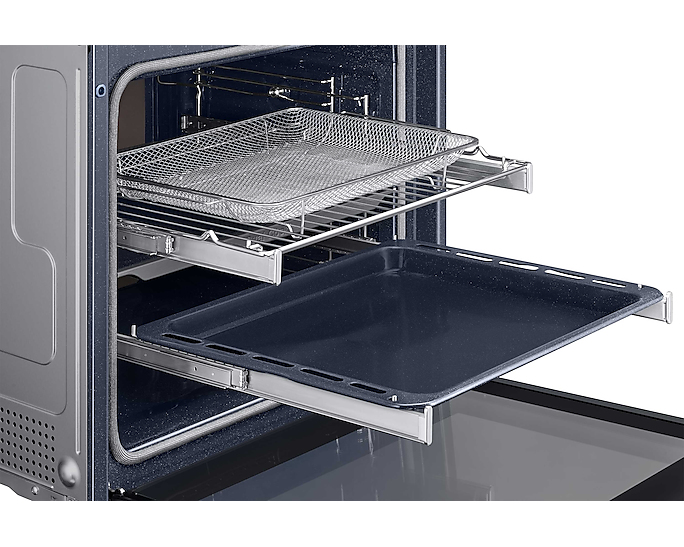

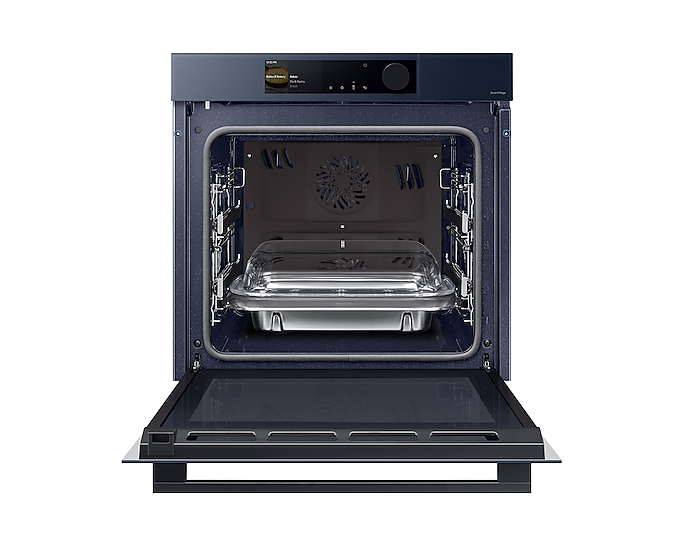

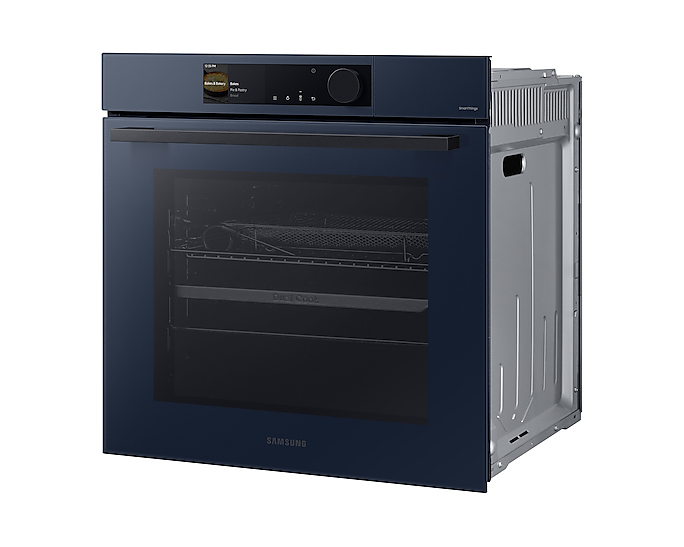

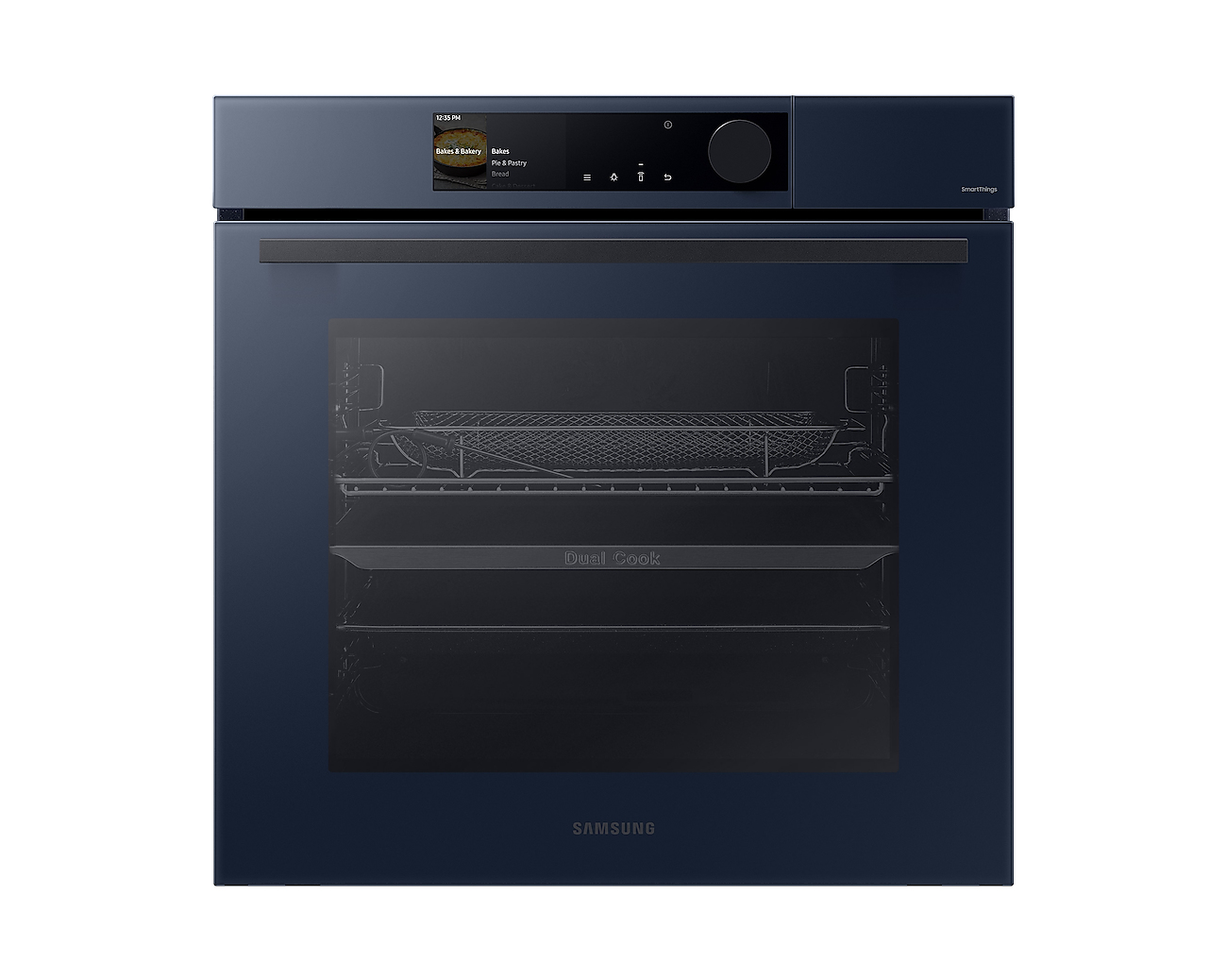

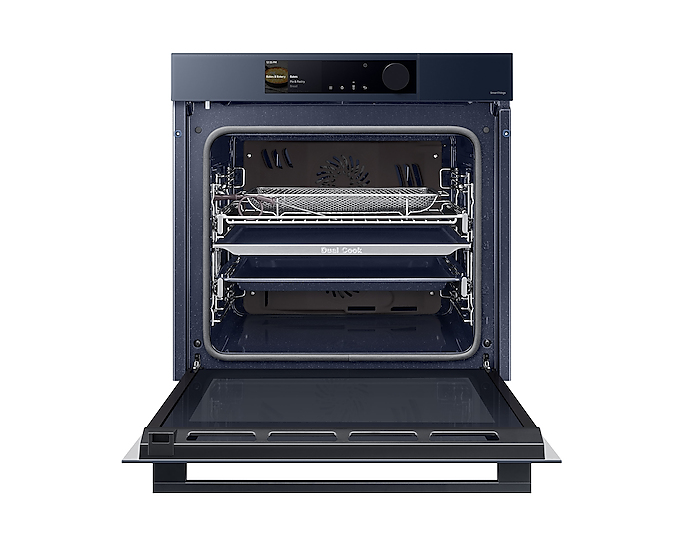

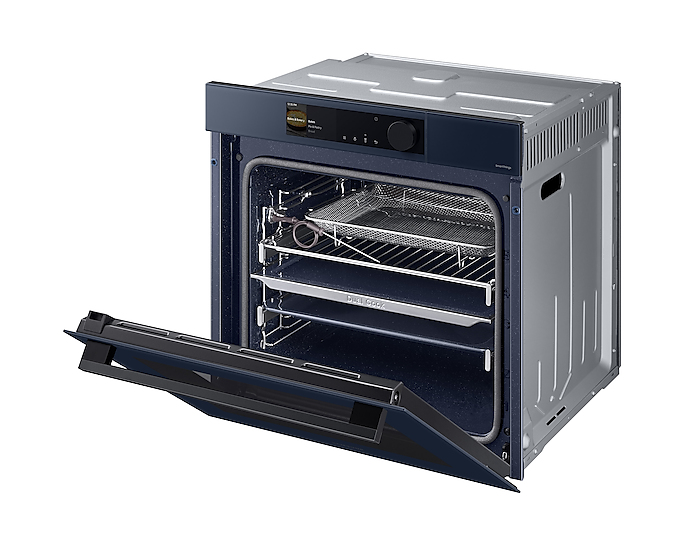

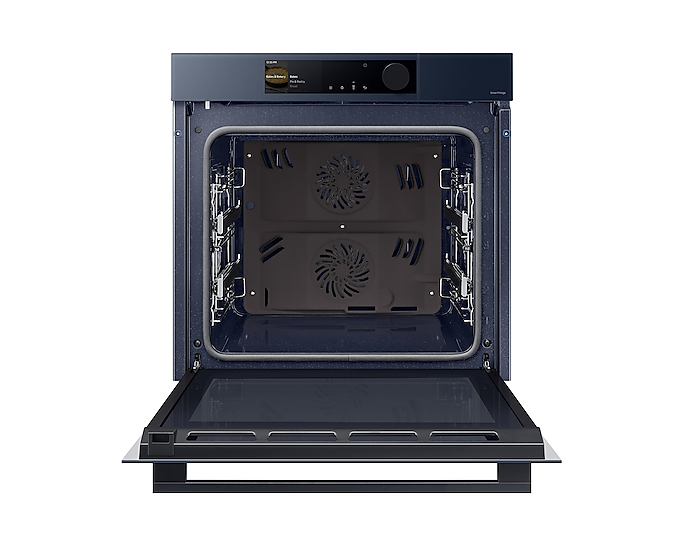

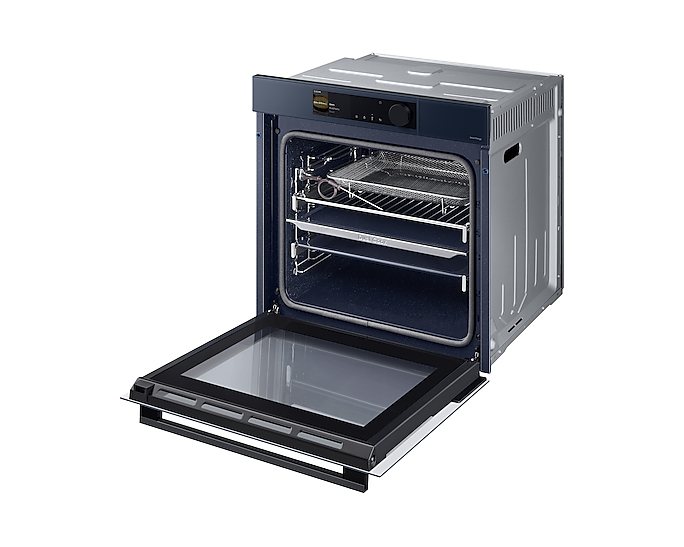

Series 6 25% energy saving NV7B6685AAN/U4

76L Smart Single Oven, Clean Navy

Model NV7B6685AAN/U4EAN 8806094468045

86 specifications

Overview

Brand: Samsung
Category: Oven
Model: NV7B6685AAN/U4
Part number: NV7B6685AAN/U4
EAN / UPC: 8806094468045
Also known as: Samsung Series 6 25% energy saving NV7B6685AAN/U4 76L Smart Single Oven, Clean Navy

86 specifications in 11 groups

Specification	Value
Number of ovens	1
Oven size	Large
Oven type	Electric
Total oven(s) interior capacity	76 L
Total oven power	3950 W
Oven net capacity	76 L
Top heating + Convection (single mode)	Yes
Bottom heating + Convection (single mode)	Yes
Oven thermostat range	30 - 275 °C
Grill	Yes
Grill type	Variable dual grill
Grill power	1600 W
Full surface grill	Yes
Convection cooking	Yes
Convection power	1200 W
Microwave cooking	No
Steam cooking	Yes
ECO mode	Yes
Dual Cook Technology	Yes
Electronic ignition	Yes
Pizza making function	No
Number of auto cooking programs	90
Closed door grilling	Yes
Self-cleaning	Yes
Cleaning type	Catalytic

Specification	Value
Integrated clock	Yes
Clock type	Electronic
Timer type	Digital
Timer modes	End cooking time, Cooking time
Wi-Fi controlled	Yes
Apps supported	Samsung SmartThings
Food probe	Yes
Child lock	Yes

Specification	Value
Energy efficiency class	A+
Energy efficiency scale	A+++ to D
AC input voltage	230 - 240 V
AC input frequency	50 Hz
Energy efficiency index (EEI)	81.6
Energy consumption (conventional)	1.05 kWh
Energy consumption (forced convection)	0.71 kWh
Energy consumption (standby)	1 kWh
Energy efficiency class (legacy scale)	A+

Specification	Value
Bread making capability	No

Specification	Value
Samsung technologies (cooking)	Air fry function, Air Sous Vide

Specification	Value
Width	595 mm
Depth	570 mm
Height	596 mm
Weight	42.8 kg
Interior dimensions (W x D x H)	560 x 579 x 549 mm
Installation compartment width	56 cm
Installation compartment depth	55 cm
Installation compartment height	60 cm
Installation compartment height (min)	59 cm
