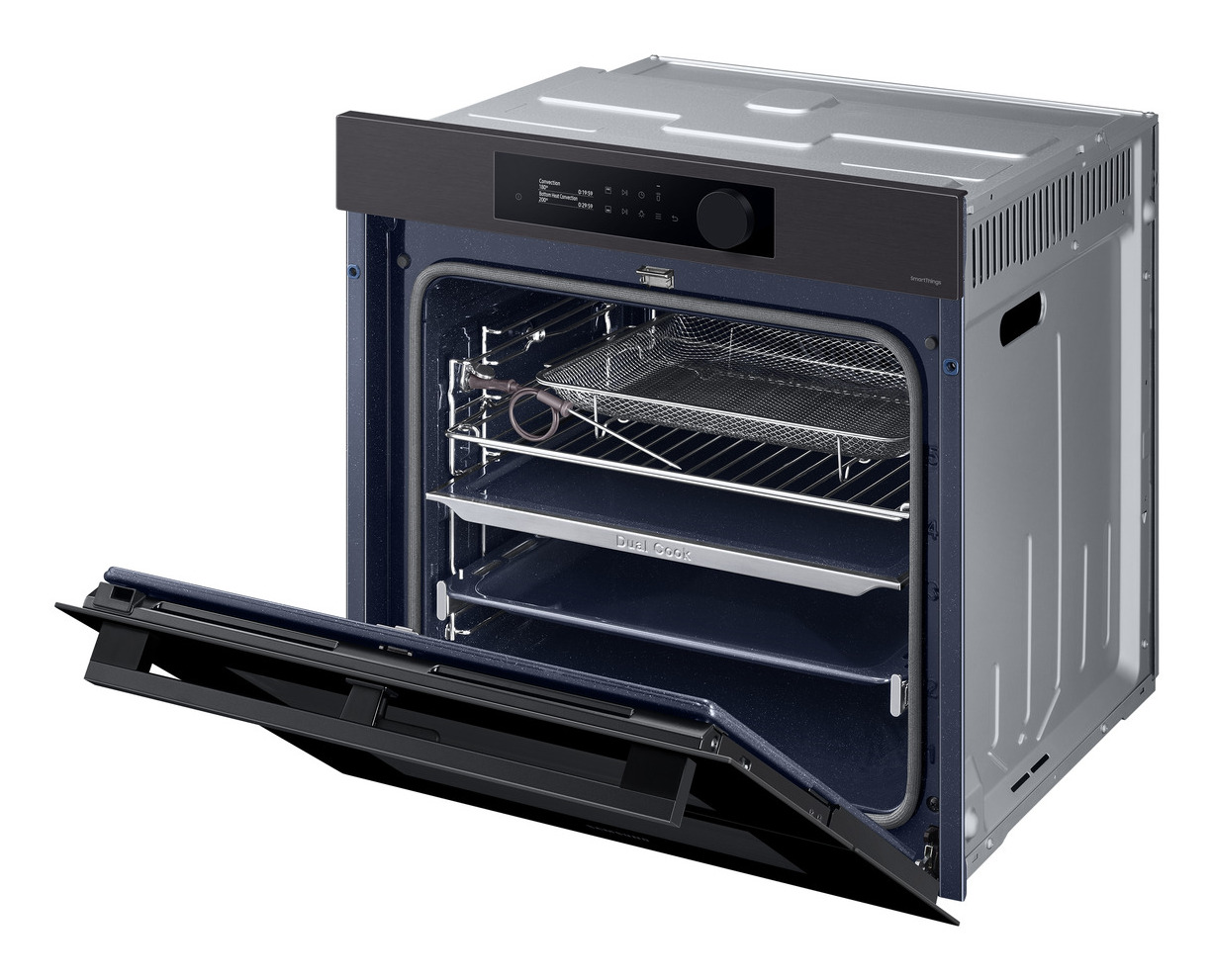

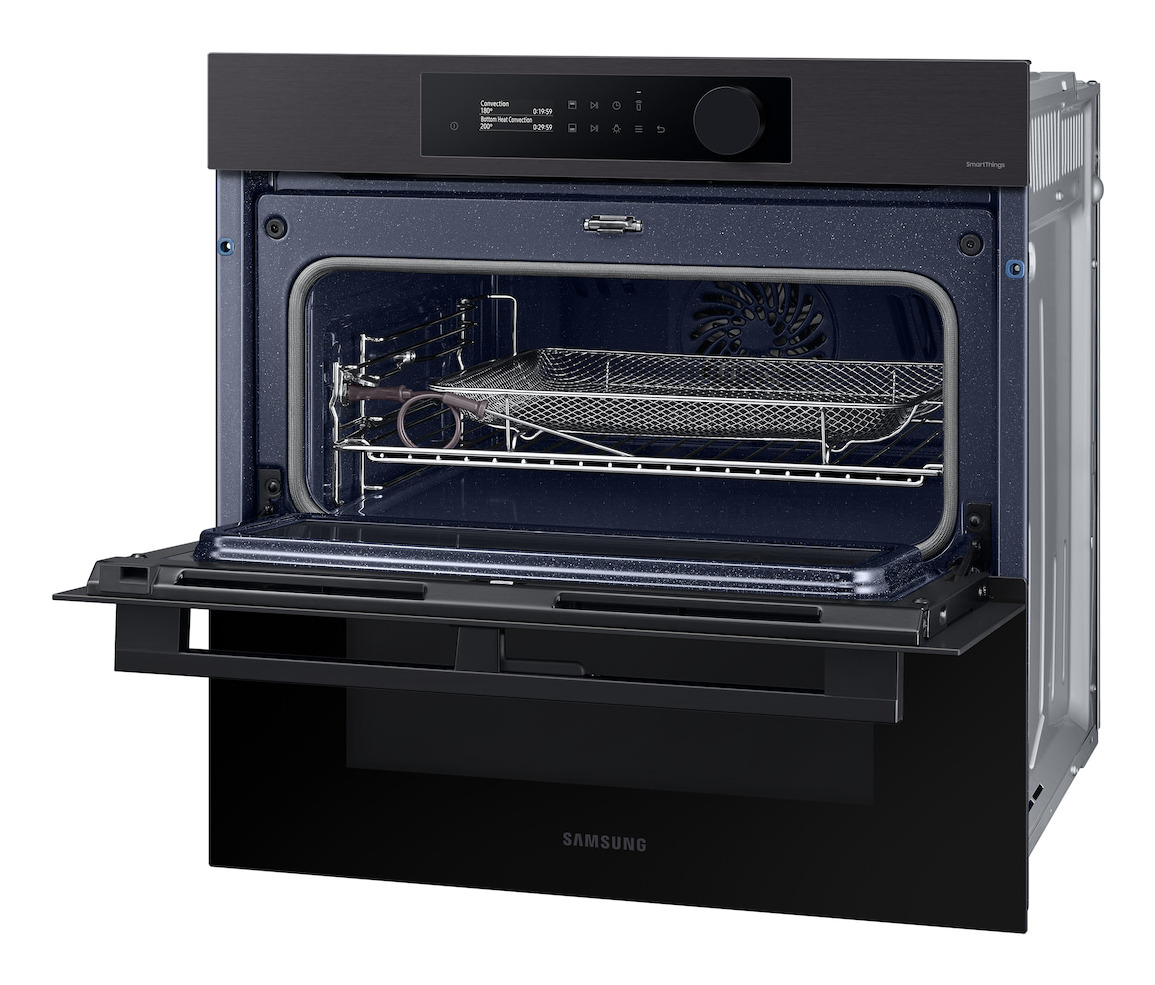

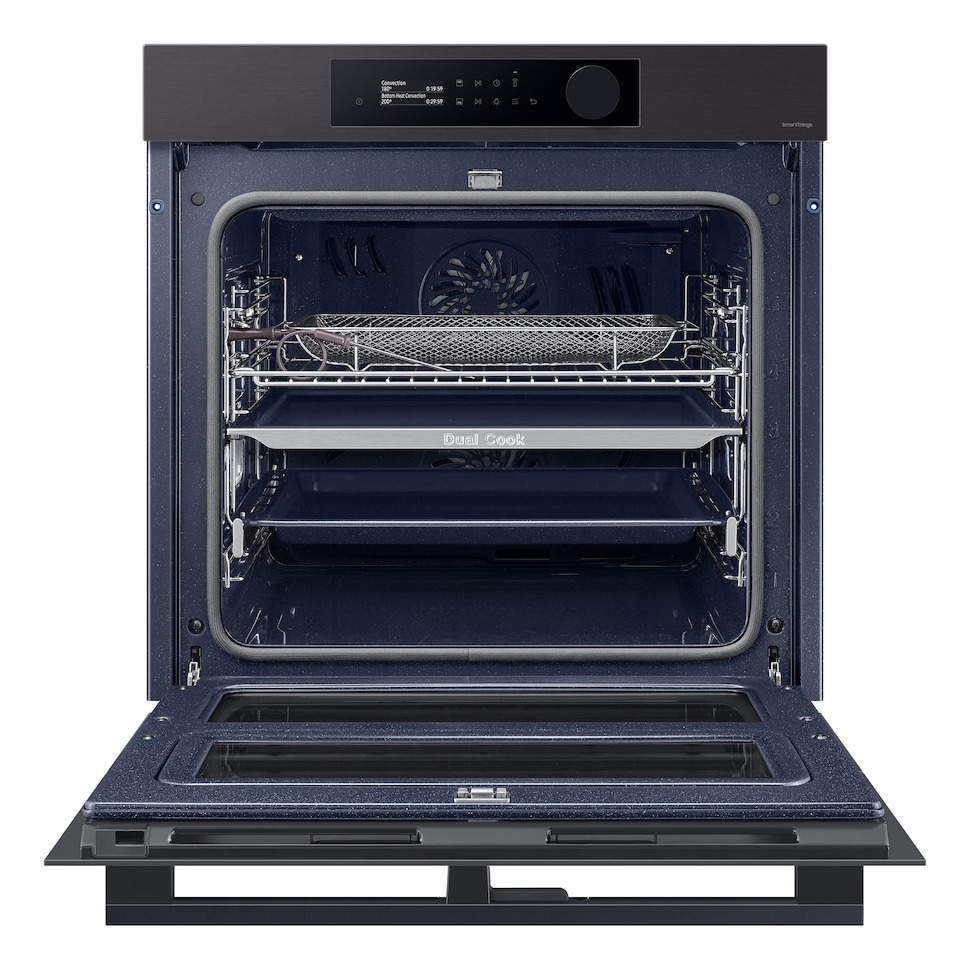

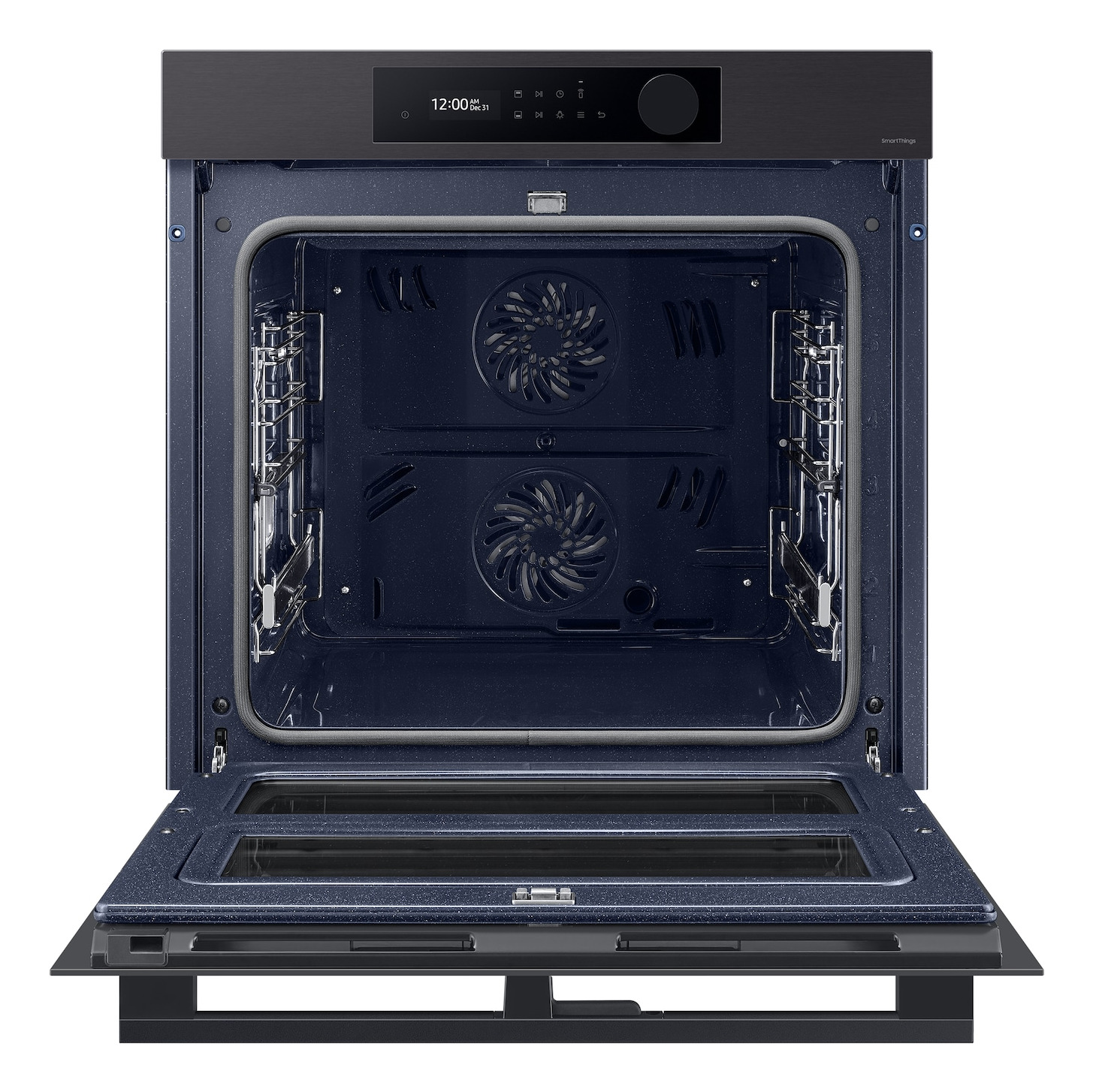

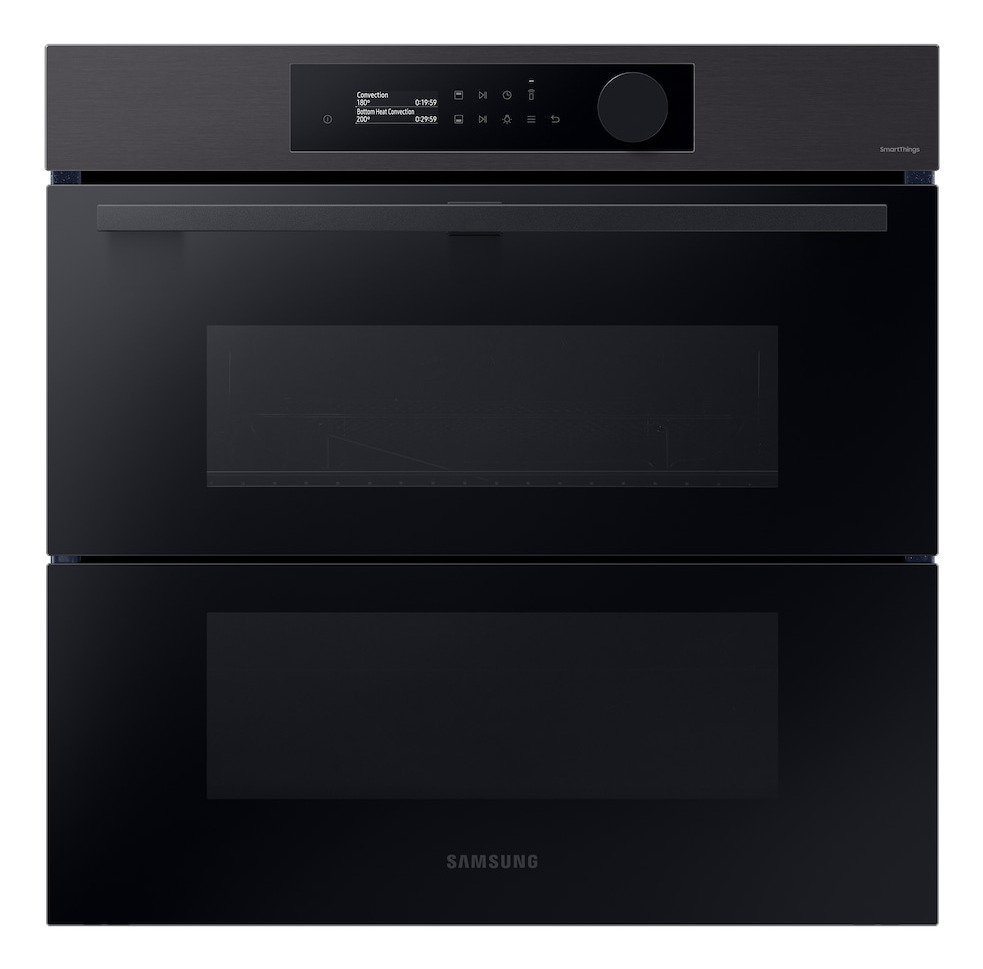

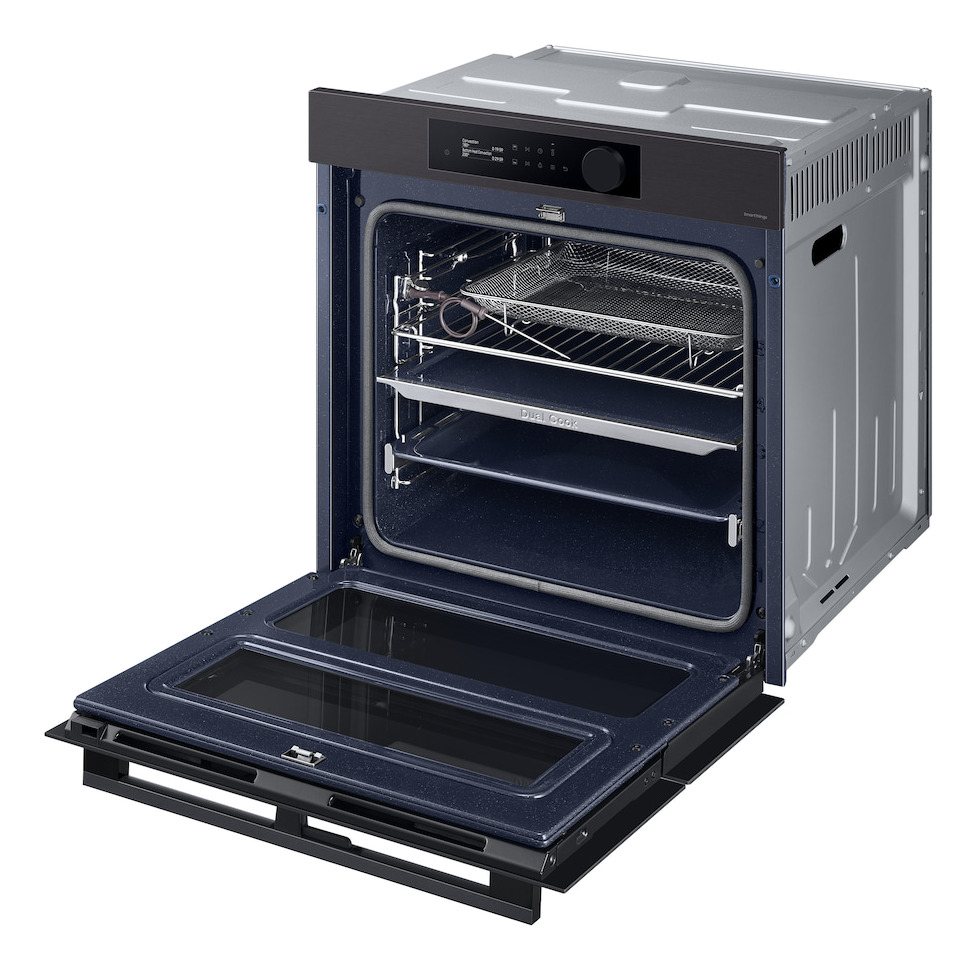

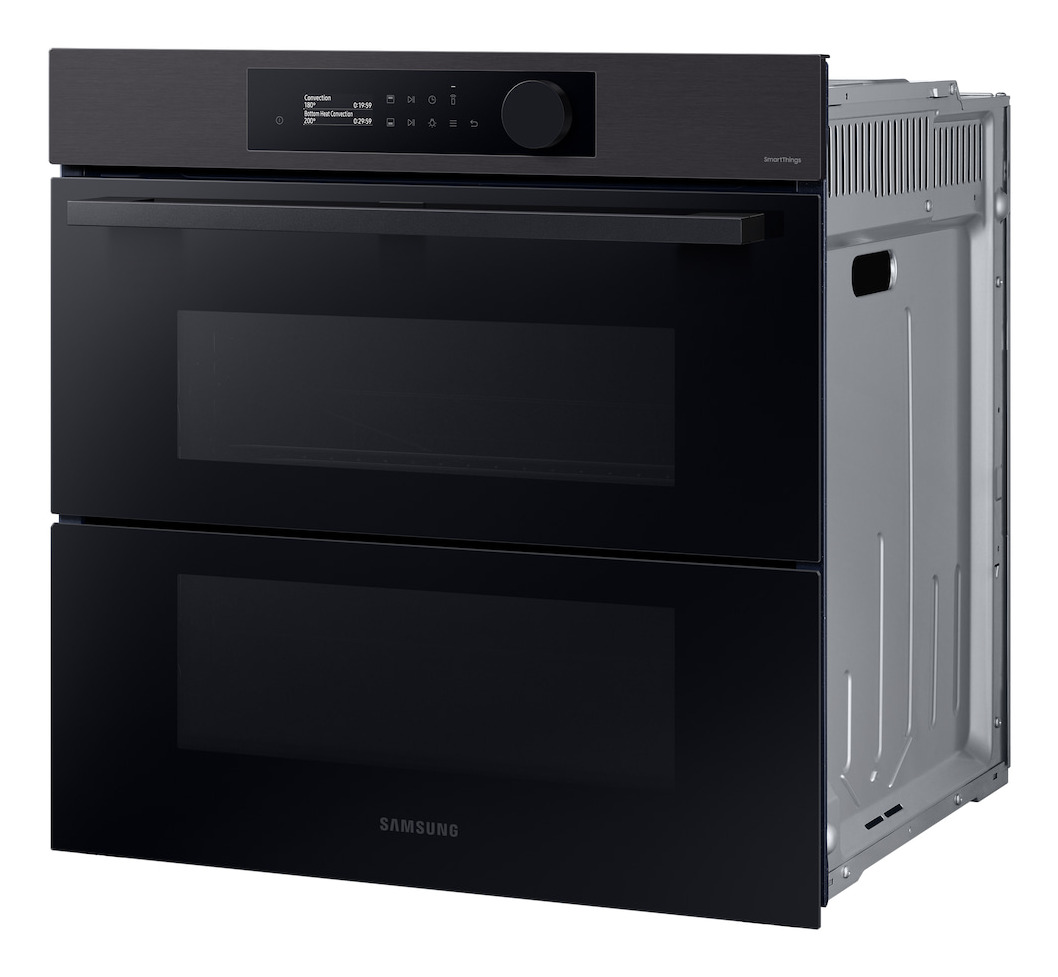

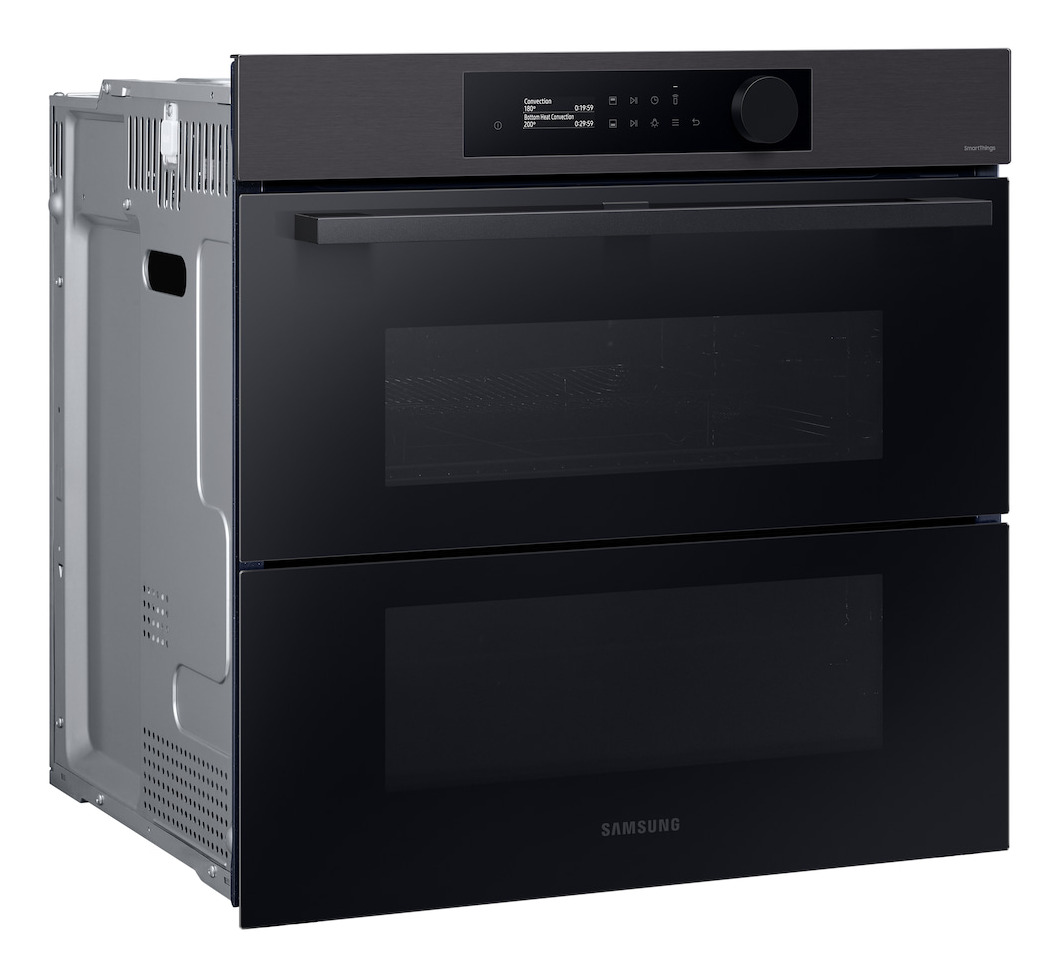

NV7B57508AB/U2 oven
76 L 3600 W Graphite
Model NV7B57508AB/U2EAN 8806095480831
57 specifications
- Display5.71 cm (2.25")
- Energy classA+
- Weight46.1 kg
- ColourGraphite
- Number of ovens1
- Appliance placementBuilt-in
Overview
- Display
- 5.71 cm (2.25")
- Energy class
- A+
- Weight
- 46.1 kg
- Colour
- Graphite
- Number of ovens
- 1
- Appliance placement
- Built-in
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B57508AB/U2
- Part number
- NV7B57508AB/U2
- EAN / UPC
- 8806095480831
- Also known as
- Samsung NV7B57508AB/U2 oven 76 L 3600 W Graphite
Specifications
57 specifications in 8 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 3600 W |
| Oven net capacity | 76 L |
| Top heating | Yes |
| Top heating power | 1600 W |
| Bottom heating | Yes |
| Bottom heating power | 1100 W |
| Top and bottom heating | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill | Yes |
| Convection cooking | Yes |
| Convection power | 1200 W |
| Air frying function | Yes |
| Number of auto cooking programs | 40 |
| Self-cleaning | Yes |
| Cleaning type | Pyrolytic + Steam |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Graphite |
| Interior material | Enamelled ceramic |
| Control type | Rotary, Touch |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 5.71 cm (2.25") |
| Door hinge | Down |
| Number of glass door panels | 2 |
Ergonomics
| Specification | Value |
|---|---|
| Timer type | Digital |
| Wi-Fi controlled | Yes |
| Apps supported | Samsung SmartThings |
| Parental control | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamp type | Halogen |
| Bulb power | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 550 mm |
| Height | 596 mm |
| Weight | 46.1 kg |
| Installation compartment width | 56 cm |
| Installation compartment depth | 55 cm |
| Installation compartment height | 60 cm |
| Installation compartment height (min) | 59 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 49.7 kg |

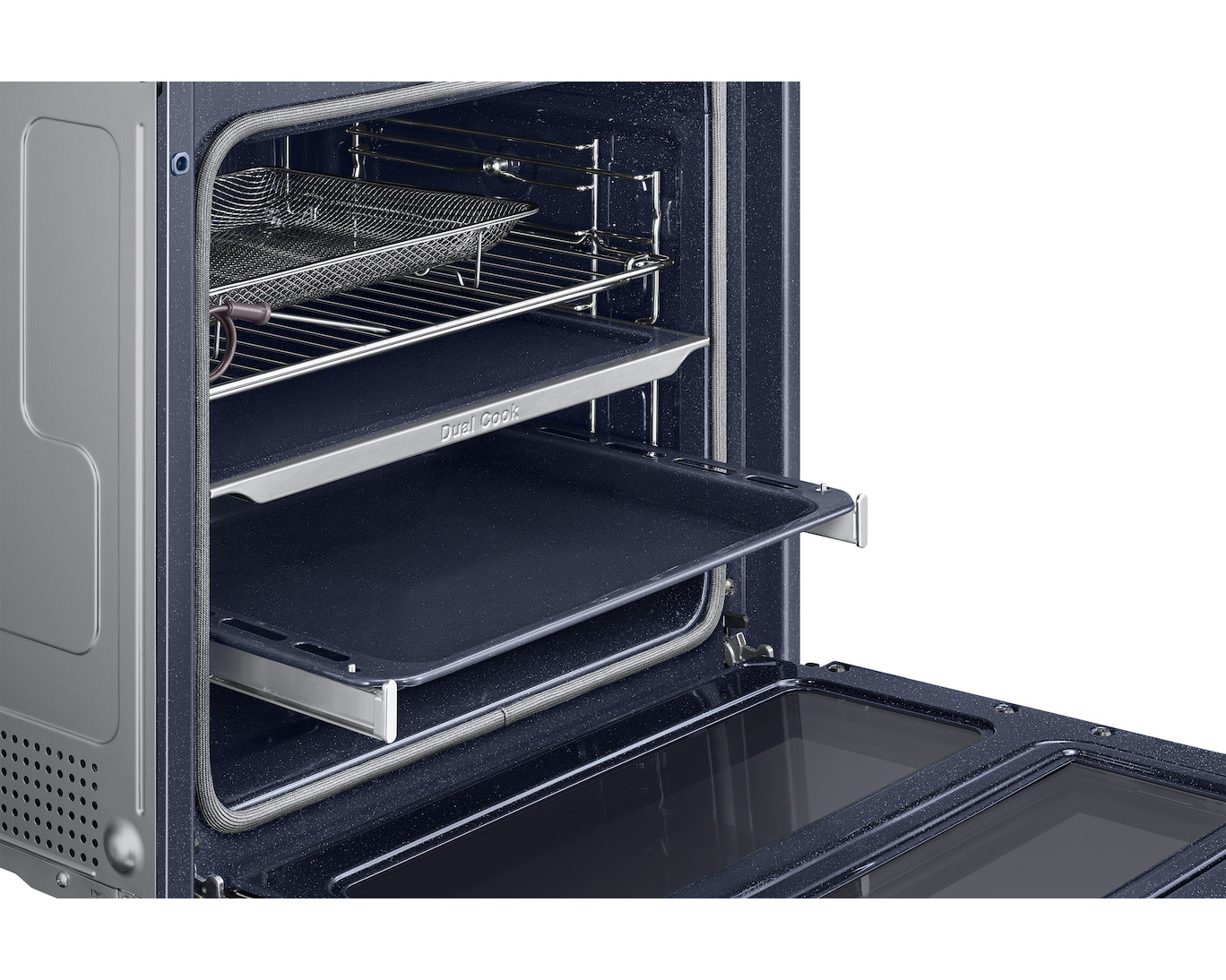

Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 2 |
| Grill grid included | Yes |
| Telescopic rail included | Yes |
