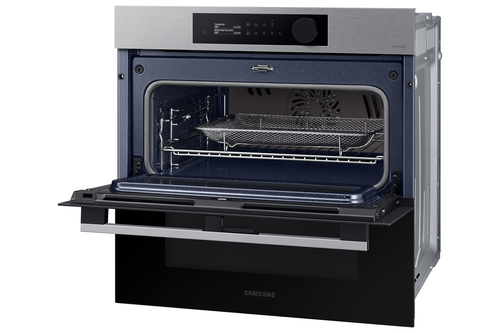

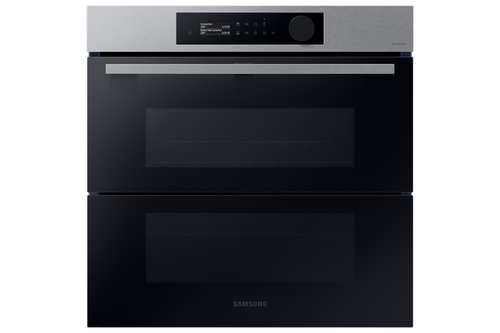

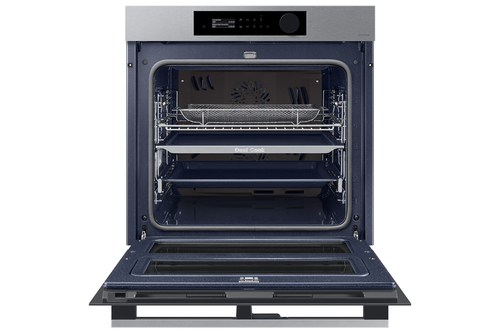

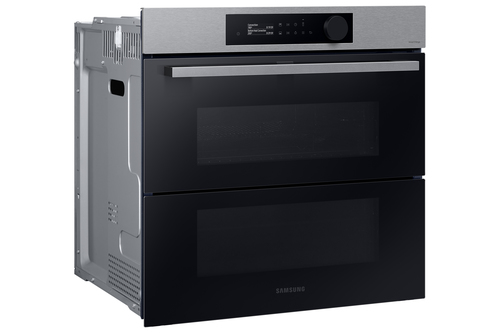

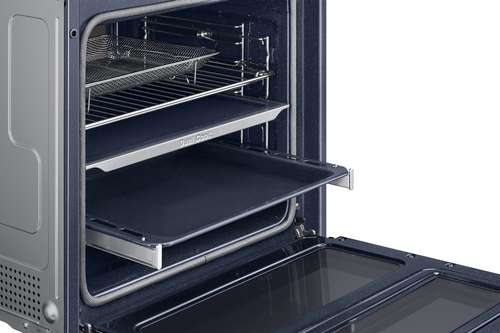

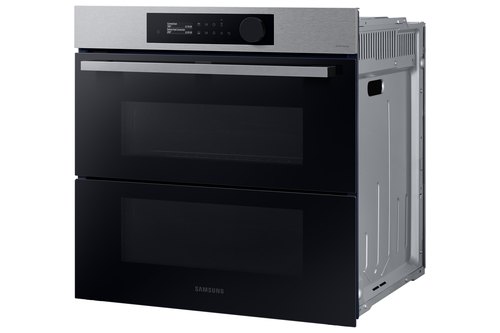

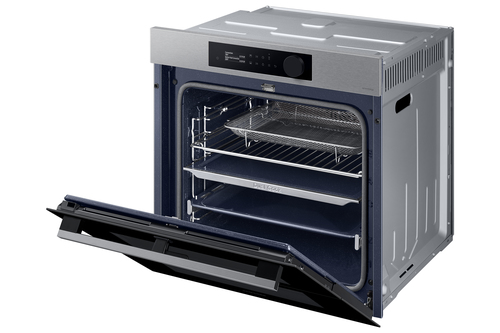

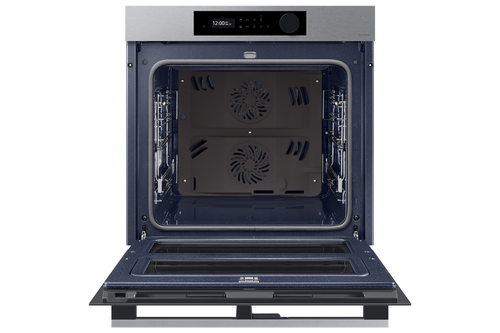

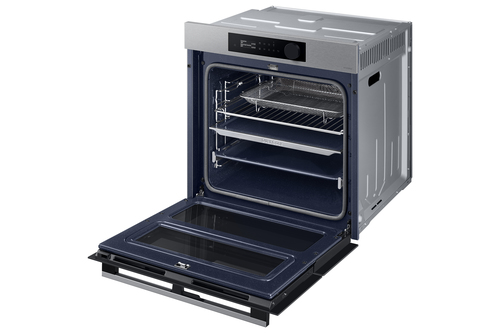

NV7B5740TBS 76 L 2950 W Stainless steel
Model NV7B5740TBSPart no. NV7B5740TBS/U5EAN 8806094468021
62 specifications
- Display5.71 cm (2.25")
- Energy classA+
- Weight38.4 kg
- ColourStainless steel
- Number of ovens1
- Appliance placementBuilt-in
Overview
- Display
- 5.71 cm (2.25")
- Energy class
- A+
- Weight
- 38.4 kg
- Colour
- Stainless steel
- Number of ovens
- 1
- Appliance placement
- Built-in
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B5740TBS
- Part number
- NV7B5740TBS/U5
- EAN / UPC
- 8806094468021
- Also known as
- Samsung NV7B5740TBS 76 L 2950 W Stainless steel
Specifications
62 specifications in 8 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 2950 W |
| Oven net capacity | 76 L |
| Grill | Yes |
| Grill power | 1600 W |
| Convection cooking | Yes |
| Convection power | 1200 W |
| Steam cooking | Yes |
| ECO mode | Yes |
| Dual Cook Technology | Yes |
| Number of cooking programs | 40 |
| Self-cleaning | Yes |
| Cleaning type | Catalytic (full) + Steam |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Stainless steel |
| Interior material | Enamelled ceramic |
| Control type | Rotary, Touch |
| Control position | Front |
| Handle colour | Stainless steel |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 5.71 cm (2.25") |
| Door hinge | Down |
| Oven door opening | Drop down opening |
| Soft closing door | No |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | End cooking time |
| Wi-Fi controlled | Yes |
| Child lock | Yes |
| Drip tray | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+++ to D |
| Connected load | 2950 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy efficiency class (legacy scale) | A+ |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 25 W |
| Bulb power 2 | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 38.4 kg |
| Interior dimensions (W x D x H) | 560 x 549 x 579 mm |
| Installation compartment width | 56 cm |
| Installation compartment depth | 55 cm |
| Installation compartment height | 60 cm |
| Installation compartment height (min) | 59 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 43.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Grill grid included | Yes |
| Telescopic rail included | Yes |
