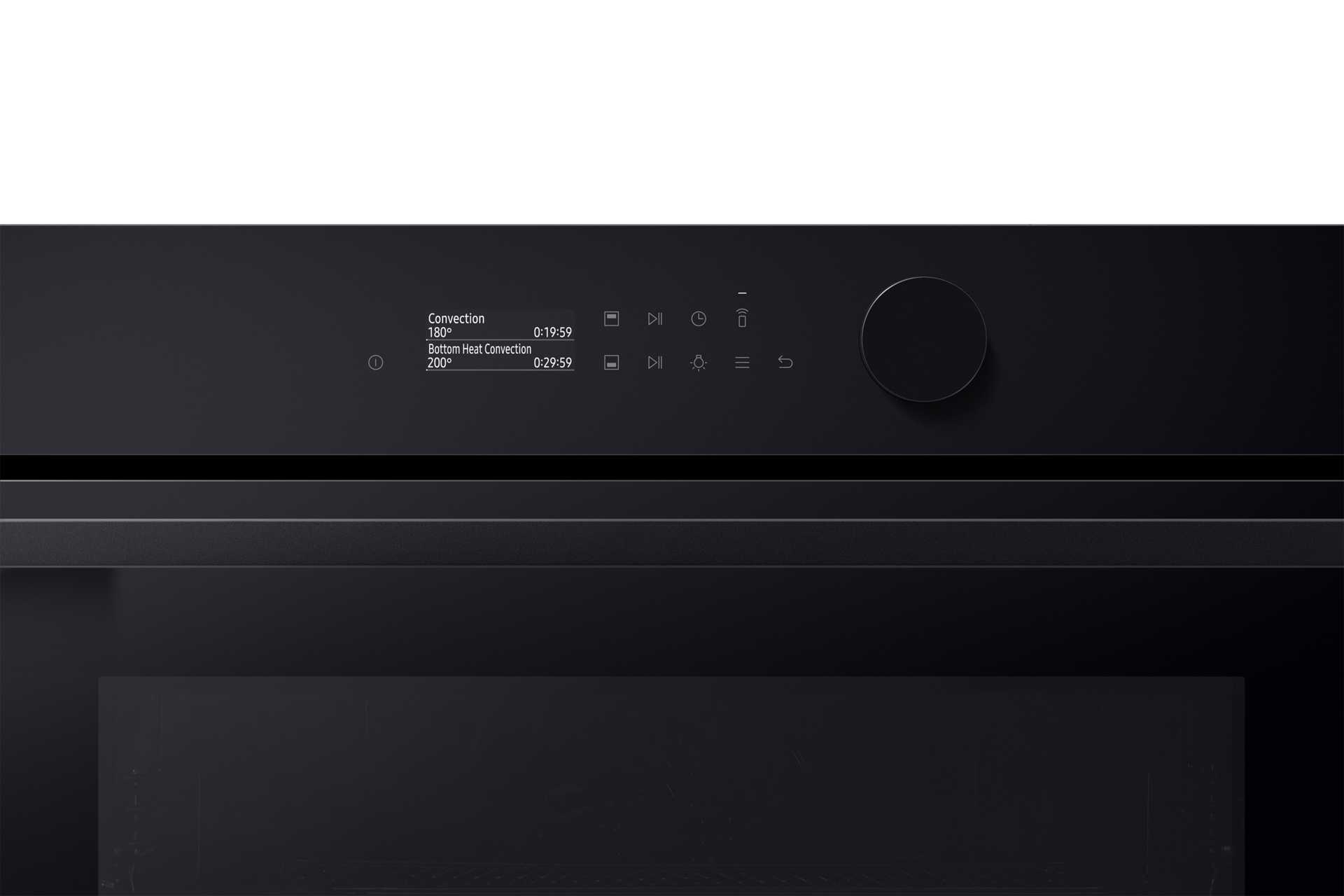

Series 5 NV7B5655SDK
76 L Black
Model NV7B5655SDKPart no. NV7B5655SDK/U1EAN 8806094685688
58 specifications
- Display5.71 cm (2.25")
- Energy classA+
- Weight38.4 kg
- ColourBlack
- Number of ovens1
- Appliance placementBuilt-in
Overview
- Display
- 5.71 cm (2.25")
- Energy class
- A+
- Weight
- 38.4 kg
- Colour
- Black
- Number of ovens
- 1
- Appliance placement
- Built-in
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B5655SDK
- Part number
- NV7B5655SDK/U1
- EAN / UPC
- 8806094685688
- Also known as
- Samsung Series 5 NV7B5655SDK 76 L Black
Specifications
58 specifications in 8 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Oven net capacity | 76 L |
| Top heating + Convection (single mode) | Yes |
| Bottom heating | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill | Yes |
| Fan grill function | Yes |
| Convection cooking | Yes |
| Maximum temperature (convection) | 250 °C |
| Steam cooking | Yes |
| Maximum temperature (conventional) | 250 °C |
| Oven defrost function | Yes |
| Keep warm function | Yes |
| ECO mode | Yes |
| Pizza making function | Yes |
| Number of auto cooking programs | 40 |
| Self-cleaning | Yes |
| Cleaning type | Pyrolytic |
| Number of shelf positions | 5 |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Black |
| Control type | Touch, Rotary |
| Handle colour | Black |
| Knobs colour | Black |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 5.71 cm (2.25") |
| Door hinge | Down |
| Oven door opening | Drop down opening |
| Soft closing door | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Delayed start timer | Yes |
| Wi-Fi controlled | Yes |
| Apps supported | Samsung SmartThings |
| Food probe | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 81.6 |
| Power connection type | Power plug |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
Bread machine
| Specification | Value |
|---|---|
| Bread making capability | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (cooking) | Air Sous Vide, Air fry function, Natural Steam, Dual Cook |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 38.4 kg |
| Installation compartment width | 56 cm |
| Installation compartment depth | 54.9 cm |
| Installation compartment height | 57.9 cm |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Meat probe included | Yes |
| Telescopic rail included | Yes |
