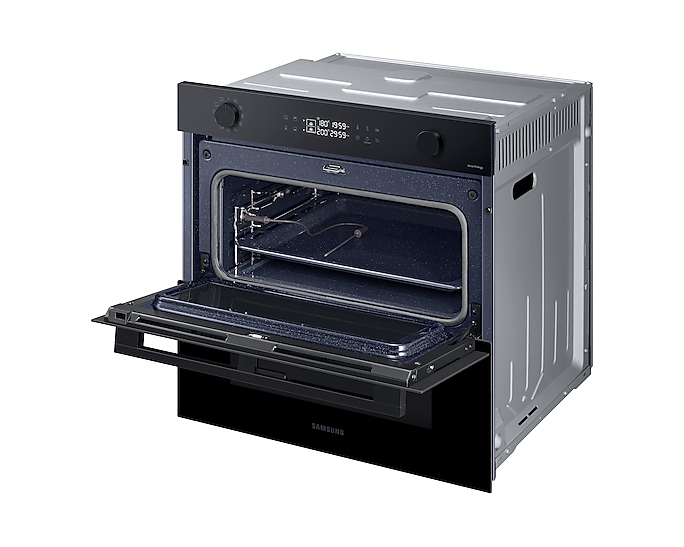

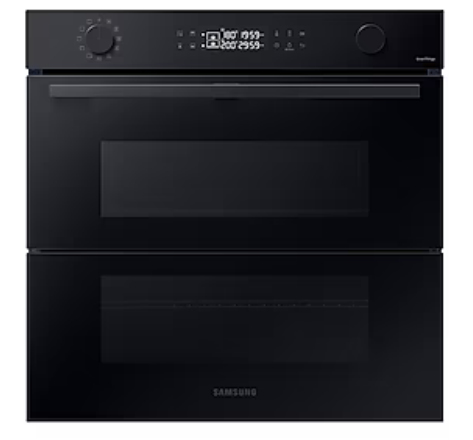

NV7B4535YAK/U3 oven
76 L Black
Model NV7B4535YAK/U3EAN 8806094337310
68 specifications
- Energy classA+
- Weight43.3 kg
- ColourBlack
- Number of ovens1
- Appliance placementBuilt-in
- Timer typeDigital
Overview
- Energy class
- A+
- Weight
- 43.3 kg
- Colour
- Black
- Number of ovens
- 1
- Appliance placement
- Built-in
- Timer type
- Digital
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B4535YAK/U3
- Part number
- NV7B4535YAK/U3
- EAN / UPC
- 8806094337310
- Also known as
- Samsung NV7B4535YAK/U3 oven 76 L Black
Specifications
68 specifications in 8 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Medium |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Oven net capacity | 76 L |
| Oven power | 3950 W |
| Top heating + Convection (single mode) | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill | Yes |
| Convection cooking | Yes |
| Convection power | 1200 W |
| Maximum temperature (convection) | 250 °C |
| Microwave cooking | No |
| Steam cooking | No |
| Conventional cooking | Yes |
| Maximum temperature (conventional) | 250 °C |
| Dual Cook Technology | Yes |
| Number of auto cooking programs | 40 |
| Minimum temperature (convection) | 40 °C |
| Self-cleaning | Yes |
| Cleaning type | Pyrolytic + Steam |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Black |
| Interior material | Enamelled ceramic |
| Control type | Rotary, Touch |
| Control position | Front |
| Handle colour | Black |
| Knobs colour | Black |
| Built-in display | Yes |
| Display type | LED |
| Door hinge | Down |
| Soft closing door | Yes |
Ergonomics
| Specification | Value |
|---|---|
| Timer type | Digital |
| Timer modes | Cooking time, End cooking time, Timer |
| Wi-Fi controlled | Yes |
| Apps supported | Samsung SmartThings |
| Food probe | Yes |
| Food probe type | Wired |
| Child lock | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 81.6 |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy efficiency class (legacy scale) | A+ |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 25 W |
| Bulb power 2 | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 43.3 kg |
| Interior dimensions (W x D x H) | 560 x 549 x 579 mm |
| Installation compartment width (min) | 56 cm |
| Installation compartment depth | 55 cm |
| Installation compartment height | 60 cm |
| Installation compartment height (min) | 59 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 48.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 2 |
| Telescopic rail included | Yes |
