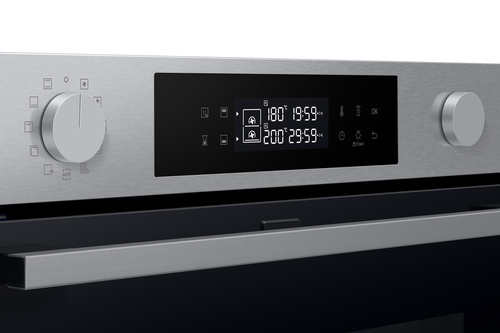

Series 4 25% energy saving NV7B45305AS/U4
76L Smart Single Oven, Stainless Steel
Model NV7B45305ASPart no. NV7B45305AS/U4EAN 8806094337273
83 specifications
- Energy classA+
- Weight43.9 kg
- ColourStainless steel
- Number of ovens1
- Appliance placementBuilt-in
- Integrated clockYes
Overview
- Energy class
- A+
- Weight
- 43.9 kg
- Colour
- Stainless steel
- Number of ovens
- 1
- Appliance placement
- Built-in
- Integrated clock
- Yes
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B45305AS
- Part number
- NV7B45305AS/U4
- EAN / UPC
- 8806094337273
- Also known as
- Samsung Series 4 25% energy saving NV7B45305AS/U4 76L Smart Single Oven, Stainless Steel
Specifications
83 specifications in 10 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Medium |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 3950 W |
| Oven net capacity | 76 L |
| Top heating | Yes |
| Top heating + Convection (single mode) | Yes |
| Bottom heating | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Top and bottom heating | Yes |
| Fast heat | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill | Yes |
| Grill power | 1600 W |
| Full surface grill | Yes |
| Full surface grill + Convection (single mode) | Yes |
| Convection cooking | Yes |
| Convection power | 1200 W |
| Maximum temperature (convection) | 250 °C |
| Dual Cook Technology | Yes |
| Number of auto cooking programs | 40 |
| Minimum temperature (convection) | 40 °C |
| Self-cleaning | Yes |
| Cleaning type | Pyrolytic |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Stainless steel |
| Colour name | Stainless Steel |
| Housing material | Metal |
| Interior material | Enamelled ceramic |
| Control type | Touch, Rotary |
| Control position | Front |
| Handle colour | Stainless steel |
| Knobs colour | Stainless steel |
| Built-in display | Yes |
| Display type | LED |
| Door hinge | Down |
| Door material | Glass, Metal |
| Oven door opening | Drop down opening |
| Number of glass door panels | 4 |
| Soft closing door | No |
| Number of grids | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | End cooking time, Cooking time |
| Wi-Fi controlled | Yes |
| Child lock | Yes |
| LED indicators | Yes |
| On/off switch | Yes |
| Parental control | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Power connection type | Hard-wired |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy efficiency class (legacy scale) | A+ |
| Power plug type | No plug |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamps quantity | 2 lamp(s) |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 25 W |
| Bulb power 2 | 40 W |
Brand-specific features
| Specification | Value |
|---|---|
| Samsung technologies (cooking) | Dual Cook Flex™, Air Sous Vide |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 595 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 43.9 kg |
| Interior dimensions (W x D x H) | 560 x 579 x 549 mm |
| Installation compartment width | 56 cm |
| Installation compartment depth | 54.9 cm |
| Installation compartment height | 57.9 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 49.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 2 |
| Grill grid included | Yes |
Other features
| Specification | Value |
|---|---|
| On/off light | Yes |
