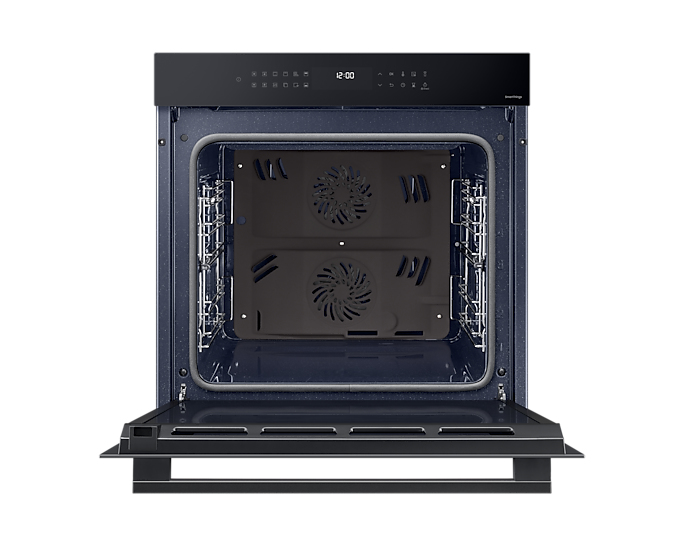

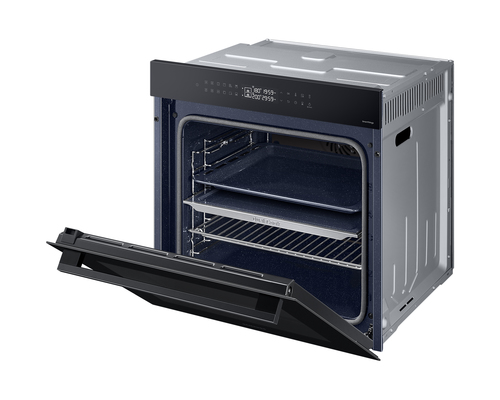

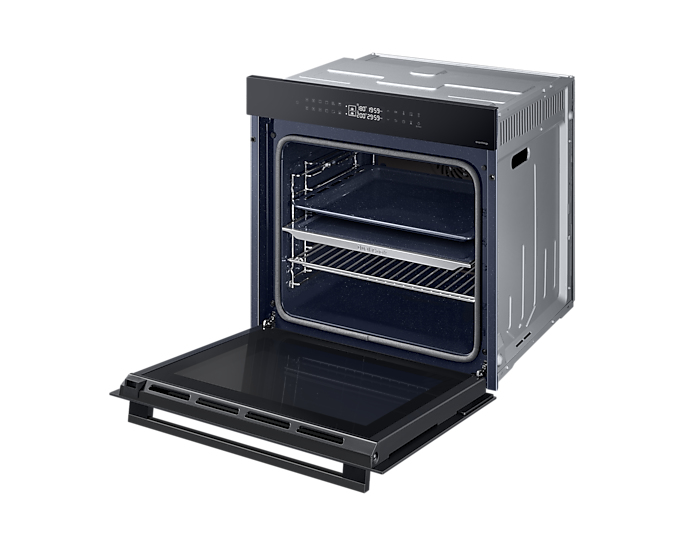

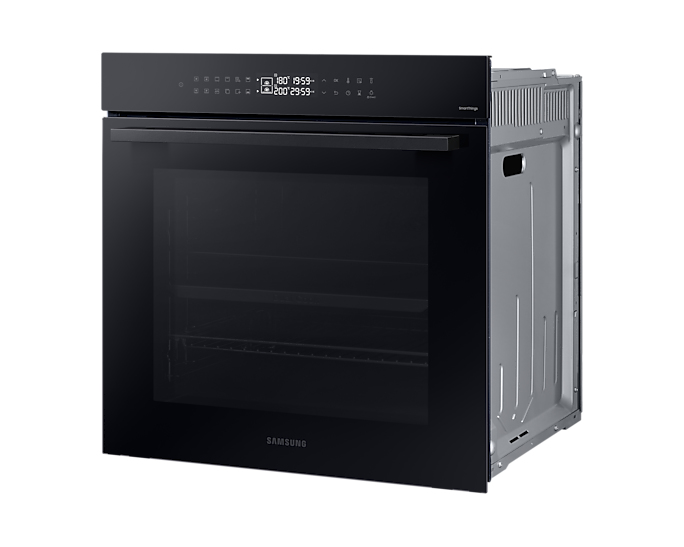

NV7B42205AK_BK oven
76 L 3950 W Black
Model NV7B42205AK_BK
77 specifications
- Energy classA+
- Weight36.4 kg
- ColourBlack
- Number of ovens1
- Oven 2 cooking methodFan-assisted
- Appliance placementBuilt-in
Overview
- Energy class
- A+
- Weight
- 36.4 kg
- Colour
- Black
- Number of ovens
- 1
- Oven 2 cooking method
- Fan-assisted
- Appliance placement
- Built-in
- Brand
- Samsung
- Category
- Oven
- Model
- NV7B42205AK_BK
- Part number
- NV7B42205AK_BK
- Also known as
- Samsung NV7B42205AK_BK oven 76 L 3950 W Black
Specifications
77 specifications in 10 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Large |
| Oven type | Electric |
| Total oven(s) interior capacity | 76 L |
| Total oven power | 3950 W |
| Oven net capacity | 76 L |
| Top heating + Convection (single mode) | Yes |
| Bottom heating + Convection (single mode) | Yes |
| Oven thermostat range | 30 - 250 °C |
| Grill | Yes |
| Grill type | Variable dual grill |
| Grill power | 1600 W |
| Full surface grill | Yes |
| Convection cooking | Yes |
| Convection power | 2400 W |
| Microwave cooking | No |
| Steam cooking | No |
| ECO mode | Yes |

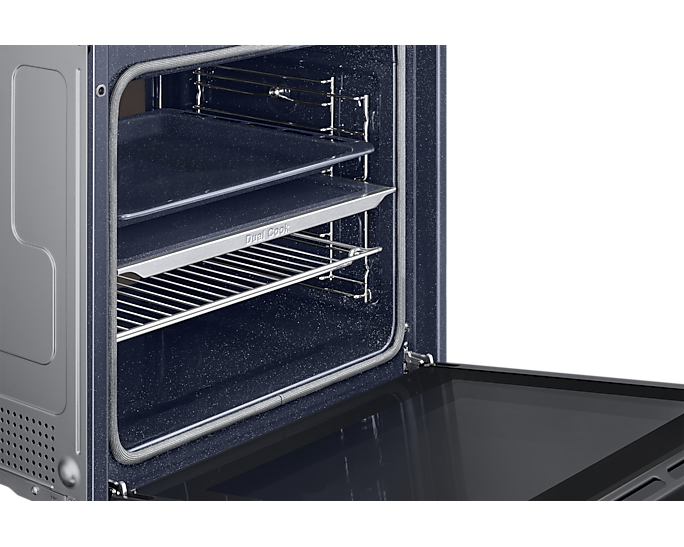

| Dual Cook Technology | Yes |
| Electronic ignition | Yes |
| Pizza making function | No |
| Number of auto cooking programs | 20 |
| Closed door grilling | Yes |
| Self-cleaning | Yes |
| Cleaning type | Catalytic (full) + Steam |
Oven 2
| Specification | Value |
|---|---|
| Oven 2 cooking method | Fan-assisted |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Black |
| Interior material | Enamelled ceramic |

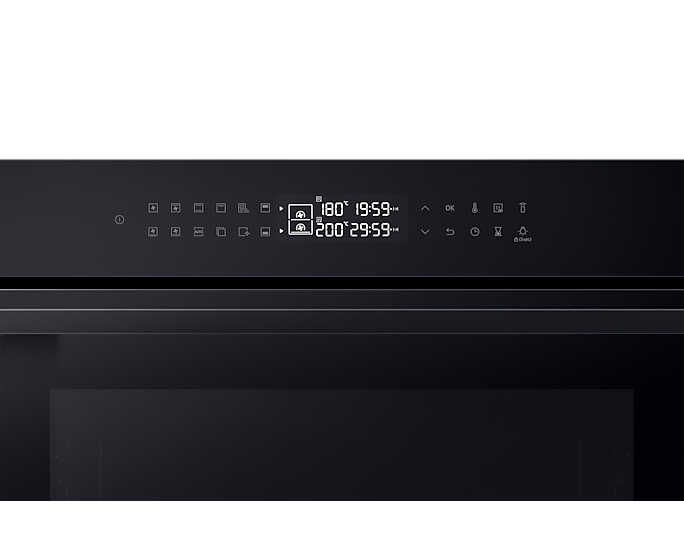

| Control type | Rotary, Touch |
| Control position | Front / Top front |
| Handle colour | Black |
| Knobs colour | Black |
| Built-in display | Yes |
| Display type | LED |
| Door hinge | Down |
| Door material | Glass, Stainless steel |
| Oven door opening | Drop down opening |
| Number of glass door panels | 2 |
| Soft closing door | No |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | Cooking time, End cooking time |
| Wi-Fi controlled | Yes |
| Apps supported | Samsung SmartThings |
| Child lock | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency scale | A+++ to D |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency index (EEI) | 81.6 |
| Energy consumption (conventional) | 1.05 kWh |
| Energy consumption (forced convection) | 0.71 kWh |
| Energy consumption (standby) | 1 kWh |
| Energy efficiency class (legacy scale) | A+ |
Bread machine
| Specification | Value |
|---|---|
| Bread making capability | No |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamps quantity | 2 lamp(s) |
| Lamp type | Halogen |
| Illumination location | Side, Top |
| Bulb power | 25 W |
| Bulb power 2 | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 596 mm |
| Depth | 570 mm |
| Height | 596 mm |
| Weight | 36.4 kg |
| Interior dimensions (W x D x H) | 560 x 549 x 579 mm |
| Installation compartment width | 56 cm |
| Installation compartment depth | 55 cm |
| Installation compartment height | 60 cm |
| Installation compartment height (min) | 59 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 694 mm |
| Package depth | 660 mm |
| Package height | 660 mm |
| Package weight | 42.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 2 |
