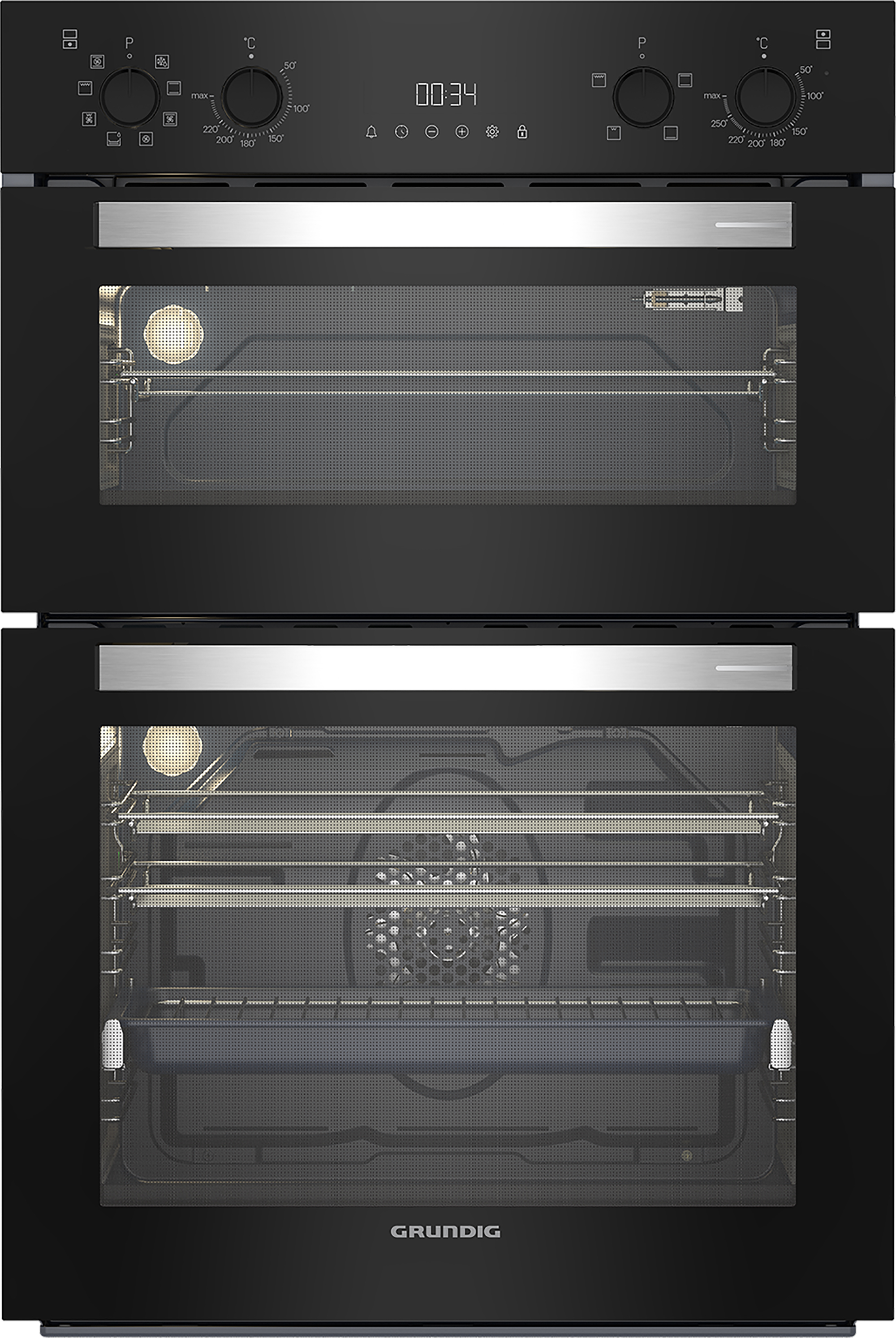

GEDM22300B 90cm Multi-Function Double Oven with Catalytic Liners
Model GEDM22300BEAN 4013833051886
147 specifications
- Energy classA
- Weight55.2 kg
- ColourBlack
- Number of ovens2
- Oven 2 sizeSmall
- Appliance placementBuilt-in
Overview
- Energy class
- A
- Weight
- 55.2 kg
- Colour
- Black
- Number of ovens
- 2
- Oven 2 size
- Small
- Appliance placement
- Built-in
- Brand
- Grundig
- Category
- Oven
- Model
- GEDM22300B
- Part number
- GEDM22300B
- EAN / UPC
- 4013833051886
- Also known as
- Grundig GEDM22300B 90cm Multi-Function Double Oven with Catalytic Liners
Specifications
147 specifications in 11 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 2 |
| Oven size | Medium |
| Oven type | Electric |
| Oven cooking method | Multitech |
| Total oven(s) interior capacity | 109 L |
| Total oven power | 4500 W |
| Oven net capacity | 71 L |
| Top heating | Yes |
| Top heating power | 1100 W |
| Bottom heating | Yes |
| Bottom heating power | 1100 W |
| Top and bottom heating | Yes |
| Grill | Yes |
| Grill type | Variable rate grill |
| Grill power | 2200 W |
| Full surface grill | Yes |
| 3D hot air | Yes |
| Half grill | Yes |
| Convection cooking | Yes |
| Convection power | 1800 W |
| Conventional cooking | Yes |
| Rotisserie | No |
| Slow cooking | No |
| Oven defrost function | Yes |
| Reheat function | Yes |
| Keep warm function | Yes |
| Pizza making function | No |
| Catalytic liners on side walls | Yes |
| Closed door grilling | Yes |
| Cooling fan | Yes |
| Fan heating | Yes |
| Fascia panel material | Glass |
| Removable catalytic back wall | No |
| Removable catalytic side walls | Yes |
| Shelf system | Telescopic/wire shelf system |
| Static cooking | Yes |
| Static cooking+ fan (fan assist) | Yes |
| Tilting grill | No |
| Self-cleaning | Yes |
| Cleaning type | Catalytic |
| Oven shelf stoppers | Yes |
| Number of shelves | 2 shelves |
| Number of shelf positions | 5 |
| Bottom + fan cooking (pizza) | No |
| Grill pan and internal rack | Yes |
Oven 2
| Specification | Value |
|---|---|
| Oven 2 size | Small |
| Oven 2 net capacity | 38 L |
| Oven 2 top heating | Yes |
| Oven 2 top heating power | 2100 W |
| Oven 2 bottom heating | Yes |
| Oven 2 bottom heating power | 1100 W |
| Oven 2 grill | Yes |
| Oven 2 grill type | Variable rate grill |
| Oven 2 grill power | 2200 W |
| Oven 2 conventional cooking | Yes |
| Oven 2 catalytic liners on side walls | Yes |
| Oven 2 closed door grilling | Yes |
| Oven 2 door material | Glass |
| Oven 2 door opening | Drop down opening |
| Oven 2 full surface grill | Yes |
| Oven 2 interior light | Yes |
| Oven 2 internal coating | Enamel |
| Oven 2 number of glass door panels | 3 |
| Oven 2 number of shelf positions | 2 |
| Oven 2 number of shelves | 1 shelves |
| Oven 2 removable door glass | Yes |
| Oven 2 tilting grill | Yes |
| Oven 2 shelf stoppers | Yes |
| Oven 2 catalytic liners on back wall | No |
| Oven 2 grill pan and internal rack | Yes |
| Oven 2 interior light type | Circular |
| Oven 2 cavity type | Enamel Cavity with side racks |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Black |
| Housing material | Metal |
| Interior material | Enamel |
| Control type | Touch, Rotary |
| Control panel material | Glass |
| Retractable knobs | Yes |
| Handle material | Metal |
| Built-in display | Yes |
| Display type | LED |
| Door hinge | Down |
| Door material | Glass |
| Oven door opening | Drop down opening |
| Removable door glass | Yes |
| Number of glass door panels | 3 |
| Cool door | Yes |
| Door cooling fan | No |
| Soft closing door | Yes |
| Carrying handle(s) | Yes |
| Cavity type | Enamel cavity with side racks |
| Certification | EN 60335-2-6 |
| Internal coating colour | Grey |
| Knob type | Rotary Control |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Timer type | Digital |
| Easy to clean | Yes |
| Food probe | No |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A |
| Oven 2 energy efficiency class | A |
| Current | 25 A |
| Power connection type | Hard-wired |
| Energy consumption (conventional) | 0.95 kWh |
| Energy consumption (forced convection) | 0.81 kWh |
| Energy efficiency class (legacy scale) | A |
| Oven 2 energy consumption (conventional) | 0.68 kWh |
| Minimum fuse protection | 25 A |
| Oven 2 energy efficiency class (legacy scale) | A |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 594 mm |
| Depth | 567 mm |
| Height | 890 mm |
| Weight | 55.2 kg |
| Interior dimensions (W x D x H) | 470 x 430 x 350 mm |
| Oven 2 interior dimensions (W x D x H) | 470 x 430 x 170 mm |
| Installation compartment width | 56 cm |
| Installation compartment depth | 55.5 cm |
| Installation compartment height | 88 cm |
Packaging data
| Specification | Value |
|---|---|
| Package tare weight | 2.88 kg |
| Package width | 660 mm |
| Package depth | 660 mm |
| Package height | 950 mm |
| Package weight | 58.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Glass pan included | No |
| Glass tray included | No |
| Grill grid included | Yes |
| Grill plate | Yes |
| Lava stone included | No |
| Meat probe included | No |
| Pizza pan included | No |
| Telescopic rail included | Yes |
| Turnspit included | No |
Logistics data
| Specification | Value |
|---|---|
| Expanded Polystyrene (EPS) packaging weight | 1.01 kg |
| Metal packaging weight | 1.2 g |
| Paper packaging weight | 873 g |
| Plastic packaging weight | 161.752 g |
| Wood packaging weight | 829 g |
| Straphor packaging weight | 1.01 kg |
| Total packaging weight | 2.88 kg |
| Pallets per intermodal container (40ft, HC) | 100 pc(s) |
| Maximum stacked pallets per intermodal container (40ft, HC) | 3 pc(s) |
| Products per intermodal container (40ft) | 100 pc(s) |
| Products per intermodal container (40ft, HC) | 100 pc(s) |
| Harmonized System (HS) code | 85166080 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Dialing control | Yes |
