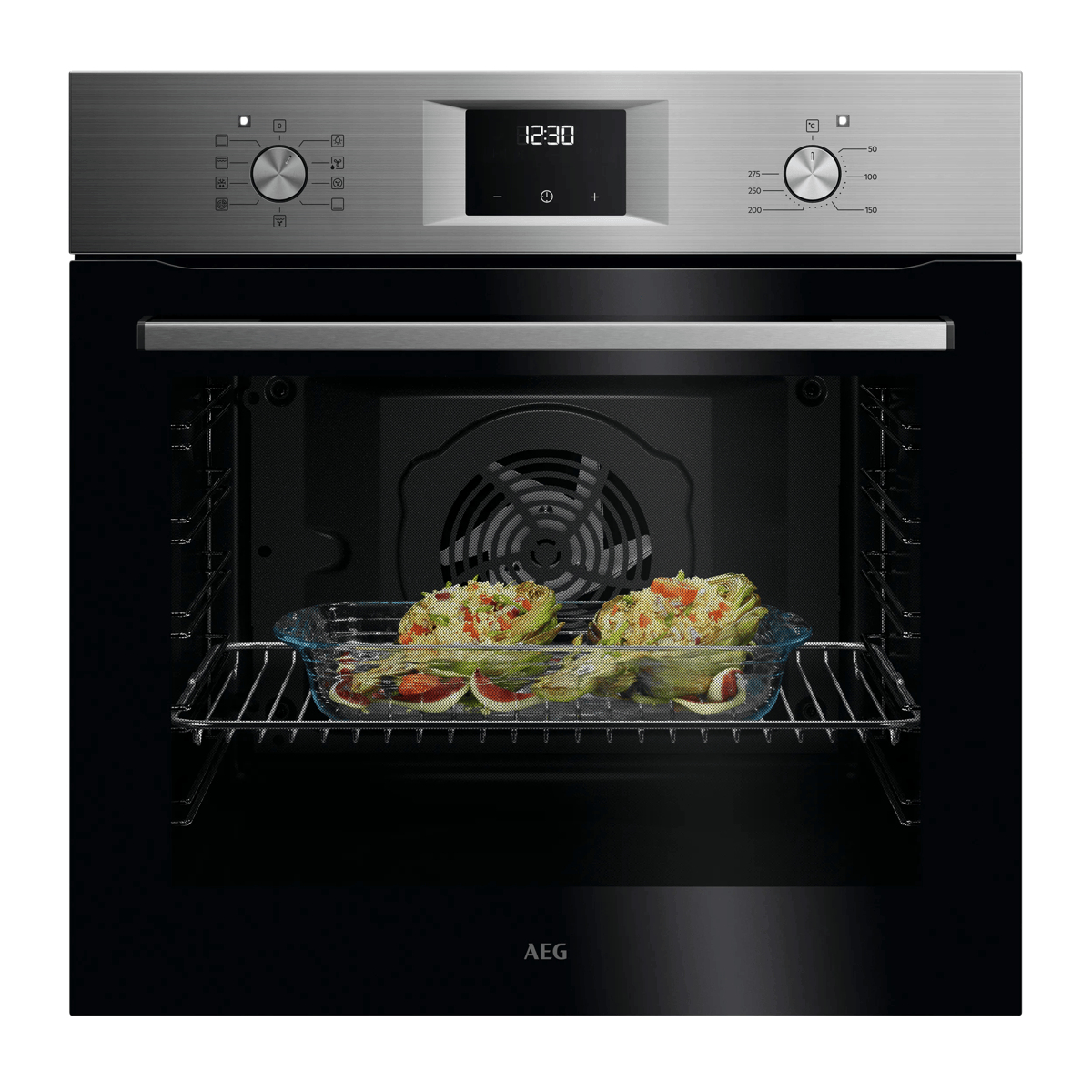

Series 5000 OU5AB20SM
72 L 2790 W Stainless steel
Model OU5AB20SMPart no. 949 496 370EAN 7333394056043
95 specifications
- Energy classA+
- Noise44 dB
- Weight26 kg
- ColourStainless steel
- Number of ovens1
- Appliance placementBuilt-in
Overview
- Energy class
- A+
- Noise
- 44 dB
- Weight
- 26 kg
- Colour
- Stainless steel
- Number of ovens
- 1
- Appliance placement
- Built-in
- Brand
- AEG
- Category
- Oven
- Model
- OU5AB20SM
- Part number
- 949 496 370
- EAN / UPC
- 7333394056043
- Also known as
- AEG Series 5000 OU5AB20SM 72 L 2790 W Stainless steel
Specifications
95 specifications in 11 groups
Oven
| Specification | Value |
|---|---|
| Number of ovens | 1 |
| Oven size | Medium |
| Oven type | Electric |
| Oven cooking method | Multitech |
| Total oven(s) interior capacity | 72 L |
| Total oven power | 2790 W |
| Oven net capacity | 72 L |
| Bottom heating | Yes |
| Top and bottom heating | Yes |
| Fast heat | Yes |
| Oven thermostat range | 50 - 275 °C |
| Grill | Yes |
| Grill power | 2300 W |
| Fan grill function | Yes |
| Full surface grill | Yes |
| Convection cooking | Yes |
| Top, bottom, fan + convection (turbo mode) | Yes |
| Microwave cooking | No |
| Steam cooking | No |
| Conventional cooking | Yes |
| Oven defrost function | Yes |
| Reheat function | Yes |
| Pizza making function | Yes |
| Multi-step cooking | Yes |
| Smart Cooking function | No |
| Number of cooking programs | 9 |
| Self-cleaning | Yes |
| Cleaning type | Hydro |
| Cleaning technology | AquaClean |
Design
| Specification | Value |
|---|---|
| Appliance placement | Built-in |
| Product colour | Stainless steel |
| Interior material | Enamel |
| Control type | Touch |
| Control panel material | Metal |
| Control position | Front / Top front |
| Retractable knobs | Yes |
| Handle colour | Stainless steel |
| Knobs colour | Stainless steel |
| Built-in display | Yes |
| Display type | LCD |
| Door hinge | Down |
| Door material | Glass |
| Oven door opening | Drop down opening |
| Number of glass door panels | 2 |
| Door temperature (max) | 15 °C |
| Tray material | Enamelled |
| Effective tray surface area | 1424 cm² |
| Number of grids | 1 |
| Cord length | 1.5 m |
| Fingerprint resistant | Yes |
| Noise level | 44 dB |
| Certification | DEMKO|UL (EU)|CE |
| Knob type | Pop in / Pop out manopola metallo |
Ergonomics
| Specification | Value |
|---|---|
| Integrated clock | Yes |
| Clock type | Electronic |
| Timer type | Digital |
| Timer modes | Timer |
| Easy to clean | Yes |
| Wi-Fi controlled | No |
| Food probe | No |
| Auto power off | Yes |
| Child lock | Yes |
| Ready alarm | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class | A+ |
| Energy efficiency scale | A+++ to D |
| AC input voltage | 220-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency index (EEI) | 81.2 |
| Current | 16 A |
| Energy consumption (conventional) | 0.93 kWh |
| Energy consumption (forced convection) | 0.69 kWh |
Lighting
| Specification | Value |
|---|---|
| Interior light | Yes |
| Lamps quantity | 1 lamp(s) |
| Lamp type | Halogen |
| Illumination location | Rear |
| Bulb power | 40 W |
Brand-specific features
| Specification | Value |
|---|---|
| AEG technologies (cooking) | SurroundCook |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 594 mm |
| Depth | 569 mm |
| Height | 594 mm |
| Weight | 26 kg |
| Installation compartment width | 56 cm |
| Installation compartment depth | 55 cm |
| Installation compartment height | 59 cm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 635 mm |
| Package depth | 670 mm |
| Package height | 654 mm |
| Package weight | 27 kg |
| Package volume | 278250 cm³ |
Packaging content
| Specification | Value |
|---|---|
| Baking tray | Yes |
| Number of baking trays | 1 |
| Grill grid included | Yes |
| Telescopic rail included | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, UL |
Features
| Specification | Value |
|---|---|
| Demo-tutorial mode | Yes |
