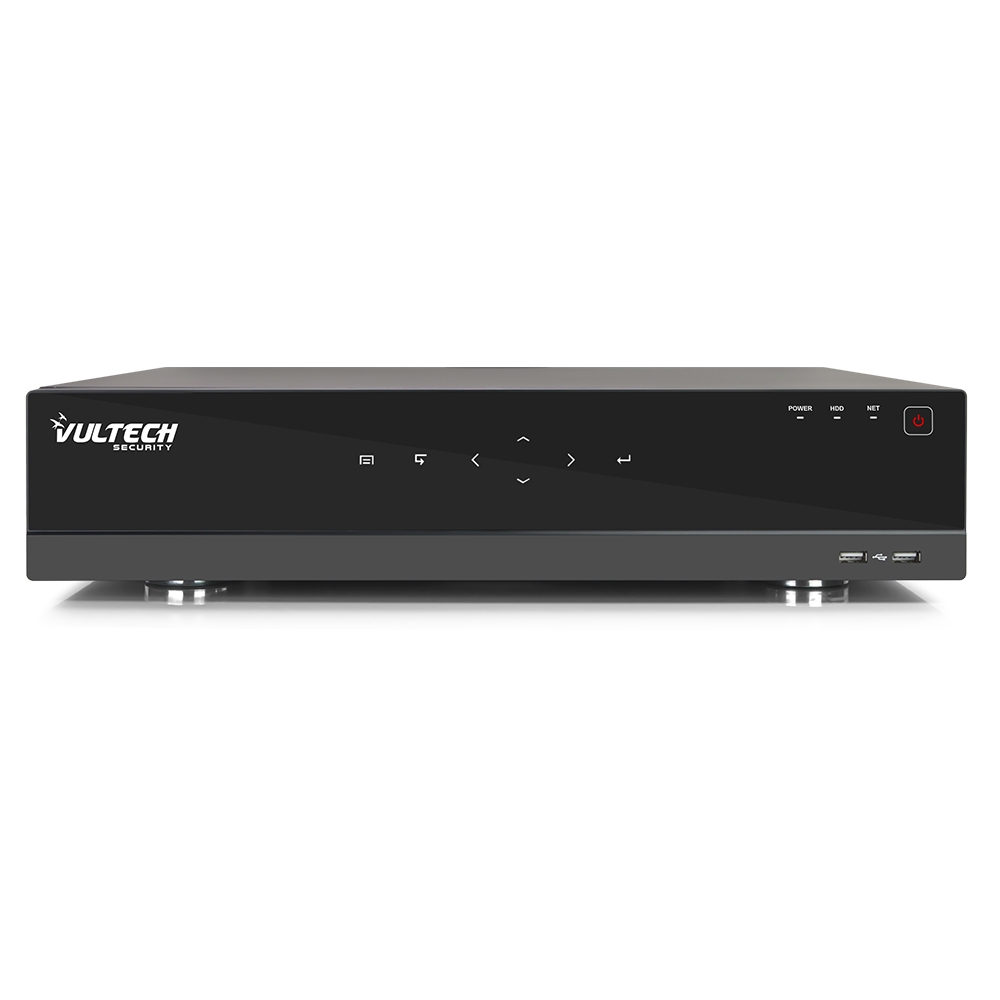

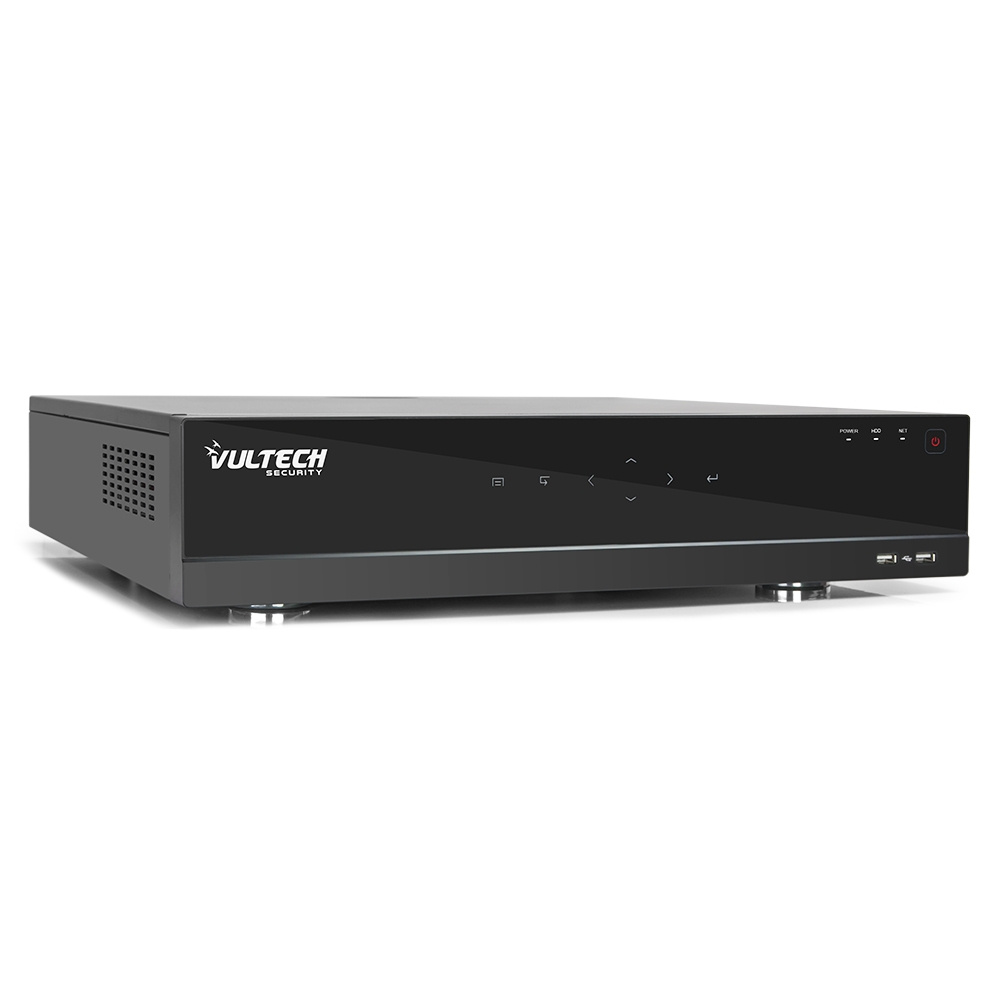

Vultech Security VS-NVR9564EVO-UHD network video recorder Black

Vultech Security

VS-NVR9564EVO-UHD network video recorder Black

Model VS-NVR9564EVO-UHDEAN 8052780302463

40 specifications

OSEmbedded LINUX
ColourBlack
Video input channels64 channels
Wi-FiNo
Number of HDDs supported8
Ethernet LAN (RJ-45) ports2

See all specifications

Overview

OS: Embedded LINUX
Colour: Black
Video input channels: 64 channels
Wi-Fi: No
Number of HDDs supported: 8
Ethernet LAN (RJ-45) ports: 2

Brand: Vultech Security
Category: Network Video Recorders (NVR)
Model: VS-NVR9564EVO-UHD
Part number: VS-NVR9564EVO-UHD
EAN / UPC: 8052780302463
Also known as: Vultech Security VS-NVR9564EVO-UHD network video recorder Black

Specifications

40 specifications in 9 groups

Performance

Specification	Value
Video input channels	64 channels
Alarm input channels	16
Alarm output channels	4
Video recording modes	720p, 1080p, 2160p
Maximum resolution	3840 x 2160 pixels
Supported resolutions	3840×2160, 1920×1080, 1280×1024, 1280×720, 1024x768
Operating system installed	Embedded LINUX
Audio codecs	G711a/G711u
Backup function	Yes
Input bandwidth	320 Mbit/s
Maximum frame rate	25 fps
Output bandwidth	256 Mbit/s
PTZ control	Yes
Video codecs	H.265/H.265+/H.264/H.264+

Wireless LAN features

Specification	Value
Wi-Fi	No

Hard drive

Specification	Value
Number of HDDs supported	8
Maximum storage capacity	80 TB
HDD interface	SATA III

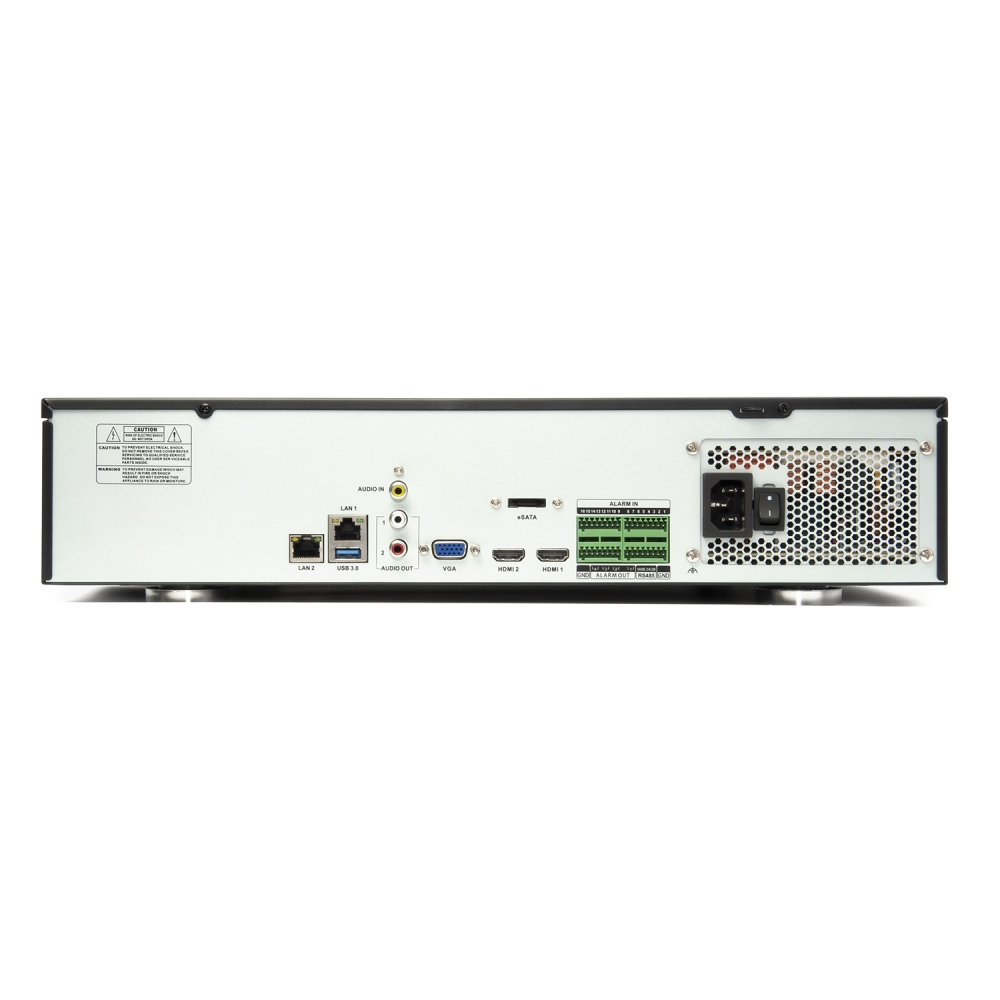

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	10,100,1000 Mbit/s
HDMI output	Yes
HDMI ports quantity	2
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio RCA inputs	1
Audio RCA outputs	2
eSATA ports quantity	1
RS-485 ports	2

Features

Specification	Value
LED indicators	Yes
On/off switch	Yes
Product colour	Black

Power

Specification	Value
Power consumption (typical)	15 W
AC input voltage	100 - 240 V

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	452 mm
Height	90 mm

Packaging content

Specification	Value
CD manual	Yes
