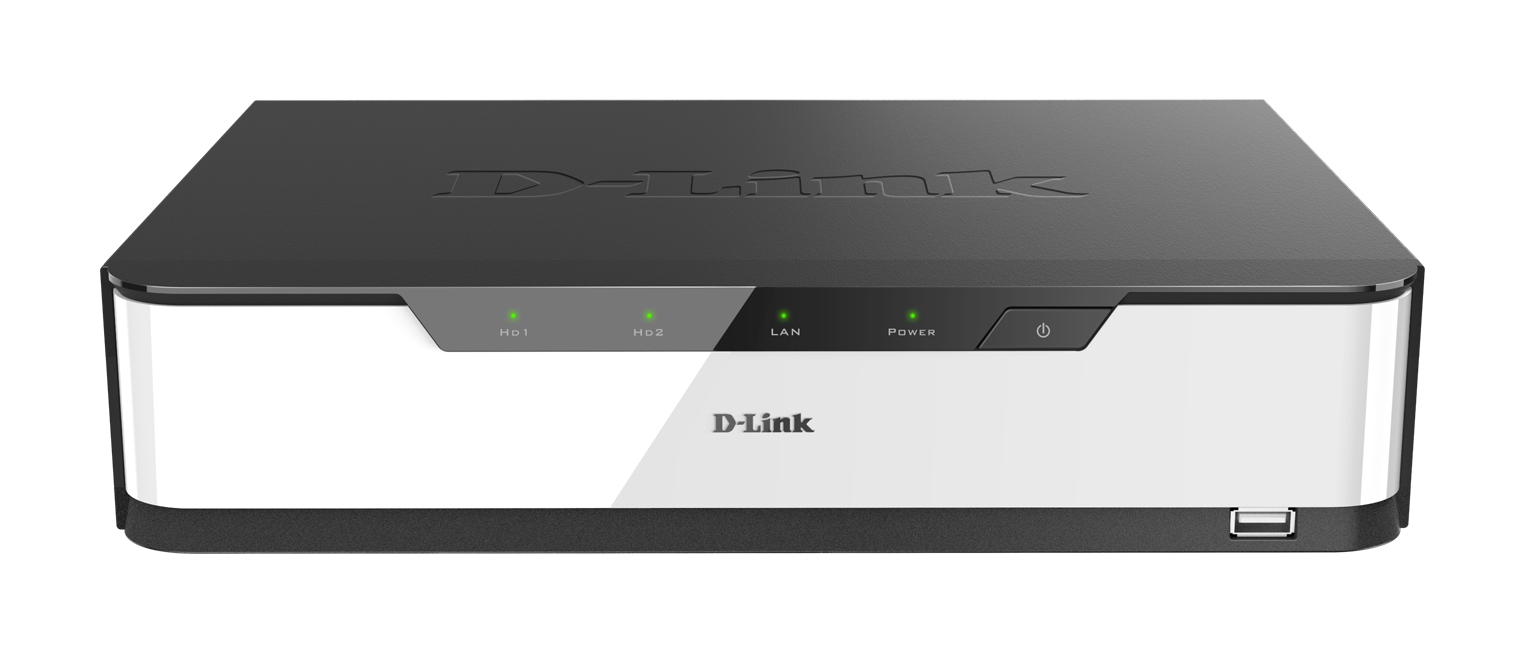

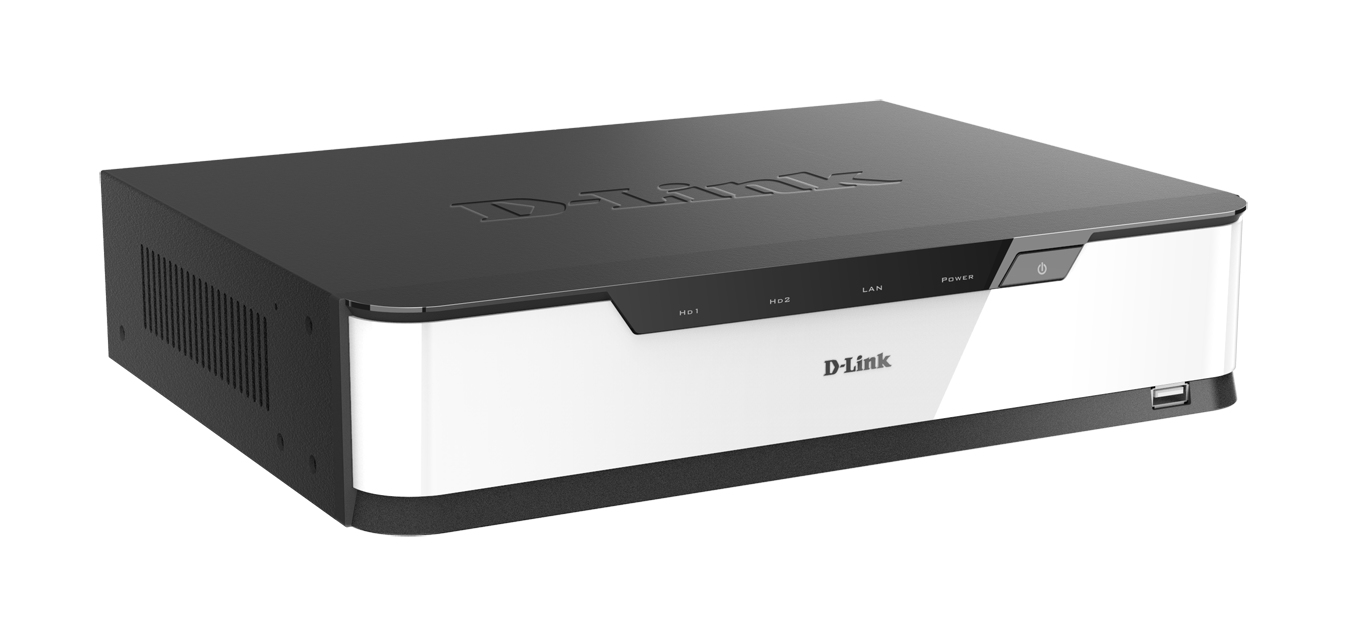

D-Link DNR-2020-04P network video recorder Black, White
D-Link

DNR-2020-04P network video recorder Black, White

Model DNR-2020-04PEAN 790069425158

78 specifications
  • Memory1024 MB
  • Weight2.1 kg
  • ColourBlack, White
  • Video input channels16 channels
  • Maximum storage capacity16 TB
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Memory
1024 MB
Weight
2.1 kg
Colour
Black, White
Video input channels
16 channels
Maximum storage capacity
16 TB
Ethernet LAN (RJ-45) ports
2
Brand
D-Link
Model
DNR-2020-04P
Part number
DNR-2020-04P
EAN / UPC
790069425158, 790069426407, 790069426469, 790069429149
Also known as
D-Link DNR-2020-04P network video recorder Black, White

Specifications

78 specifications in 10 groups

Performance

Video input channels16 channels
Alarm input channels4
Alarm output channels1
Maximum resolution1920 x 1080 pixels
Internal memory1024 MB
Internal memory typeDDR3
Audio formats supportedG.711
Video formats supportedH.264, M-JPEG, MPEG4
Backup functionYes
Custom sequence modeYes
DHCP clientYes
DHCP serverYes
E-map functionYes
Maximum frame rate480 fps
Number of fans1 fan(s)
PTZ controlYes
PTZ modesPreset point, Preset sequence
Playback controlsYes
Playback modesForward, Play, Reverse
Sequence modeYes
SnapshotYes
Recording modesContinuous, Event, Manual, Schedule
Display modesFull screen, Live view, Playback

Hard drive

Maximum storage capacity16 TB
HDD interfaceSerial ATA II, Serial ATA III
RAID supportYes
RAID levels0, 1, JBOD

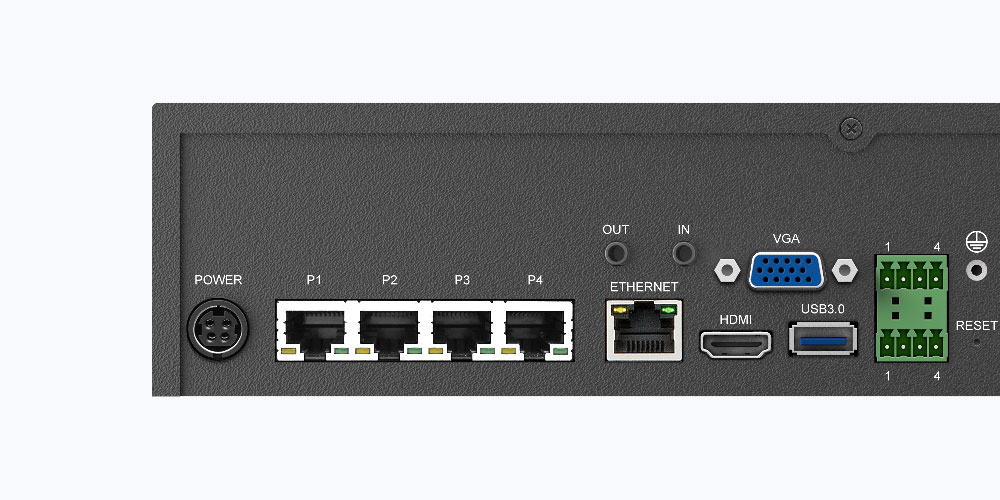

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
HDMI outputYes
USB 2.0 ports quantity1
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio RCA inputs1
Audio RCA outputs1

Features

Product colourBlack, White
Reset buttonYes
CertificationCE, FCC

Power

Power consumption (max)90 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output current1.85 A
Output voltage48 V

System requirements

Browser supportedInternet Explorer, Firefox, Safari

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 90%
Storage temperature (T-T)-20 - 70 °C

Technical details

Compliance certificatesRoHS
Master (outer) cases per pallet (air)16 pc(s)
Master (outer) cases per pallet (sea)20 pc(s)
Pallet gross length120 cm
Pallet gross weight (air)294 kg
Pallet gross weight (sea)362 kg
Pallet gross width110 cm
Pallet height (air)145.1 cm
Pallet height (sea)178 cm
Products per pallet (air)64 pc(s)
Products per pallet (sea)80 pc(s)
Products per shipping (inner) case4 pc(s)
Shipping (inner) case gross weight17 kg
Shipping (inner) case height32.9 cm
Shipping (inner) case length54.7 cm
Shipping (inner) case net weight15.6 kg
Shipping (inner) case width47.3 cm

Weight & dimensions

Width300 mm
Depth63 mm
Height255 mm
Weight2.1 kg
Package width287 mm
Package depth451 mm
Package height130 mm
Package weight3.9 kg

Packaging content

AC adapter includedYes
CD manualYes
Cables includedLAN (RJ-45)
Quick installation guideYes
