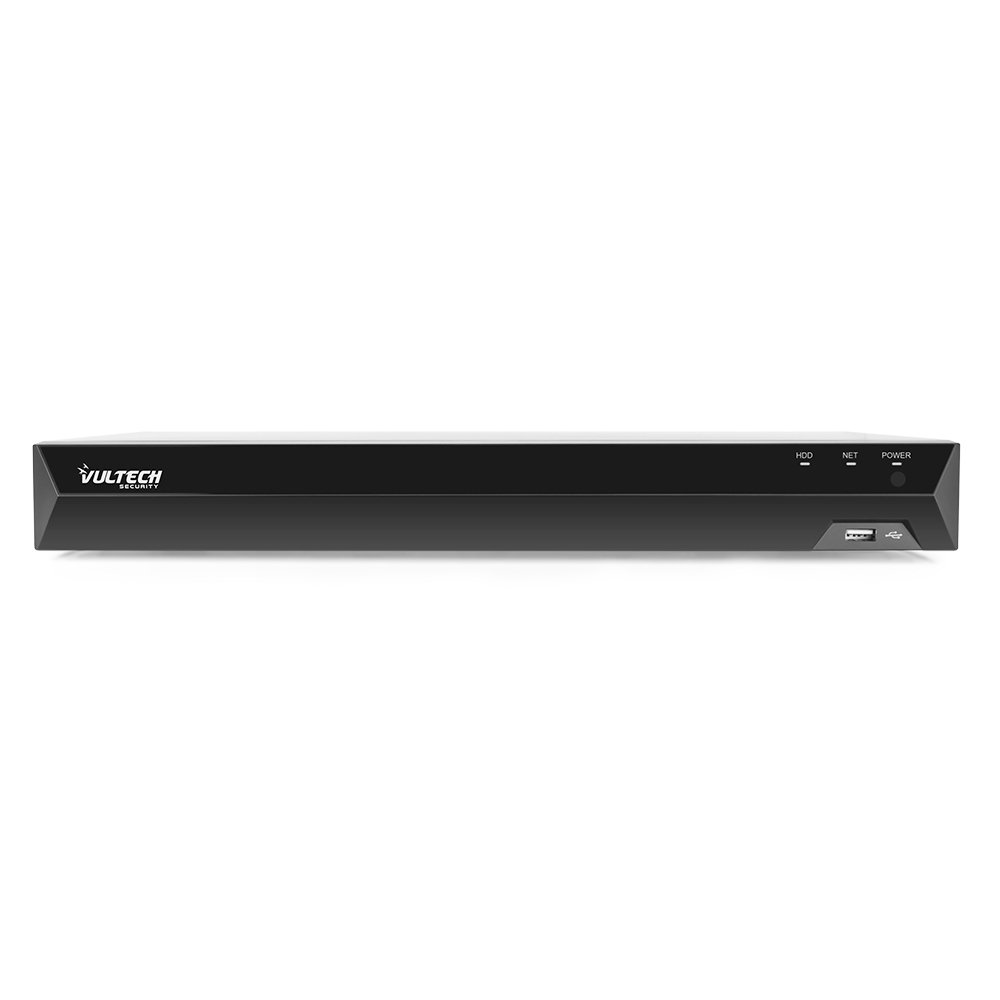

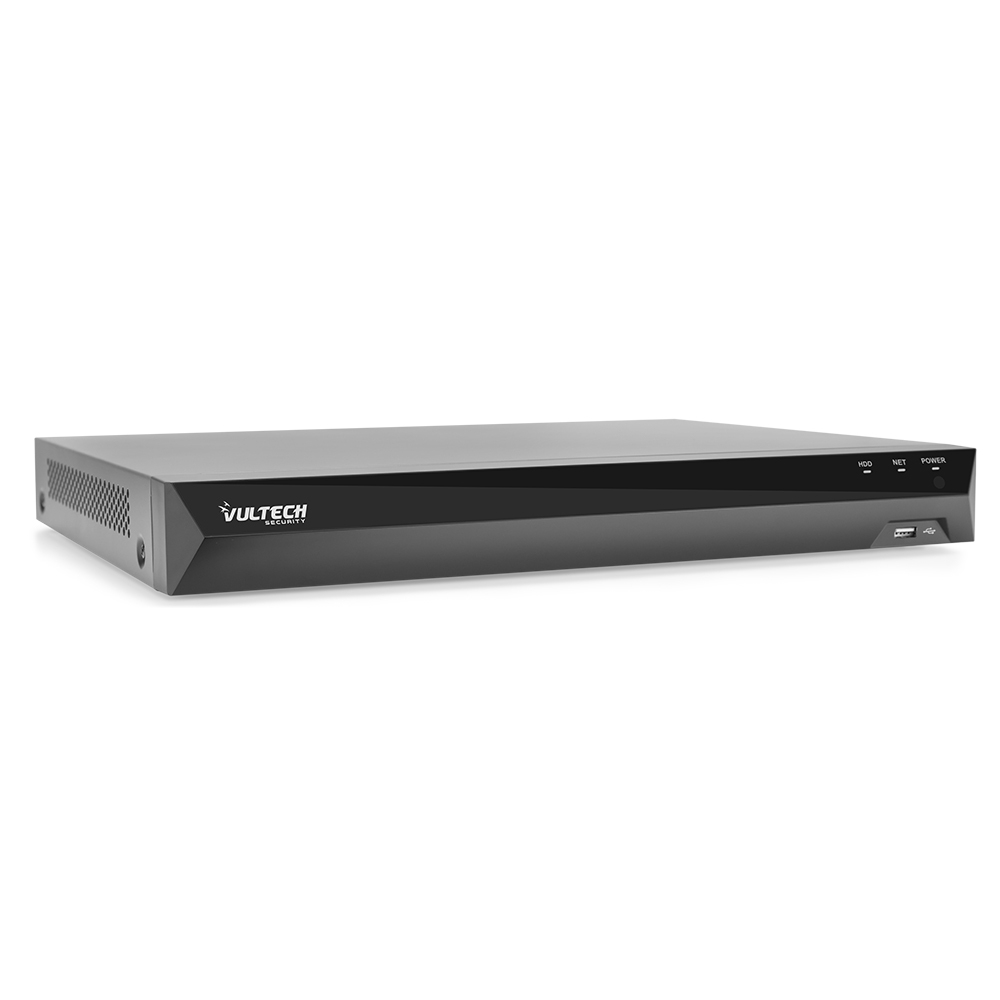

VS-NVR9516EVO-UHD network video recorder Black
Model VS-NVR9516EVO-UHDEAN 8052780302296
39 specifications
- OSEmbedded LINUX
- ColourBlack
- Video input channels16 channels
- Wi-FiNo
- Number of HDDs supported2
- Ethernet LAN (RJ-45) ports1
Overview
- OS
- Embedded LINUX
- Colour
- Black
- Video input channels
- 16 channels
- Wi-Fi
- No
- Number of HDDs supported
- 2
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Vultech Security
- Category
- Network Video Recorders (NVR)
- Model
- VS-NVR9516EVO-UHD
- Part number
- VS-NVR9516EVO-UHD
- EAN / UPC
- 8052780302296
- Also known as
- Vultech Security VS-NVR9516EVO-UHD network video recorder Black
Specifications
39 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 16 channels |
| Alarm input channels | 8 |
| Alarm output channels | 1 |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1920x1080, 1280x1024, 1280x720 |
| Operating system installed | Embedded LINUX |
| Audio codecs | G711a/G711u |
| Backup function | Yes |
| Input bandwidth | 160 Mbit/s |
| Maximum frame rate | 25 fps |
| Output bandwidth | 256 Mbit/s |
| Video codecs | H.265/H.265+/H.264/H.264+ |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 2 |
| Maximum storage capacity | 20 TB |
| HDD interface | SATA III |

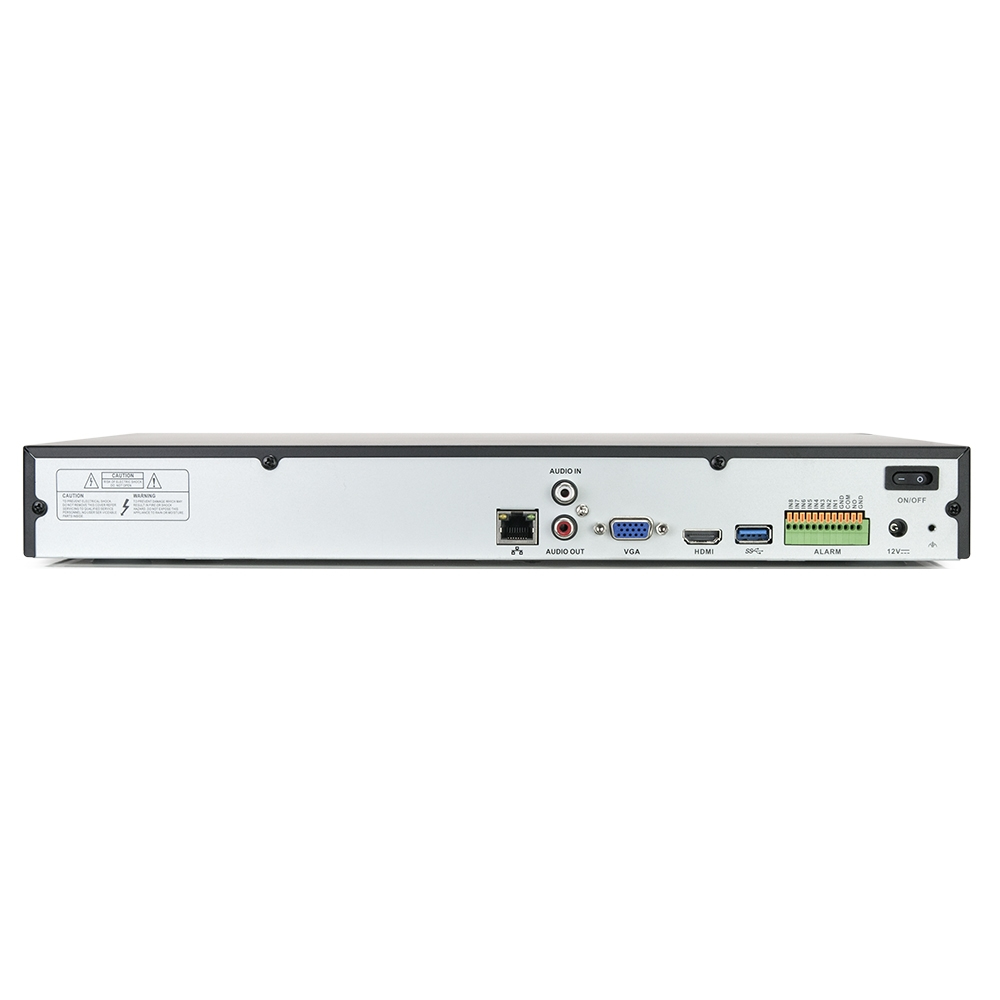

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| On/off switch | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Output current | 5 A |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 298 mm |
| Height | 45 mm |
Packaging content
| Specification | Value |
|---|---|
| CD manual | Yes |
