VS-NVR5508EVO-5MP network video recorder Black
Model VS-NVR5508EVO-5MPEAN 8052780302395
34 specifications
- OSEmbedded LINUX
- ColourBlack
- Video input channels8 channels
- Wi-FiNo
- Number of HDDs supported1
- LED indicatorsYes
Overview
- OS
- Embedded LINUX
- Colour
- Black
- Video input channels
- 8 channels
- Wi-Fi
- No
- Number of HDDs supported
- 1
- LED indicators
- Yes
- Brand
- Vultech Security
- Category
- Network Video Recorders (NVR)
- Model
- VS-NVR5508EVO-5MP
- Part number
- VS-NVR5508EVO-5MP
- EAN / UPC
- 8052780302395
- Also known as
- Vultech Security VS-NVR5508EVO-5MP network video recorder Black
Specifications
34 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Video input channels | 8 channels |
| Video recording modes | 720p, 1080p |
| Maximum resolution | 1920 x 1080 pixels |
| Supported resolutions | 1920×1080, 1280×1024, 1280×720 |
| Operating system installed | Embedded LINUX |
| Audio codecs | G711a/G711u |
| Backup function | Yes |
| Input bandwidth | 40 Mbit/s |
| Maximum frame rate | 25 fps |
| Output bandwidth | 20 Mbit/s |
| Video codecs | H.265/H.265+/H.264/H.264+ |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | No |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA III |

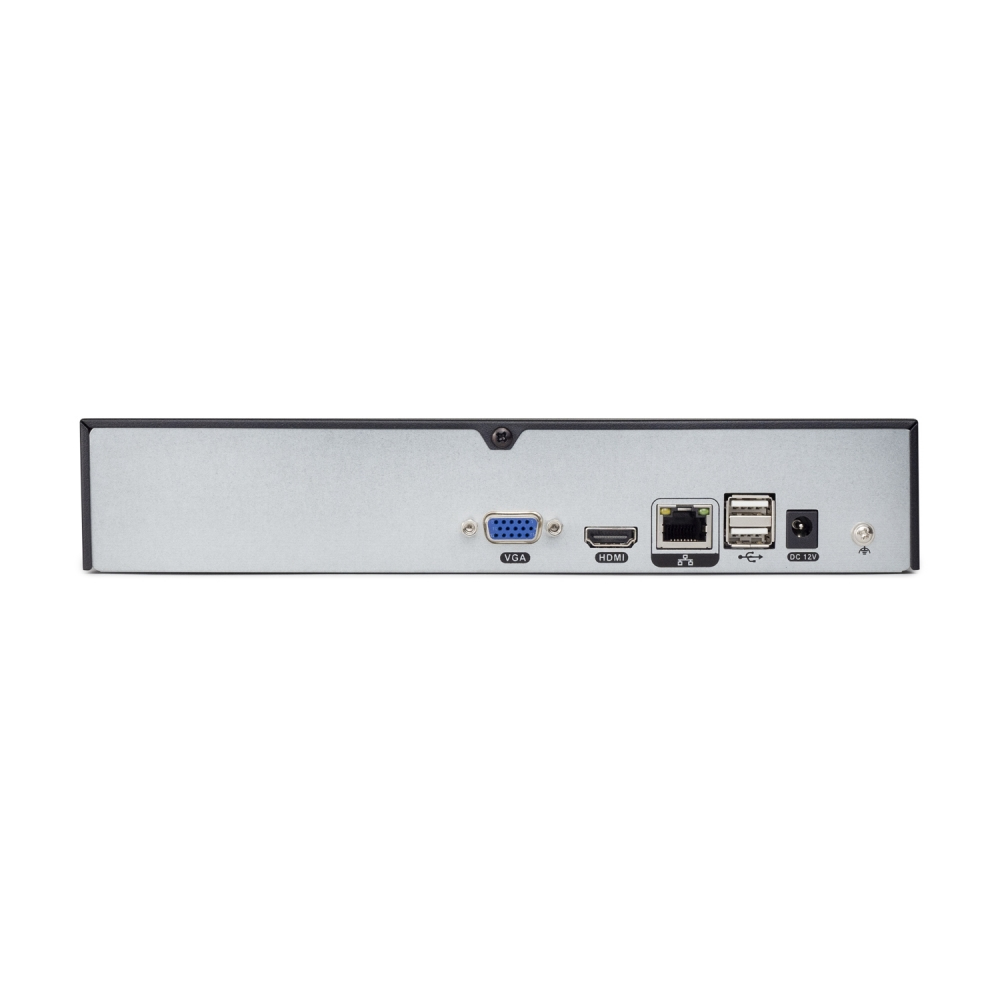

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Output current | 2 A |
| Output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 230 mm |
| Height | 45 mm |
Packaging content
| Specification | Value |
|---|---|
| CD manual | Yes |
