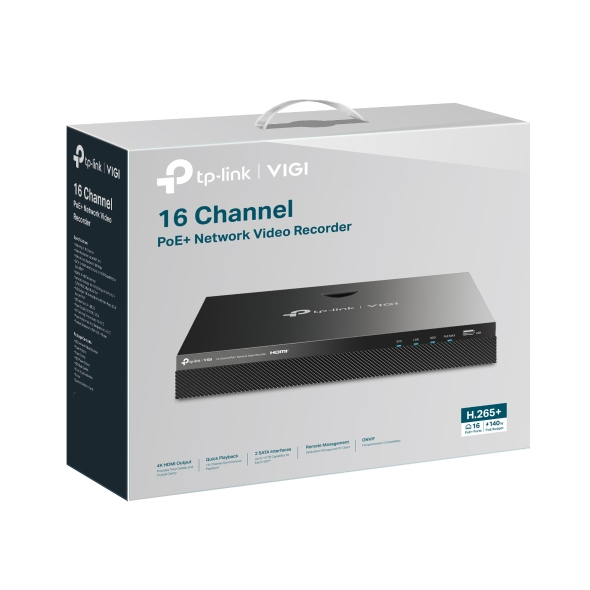

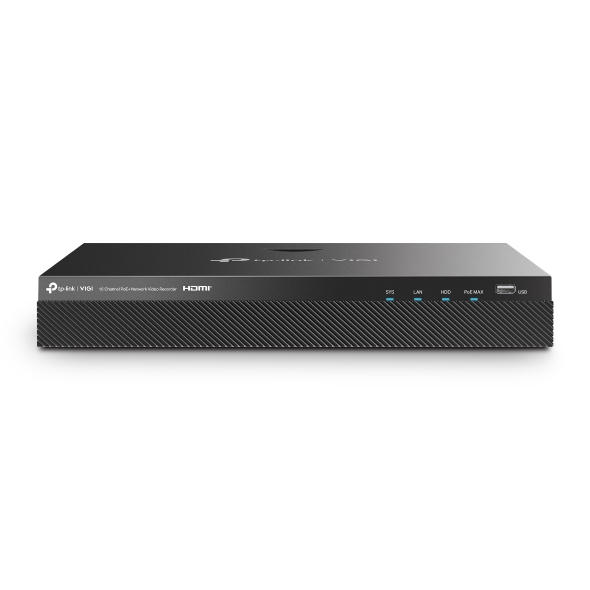

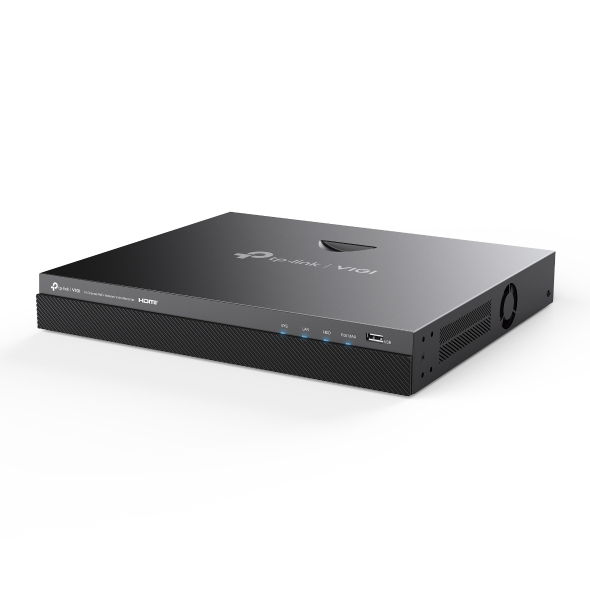

TP-Link VIGI 16 Channel PoE+ Network Video Recorder
TP-Link

VIGI 16 Channel PoE+ Network Video Recorder

4TB

Model VIGINVR2016H-16MP4TBPart no. VIGI NVR2016H-16MP-4TBEAN 840030712265

53 specifications
  • Storage4 TB
  • Weight2.1 kg
  • ColourBlack
  • Video input channels16 channels
  • Wi-FiNo
  • Number of HDDs installed1
See all specifications

Overview

Storage
4 TB
Weight
2.1 kg
Colour
Black
Video input channels
16 channels
Wi-Fi
No
Number of HDDs installed
1
Brand
TP-Link
Model
VIGINVR2016H-16MP4TB
Part number
VIGI NVR2016H-16MP-4TB
EAN / UPC
840030712265, 4895252507195
Also known as
TP-Link VIGI 16 Channel PoE+ Network Video Recorder 4TB

Specifications

53 specifications in 11 groups

Performance

Video input channels16 channels
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p, 2160p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video motion detectionYes
Video loss detectionYes
Multi-screenYes
Audio formats supportedG.711, G.711 μ-law, G.726
Video formats supportedH.264, H.264+, H.265, H.265+
Input bandwidth80 Mbit/s
Maximum frame rate30 fps
Output bandwidth60 Mbit/s
Playback modesFast play, Forward, Frame by Frame, Full screen, Pause, Play, Reverse

Wireless LAN features

Wi-FiNo

Hard drive

Number of HDDs installed1
HDD capacity4 TB
Number of HDDs supported2
Total installed storage capacity4 TB
Maximum storage capacity32000 TB
HDD interfaceSATA

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity16
HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
Audio RCA inputs1
Audio RCA outputs1
eSATA ports quantity1
eSATAYes
DC-in jackYes
Networking standardsIEEE 802.3af, IEEE 802.3at

Features

Product colourBlack
Reset buttonYes

Power

Power consumption (max)40 W
Power consumption (typical)6.2 W
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget140 W

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%

Technical details

Compliance certificatesBSMI, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RCM, UKCA, VCCI

Weight & dimensions

Width330 mm
Depth285 mm
Height45 mm
Weight2.1 kg
Package weight4.1 kg

Packaging content

Packaging content- Power Adapter - Power Cables - HDD Power Cables - HDD Data Cables - Mounting Accessories - Mouse - Quick Installation Guide
