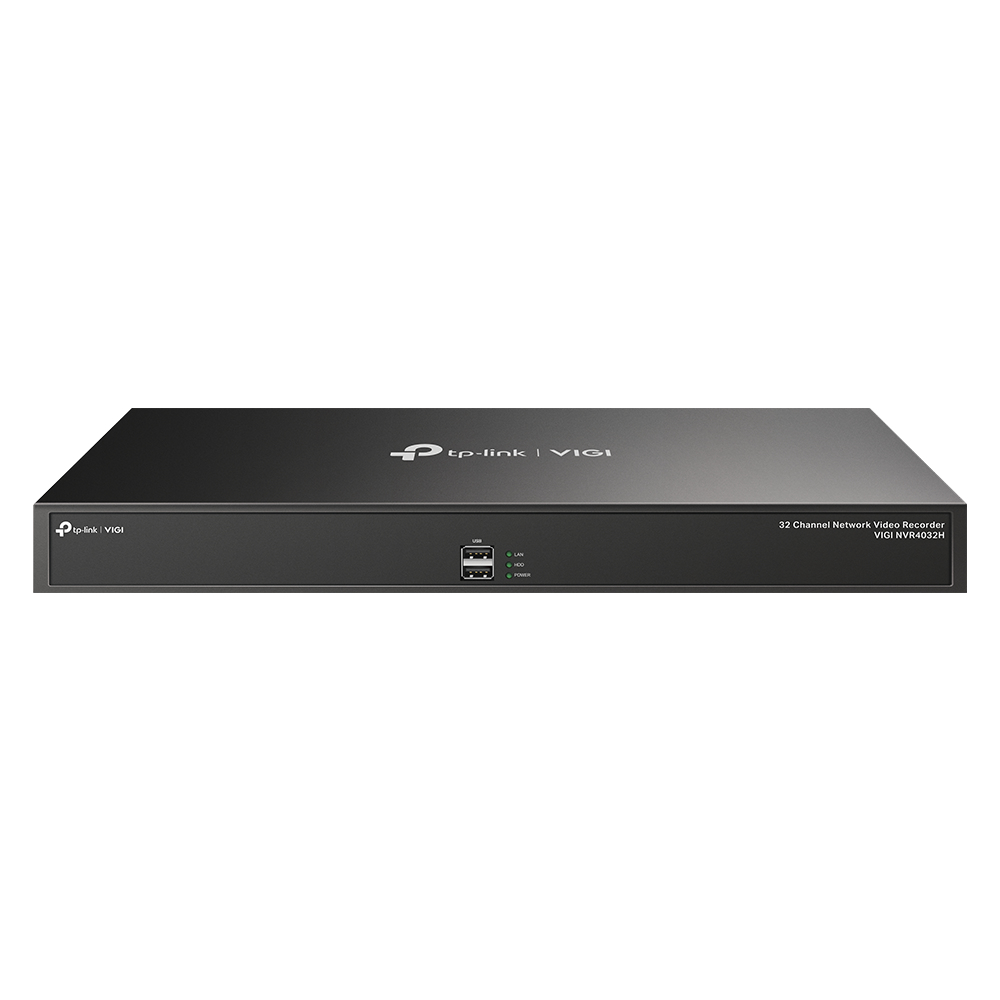

TP-Link VIGI NVR4032H
TP-Link

VIGI NVR4032H

Model VIGI NVR4032HEAN 840030705281

51 specifications
  • Storage0 GB
  • Weight4 kg
  • ColourBlack
  • Video input channels32 channels
  • Number of HDDs installed0
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Storage
0 GB
Weight
4 kg
Colour
Black
Video input channels
32 channels
Number of HDDs installed
0
Ethernet LAN (RJ-45) ports
2
Brand
TP-Link
Model
VIGI NVR4032H
Part number
VIGI NVR4032H
EAN / UPC
840030705281, 4895252500752, 4895252500769
Also known as
TP-Link VIGI 32 Channel Network Video Recorder

Specifications

51 specifications in 9 groups

Performance

Video input channels32 channels
Alarm input channels16
Alarm output channels4
Number of simultaneously playbacked channels16 channels
Video recording modes720p, 1080p
Maximum resolution3840 x 2160 pixels
Supported resolutions3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
Video motion detectionYes
Video loss detectionYes
Video formats supportedH.264, H.264+, H.265, H.265+
Backup functionYes
Input bandwidth320 Mbit/s
Output bandwidth320 Mbit/s
Playback modesDigital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Recording modesManual, Schedule
Audio system2-way

Hard drive

Number of HDDs installed0
HDD capacity0 GB
Number of HDDs supported4
Maximum storage capacity10 TB
HDD interfaceSATA

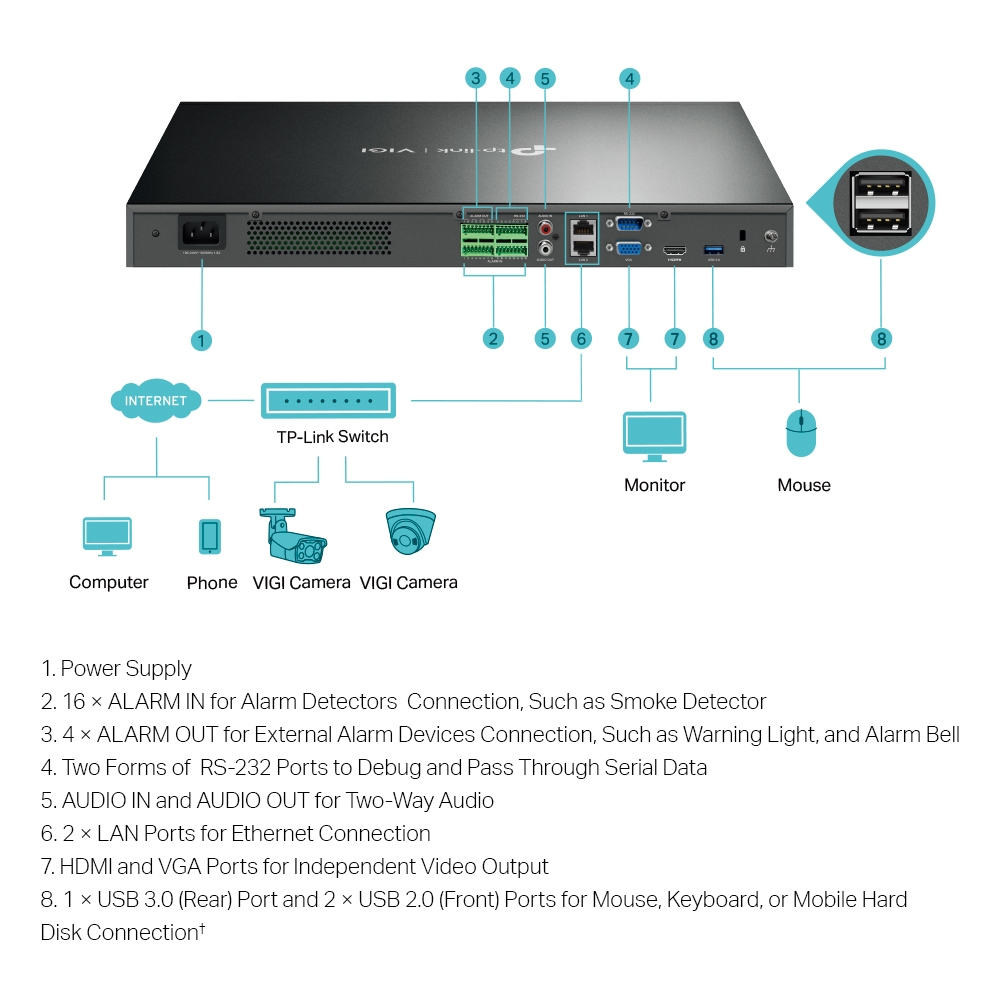

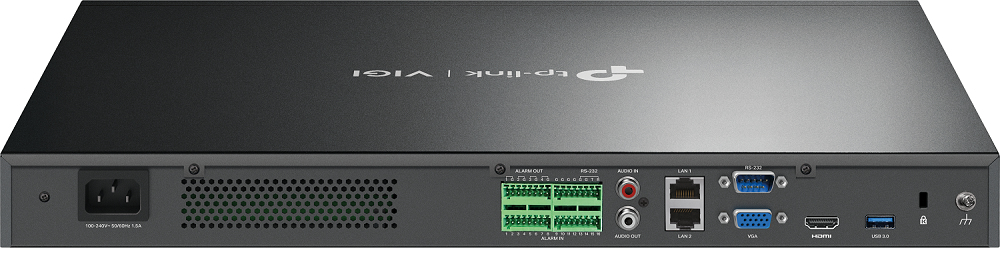

Ports & interfaces

Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s

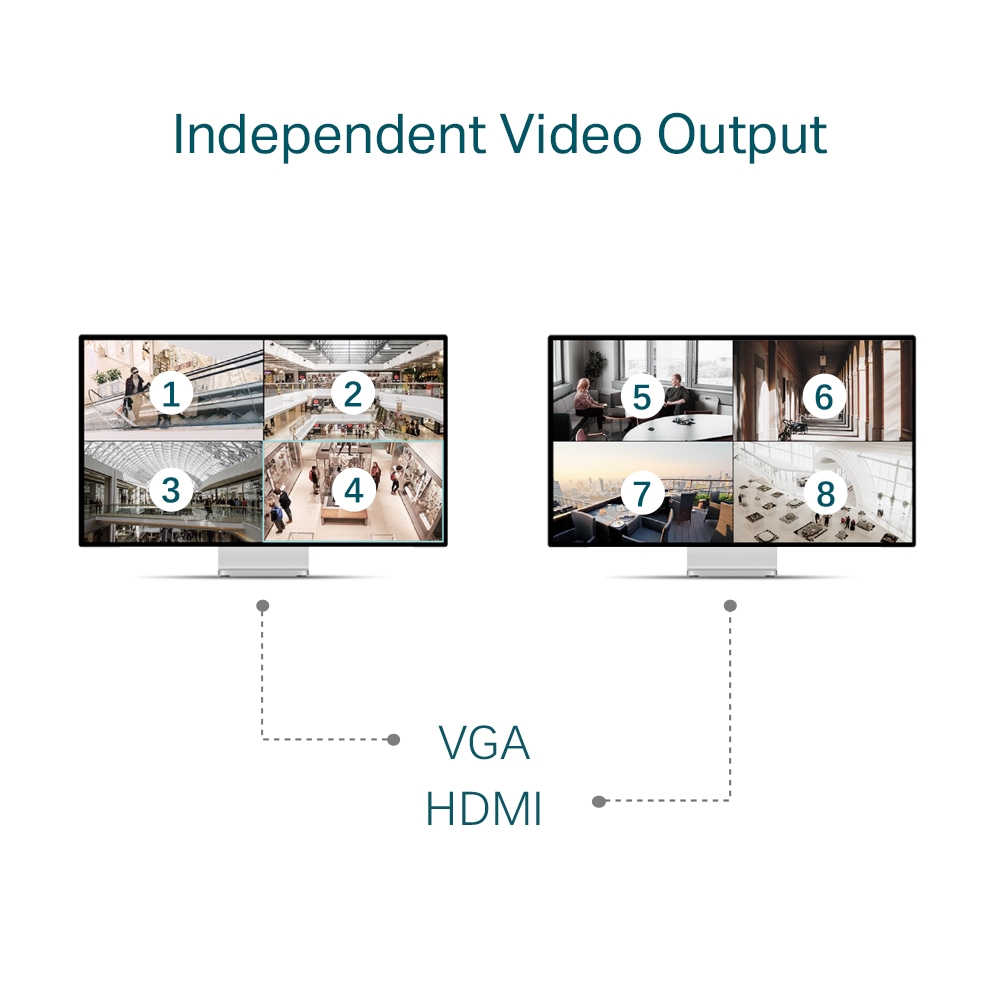

HDMI ports quantity1
USB 2.0 ports quantity2
VGA (D-Sub) output ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Audio output1
Line-inYes
RS-232 ports1
Supported network protocolsUPnP, NTP, ONVIF, CGI

Features

Rack mountingYes
Buzzer offYes
Product colourBlack

Power

Power consumption (max)48 W
AC input voltage100 - 240 V
AC input frequency50/60 Hz

System requirements

Mobile operating systems supportedAndroid, iOS
Browser supportedChrome (57+), Firefox (52+), Edge (91+)

Operational conditions

Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width440 mm
Depth330 mm
Height44 mm
Weight4 kg
Package width440 mm
Package depth528 mm
Package height100 mm
Package weight5.22 kg

Packaging content

Cables includedAC, Power
Quick installation guideYes
